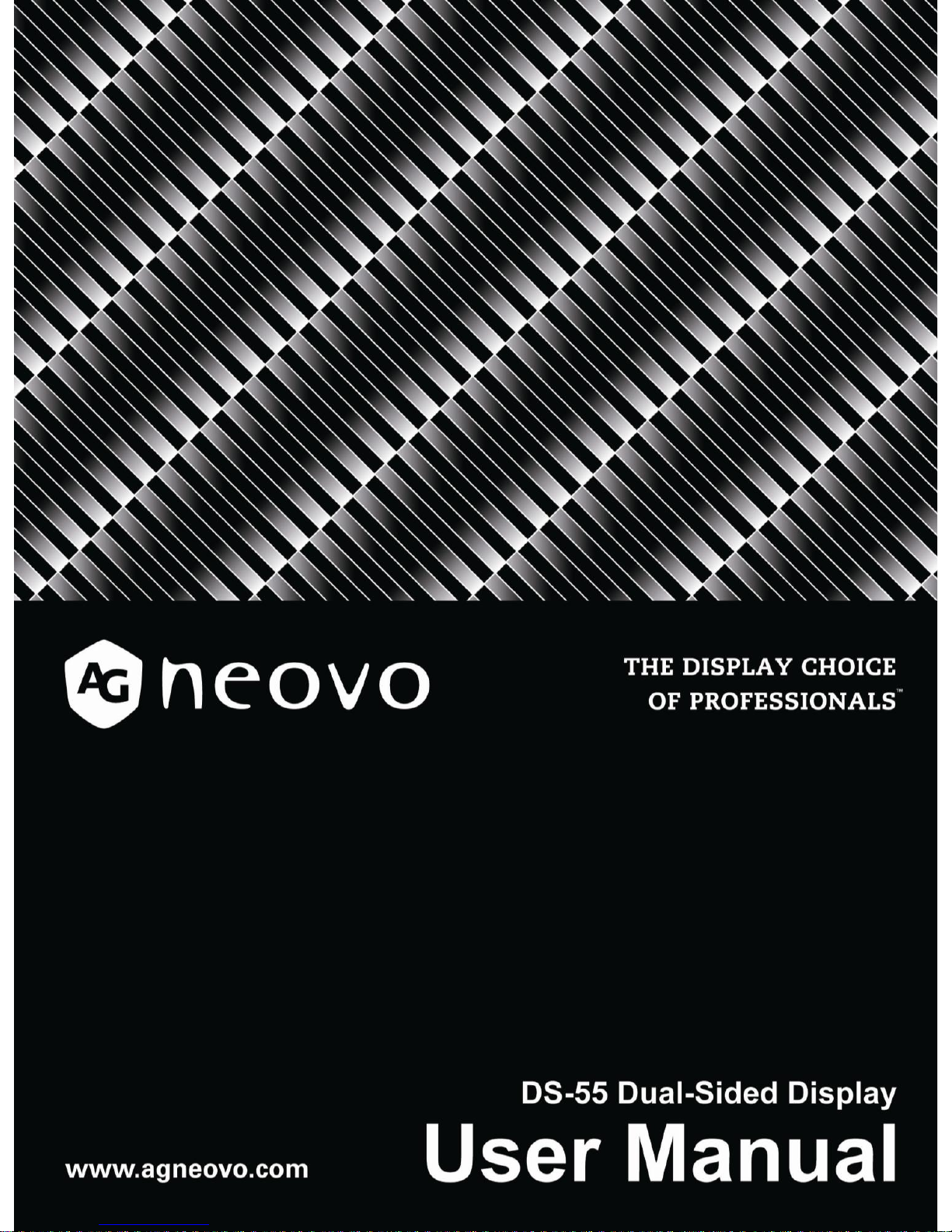

AG Neovo DS-55 Manual de usuario

•Important Safety Instructions………………………….1

–Safety precautions and maintenance………………............1

–Use………………………………………………………………4

–Installation Notes………………………………………………7

•Package Content……………………………………………..9

–Unpacking……………………………………………………...9

–Accessories……………………………………………..........10

–Overview……………………………………………………....11

•Setting Up the Display……………………………………13

–Step1 : Putting the dual-sided display upside ……...........13

–Step2 : Remove the three I/O covers on the sides............14

–Step3 : Remove the downside cover……………………....15

–Step4 : Link power box to dual-sided display………..........16

–Step5 : Connect by HDMI connector……………………….18

–Step6 : Reinstall the downside cover and I/O covers……..19

–Step7 : Connect the power cord…………………………….20

–Step8 : Using the Remote Control…………………………..21

–OSD Setting Menu…………………………………………..22

•Trouble shooting…………………………………...............26

•Specifications…………………………………….................27

•Product Dimensions………………………………...........28

Table of contents

Safety precautions and maintenance

WARNING: Use of control, adjustments or

procedures other than those specified in this

documentation may result in exposure to shock,

electrical hazards and/or mechanical hazards.

Important Safety Instructions

Read and follow these instructions when connecting and

using your display:

Operation:

•Keep the display out of direct sunlight and away from stoves or any

other heat sources.

•Remove any object that could fall into ventilation holes of power box

or prevent proper cooling of the display’s electronics.

•Don’t block the ventilation holes on the power box.

•When positioning the display, make sure the power plug and outlet

are easily accessible.

•When turning off the display by detaching the power cord, wait 6

seconds before re-attaching the power cord for normal operation.

•Ensure the use of an approved power cord provided by AUO at all

times. If your power cord is missing, please contact your local service

center.

•Don’t subject the display to severe vibration or high impact conditions

during operation.

•Don’t knock or drop the display during operation or transportation.

•Provide an earthing connection before the mains plug is connected to

the mains.And, when disconnecting the earthing connection, be sure to

disconnect after pulling out the mains plug from the mains.

Safety precautions and maintenance

Maintenance:

•To protect your display from possible damage, do not put excessive

pressure on the display.

•Unplug the display if you are not going to use it for an extensive

period of time.

•Unplug the display if you need to clean it with a slightly damp cloth.

The screen may be wiped with a dry cloth when the power is off.

However, never use organic solvent, such as, alcohol, or ammonia-

based liquids to clean your display.

•To avoid the risk of shock or permanent damage to the set, do not

expose the display to dust, rain, water or an excessively moist

environment.

•If your display becomes wet, wipe it with dry cloth as soon as possible.

•If a foreign substance or water gets in your display, turn the power off

immediately and disconnect the power cord. Then remove the foreign

substance or water.

•Don’t store or use the display in locations exposed to heat, direct

sunlight or extreme cold.

Safety precautions and maintenance

Read and follow these instructions when connecting and using

your display:

•Unplug the display if you are not going to use it for an extensive

period of time.

•Unplug the display if you need to clean it with a slightly damp cloth.

The screen may be wiped with a dry cloth when the power is

off. However, never use alcohol, solvents or ammonia-based liquids.

•Keep the display out of direct sunlight and away from stoves or any

other heat sources.

•Remove any object that could fall into the vents or prevent proper

cooling of the display’s electronics.

•Don’t block the ventilation holes on the power box.

•Keep the display dry. To avoid electric shock, do not expose it to rain

or excessive moisture.

•When turning off the display by detaching the power cable or DC

power cord, wait for 6 seconds before re-attaching the power

cable or DC power cord for normal operation.

•When positioning the display, make sure the power plug and outlet

are easily accessible.

•Consult a service technician if the display does not operate normally

after having followed the instructions in this manual.

Use

•Don’t turn the ventilation hole of Power Box upside down.

As shown in the picture below.

The ventilation hole of

power box

It is prohibited to

place tilt

The ventilation hole of

power box

It is prohibited to turn the

ventilation hole of Power

Box upside down.

Use

•When you install the display, please don’t use the “bottom

side” I/O hole and open the I/O cover . As shown in the

picture below.

The “bottom side” I/O cover

can’t be opened.

Use

Disconnect devices:

•For pluggable equipment, the socket-outlet shall be installed near the

equipment and shall be easily accessible.

Remote Controller Precautions:

•This product requires remote switch (ON/OFF) from Front Side ; the

Back Side only has OSD function operated by remote controller.

Front Side Back Side

The Front Side have a product

label.

Installation Notes

There have 8 mounting holes on the side

of the display set (M4x15mm)

Installation Notes

Please make sure you

have a solid installation.

As shown in the picture.

You can install the display

set by screws x 8

(M4x15mm)
