AFL Hyperscale U Series Manual de usuario
Installation Guide
6RU Splice and
Patch Panel
Series
2© AFL Hyperscale. All rights reserved Series
Safety Precautions
Laser Precautions
Warning: The laser light used to transmit information over optical ber cables can cause severe eye
damage. Because this light is invisible, it will not cause the iris of the eye to contract involuntarily as when
viewing a bright visible light, and no pain is felt as the retina is burned.
Never look into the end of a ber or connector which may have a laser coupled to it. Should accidental
eye exposure to laser light be suspected, arrange for an eye examination immediately.
General Precautions
Personnel must be thoroughly familiarized with all applicable Occupational Health and Safety (OH&S)
regulations, local regulations, and your company safety practices and policies.
Warning: To reduce the chance of accidental injury:
Before work begins, all personnel must be thoroughly familiar with the operation of all equipment
and procedures to be used during the installation.
Before use, all equipment, especially safety gear, must be inspected and tested for proper operation.
Replace and repair as necessary.
U-Series 6RU Splice and Patch Panel
Before installing or adjusting this product, please read these instructions carefully.
Please keep this guide for future reference.
3
U-Series 6RU Splice and Patch Panel
© AFL Hyperscale. All rights reserved
Series
Component Overview
01
02
04
05
03
4© AFL Hyperscale. All rights reserved Series
In the Box
Item
Number Item Qty
01 U-Series 6RU Splice
and Patch Panel 1
02 U-Series Patch
Adapter Plate 36
03 Front Door 1
04 Cable Clamp 1
05 Pivot Splice Tray Stack 1
06 M6 Cage Nuts + Screws 8
07 12f Ribbon Splice Protector 72
08 Ø30mm Conduit 1
09 24f LC Ribbon Pigtail 36
(01) U-Series 6RU Splice
and Patch Panel
(04) Cable Clamp
Cross-Head
Screwdriver
(07) 12f Ribbon Splice
Protector
Pliers
(02) U-Series Patch
Adapter Plate
(05) Pivot Splice
Tray Stack
Socket Wrench
(08) Ø30mm Conduit
(03) Front Door
(06) M6 Cage Nuts +
Screws
(09) 24f LC Ribbon
Pigtail
What You Will Need Related Products
250 μm WTC with SWR®
MicroCable Assemblies
(2mm Tails)
U-Series 3456f & 6912f
Breakout Box
One-Click®Cleaner
D-LC, Duplex LC
5
U-Series 6RU Splice and Patch Panel
© AFL Hyperscale. All rights reserved
Series
Panel Mounting
Remove the cable clamp (04) using a screwdriver.
4
Remove the shipping bracket side xing bolts
using a socket wrench.
3
Remove the panel (01) from the packing crate.
2
Remove the four shipping bracket xing bolts
using a socket wrench and a screwdriver.
1
6© AFL Hyperscale. All rights reserved Series
Insert the remaining cage nut screws (06) using
a screwdriver.
8
Mount the panel (01) onto the rack and
tighten the cage nut screws (06) using a
screwdriver.
7
Partially tighten the cage nut screws (06) in the
positions shown (left- and right-hand side) using
a screwdriver.
6
Panel Mounting
Insert the cage nuts (06), in positions shown
above, on both the left and right hand sides of
the rack.
5
2U
6U
2U
Slotted bracket for
ease of installation
7
U-Series 6RU Splice and Patch Panel
© AFL Hyperscale. All rights reserved
Series
Panel Mounting

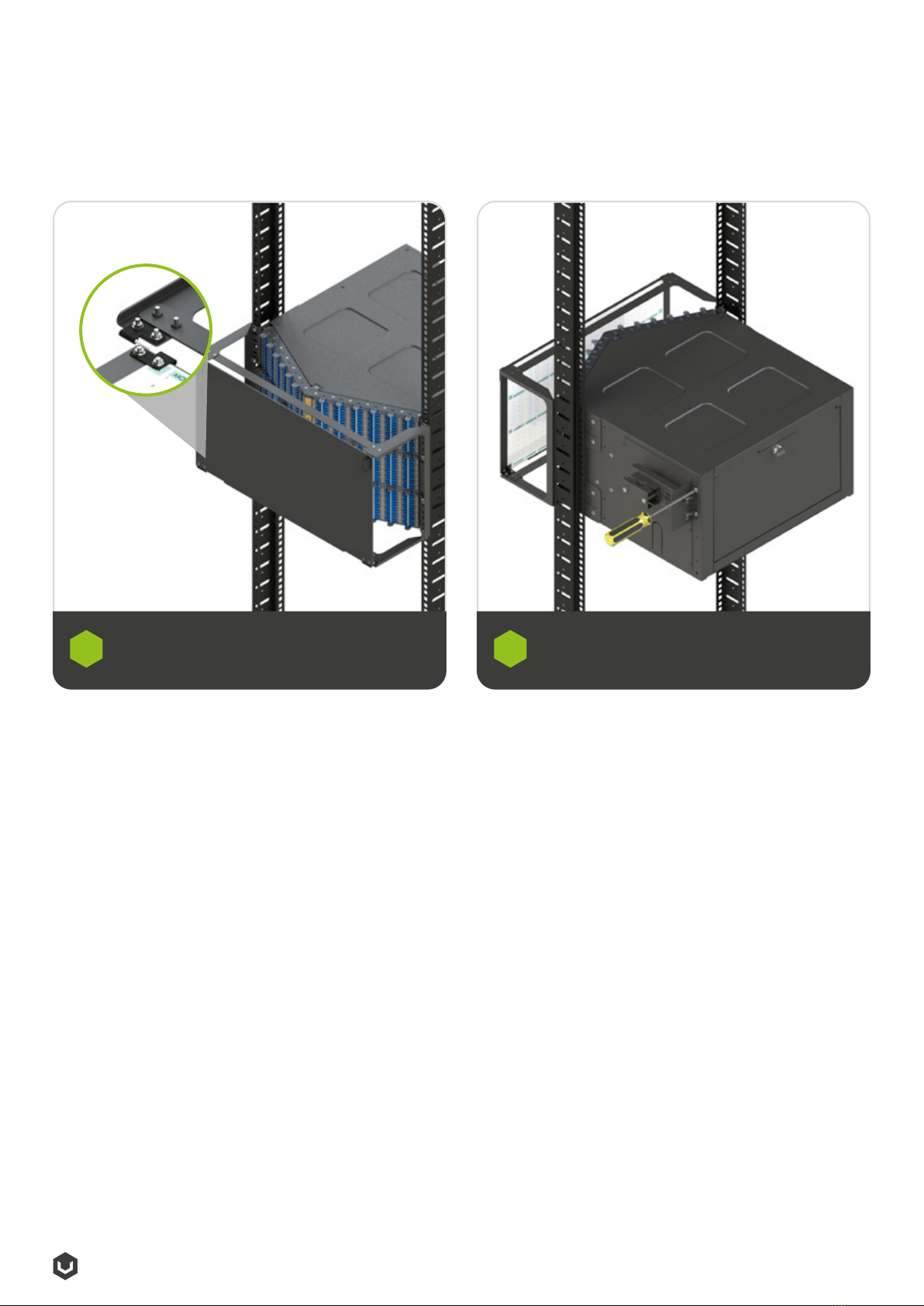

Re-attach the cable clamp (04) using a
screwdriver.
10
Mount the door (03) onto the panel (01).
9
8© AFL Hyperscale. All rights reserved Series
Cable Installation
Slide the conduit (08) over the cable sub-units /
ber bundles.
14
Strip the cable jacket in accordance with the
cable manufacturer’s guidelines.
13
Clamp the cable and tighten using a socket
wrench (allowing a min. of 2m for jacket
stripping).
12
Open the rear panel and remove the bottom
side panel with a screwdriver.
11
Approx. 2m
50mm
9
U-Series 6RU Splice and Patch Panel
© AFL Hyperscale. All rights reserved
Series
Cable Installation

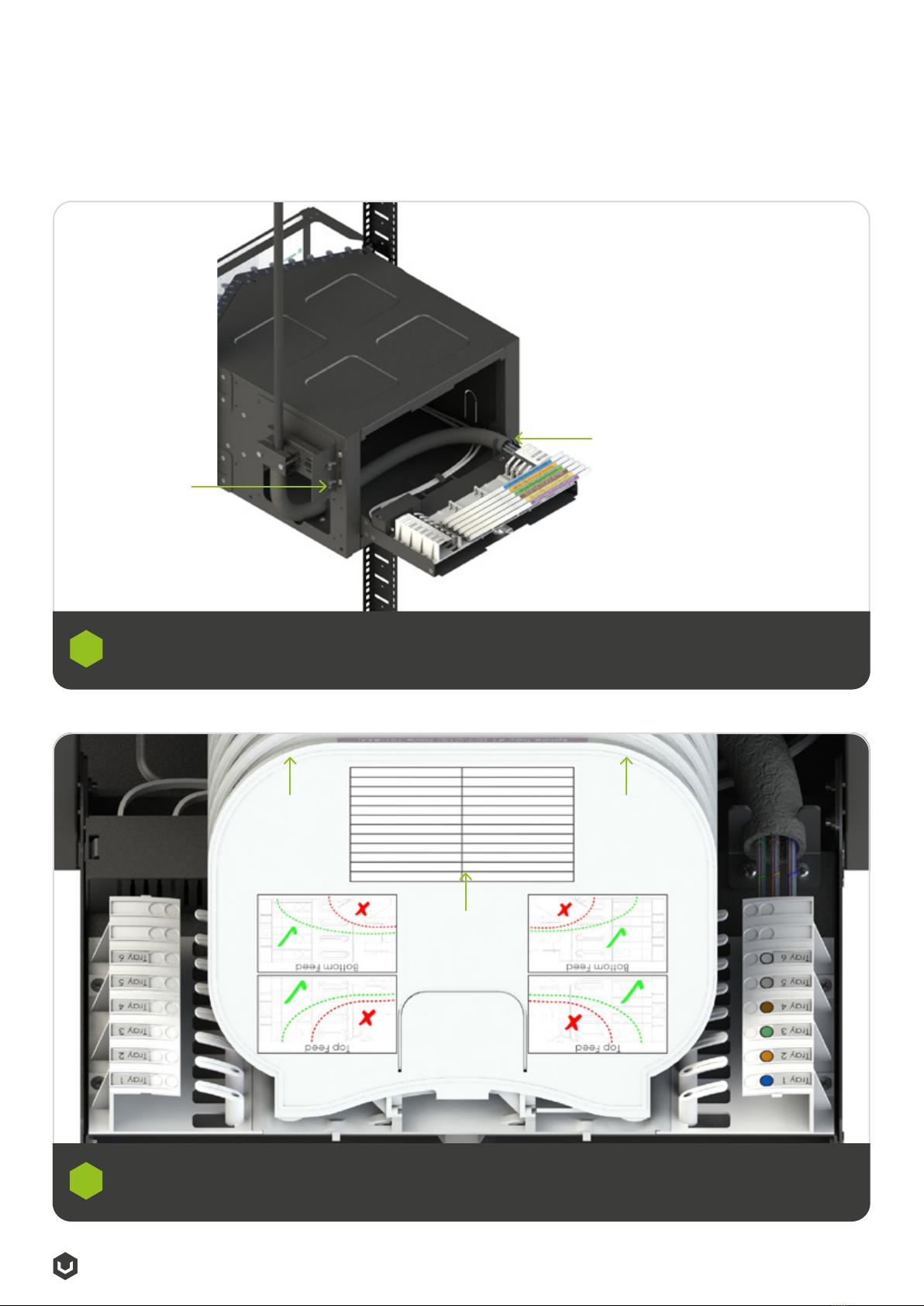

Remove the splice tray cover.
16
Feed the conduit (08) into the panel and clip it into the conduit clamp.
15
Clip
Splice
Schedule
Latch / TabLatch / Tab
Clip
10 © AFL Hyperscale. All rights reserved Series
Cable Installation
Close the back panel and re-t the side cover
using a screwdriver.
19
Remove the knockout section from the side
cover using pliers.
18
Route the incoming ber (BLUE) as per the image above - store up to 1.5m of 144f ribbon ber. Factory-installed
ribbon pigtail ber shown in GREEN.Splice according to the splice schedule.
17
Fiber Retainer Clips Fiber Retainer Clips
