Installation Instructions

603 SPARTAN Intercom

PROFESSIONAL INSTALL ONLY

Do NOT give this manual to end user!

Models 603-IBK, AB, ABK, HB, HBK, FB, FBK, IMP, IMPK

The manufacturer cannot legally offer technical support to non-qualified gate

or door installers. End users should employ the services of a professional

install company to commission or support this product!

Tip: Site Survey BEFORE you begin. See Page 3!

P a g e | 2

Contents

Overview of System

…………….Pg 3

Site Survey

…………….Pg 3

Wall / Pillar Mounting

…………….Pg 3

Gooseneck / Pedestal Mounting

…………….Pg 4

Mounting Speech Panels

…………….Pg 5

Wiring

…………….Pg 6

Keypad Overview

…………….Pg 7

Keypad Programming

…………….Pg 7

Using the Keypad

…………….Pg 9

The Handset

…………….Pg 9

Optional Audio Monitor

……….…...Pg 10

603 Audio Monitor Wiring & Mounting

..………….Pg 10

Re-coding or Adding a Handset

..………….Pg 11

Testing

..………….Pg 11

Using the Handset

..………….Pg 12

Adjusting Relay Time

..………….Pg 12

Adjusting Handset Displayed Time

..………….Pg 12

Voicemail

..………….Pg 12

Troubleshooting Guide

.………….Pg 13

P a g e | 3

Site Survey

Before installing this system, you need to be sure that the range of the system will be sufficient.

The transmitter and speech unit can be powered up, call button pressed, and then check that the

handset will ring from all areas in which it will be used.

Tip: For longer range installations, locate the handset close to the front of the property, near a

window if possible. Concrete walls can reduce the open-air range of 400 metres/yards by 30-50%

per wall.

Transmitter Unit in Detail

N/O

N/C

COM

24v

OUT

12v

N/C

N/O

Sol

24v

DC IN

COM

2200uF

1000u

Surge protection

fuses.

F1=1A

F2=0.5A

Microphone

connections

Speaker

connections

Button connections (use

button 1 only on this model)

Code

button

Optional antenna port

for additional range

Optional battery

backup output socket

(12v 3Ah max lead

acid)

Optional solar input

(12v 60w max, 24v 30w

max)

Earth terminal.

Connect to earth rod

otherwise manufacturer

warranty will be void

Relay outputs.

Volt free.

24v ac 2 amp max load

Speech

panel

Walls causing weak signal

Up to 200m / yards

P a g e | 4

Keypad Module in Detail

Wall/Pillar Mounting

N/O

N/C

COM

NO / NC

COM

Relay1

(1000 codes)

Relay2

(100 codes)

Egress

Wire N/O exit button to

here & GND (-)

Not used

Relay3

(100 codes)

Full / Auto

(keypad

illumination)

Relay 2

N/O and N/C

selection

24v dc Power

(Pre-wired)

P a g e | 5

603 Range

Intercom

Transmitter

Gooseneck / Pedestal Mounting

603 Range

Intercom

Transmitter

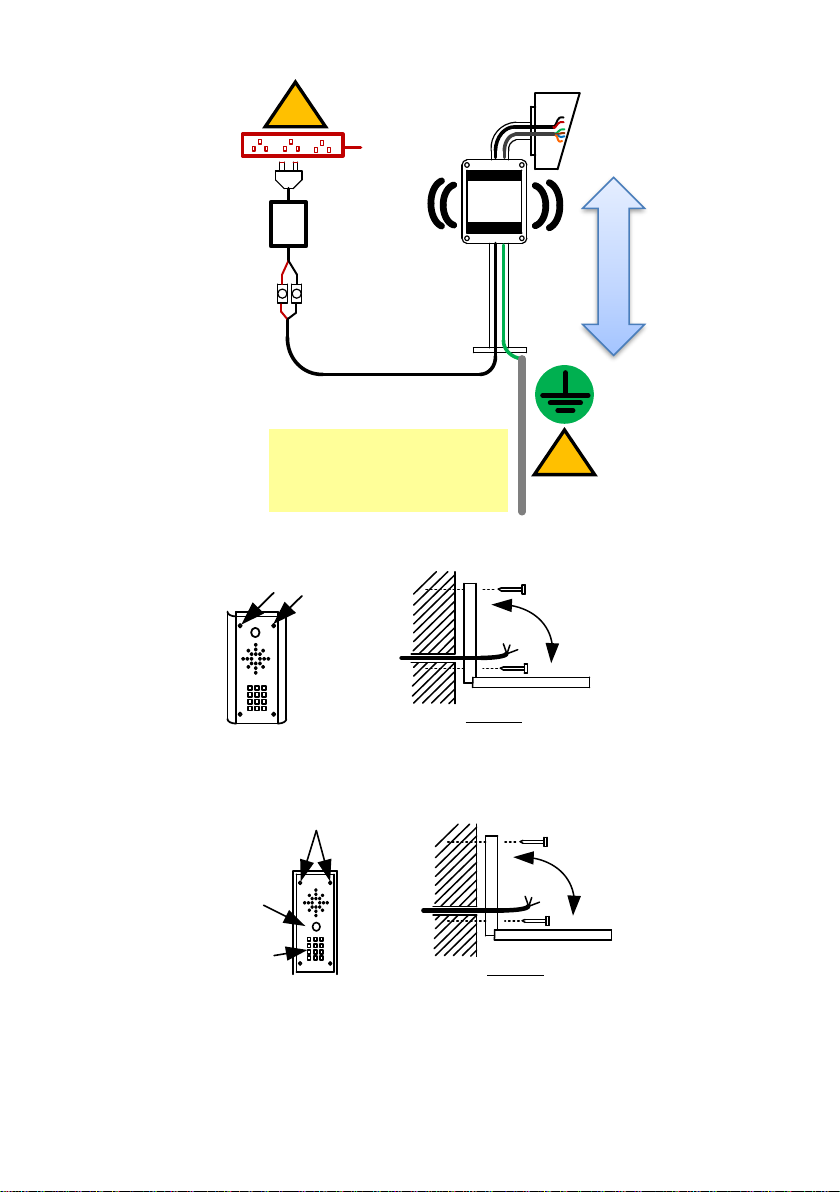

Tip: For shorter distances, some installs may mount transmitter on pedestal for convenience.

Range test first! For high security applications, it is recommended to locate the transmitter INSIDE

the property perimeter.

Screened CAT5 included. (10m / yards MAX)

Lightning prone areas must use

110v Surge protector and

connect earth rod to internal 24v

surge protector

transmitter

Keep High!

Speech

point

Power cable (2x1mm / 16 gauge)

Power (2x1mm / 16 gauge)

24v dc PSU

Transmitter

Screened CAT5

Power cable (2x1mm / 16 gauge)

24v dc PSU

CAUTION!

Competent person only!

Keep high!

Lightning prone areas must use

110v Surge protector and

connect earth rod to internal 24v

surge protector

Speech

point

P a g e | 6

603 Range

Intercom

Transmitter

Mounting Architectural Panels

Loosen top 2 screws only

Hinge front door

Side View

Mounting Hooded Panels

Call Button

Optional keypad

module

Loosen top 2 screws only

Hinge front door

Side View

Mounting Flush Panels

Power (2x1mm / 16 gauge)

Keep High!

24v dc PSU

Lightning prone areas must use

110v Surge protector and

connect earth rod to internal 24v

surge protector

P a g e | 7

Call Button

Optional keypad

module Remove

Side View

Flush with surface

Tip: Use appropriate fixings to ensure the intercom cannot be removed from the wall.

Pedestal Style Mounting

Hinge

front door

Wall mount

Hinge front

door

Gooseneck mount

5/16 (M8)

bolts

3" hole

centres

3" hole

centres

Tip: Use key provided to unlock front door.

Wiring

N/O

N/C

COM

+ + -

12-24

24v

OUT

12v

N/C

N/O

Sol

24v

DC IN

COM

2200uF

1000u

Speaker

Volume

To 24v PSU

WARNING:

Only use provided UL

power supply

IMPORTANT

Screen connection

Transmitter

Call Box

To Gate

controller

or lock

P a g e | 8

Relay Connections Example

Keypad overview

This keypad has 3 outputs. The diagram below shows the LED indicators which indicate

programming and relay status information.

RED when incorrect codes entered and outputs are locked out.

1 2 3

4 5 6

7 8 9

* 0 #

SLOW FLASHING - in normal standby mode.

ON in programming mode.

ON when relay 3 activated.

GREEN when output 1 activated.

RED when output 2 activated.

CLEAR when output 3 activated

FAST FLASHING –Wrong code entered / error.

TIP: After power up, as a security precaution, the keypad cannot be programmed for 60 seconds.

Once this time elapses, you may begin.

TIP: Flashing amber LED is normal standby mode!

Basic Keypad Programming

Intercom board

Keypad board

Electric Gates

COM

N/O

COM

N/C

COM

N/O

Gate

Controller

Magnetic

Lock

N/C

Other control

device

Separate lock

PSU

(Not supplied)

P a g e | 9

0 0 0 0 * *

Quick start guide

1) Enter programming mode (amber LED should be ON)

1 0 2 0 0 ? ?? ? #0

2) Enter a new user code...

* *

3) Exit programming mode

4) Enter the new user code to check the relay clicks.

Full Keypad programming

Enter programming mode..

0 0 0 0 * *

Exit programming mode..

* *

Enter a new ENGINEERS code…

Go into programming mode firstly then enter the following sequence…

Location

0 1 ?? ? ?

4-8 digit code Validate

Enter or delete new user codes

There are 3 groups of user codes. Group 10 for relay 1, group 20 for relay 2, and group 30 for

relay 3. The programming sequence is shown below…

Memory locations

000-999 for relay 1

001-100 for relay 2

001-100 for relay 3

1 0 2 0 0

10= relay 1 codes

(1000 available)

20= relay 2 codes

(100 available)

30= relay 3 codes

(100 available)

? ?? ? #0

2= add code

5= delete code Pin code 4-8 digits Validate

Example: Add user 31 to have access code 5555 operating relay 2….

2 0 2 0 3 5 55 5 #1

Group 2 Add code Location 31 Pin code 5555 Validate

Programming relay output times and modes…

Tip: The engineer code

must be the same length as

user codes. So if using a 6

digit engineers code, then

user codes must also be 6

digits long etc.

The unit is now in programming mode. Amber LED on the

keypad should remain permanently on. 0000 is the default

programming passcode.

The unit should exit programming mode and the amber LED

should start flashing again.

Replace ???? with your new ENGINEERS

code.

P a g e | 10

? ? 01 -

0 = start / stop toggle mode (latching)

1-99999 = seconds momentary operation

99999

or #

51=relay1

52=relay2

53=relay3

Validate

Delete a user code even if you don’t know the code…

? ? 5 ? ?? #

10=relay1

20=relay2

30=relay3 Delete code ID location to be deleted Validate

Delete an entire group of codes

? ? 0 9 99 #

10=relay1 group

20=relay2 group

30=relay3 group Super delete code Validate

Programming super user codes…

A super user code can activate any of the 3 relays

Location

0 2 ?? ? ?

4-8 digit code Validate

Restoring defaults

When in programming mode, you can enter the following sequence…

9 9 99 #

When the master code is forgotten….

1) Wire a push button (or replicate with wire link) across the Egress terminal and (-)GND.

2) Switch off power for 1 minute.

3) Switch ON power.

4) during the first 60 seconds, press the EG button once to enable the function.

5) Enter the following code..

8 0 08 * *

The keypad should now be in programming mode, ready to accept new data. The master code will

need changed at this point to something memorable before proceeding.

Using the keypad

Using the standard codes…

Once you have exited out of programming mode, simply enter the user code.

Using super user codes
