AEQ ARROW 50T Manual de usuario
AEQ ARROW 50T and
50R
Portable audio link
.
USER MANUAL
ED 07/06
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
2
BASIC USER’S MANUAL AEQ ARROW 50T
FRONTVIEW 3
DESCRIPTIONOFTHEUNIT 4
GENERAL CHARACTERISTICS 5
TECHNICAL SPECIFICATIONS 6
STARTING TO WORK 7
POSSIBLE PROBLEMS AND SOLUTIONS 8
ASSOCIATED EQUIPMENTS 9
CHANNEL FREQUENCIES LIST 10
AUDIO SIGNAL INPUT/OUTPUT CODES 10
BASIC USER’S MANUAL AEQ ARROW 50R
FRONTVIEW 11
DESCRIPTIONOFTHEUNIT 12
CONTROLS, INDICATORS AND ACCESORIES 13
TECHNICAL SPECIFICATIONS 14
STARTING TO WORK 15
POSSIBLE PROBLEMS AND SOLUTIONS 16
CHANNEL FREQUENCIES LIST 17
AUDIO SIGNAL INPUT/OUTPUT CODES 17
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
3

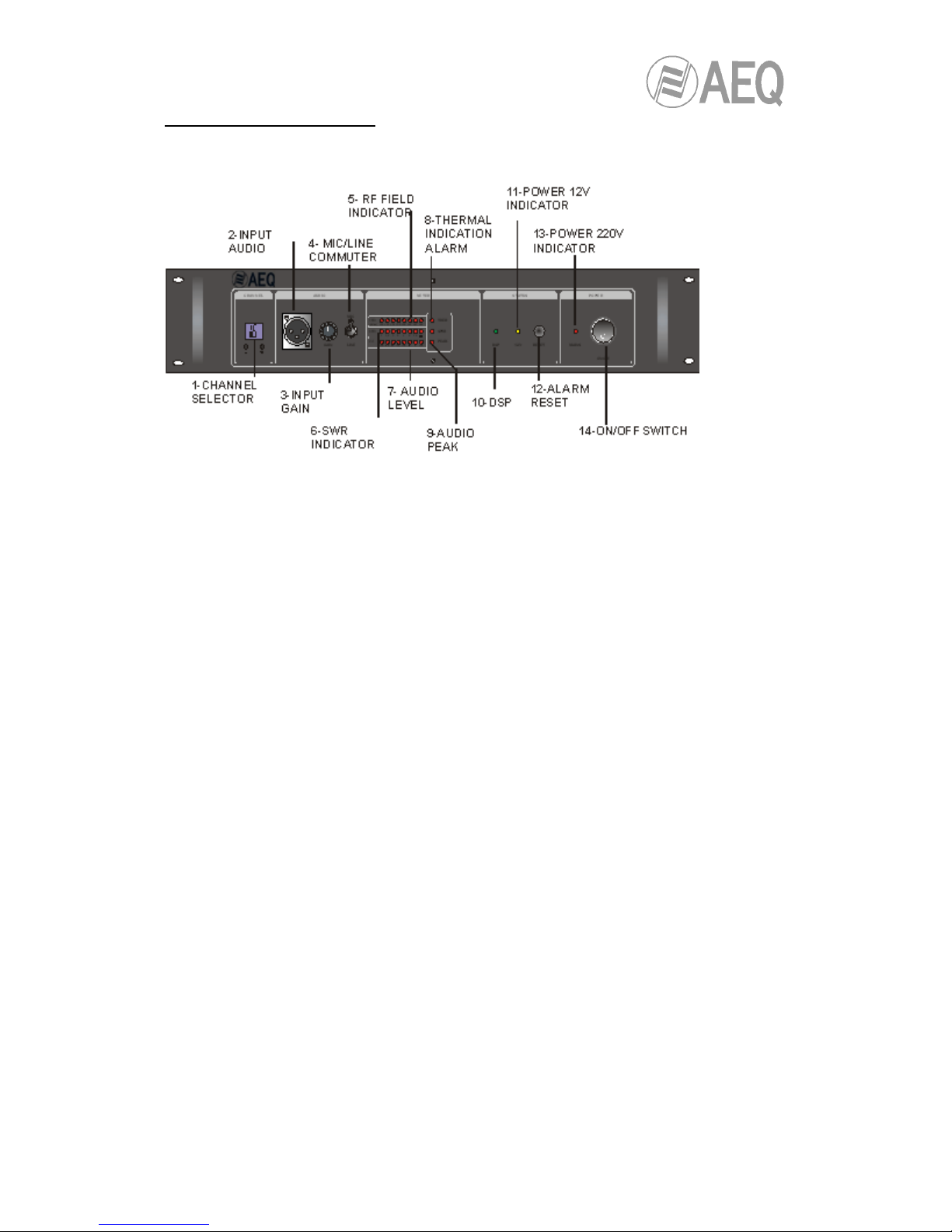

ARROW 50T FRONT VIEW
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
4
ARROW 50T DESCRIPTION OF THE UNIT
The system AEQ ARROW 50T base transmitter is a long range radio link with
broadcast quality audio, designed for easy handling and high reliability.
This device is implemented using the latest electronic and manufacturing
technologies (SMT) and high quality components.
This transmitter is a multichannel system in VHF range with very complete
protection system.
The transmitter has a select mic/line audio input and gain adjust. This audio signal
of very high quality is submitted a compression/limitation system with pre-
emphasis of 50/75 us (upon request).
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
5
ARROW 50T GENERAL CHARACTERISTICS
•To be used for radio-diffusion link.
•Multi-channel system (synthesized by PLL)
•Select mic/line audio input
•Compressor/limiter
•High quality audio
•FM bandwidth emission
•Power 115/220 VAC internally selectable
•In rear panel optionally is equipped a BNC connector, used to activate RF
power (If not short-circuited, no RF power were present), a BNC
connector is sent to put in this place
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
6
ARROW 50T TECHNICAL SPECIFICATIONS
RADIO
Frequency range: 174−500 MHz, window of 20 MHz dependin
g on version (a,B,C)
Power: 30W, 100%, duty cycle, delayed ON
Channels: 16, PLL digital.
Ch selector: 2 digit decimal encoder, delayed.
Modulation: +/− 30 Khz pre−enphasis 50/75us
(other standards upon request)
Output impedance: 50 Ohm
Spurious emissions: < −65 dBc
RF output connector: Type N
AUDIO
Audio input: Mic/Line sel.
NR system: ˆSilenzo˜ Compressor limiter
DSP: 32 bits (option)
Gain Control: Front panel
AF bandwidth: 50 Hz/15 Khz +/− 0,5 dB
Distorsion: <0,3%
Audio connector: XLR3, F
SNR: >85 dB
PROTECTION AND INDICATORS
ROE Protection
Thermal protection
VU−meter
SWR indication
FWD indication
DC and AC indication
SWR indication alarm, led and buzzer
Thermal indication alarm, led and buzzer
GENERAL
reset control
ON/OFF switch
Channel encoder control
Power 115/220 VAC internally
Dimensions: 2HU 19˜ x 250 mm.
Weight: 3,2 Kg
Power connector: Powercom for AC/XLR4 F for DC
SUBD connector: For reprogramming
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
7
ARROW 50T STARTING
Please check that you are using the appropriate antenna and it is correctly connect,
because the equipment have a high RF power.
After this, you must do the following:
If you use 115/220 VAC, connect the cable, checking that the ON/OFF
switch is in OFF.
Connect the equipment, switch ON.
Check the channel selected.
Connect the audio input with the correct level gain.
All ERROR indicators should be switch off.
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
8
ARROW 50T POSSIBLE PROBLEMS AND SOLUTIONS
1. SWITCH ON the 12V indicator is not lighting:
Check that the cable is correctly connected.
Check that the DC bridge is correctly placed.
Check fuse status.
2. SWR indicator is lighting:
Check the antenna position and connection are correct.
Press the RESET button, if the error persists, switch OFF the equipment
and check all the connections and procedures of starting.
3. Thermal indicator is lighting:
Check the external equipment temperature.
Press RESET. If the problem is the same, switch off and cool the
equipment. After this procedure, switch ON the equipment.
4. In the normal working, the SWR indicator is lighting:
Check the antenna connection, position and status.
Press the RESET button and if the problem persists, switch OFF the
equipment.
5. In the normal working, the thermal alarm is lighting:
Check the external equipment temperature.
Press RESET button. If the problem continue, cool the equipment totally
switch OFF
6. Transmitted audio is distorted:
Check the audio input level gain.
Check audio Rx output
Normally we recommend installing the equipment in a good ventilated place. Also is
very important in order to get the best characteristics of the equipment the correct
position of the antennas in order to obtain the best radio link.
Please check the RF spectrum and the frequencies range that you will use in order
to select the most favourable channel in each moment.
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
9
ARROW 50T ASSOCIATED EQUIPMENT
•AEQ ARROW 50R base receiver
•3 Elements standard Yagi antenna, 9,5 dBi
•Magnetic base antenna, usually mounted over the top of moving
vehicles.
AEQ ARROW 50 T and 50R
PORTABLE AUDIO LINK
.
10
ARROW 50T CHANNEL TX FREQUENCIES LIST
ARROW 50T AUDIO SIGNAL INPUT/OUTPUT CODES:
-One XLR3 F to audio input mic/line UHF Tx:
1. GND
2. Phase +
3. Phase -
-XLR4 F 12 V DC:
1. -
2. NC
3. NC
4. +
