Water Sensor 7 Pro user guide (ZWA019)

Modified on: Thu, 3 Sep, 2020 at 12:18 AM

Aeotec Water Sensor 7 Pro.

Aeotec Water Sensor 7 has been crafted as a safety sensor to help detect and prevent floods and water leaks using

Z-Wave Plus. It is powered by Aeotec’s Gen7 (https://aeotec.com/z-wave-home-automation/z-wave-gen7.html) technology

and S2 framework. You can find out more about Water Sensor 7 (https://aeotec.com/z-wave-door-window-sensor) by

following that link.

To see whether Water Sensor 7 is known to be compatible with your Z-Wave system or not, please reference our Z-Wave

gateway comparison (http://aeotec.com/z-wave-gateways) listing. The technical specifications of Water Sensor 7

(https://aeotec.freshdesk.com/a/solutions/articles/6000218908-door-window-sensor-7-technical-specifications-) can be

viewed at that link.

Familiarize yourself with your Water Sensor 7.

Package contents:

1. Sensor Unit.

2. Cover.

3. Double-Sided Tape large (×2).

4. Screws (×4).

5. Dowels( x4).

Important safety information.

Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec Limited may

be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held

responsible for any loss or damage resulting from not following any instructions in this guide or in other materials.

Keep product and batteries away from open flames and extreme heat. Avoid direct sunlight or heat exposure. Always

remove all batteries from products that are being stored and not used. Batteries may damage the appliance if they leak.

Do not use rechargeable batteries. Ensure correct polarity when inserting the batteries. Improper battery use may damage

the product.

Water Sensor 7 is intended for indoor use in dry locations only. Do not use in damp, moist, and/or wet locations.

It contains small parts; keep away from children.

Quick Start

Installation of Water Sensor 7 Pro.

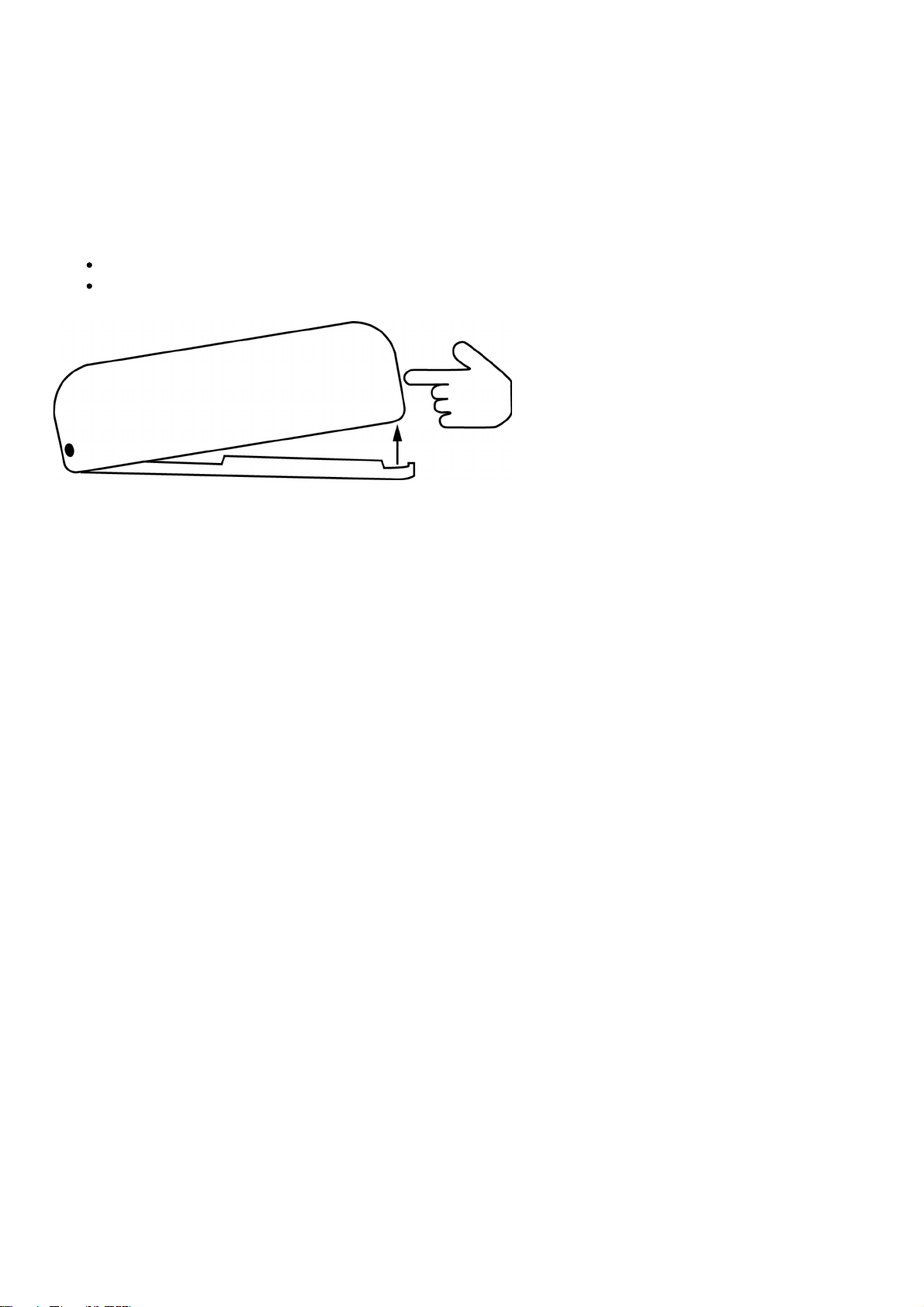

Open the cover by pressing the clip on the side and pulling the cover upwards.

Insert a fresh 1 * 1/2 AA battery, but pay attention to the polarity

Install your Water Sensor 7 Pro.

The Water Sensor 7 should be placed wherever you want to monitor for possible flooding or leaks. When placing the

Water Sensor 7, consider the direction in which a flood or leak may flow and where it may occur. The contacts of the

Water Sensor 7 probe will detect the liquid, so the probe must be placed so that any flood or leak will come into contact

with it. When the probe contacts come into contact with a liquid, the Water Sensor 7 sends a leak warning to your Z-Wave

Gateway. Make sure that both contacts are capable of detecting leaks or flooding.

Adding your Water Sensor 7 to Z-Wave network.

SmartStart Inclusion.

You can use this method of inclusion only if your Z-Wave gateway/controller/hub supports SmartStart.

1. Open up your Z-Wave gateway/controller/app.

. Select SmartStart inclusion.

3. Scan the QR code located on the Water Sensor 7.

4. Within 10 minutes after powering your Water Sensor 7, it will automatically get included into your Z-Wave

gateway/controller/hub.

Classic Inclusion

1. Set your Z-Wave controller into pairing mode.

2. Triple-click the tamper switch on Water Sensor 7 - this begins to blink five times

3. After completion of the inclusion, the LED will illuminate green for 3 seconds.

4. If you pairing with S2 encryption/security, enter the first 5 digits of the DSK into your controller/gateway/hub

interface when requested.

5. Close the cover

Functions of Water Sensor 7 Pro.

Water leak

Once installed, this sensor will report wet or dry via Notification Command Class when this devices is wet or removed

from water.

Notification Report

Type: Unknown (0x05)

Value: Wet (0x02) or Dry (0x00)

Tamper

Tamper alarm will be sent if the cover is removed.

Notification Report

Type: Tamper Removed (0x07)

Value: 0x03

Temperature

This sensor will report occasionally on its own as an unsolicited Multilevel Sensor Report either by a timed interval

(Parameter 18) or by the change in value (Parameter 16).

Multilevel Sensor Report

Humidity

This sensor will report occasionally on its own as an unsolicited Multilevel Sensor Report either by a timed interval

(Parameter 18) or by the change in value (Parameter 17).

Multilevel Sensor Report

LED indicator.

Function Description LED Indicator

Device Not in Network Blinks red for 5 seconds (1 sec duty cycle) when battery is

inserted and sensor is not in network

Include/Exclude/Learn Mode

Illuminate green for 3 seconds when Inclusion / Exclusion /

Configuration is successful.

Illuminate red for 3 seconds when Inclusion / Exclusion /

Configuration is unsuccessful (upon a timeout of 30 seconds).

Local Reset When device is locally reset to Factory Default LED blinks red (1

second duty cycle) for 5 seconds.

LowBatt When operation button is Short Pressed the LED blinks red three

time (1 sec duty cycle)

Tampering

If either Tamper Switch 1 or 2 is activated the device blinks red

one time with ½ second duty cycle if within range of Controller.

The device blinks red three times with ½ second duty cycle if out of

range of Controller

Water protection When operation button is Short Pressed the LED illuminates red

three seconds in case of Water Leakage detected and Green if

no Leakage detected.

Button Function.

Push Type Function Description

Long Press 5s Pending reset LEDs start indication Waiting for Reset.

Long Press 10s Reset Initiates Device Reset Locally.

Short Press Tamper Sends Wake Up notification.

3 Times Short Press Sequence See Learn Mode.

Advanced Functions.

Communication test.

This utilizes the Power Level command class to determine the health between the Water Sensor 7 and your Z-Wave

gateway. This will tell you if the Water Sensor 7 has a healthy connection to your system and is a great method of

debugging connectivity issues.

1. Set Parameter #4 to value #1

2. Double click the Tamper Switch.

3. Result:Green LED blinks once - success

Red LED blinks 3x times - failure

Firmware-Update over the Air.

This device is capable of receiving a new firmware 'over the air'. The update function needs to be supported by the central

controller. Once the controller starts the update process, perform the following action to confirm the firmware update:

1. Wake Up the device by removing the cover.

2. The hit the tamper switch once.

Send a wake up notification.

In order to send your sensors new configuration commands from your Z-Wave controller or gateway, it will need to be

woken up.

1. Wake Up the device by removing the cover.

2. The hit the tamper switch once.

Note: Water Sensor 7 remains awake until the housing is closed again.

Remove your Water Sensor 7 from Z-Wave network.

Your sensor can be removed from your Z-Wave network at any time. You'll need to use your Z-Wave network's main

controller/gateway. To do this, please refer to the part of your gateways respective manual that tells you how to remove

devices from your network.

1. Set your Z-Wave controller into unpair mode.

2. Triple-click the tamper switch on Water Sensor 7 within 1.5 seconds - this will cause the LED to blink five times.

3. After a successful exclusion, it will light up its LED for 2 seconds then deactivate.

Reset your Water Sensor 7.

This device also allows being reset without any involvement of a Z-Wave controller. This procedure should only be used

when the primary controller is inoperable.

To manually factory reset:

1. Remove the cover of Water Sensor 7

2. Press and hold tamper switch for 5 seconds until the red LED blinks.

3. Release the tamper switch

4. Immediately press and hold the tamper switch for 5 seconds until the red LED blinks.

Association Groups

Group Association allows Water Sensor to directly communicate with other Z-Wave devices directly without the need for

the Z-Wave Controller to act as a inbetween controller. This using this function will help with communication effeciency

and limit the amount of time it takes to control a device.

Group

Number Maximum

Nodes Description

1 5 Lifeline

2 5 Control devices when water leakage is detected

3 5 Sends out alarm message when water leakage is

detected

4 5 Sends alarm messages when tamper is tripped

Parameter setting.

3. Visual LED indications

Parameter: 3

Size: 1 Byte

Default Value: 7

Description:

This parameter defines when the red LED will indicate events. Disabling all indications may extend battery life.

(values 1 + 2 + 4 summarized)

0 - No indications

1 - Water Leakage Status Change

2 - Wake Up (1 x click)

4 - Device tampering

4. Range test after double click

Parameter: 4

Size: 1 Byte

Default Value: 0

Description:

Allows to enable the activation of a Z-Wave range test with double clicking the tamper switch.

0 - disabled

1 - enabled

5. 2nd Association Group Trigger

Parameter: 5

Size: 1 Byte

Default Value: 0

Description:

This parameter defines the status of the water leakage that causes sending a BASIC command to all devices of

Association Group 2.

0 - Switch after Water Leakage Start and Stop

1 - Switch after Water Leakage Start

2 - Switch after Water Leakage Stop

6. Command Sent to Devices of Association Group 2

Parameter: 6

Size: 1 Byte

Default Value: 255

Description:

This parameter defines which commands is sent to 2nd Association Group

0 - On

1 - Off

2 - On and Off

7. BASIC command value sent to 2nd Association Group on On event

Parameter: 7

Size: 1 Byte

Default Value: 255

Description:

This is the BASIC command value sent in case of On even

0 - 99 - Value

255 - On

8. BASIC command value sent to 2nd Association Group on Off event

Parameter: 8

Size: 1 Byte

Default Value: 0

Description:

This is the BASIC command value sent in case of Off event.

0 - 99 - Value

255 - On

9. Time Delay of On command frame

Parameter: 9

Size: 2 Byte

Default Value: 0

Description:

On command is sent after a delay defined in this parameter.

0 - 32400 - Seconds

10. Time delay of Off command frame

Parameter: 10

Size: 2 Byte

Default Value: 0

Description:

Off command is sent after a delay defined in this parameter.

0 - 32400 - Seconds

11. Delay of tamper alarm cancellation.

Parameter: 11

Size: 2 Byte

Default Value: 0

Description:

Time a tamper alarm is delayed.

0 - 32400 - Seconds

12. Reporting tamper alarm cancellation

Parameter: 12

Size: 1 Byte

Default Value: 1

Description:

This parameter defines if the alarm cancellation event is reported.

0 - do not send report

1 - send report

16. Minimum Temperature change to report.

Parameter: 16

Size: 1 Byte

Default Value: 20

Description:

This value defines the minimum change of temperature to cause an unsolicited report of humidity to the central

controller using Lifeline. If the value is set to 0, there will be no reports sent to the controller, when the temperature

changes. However, periodic reports, managed by configuration parameter 18, may still be active.

0 - disabled

1-100 - 0,1 degree step

17. Minimum humidity change to report.

Parameter: 17

Size: 1 Byte

Default Value: 5

Description:

This value defines the minimum change of humidity to cause an unsolicited report of humidity to the central

controller using Lifeline. If the value is set to 0, there will be no reports sent to the controller, when the humidity

changes. However, periodic

reports, managed by configuration parameter 18, may still be active.

0 - disabled

1-20 - value in %

18. Periodic Reports.

Parameter: 18

Size: 2 Byte

Default Value: 43200

Description:

This parameter defines the time interval to send an unsolicited report. If the value is set to 0, there will be no

periodic reports sent to the controller. However, reports on temperature/humidity changes, managed by

configuration parameters 16 and 17, may still be active.

0 - disabled

900-65535 - value in seconds

64. Temperature Scale

Parameter: 64

Size: 1 Byte

Default Value: 1

Description:

This parameter sets the temperature scale.

1 - Celsius

2 - Fahrenheit

255. Reset Parameter

Parameter: 255

Size: 4 Byte

Default Value: 0

Description:

This parameter helps reset configuration parameters and the device to factory defaults

1- Reset all Parameter settings to their default settings.

1431655765 - (0x55555555) Completely factory reset sensor and send device reset locally notification

Otros manuales para Water Sensor 7 Pro

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de Aeotec

Aeotec

Aeotec MULTISENSOR 6 Manual de usuario

Aeotec

Aeotec Button Manual de usuario

Aeotec

Aeotec ZW089 Manual de usuario

Aeotec

Aeotec Door / Window Sensor 7 Manual de usuario

Aeotec

Aeotec DSB05106-ZWUS Manual de usuario

Aeotec

Aeotec ZW187 Manual de usuario

Aeotec

Aeotec Door / Window Sensor 7 Manual de usuario

Aeotec

Aeotec Smart Switch 7 ZWA023 Manual de usuario

Aeotec

Aeotec AEOEZW120 Manual de usuario

Aeotec

Aeotec Water Sensor 7 Pro Manual de usuario

Aeotec

Aeotec MultiSensor Manual de usuario

Aeotec

Aeotec Siren 6 Manual de usuario

Aeotec

Aeotec MULTISENSOR 6 Manual de usuario

Aeotec

Aeotec MULTISENSOR 6 Manual de usuario

Aeotec

Aeotec ZW162 Manual de usuario

Aeotec

Aeotec TriSensor ZWA005 Manual de usuario

Aeotec

Aeotec Z-Wave MultiSensor 6 Manual de usuario

Aeotec

Aeotec Water Sensor 7 Pro Manual de usuario

Aeotec

Aeotec ZWA005 Manual de usuario

Aeotec

Aeotec Recessed Door Sensor 7 Manual de usuario

Aeotec

Aeotec AEOEZW112 Manual de usuario

Aeotec

Aeotec GP-AEOWLSEU Manual de usuario

Aeotec

Aeotec AEOEZWA009 Manual de usuario

Aeotec

Aeotec Z-Wave Multisensor DSB05-ZWEU Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
