QUICK START USER GUIDE

6417

(1) Clamp-on Ground Tester

Model 6417

Cat. #2141.02

5WCalibration Loop

Cat. #2141.51

Bluetooth Adapter

Cat. #2126.45

Hard Accessory Case

Cat. #2141.50

Quick Start Guide

USB Stick with

DataView®Software & User Manual

PRODUCT PACKAGING

Shipping Contents:

Also Included:

(4) 1.5V AA Batteries

(1) Wrist Strap

(1) Safety Sheet (20 languages)

USB STICK: DataView®software and complete user manual for the Model 6417

can be located on the USB stick supplied with the instrument.

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

certiﬁes that this instrument has been calibrated

using standards and instruments traceable to

international standards.

We guarantee that at the time of shipping your

instrument has met its published speciﬁcations.

An NIST traceable certiﬁcate may be

requested at the time of purchase, or obtained

by returning the instrument to our repair and

calibration facility, for a nominal charge.

The recommended calibration interval for this

instrument is 12 months and begins on the date of

receipt by the customer. For recalibration, please

use our calibration services. Refer to our repair

and calibration section at www.aemc.com.

Serial #: ________________________________

Catalog #: 2141.02

Model #: 6417

Please ﬁll in the appropriate date as indicated:

Date Received: _________________________________

Date Calibration Due: _______________________

Chauvin Arnoux®, Inc.

d.b.a AEMC®Instruments

www.aemc.com

Thank you for purchasing the AEMC Clamp-on Ground Resistance Tester.

For best results from your instrument and for your safety, read the enclosed operating

instructions carefully and comply with the precautions for use. These products must be

only used by qualied and trained users.

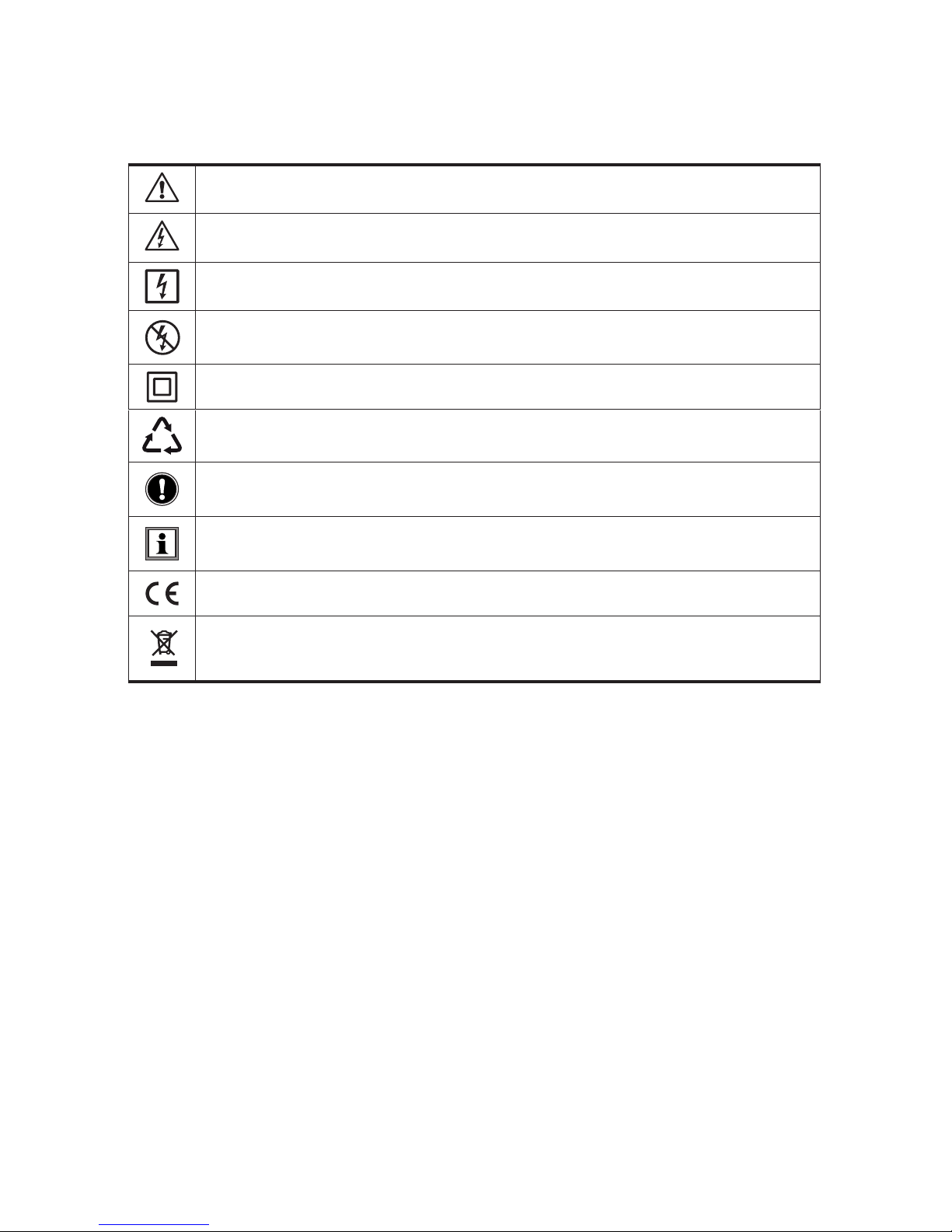

WARNING, risk of DANGER! The operator must refer to these instructions whenever this

danger symbol appears.

CAUTION! Risk of electric shock. The voltage at the parts marked with this symbol may be

dangerous.

Application or withdrawal authorized on conductors carrying dangerous voltages.

Type A current sensor as per IEC 61010-2-032.

Must not be applied to or removed from conductors at dangerous voltages.

Type B current sensor as per IEC 61010-2-032.

Equipment is protected by double insulation.

The product has been declared recyclable after analysis of its life cycle in accordance with

the ISO14040 standard.

Important instructions to read and to fully understand.

Useful information or tip to read.

The CE marking guarantees conformity with European directives and with regulations

covering EMC.

The trash can with a line through it means that in the European Union, the product must

undergo selective disposal for the recycling of electric and electronic material,

in compliance with Directive WEEE 2002/96/EC.

Denition of Measurement Categories (CAT)

CAT IV Measurement category IV corresponds to measurements taken at the source

of low-voltage installations.

Example: power feeders, counters and protection devices.

CAT III Measurement category III corresponds to measurements on building installa-

tions.

Example: distribution panel, circuit-breakers, machines or xed industrial

devices.

CAT II Measurement category II corresponds to measurements taken on circuits

directly connected to low-voltage installations.

Example: power supply to domestic electrical appliances and portable tools.

Precautions for Use

This instrument and its accessories comply with safety standards EN 61010-1, EN

61010-030, and EN 61010-2-032 for voltages of 600V in Category IV at an altitude of

less than 2000m with a pollution degree of not more than 2.

Failure to observe the safety instructions may result in electric shock, re, explosion,

and destruction of the instrument and of the installations.

• The operator and/or the responsible authority must carefully read and clearly

understand the various precautions to be taken in use. Sound knowledge and a

keen awareness of electrical hazards are essential when using this instrument.

• If you use this instrument other than as specied, the protection it provides may

be compromised, thereby endangering you.

• Do not use the instrument on networks of which the voltage or category exceeds

those mentioned.

• Do not use the instrument if it seems to be damaged, incomplete, or poorly

closed.

• Before each use, check the condition of the insulation on housing. Any item of

which the insulation is deteriorated (even partially) must be set aside for repair

or scrapping.

• Use personal protection equipment systematically.

• When handling the instrument, keep your ngers behind the physical guard.

• All troubleshooting and metrological checks must be performed by competent

and accredited personnel.

• Avoid impacts on the measurement head, in particular the air gap.

• Keep the surfaces of the air gap clean; even a little dirt can cause the clamp to

malfunction.

• All metal objects or wires connected to the electrical system should be assumed

to be lethal until tested. Grounding systems are no exception.

• Use extreme caution when using the instrument around energized electrical

equipment.

• Never attempt to use the instrument to twist or pry the ground electrode or

ground wire away from the equipment being grounded.

Control Features

MEM

HOLD

OFF

SET-UP

1. Head Assembly: Consists of two individually shielded magnetic cores.

2. Guard: Safety guard; do not place hands above this guard

3. Lever: Opens or closes jaws.

4. : Toggles display backlight on/o󰀨

5. MEM: Store measurements into memory

6. ►: Navigates and validates measurement displays

7. OLED Display: Crisp, clean and bright (Organic Light Emitting Diode) display

8. Rotary Switch: Selects measurement functions and instrument SET-UP

9. HOLD: Freezes last measured value on the display

Turns Bluetooth ON/OFF (when switch is set to MR or SET-UP)

Rotary Switch Functions

Range Description

OFF Instrument is powered OFF

Ω+A Simultaneous selection of the Loop Impedance measurement and the Leakage

Current measurement

ACurrent measurement

MR Memory Recall

SET-UP

Access to the instrument conguration and deletion of stored measurements

(for complete details on the various SET-UP parameters that can be congured,

refer to § 4.4 in the user manual supplied on the USB stick).

Button Functions

Button Description

• When the rotary switch is set to Ω+A or A: Increases the brightness of

the OLED display; makes it easier to read the display in an environment

with strong background illumination. Highlighting activated for 30 seconds.

• When the rotary switch is set to SET-UP or MR: Serves as ▲ arrow

when browsing in the menus and values. The brightness of the display

does not change when device is set to SET-UP or MR.

MEM

▼

• When the rotary switch is set to Ω+A or A: Records the measured

value. All of the data is recorded in the Standard or Advanced mode.

• When the rotary switch is set to SET-UP or MR: Serves as ▼ arrow

when browsing in the menus and values.

►

• When the rotary switch is set to Ω+A (Advanced Mode):

Short Press: Switches the display through the following 3 modes:

-Display of the impedance recalculated at the selected frequency.

-Display of the contact voltage (product Z*I).

-Display of R and L.

Long Press: Activates or deactivates the audible alarms.

• When the rotary switch is set to SET-UP:

-Validation when browsing in the menus and values.

• When the rotary switch is set to MR (Advanced Mode):

-Switches the display through the measurement screens and the

measurement date/time.

HOLD

AUTO-HOLD

• When the rotary switch is set to Ω+A:

-Freezes the measurement display for as long as the HOLD button is

pressed. The NOISE, clamp open ( ), and alarm overshoot ( ) icons

are visible if they were active.

• When the rotary switch is set to MR or SET-UP:

-Activates or deactivates the Bluetooth®connection.

• Auto-Hold Function:

If the AUTO-HOLD mode was activated during instrument SET-UP, open-

ing the clamp places the device in an identical state to the HOLD mode for

as long as the clamp is open. The benet of this function is that it makes it

easy to freeze the measurement with one hand, when access to the HOLD

button is di󰀩cult. If the HOLD button is not pressed during this time, clos-

ing the clamp automatically exits the AUTO-HOLD mode.

Audible Signals

Four types of audible signals can be generated:

Type Duration Description

Low-pitched Short Normal use (button pressed).

Permanent Over(under)-shoot of a measurement alarm threshold (Ω, A).

High-pitched Short Abnormal use (for example, memory full).

Permanent Overshoot of a safety alarm threshold (V).

Instrument Conﬁguration (SET-UP)

The SET-UP position gives access to the following options to set user dened

parameters for instrument conguration (NOTE: These parameters can also be

congured in DataView):

No. Function

1Erases stored measurements.

2Enables/disables the buzzer.

3Enables/disables Auto Power OFF

4Sets the impedance alarm threshold (W).

5Sets the voltage alarm threshold (V).

6Sets the current alarm threshold (I).

7Sets the date.

8Sets the time.

9Selects the Standard or Advanced operating mode.

10 Selects the test frequency for the impedance.

11 Enables/disables the AUTO-HOLD mode.

12 Displays the version number.

13 Not used.

Selecting a Speciﬁc Menu

Use the buttons as follows to select a specic menu item:

Button Action

▲Move up in the menu tree.

▼Move down in the menu tree.

►Select the menu displayed or return to the previous menu.

NOTE: For complete details on the conﬁgurable SET-UP menu items, refer to § 4.4 in

the user manual supplied on the USB stick.

Getting Started

Inserting the Batteries

• Disconnect the instrument from any

connections and turn the rotary switch to

the OFF position.

• Use a Phillips head screwdriver to

unscrew the 2 attachment screws and

remove the battery compartment cover.

• Remove the old batteries and replace

them with 4 new batteries (LR6, AA,

1.5V), observing the polarities.

• Close the battery compartment cover and

screw the two screws back in.

• Check the proper operation of the device.

WARNING: Do not clamp onto a conductor during a measurement.

Turning the Instrument ON

With the clamp closed and not clamped around any conductor, set the rotary switch to

a position other than OFF. All icons on the display light for approximately two seconds,

before possible entry of the date and time.

Turning Bluetooth ON

• Turn the rotary switch to the MR or Setup position., then press and release the

HOLD / button.

When Bluetooth (BT) is ON you will see the Bluetooth icon ( ) at the bottom of the

display.

To turn Bluetooth OFF, repeat the steps above. Once Bluetooth is ON you can rotate

the rotary switch to any position (except OFF) and Bluetooth will remain ON.

NOTE: When setting up the Bluetooth connection between the instrument and your

PC, you may be prompted to enter a pass code on the PC. If so, enter 1234 for the

pass code.

Setting the Date and Time

Setting the clock, which allows time-stamping of the measurements, is done only the

rst time the device is used or after the device has been without battery power for

more than 2 minutes.

Set the function switch to Ω+A. All icons on the display light for approximately two

seconds. Enter the date and time of the device using the ▲, ▼, and ► buttons.

The date and time can also be congured before a measurement in SET-UP.

Standard and Advanced Modes

The Ground Resistance Tester has two modes:

• Standard Mode: Makes the standard loop resistance/impedance and current

clamp measurements.

• Advanced Mode: Used to rene and complete the measurements:

-Impedance referred to the selected frequency.

-Contact voltage.

-Resistive and inductive fractions of the loop impedance.

The choice of the Standard or Advanced mode and the alarm thresholds are

congured in SET-UP.

Storing Measurements into Memory

The values displayed during the measurements can be stored in memory and read

later. Storage of the data is available in both the Ω+A and A measurement modes,

provided that memory locations are free. Data is stored as soon as the MEM button is

pressed. A long audible signal conrms the storage.

Displaying Stored Measurements

• Set the function switch to the MR position.

• The type of data that is displayed is dependent on whether Standard or Advanced

mode was selected during SET-UP.

Installing DataView®

DO NOT CONNECT THE INSTRUMENT TO THE PC BEFORE INSTALLING THE SOFT-

WARE AND DRIVERS.

1. Insert the USB stick into an available USB port (wait for the driver to be installed).

If Autorun is enabled, an AutoPlay window appears. If Autorun is disabled, open

Windows Explorer, then locate and open the USB stick drive labeled DataView.

2. In the AutoPlay window, select Open folder to view les.

3. Double-click on Setup.exe to launch the Dataview®setup program.

NOTE: For more information on using the DataView®software, refer to the Model

6417 user manual supplied on the USB stick.

NOTE: You can retrieve and analyze measurement results with the DataView®soft-

ware or with an Android app through the Bluetooth communication port.

Otros manuales para 6417

Tabla de contenidos

Otros manuales de Equipo de prueba de AEMC

AEMC

AEMC 6470-b Manual de usuario

AEMC

AEMC SR759 Manual de usuario

AEMC

AEMC 6416 Manual de usuario

AEMC

AEMC 6416 Instrucciones de instalación y funcionamiento

AEMC

AEMC SR751 Manual de usuario

AEMC

AEMC MD314 Manual de usuario

AEMC

AEMC 6400 series Manual de usuario

AEMC

AEMC MN261 Manual de usuario

AEMC

AEMC 6417 Manual de usuario

AEMC

AEMC 6471 Manual de usuario

AEMC

AEMC OX 5022B Manual de usuario

AEMC

AEMC MA114 Manual de usuario

AEMC

AEMC 6472 Manual de usuario

AEMC

AEMC SR652 Manual de usuario

AEMC

AEMC Simple Logger AmpFlex AL24-2500 Manual de usuario

AEMC

AEMC MN122 Manual de usuario

AEMC

AEMC SR751 Manual de usuario

AEMC

AEMC GROUNDFLEX 6474 Manual de usuario

AEMC

AEMC pmr-1 Manual de usuario

AEMC

AEMC FlexProbe Manual de usuario

AEMC

AEMC CM605 Manual de usuario

AEMC

AEMC OX 5042 Manual de usuario

AEMC

AEMC OX 7102 Guía de configuración

AEMC

AEMC 3620 Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
