INSTRUCTION BOOK
2
Your New Appliance
Thank you for purchasing an AEG appliance.
To enable you to use your new appliance efficiently and safely, please read this
instruction book carefully before installing or using the appliance, and retain for
future reference. Should the appliance be transferred to a new owner please
ensure this instruction book is left with the appliance in order that the new owner
can get to know the functions of the appliance and the relevant warnings.
If you require further assistance or advice, please contact our Customer Care
Department either by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
SL1 1DZ
Tel: 08705 350350*
* calls to this number may be recorded for training purposes
3
Contents Page No.
For the user
Your New Appliance ........................................................................................ 2
Safety information .......................................................................................... 5
Product description ........................................................................................ 7
Downdraught Extractor .......................................................................... 8
Height positions .................................................................................... 8
Extraction rates ...................................................................................... 8
Electronic control system ...................................................................... 8
How to use it .................................................................................................... 9
Downdraught Extractor .......................................................................... 9
Finger touch .......................................................................................... 9
Downdraught Extractor .......................................................................... 10
Extraction rates ...................................................................................... 13
Intensive extraction ................................................................................ 14
Timer-controlled switching off .............................................................. 15
Autostop ................................................................................................ 16
Correct ventilation .................................................................................. 17
Cleaning and maintenance ............................................................................ 18
Aluminium ............................................................................................ 18
Ceramic hob .......................................................................................... 18
Top cabinet .............................................................................................. 18
Extraction shaft ...................................................................................... 19
What to do if .................................................................................................... 31
Service and spare parts .......................................................................... 33
4
Contents Page No.
For the electrician
Unpacking ...................................................................................................... 20
Technical data ................................................................................................ 21
Installation........................................................................................................ 22
Mounting ........................................................................................................ 26
1... 2...
Step by step
Safety information
Hints and tips
Environmental information
How to read the operating instructions
The products are continuously being developed and it may occur that some product specifications
are changed after this instruction book was printed. We therefore have to make reservation for any
changes or printing errors.
5
Safety Information
Keep an eye on children when the
downdraught extractor is in use.
Never let children touch or play with
the control knobs.
Never leave the downdraught extrac-
tor unattended when deep-frying or
melting fat, paraffin wax or other
easily ignited substances. Do not
flambe in the immediate proximity
of a downdraught extractor that is
switched on. It can cause a fire. In
the event of fire, the downdraught
extractor must be switched off.
Put out the fire with a lid. Never
use water.
Check that the downdraught extrac-
tor is turned off when not in use.
This downdraught extractor is
designed for use in a normal domes-
tic household. If used in any other
way there could be a risk of an acci-
dent.
Children
Use
For hygiene and safety reasons the
downdraught extractor must be kept
clean. In a worst case scenario, a
clogged fat filter can ignite and burst
into flames.
Service and repair must be per-
formed by our service organisation
or an organisation approved by us.
Only spare parts supplied by our
service organisation may be used.
Make sure the packaging is disposed
of in such a manner that children
cannot access the used packaging.
Cleaning and Maintenance
Service
Unpacking
6
The downdraught extractor may only
be installed by an authorised electri-
cian or someone approved by the
manufacturer.
Work carried out by unqualified per-
sons can lead to personal injury
and/or damage to property and may
damage the downdraught extractor.
During installation make sure the
electricity cable is not pinched.
Do not interfere with the down-
draught extractor electrical parts.
Extracted air must not be connected
to a duct that is already used to dis-
charge flue gases from an oil-fired
boiler or similar.
Help to avoid accidents when throw-
ing out the downdraught extractor.
Remove the electricity cable from
the wall socket and cut it off close to
the downdraught extractor.
Installation
Disposal
7
Product Description
32 4
5
7
61
8
Control Panel
1. On/off
2. Raise the downdraught extractor
3. Lower the downdraught extractor
4. Set the extraction rate
5. Intensive extraction
6. Minute timer
7. Extraction rate display
8. Minute display
8
Downdraught Extractor
The air is sucked in at the air
dampers through the fat filter and is
then blown via the extraction hose to
the extraction duct and out into the
open air.
Height positions
The downdraught extractor has 4
different extraction strengths:
150m3/h, 220m3/h, 345 m3/h and
480 m3/h.
When installed beside a gas
appliance, the down-
draught extractor can only
extract in the top position.
Extraction rates
When installed beside electrical
appliances, the downdraught extrac-
tor can be adjusted continuously
from the centre position to the top
position.
The downdraught extractor has an
electronic control system.
The electronics have the following
functions:
- Extraction rate display
- Timer-controlled operation
- Autostop
- Grease filter cleaning indicator
Electronic control system
9
How to use
Downdraught Extractor
Never leave the down-
draught extractor unattended
when deep-frying or melting
fat or other easily ignited
substances. Do not flambe
food in the immediate prox-
imity of a downdraught
extractor that is switched on.
This can cause fire.
In the event of fire, the
downdraught extractor must
be switched off.
Put out the fire with a lid.
Never use water.
Finger Touch
The buttons have to be touched for
at least 1 second before they are
activated.
If the buttons are touched for more
than 10 seconds, the downdraught
extractor will be switched off auto-
matically. If two buttons are touched
at the same time, neither of the set-
tings is registered, apart from reset-
ting the indicator for cleaning the fat
filter.
The downdraught extractor can
always be switched off by pressing
the kbutton.
10

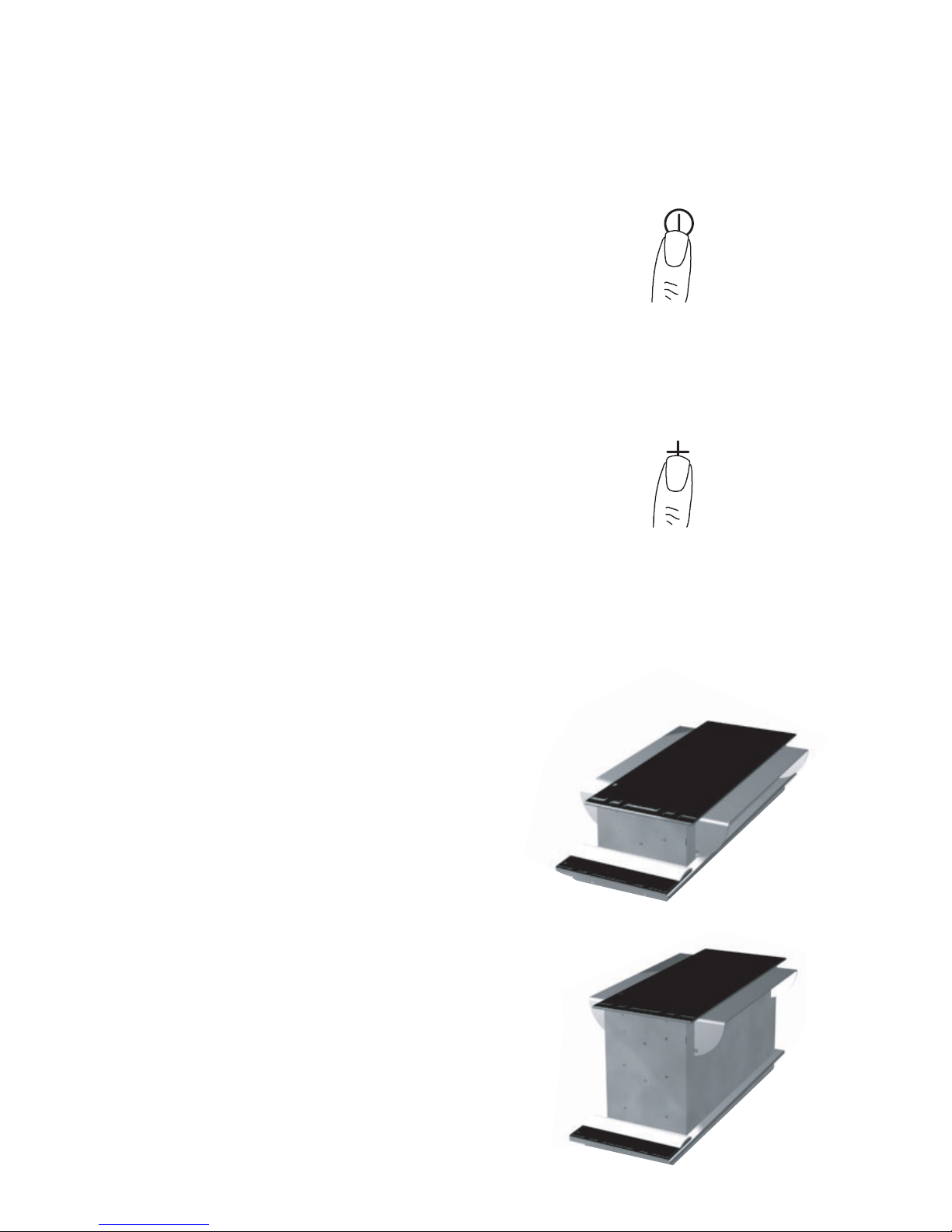

Downdraught Extractor
1. To turn the downdraught extractor
on, press k.
2. To select the height position, press
m.
The downdraught extractor will
move to middle position and switch
on at extraction rate 1.
To turn the downdraught extractor
off, hold ldown until bottom
position has been reached.
Pressing kwill turn extraction off,
but the downdraught extractor will
remain where it is and not descend
into the worktop.
Height positions
Installation beside electrical appli-
ances
The downdraught extractor is
variable between the middle and top
position.
Raising
The downdraught extractor is
switched on.
Select the height position within 10
seconds.
1. Press
m.
The downdraught extractor will
move to middle position. The
dampers are deployed.
2. Press
magain.
