Cooker hood

Operating and Installation Instructions

Contents

Safety warnings 3

FortheUser 3

FortheInstaller 3

Description of the Appliance 5

Extractorversion 5

FilterVersion 5

Control Panel 6

Maintenance and care 8

Cleaningthehood 8

Metalgrease filter 8

Removingthe metalgreasefilter 8

Charcoalfilter 9

Changingthe light bulb 10

What to do if 11

Service and Spare Parts 12

Guarantee Conditions 13

Technical Specifications 15

Mountingaccessories included 15

Electrical connection 16

Safetywarnings for the electrician 16

Wall unit mounting 17

Printedon recycled paper

AEG - putting words into action

Safety warnings

For the User

• Thecookerhoodisdesignedtoextract unpleasant odours from the

kitchen, it will not extract steam.

• Alwayscoverlightedelements,topreventexcessheatfrom

damaging the appliance. In the case of oil, gas and coal fired

cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/cooker

undercarefulcontrol.

• Thehotoilinthe frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

•Never carry out any flambé cooking under the hood.

•Always disconnect the unit from the power supply before

carrying out any work on the hood, including replacing the

light bulb (take the cartridge fuse out of the fuse holder or switch off

theautomatic circuit breaker).

•It is very important to clean the hood and replace the filter at

the recommended intervals. Failure to do so could cause

grease deposits to build up, resulting in a fire hazard.

For the Installer

• When used as an extractor unit, the hood must be fitted with a

150mmdiameter hose.

• Should there already be a pipe of diameter 125 mm that ducts to the

outside through the walls or roof, it is possible to use the 150/125

mm reduction flange provided. In this case the hood will be slightly

morenoisy.

•When installing the hood, make sure you respect the following

minimum distance from the top edge of the cooking hob/ring

surfaces:

electric cookers 500 mm

gascookers 650 mm

coal and oil cookers 700 mm min.

• Thenational standard on fuel-burning systems specifies a maximum

depression of 0.04 bar in such rooms.

• The air outlet must not be connected to chimney flues or combustion

gas ducts. The air outlet must under no circumstances be connected

toventilation ducts for rooms inwhichfuel-burningappliancesare

installed.

• Itis advisable to apply for authorizationfromtherelevantcontrolling

authority when connecting the outlet to an unused chimney flue or

combustion gas duct.

The air outlet installation must comply with the regulations laid down

bythe relevant authorities.

• When the unit is used in its extractor version, a sufficiently large

ventilationhole must be provided, with dimensions thatare

approximately the same as the outlet hole.

• Nationaland regional buildingregulationsimpose a numberof

restrictionson using hoods and fuel-burning appliances connected to

a chimney, such as coal or oil room-heaters and gas fires, in the

sameroom.

• Hoods can only be used safely with appliances connected to a

chimneyif the room and/or flat(air/environmentcombination)is

ventilatedfrom outside using asuitableventilationhole approximately

500-600cm2 largetoavoidthepossibilityofa depression being

createdduring operationofthehood.

• Ifyouhave any doubts, contact the relevant controlling authority or

buildinginspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole of

the same size as the ventilation hole”, a hole of 500-600 cm2, which

is to say a larger hole, could reduce the performance of the extractor

hood.

• If the hood is used in its filtering function, it will operate simply and

safelyin the above conditions without theneedfor any of the

aforementionedmeasures.

• When the hood is used in its extractor function, the following rules

mustbe followed to obtain optimal operation:

— short and straight outlet hose

— keep bends in outlet hose to a minimum

— never install the hoses with an acute angle, they must

always follow a gentle curve only

— keep the hose as large as possible (preferably the same diameter

as the outlet hole).

• Failure to observe these basic instructions will drastically reduce the

performanceand increase the noise levels of theextractorhood.

Description of the Appliance

• The hood is supplied as an extractor unit and can also be used with

a filtering function by fitting one charcoal filter.

• You will need an original AEG charcoal filter for this function

(Availablefrom you localAEGServiceForce Centre).

Extractor version

• The air is discharged to the outside through a hose, which must be

fitted to connection flange A. Fig. 1.

• Inorder to obtain the best performance the hose should have a

diameter equal to the outlet hole.

Should there already be a pipe of diameter 125 mm that ducts to the

outside through the walls or roof, it is possible to use the 150/125

mm reduction flange provided. In this case the hood will be slightly

morenoisy.

Fig. 1

Filter Version

• Theair is filtered through a charcoal filterandreturned to the kitchen

through the top grill of the outlet pipe.

• Youwill need an original AEG charcoalfilterforthefilteringfunction.

• Fix the deflector using 2 screws. Fig. 2.

• Optionally, the position of the chimney elements can be changed.

When using the hood in the filter version the chimney must be fixed

at the top, with the air outlet grill at the side.

Fig. 2

Control Panel

• Best results are obtained by using a low speed for normal conditions

anda high speed when odours aremoreconcentrated.

Turn the hood on a few minutes before you start cooking, you will

then get an under pressure in the kitchen. The hood should be left on

aftercookingforabout15 minutes or until all the odours have

disappeared.Thecontrol switches are located on the unit’s front

panel:

A- Mainswitch,hoodoff.

B- Start and choice of motor speed 1-2-3-1-2.........

C- Indicatesspeed1(LED) and indication of the grease saturation

forthe filter (flashingindicator).

D- Indicatesspeed2(LED)andindicationofthecharcoal

saturationfor the filter (flashingindicator).

E- Indicatesspeed 3

F- IndicatesIntensivespeed(LED).

G- Intensivespeed on/off.TheIntensive speed runsfor5 minutes:

Ifthehoodison when the Intensive speed is activated, the hood

revertsto previous speedafter5minutes.

IfthehoodisoffwhentheIntensivespeedisactivated,thehood

willbeturnedoff after 5 minutes.

To interrupt the Intensive speed, press button A, B or G.

H- LightON/OFF

Should the hood or the controls fail to operate: disconnect the power

supply for at least 5 seconds, then turn the hood back on again.

Correct ventilation

If the cooker hood is to work correctly there must be an under

pressure in the kitchen. It is important to keep the kitchen windows

closedand have a window in an adjacent room open.

Important

This is not applicable for recirculation. Great care must be taken if

the hood is used at the same time as a burner or fireplace (e.g. gas,

diesel, coal or wood heaters, water heaters, etc.), as the hood will

expel air which is required by these other appliances. In this situa-

tion,ensurethatawindowisopen.The negative pressure in the

roommustnotexceed0,04mbarto prevent fumes being drawn back

into the room by the cooker hood.

LED Indicator lights for veryfying the

saturation of filters

This hood is supplied without a charcoal filter. If the hood is to be used

in the recirculation mode with a charcoal filter, the saturation indicator

must be activated as follows:

Depress and hold the A and B buttons simultaneously for 3 seconds.

Initially only the LED indicator signal for the grease filter C is activated,

shortly after the LED indicator for the charcoal filter D will activate, at

this point the saturation detection has been enabled.

To switch off the saturation detection : depress and hold the A and B

buttons for 3 seconds until the LED indicator for the active carbon filter

isflashing.

Led – Indicator for grease filter C

TheLEDindicatorforthegreasefilterwillflashwhenitrequires

cleaning.

Followthe maintenance instructions.

Led - indicator for charcoal filter D

TheLEDindicatorforthecharcoalfilterilluminateswhenthefilter

requiresreplacing.

Thisoccurs after about 160 working hoursfromwhentheactive carbon

filter was first put into operation.

Resetting the saturation indicator

Aftercleaning or replacing thefilter depress and holdthe G and H

buttons again for 3 seconds until the grease filter LED or the charcoal

LEDarenolonger flashing.

Maintenance and care

•The hood must always be disconnected from the electricity

supply before beginning any maintenance work.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a mild deter-

gent.

• Neverusecorrosive,abrasive orflammable cleaningproducts.

• Neverinsert pointed objects in the motor’s protective grid.

• Only ever clean the switch panel and filter grille using a damp cloth

andmild detergents.

• It is extremely important to clean the unit and change the filters at

therecommendedintervals.Failuretodosowillcausegrease

deposits to build up that could constitute a fire hazard.

Metal grease filter

• Thepurpose of the greasefilters is to

absorbgrease particles which form

duringcooking and it must always be

used, either in the external ducted or

internalrecycling function.

Attention: the metal grease filters

mustbe removedandwashed,either

byhand or in the dishwasher,every

fourweeks.

Open the metal grease filter

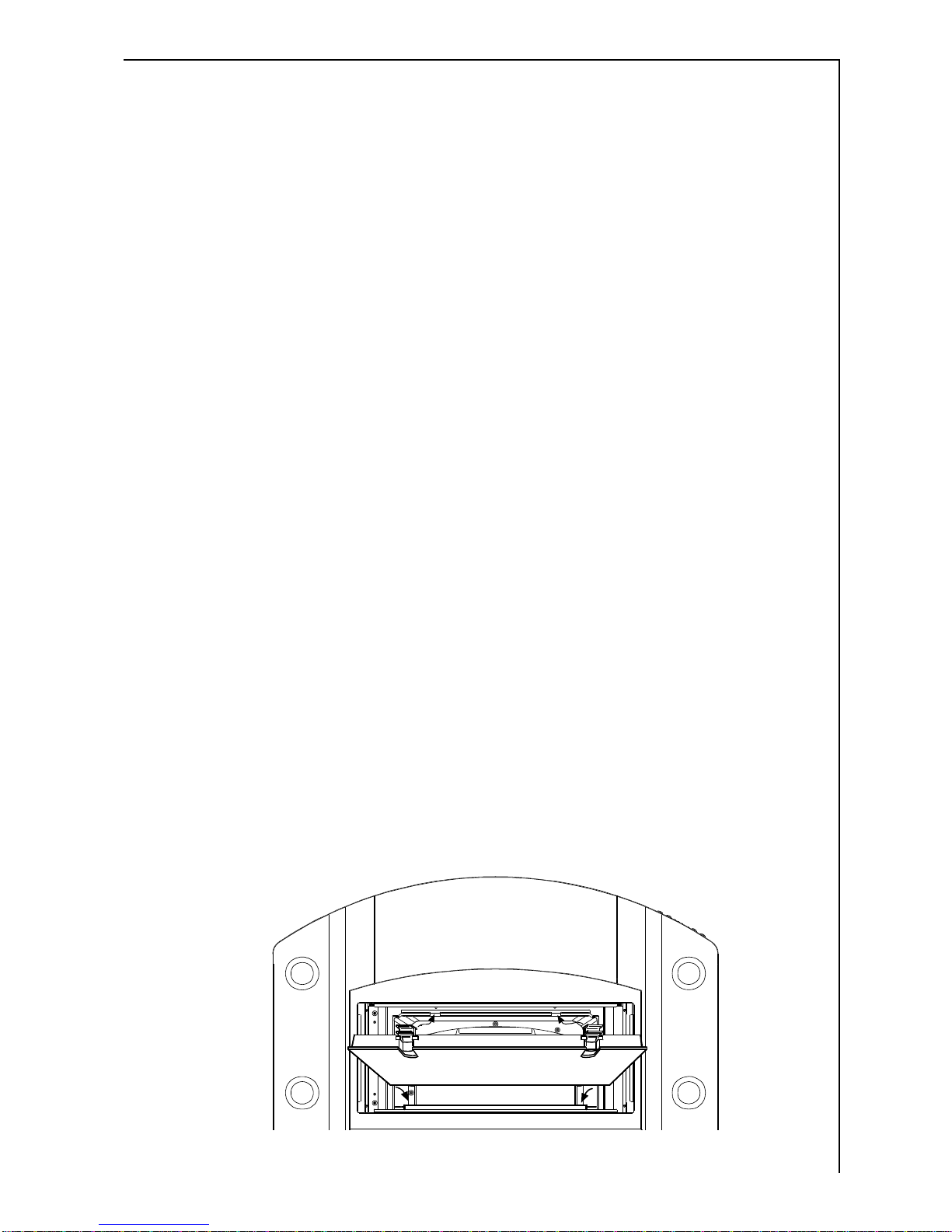

• Pull the spring-lock and extract the

grease filter. Fig. 3.

Hand washing

Soakgreasefiltersfor about one hour in hot water with a grease-

looseningcleaner,then rinse offthoroughlywithhotwater.Repeat

the process if necessary. Refit the grease filters when they are dry.

Fig. 3

Dishwasher

Placegreasefiltersindishwasher.Selectthe most powerful washing

programmeand highest temperature, at least 65°C. Repeat the

process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight

discolouration of the filter can occur, this does not have any impact

onits performance.

Charcoal filter

• The charcoal filter should only be used if you want to use the hood in

itsfilteringfunction.

• To do this you will need an original AEG charcoal filter.

•Replacing the charcoal filter

Thecharcoalfilterscannotbe cleaned, we recommend that they

shouldbe replaced approximately every three monthsormoreoften if

the hood is used for more than three hours per day.

•Fitting

Fitthecharcoalfilterfirstrearwardonthelongsupportingtongue,

then rotate it to close the motor housing and fix it using its two red

keys A. Fig. 4.

•To remove proceed in the reverse order.

• Alwaysspecifythehoodmodelcodenumberand serial number

whenordering replacement filters. This information isshownonthe

registration plate located on the inside of the unit.

• Thecharcoal filter can be ordered from your local AEG Service Force

Centre.

Fig. 4

Warning

• Failuretoobservetheinstructionsoncleaningtheunitandchanging

thefilterscould cause a fire hazard. You are therefore strongly

recommendedto follow these instructions.

• Themanufacturer declines all responsibility for any damage to the

motoror any fire damage linked toinappropriatemaintenanceor

failuretoobservethe abovesafetyrecommendations.

Changing the light bulb

• Disconnect the cooker hood from the mains supply.

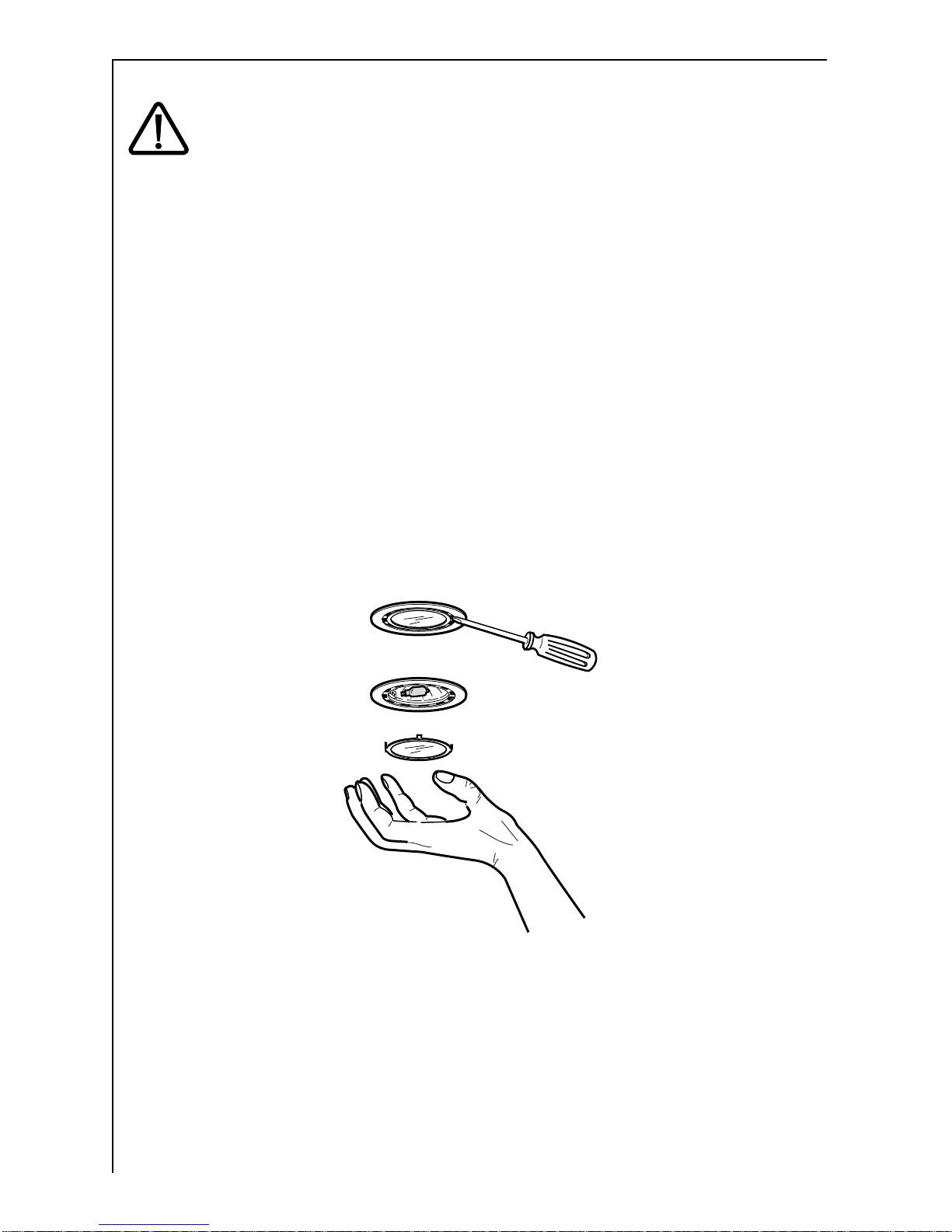

• Removethelampcover,useascrewdriverasalever. Fig. 5.

• Replace the old bulb with a new one of the same type.

• Refitthe lampcover.

• If the light does not come on, make sure the bulb has been inserted

incorrectlybeforecontacting your local AEG Service Force Centre.

Fig. 5

Otros manuales para 2060 D

Tabla de contenidos

Otros manuales de Campana de ventilación de AEG

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

Smeg

Smeg KSEV97X Manual de usuario

Nibe

Nibe S Series Guía del usuario

Caple

Caple CCH100 Manual
