Advent CADNAV2 Manual de usuario
CADNAV2
Cadillac
Components：
Cadillac T-Harnesses VHB Tape
HDMI Video Output Flash
Cable
GPS Antenna
Video Input Cable
Interface Module
Screw Driver Components Pry Tool
Installation Tools:
Towel

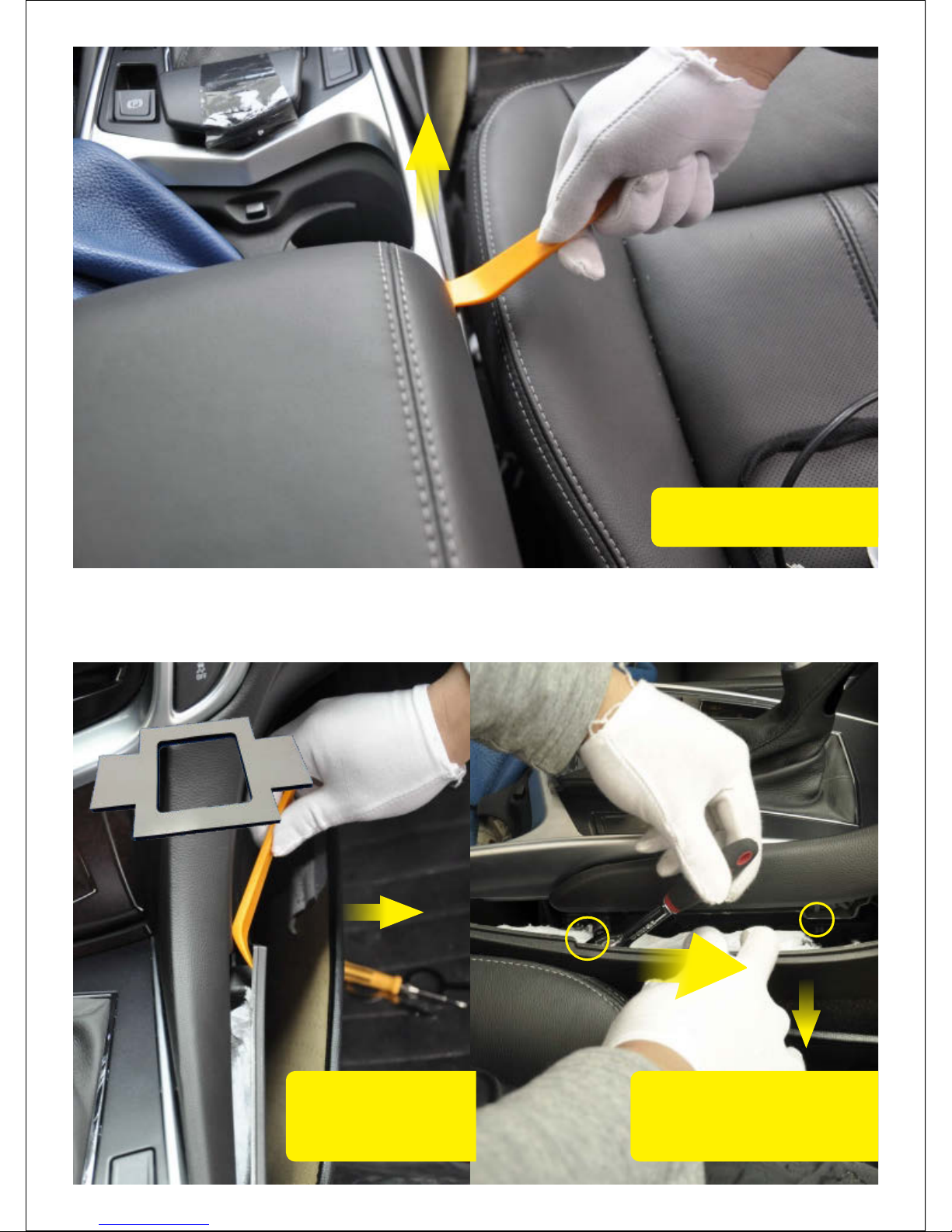

Pry the right
side cover of
shift lever.
2\ Pull the right side
cover of shift and
screws of trim.
3\
Pry the cover of
shift lever.
1\
Pry the right front
cover of shift lever.
6\
Remove the right
front cover and
unfasten the screws.
7\
Pry the trim of
shift lever.
4\
Remove the right
side cover of shift
lever.
5\
Take out the glove box.
9\
Unfasten 6 screws from
glove box.
8\
Remove the screws
holding the Radio
module in place.
10\
Remove the Radio Module.
11\
12\
Video output
flash cable
OEM video cabal
Video output
flash cable
Place as
shown.
13\ Connect all
cables.
14\
Attach to the
radio module as shown with
VHB tape supplied.
interface module
Wiring diagram: TF
USB
Rear View Camera
USB Connector
HDMI
Interface
Module
Power
Connector
Audio
Connector
Fuse
To HMI Blue
LVDS
Connector
NOT USED
GPS Antenna
To Vehicle
Central
or
Left Front
Speaker
To HMI
Black
16 Pins
Connector
To Radio
Gray
20 Pins
Connector
