Advantech SKY-8132S-11 Manual de usuario

Quick Start Guide for

SKY-8132S-11

Hardware installation and BIOS set-up

December 08, 2021

Cloud-IoT Business Group

Advantech Confidential –covered by NDA

Advantech Confidential –covered by NDA

•Hardware removal and installation

•BIOS setup and FAQ

•Using your own OS

Contents

Top view of SKY-8132S-11

Advantech Confidential –covered by NDA

Opening Top Cover (1/2)

1. Use a M2 Phillips head screw driver

2. Notice there are 6 M2 screws (red marked) to be removed before opening the top

cover

3. Lift the top cover of extended heatsink(yellow marked)

Advantech Confidential –covered by NDA

Opening Top Cover (2/2)

1. Remove the 2 M2 screws behind the cover of extended heatsink (red marked)

2. Slide the top cover toward you and lift it

Advantech Confidential –covered by NDA

After removing the top cover

PCIe slots

(for FHHL cards)

Silicom FEC

acceleration card

Advantech Confidential –covered by NDA

2.5” HDD

4028 High speed fan

CPU heatsink

Removing FHHL PCIe card cage

1

1. Loose the thumb screw (red marked)

2. Hold yellow areas and lift up gently

2

2

PCIe card cage

Advantech Confidential –covered by NDA

Installing FHHL PCIe card cage

1. Make sure front groove has matched 2

red circled spot.

2. Make sure rear pillar matched another

red circle

3. Hold yellow areas and press down to

engage the PCIe connector on the MB

3

3

Advantech Confidential –covered by NDA

1

1

2

Removing LP PCIe card Cage

1

2

1. Loose the thumb screw (red marked)

2. Remove right screw(red marked)

3. Hold yellow area and lift

Advantech Confidential –covered by NDA

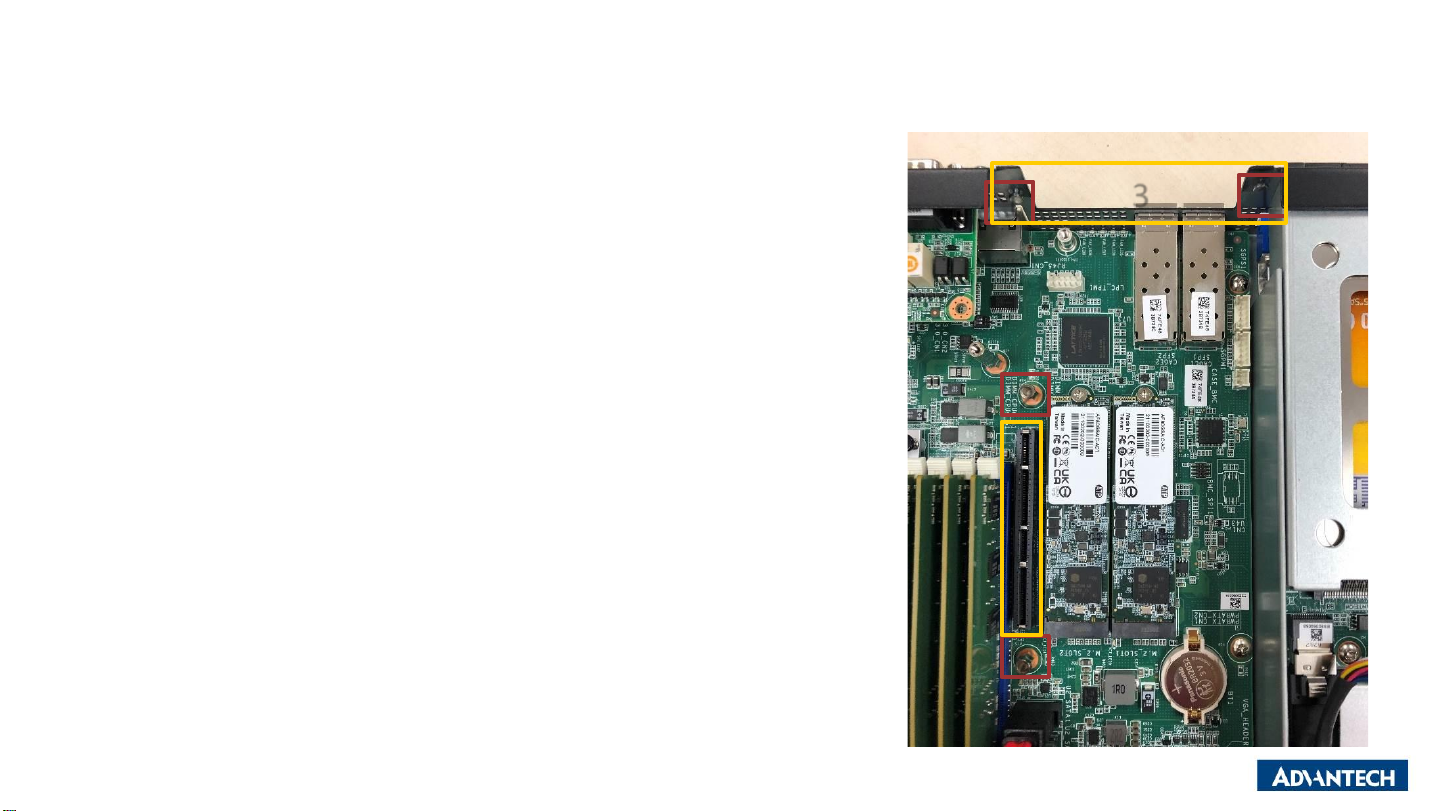

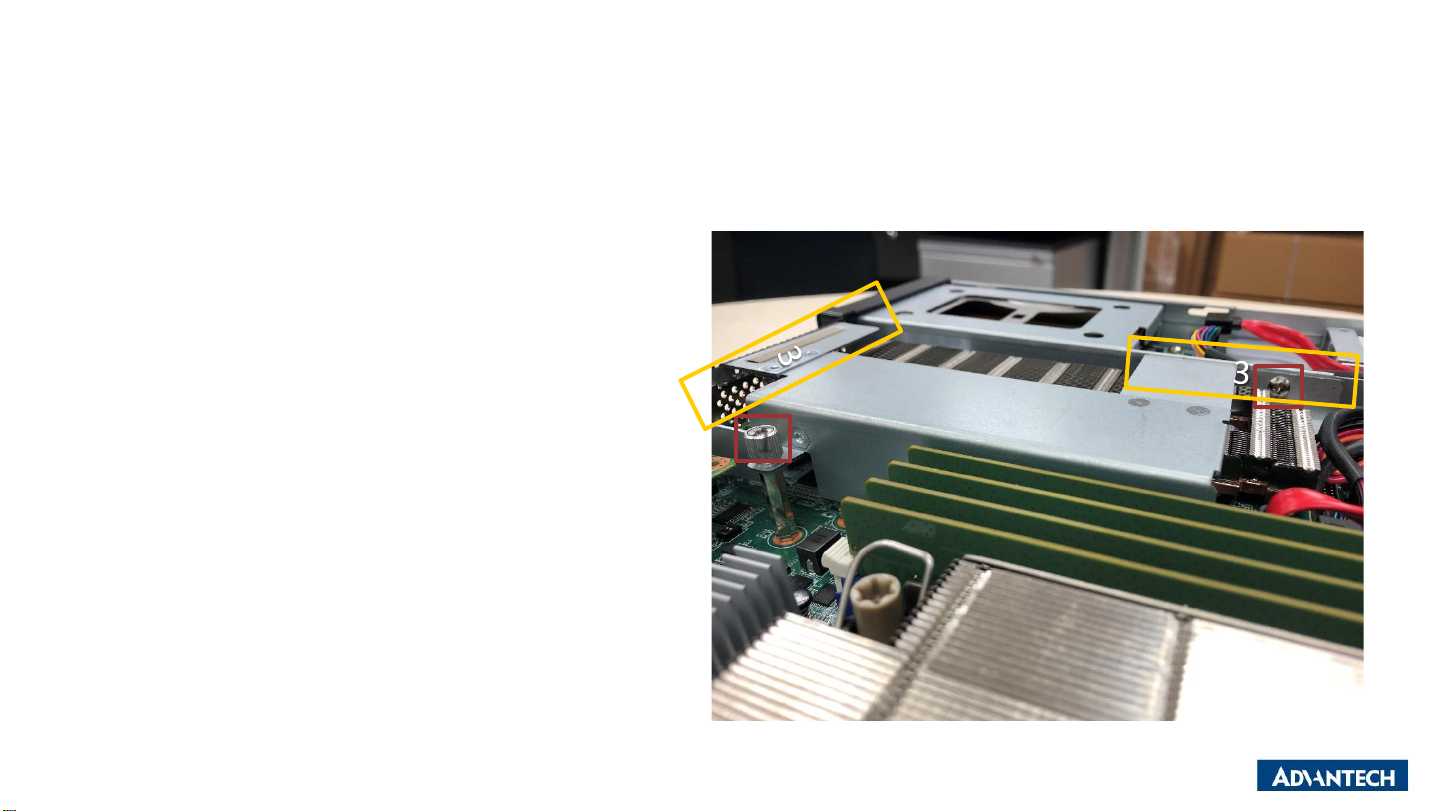

Installing LP PCIe card cage

1. Make sure front groove has matched

2 red circled spot.

2. Make sure rear pillar matched

another red circle

3. Hold yellow area and press to the

end

1

1

2

2

3

3

Advantech Confidential –covered by NDA
