Advantech SG-1003 Manual de usuario

SG-1003/1103

SOHO Security Gateway

with 3 LANs

User’s Manual

SG-1003/1103 User’s Manual

Advantech Co., Ltd copyrights this documentation and the software

included with this product in 2002. All rights are reserved. Advantech

Co., Ltd. reserves the right to make improvements in the products

described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or

transmitted in any form or by any means without the prior written

permission of Advantech Co., Ltd. Information provided in this manual

is intended to be accurate and reliable. However, Advantech Co., Ltd.

assumes no responsibility for its use, or for any infringements of the

rights of third parties, which may result from its use.

Advantech Customer Service

Each and every Advantech product is built to the most exacting

specifications to ensure reliable performance in the harsh and demanding

conditions typical of industrial environments. Whether your new

Advantech equipment is destined for your home or the factory floor, you

can be assured that your product will provide the reliability and ease of

operation for which the nameAdvantech has come to be known for. Your

satisfaction is our primary concern. Here is a guide toAdvantech’s

customer services. To ensure you get the full benefit of our services,

please follow the instructions below carefully.

CE notification

The SG-1003/1103, developed by ADVANTECH CO., LTD., has passed

the CE test for environmental specifications when shielded cables are

used for external wiring. We recommend the use of shielded cables. This

kind of cable is available from Advantech. Please contact your local

supplier for ordering information.

On-line Technical Support

For technical support and service, please visit our support website at:

http://www.advantech.com/support

Part No. 200A110300 1st Edition

Printed in Taiwan July 2002

iii

Safety Instructions

1. Please read these safety instructions carefully.

2. Please keep this User’s Manual for later reference.

3. Please disconnect this equipment fromAC outlet before cleaning.

Don’t use liquid or sprayed detergent for cleaning. Use moisture

sheet or clothe for cleaning.

4. For pluggable equipment, the socket-outlet shall be installed near the

equipment and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when install.A drop or fall

could cuase injury.

7. Do not leave this equipment in an environment unconditioned,

storage temperature above 50 C, it may damage the equipment.

8. The openings on the enclosure are for air convection hence protects

the equipment from overheating. DO NOT COVER THE

OPENINGS.

9. Make sure the voltage of the power source when connect the

equipment to the power outlet.

10. Place the power cord such a way that people can not step on it. Do

not place anything over the power cord. The power cord must be

rated for the product and f0or the voltage and current marked on the

product’s electrical ratings label. The voltage and current rating of

the cord should be greater than the voltage and current rating marked

on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not use for long time, disconnected the equipment

from mains to avoid being damaged by transient over-voltage.

13. Never pour any liquid into ventilation openings. This could cause

fire or electrical shock.

14. Never open the equipment. For safety reason, qualified service

personnel should only open the equipment.

15. If one of the following situations arises, get the equipment checke3d

by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment has not work well or you can not get it

work according to user’s manual.

SG-1003/1103 User’s Manual

e. The equipment has dropped and damaged.

f. If the equipment has obvious sign of breakage.

16. CAUTION: THE COMPUTER IS PROVIDED WITH A

BATTERY-POWERED REAL-TIME CLOCK CIRCUIT. THERE IS

A DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY

REPLACED. REPLACE ONLY WITH SAME OR EQUIVALENT

TYPE RECOMMENDED BY THE MANUFACTURE. DISCARD

USED BATTERIES ACCORDING TO THE MANUFACTURER’S

INSTRUCTIONS.

Contents

1. Introduction

1.1 About the SG-1003/1103

1.2 Product Features

1.3 Hardware

1.4 Front Panel

1.5 Rear Panel

1.6 Packing Contents

2. Hardware Installation

2.1 Compact Flash Card Installation

2.2 RAM module Installation

2.3 Interface Connections

3. Product Specifications

CHAPTER

Introduction

SG-1003/1103 User’s Manual

Chapter 1 Introduction

1.1 About the SG-1003/1103

A compact fan-less Security Gateway, the SG-1003/1103 is specifically

designed for secure Internet connectivity and is suitable for SOHO

Firewall/VPN applications. Designed with the SiS550 200 MHz

processor, it has low power consumption that can meet the requirements

needed for SOHO Firewall/VPN appliances. The system supports a

CompactFlash used for installing the OS and Firewall/VPN application,

which totally avoids the service disruptions caused by hard disk

mechanical/magnetic failures. In addition, the SG-1003/1103 can support

system memory of up to 512 MB SDRAM. The SG-1103 offers three

10/100 Mbps auto-sensing Fast Ethernet ports for WAN, LAN, and

DMZ connections. Also offered is a COM port for local system

management, maintenance, and diagnostics.

1.2 Product Features

SiS 550 CPU 200 MHz

Compact fanless Firewall/VPN platform for SOHO

3 10/100 Ethernet ports for LAN, WAN, and DMZ

1.3 Hardware

The SG-1003/1103 SOHO Security Gateway platform has on-board

SiS550 200 MHz CPU and with default 128 MB SO-DIMM SDRAM

(customer can easily upgrade to 512 MB). The system supports a

CompactFlash card interface for software vender or system integrator

application software.

1.4 Front Panel

One LED indicates the power ON/OFF status.

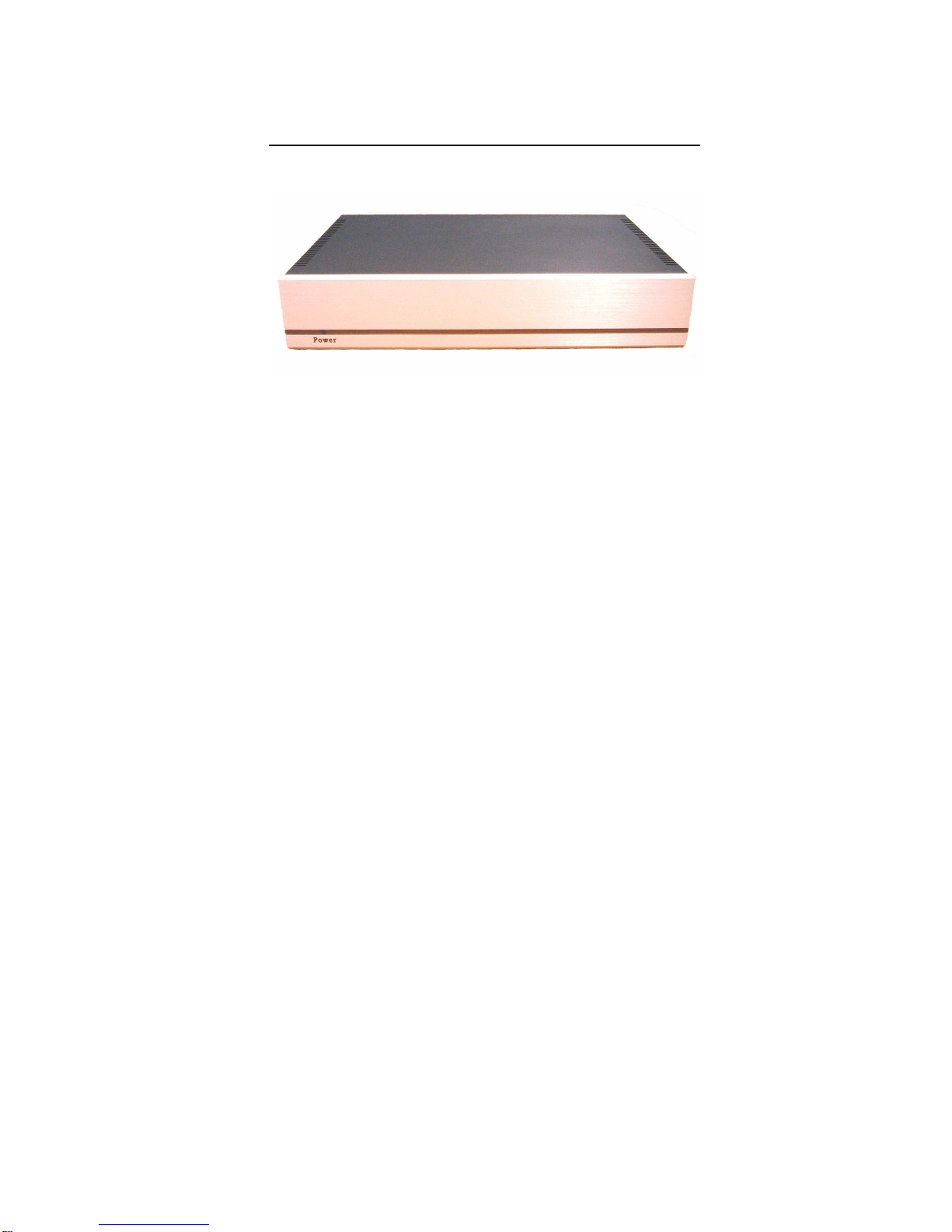

Figure 1-1 Front Panel of the SG-1003/1103

SG-1003/1103 User’s Manual

1.5 Real Panel

Figure 1-2 Rear Panel of the SG-1003
