FWA-1211 Startup Manual 1

Before installation, ensure that the following materials have

been received:

• One FWA-1211 din-rail Platform

• One box of accessories

• Onewarrantycerticate

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1:AcrobatReaderisrequiredtoviewanyPDFle

Acrobat Reader can be downloaded at: www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe).

Note 2:Suppliedbycertiedpowersupply:

FSP040-RHAN2

ADP-40GD BH

Industrial Grade Cyber Security Appliance based on

Intel® Atom™ x5-E3940/ x5-E3930 Processor Platform

Startup Manual

Main Board Functions

• CPU: Intel Atom™ E3940/E3930

• BIOS: AMI™

• Memory: 1 x DDR3L 1333/1600/1867 MHz SODIMM, up

to 8 GB

• Ethernet:

- 5 x 10/100/1000 Mbps RJ45 via Intel i210-IT with 2

segment bypass

- 2 x10/100/1000 Mbps SFP via Intel i210-IS

• Storage: 1 x 2.5” internal SSD; 1 x mSATA slot (half size)

• Peripherals:

- USB:12x USB2.0 on front panel

- 2 x Power LED

- 1 x HDD LED

- 1 x Alarm LED

- 1 x Micro-HDMI

- 1 x Reset

- 1 x Console

- 2 x DB9 RS-232/422/485 seriel port (SKU option)

• Dimensions (W x L x H): 88 mm x 127 mm x 150 mm

• Weight: 3 Kg

• Environment: Operating Non-operating

• Temperature: -40 °C ~ 70 °C -40 °C ~ 85 °C

(-40 °F ~ 158 °F) (-40 °F ~ 185 °F)

• Altitude: Below 5000 m

• Humidity: 5% ~ 95%

• IP Rating: IP40

SpecicationsPacking List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com.tw/support

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the FWA-1211 series Rev. A.

Part No. 2002121100 1 st Edition

December 2020

Warning:

Pleasepowero󰀨themachineanddisconnectitfrom

all power source before you disassemble FWA-1211

machine.

This product is intended to be supplied by an UL Listed

power supply or dc source suitable for use at minimum

Tma 40 degree C whose output meets ES1, LPS, and

is rated 9-36Vdc, 4-1A. If need further assistance,

please contact Advantech for further information.

2 FWA-1211 Startup Manual

FWA-1211

Front view:

Back view:

Specication

Installation

Installing

1. Unfasten the screws (red arrows), take out and keep for

later, then loosen the screws circled in red and remove

the heatsink.

Installing the memory

1. Prepare the memory.

2. Insert into the slot as below and press the memory until

locked.

FWA-1211 Startup Manual 3

Installing the mSATA

1. Prepare the mSATA.

2. Insert the msata storage into the slot as below.

3. Take the screw from the assembly box.

4. Fix as below.

5. Take two thermal pads from the assembly box.

6. Replacetheheatsinkandxthescrewsasbelow.

7. Thenxthescrewsontheheatsink.

Installation (Cont.)

4 FWA-1211 Startup Manual

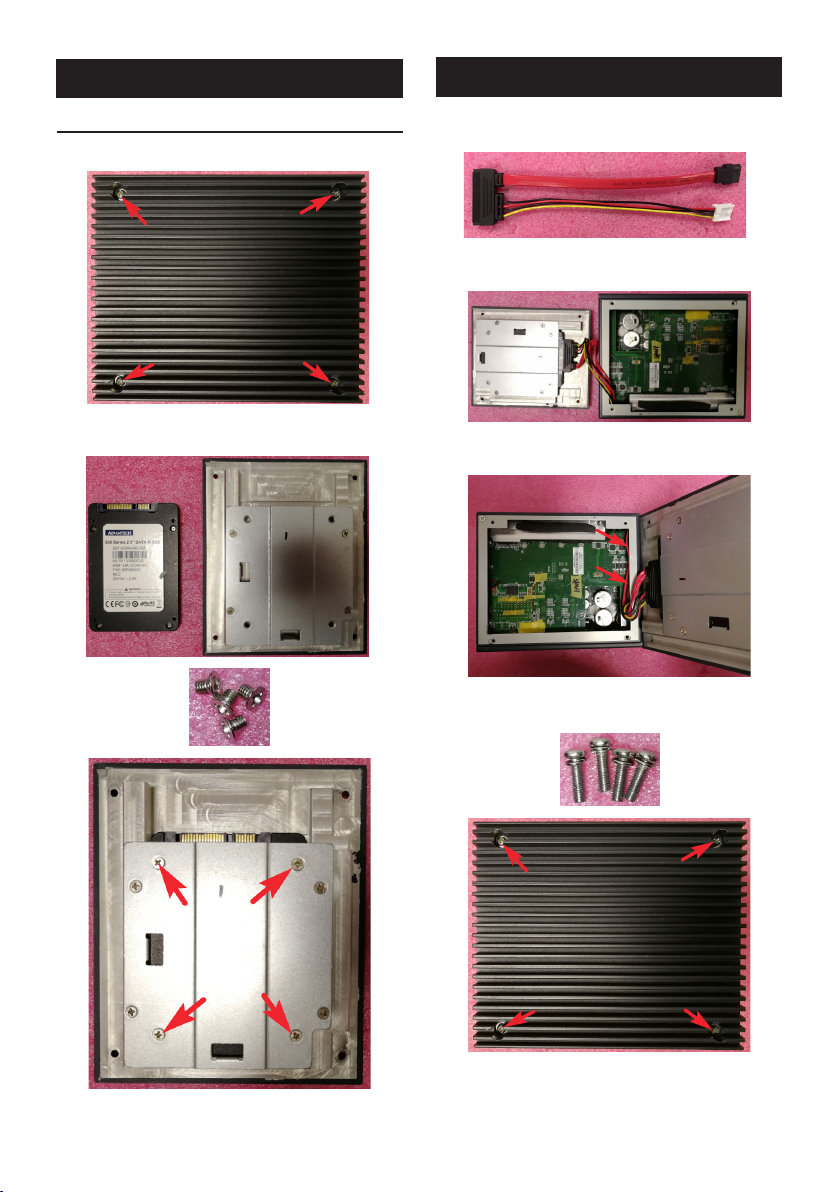

Installing the SSD

1. Unfasten the screws (red arrows) and keep for future

use.

2. Take 4 screws out of the accessory box as below and

xtheSSDontothethebracket.

Installation (Cont.)

3. Take the SATA power cable from the accessory box,

then connect to the SSD.

4. Connect the SATA cable and the power cable as shown

below.

5. Route the cable to the side of the mainboard as shown

below.

6. Putontheheatsinkandxwththescrewsasshown

below.

FWA-1211 Startup Manual 5

Installing the DIN Rail

1. Take the screw and bracket out from the accessory box.

2. Install the screw and bracket as shown below.

3. Install the machine on the bracket accordingly.

Installation (Cont.)

Jumpers and Connectors

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each of the jumpers and connectors.

Jumper/Connector List

Connector Name Function

SODIMM1 System memory expansion slot

for DDR3L SO-DIMM.

BAT1 Battery holder for coin battery

SATA1 SATA IO connector

SATA_PWR1 Power connector for SATA HDD

used

MSATA1 Half size mSATA connecter

8051_JTAG1 Programming 8051 pin header

LPC1 LPC bus connecter for TPM

module

LAN1, LAN2, LAN_

MAGT1 RJ45 LAN connectors

USB2_1 USB2.0 connectors

USB2_2 USB2.0 connectors

COM1 RJ45 console connector

HDMI-D1 Micro HDMI connector

SYS_RST1 System reset button

PWR_BTN1 Power button pin header

CN3 Power in pin header

Ex1 Extend board connecter

JCMOS1 Clear CMOS jumper

PSON1 AT/ATX mode select

Jumper Name Pin Default Setting Function

JCMOS1

1-2 Jumper short Normal status

2-3 open Clear CMOS

PSON1

1-2 Jumper short AT mode

2-3 open ATX mode

6 FWA-1211 Startup Manual

Clear CMOS Pin Header

Pin Number Pin Name Function

1 NC NC

2 RTEST Clear CMOS

3 GND Ground

AT/ATX Mode Selection Pin Header

Pin Number Pin Name Function

1AT Enable AT mode

2 V3.3_net 3.3V level net

3VATX Enable ATX mode

Battery Holder for Coin Battery

Pin Number Pin Name Function

1 VBAT1 3V battery power

2 GND Ground

JCMOS1

PH_3x1V_2.00mm

JCMOS1

PH_3x1V_2.00mm

PSON1

PH_3x1V_2.00mm

BAT1

W_2V_1.25mm

Jumpers and Connectors (Cont.)

SATA Connector

Pin Number Pin Name Function

1 GND Ground

2 TX+ TX+ Signal of SATA

3 TX- TX- Signal of SATA

4 GND Ground

5 RX- RX+ Signal of SATA

6 RX+ RX- Signal of SATA

7 GND Ground

SATA Power Connector (SATA_PWR1)

Pin Number Pin Name Function

1 VCC 5V power

2 GND Ground

3 GND Ground

4 +V12 12V power

Power Button Signal Pin Header

Pin Number Pin Name Function

1 PANSWIN# Power button signal

2 GND Ground

GND

TX+

TX-

GND

RX-

RX+

GND

SATA1

SATA_PWR1

W_4V_2.5mm

PWR_BTN1

WB_2V_2.00mm

Jumpers and Connectors (Cont.)

FWA-1211 Startup Manual 7

Power Board Connector (CN3)

Pin Number Pin Name Function

1 GND Ground

2 +V12_SB_S 12V standby power

3 GND Ground

4 +V12_SB_S 12V standby power

5 GND Ground

6 +V12_SB_S 12V standby power

7 GND Ground

8 PWRBTN_IN power button input signal

9 +V5_SB 5V standby power

10 PA_OK# Power good signal of

power A

11 +V5 5V system power

12 PB_OK# Power good signal of

power B

8051 _JTAG Pin Header

Pin Number Pin Name Function

1 RST/C2CK Reset 8051 & clock for

C2 interface

2 C2D data for C2 interface

3 GND Ground

CN3

PH(F)_6x2V_S2.0mm

8051_JTAG1

PH_3x1V_2.00mm

LPC Connector

Pin Number Pin Name Function

1L_FRAME#

LPC Frame signal

2 GND Ground

3 LAD0 LPC address pin 0

4 CLK LPC 25Mhz clock

5 LAD1 LPC address pin 1

6 SERIRQ LPC serial IRQ ouput

7 LAD2 LPC address pin 2

8 RESET LPC reset input

9 LAD3 LPC address pin 3

10 VCC3 3.3V power

RJ45 Console Port

Pin Number Pin Name Function

1RTS Signal of COM1 for

system console

2 DTR Signal of COM1 for

system console

3 TXD Signal of COM1 for

system console

4,5 GND Ground

6 RXD Signal of COM1 for

system console

7 DSR Signal of COM1 for

system console

8 CTS Signal of COM1 for

system console

LPC1

BH_5x2V_S2.00mm

Jumpers and Connectors (Cont.)

8 FWA-1211 Startup Manual

Figure 1: Location List of Jumper and Connector on Mainboard

Jumpers and Connectors (Cont.)

FWA-1211 Startup Manual 9

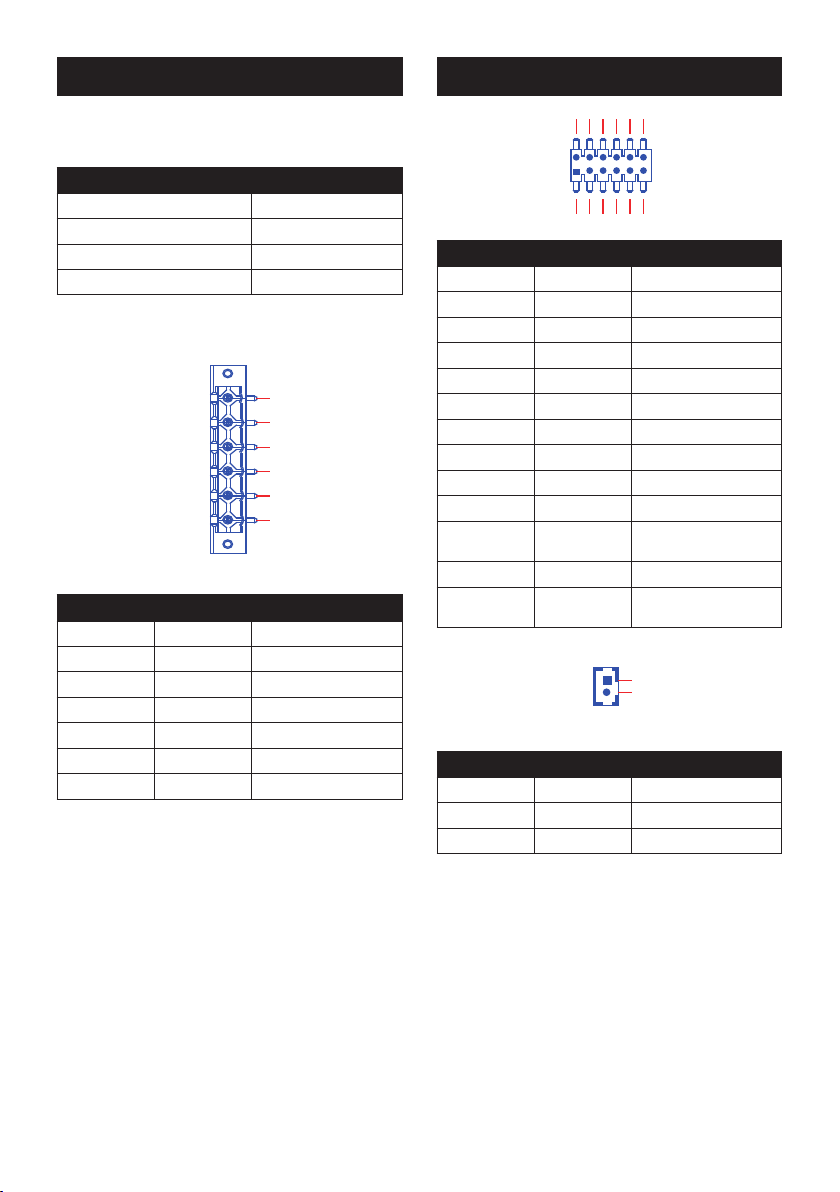

The PWR board has a number of jumpers that allow you to

congureyoursystemtosuityourapplication.Thetablebe-

low lists the function of each of the jumpers and connectors.

Jumper/Connector List

Connector Name Function

DC_IN1 Power in connecter

CN1 main board connecter

PWR_BTN1 Power button connecter

Power in Connector

Pin Number Pin Name Function

1 PGND Ground

2 DC_A Power A input

3 ALM2 Signal of alerm2

4 ALM1 Signal of alerm1

5 PGND Ground

6 DC_B Power B input

DC_IN1

PLUG_6_5.00mm

Main Board Connector

Pin Number Pin Name Function

1 GND Ground

2 +V12_SB 12V standby power

3 GND Ground

4 +V12_SB 12V standby power

5 GND Ground

6 +V12_SB 12V standby power

7 GND Ground

8 PWRBTN_IN power button input signal

9 +V5_SB 5V standby power

10 PA_OK# Power good signal of

power A

11 0 5V system power

12 PB_OK# Power good signal of

power B

Power Button Connector

Pin Number Pin Name Function

1 PWRBTN_IN Signal of power button

2 GND Ground

CN1

PH_6x2V_S2.0mm

PWR_BTN1

WB_2V_2.00mm

Jumpers and Connectors (Cont.)

10 FWA-1211 Startup Manual

Figure 2: Location List of Jumper and Connector on PWR Board

Jumpers and Connectors (Cont.)
