Advantech IPC-602 Manual de usuario

IPC-602

Industrial e-Server Chassis

This document is copyrighted, May 2000, by Advantech Co., Ltd. All rights are reserved. Advantech

Co., Ltd. reserves the right to make improvements to the products described in this manual at any time

withoutnotice.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without the prior written permission of Advantech Co., Ltd. Information provided in this

manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibili-

ty for its use, nor for any infringements of the right of third parties which may result from such use.

Acknowledgments

IPC-602 and PCA-6106P3V are trademarks of Advantech Co., Ltd.

Note: The information in this document is provided for reference only. Advantech does

not assume any liability arising out of the direct or indirect use of the information

or products described herein.This manual is subject to change without notice.

Part No. 2002060210

2nd Edition Printed in Taiwan May 2000

Contents

Chapter 1 General Information ..................................................... 1

1.1 Introduction............................................................................................................... 1

1.2 Specifications .......................................................................................................... 1

1.3 Dimensions.............................................................................................................. 3

Chapter 2 System Setup ............................................................... 5

2.1 Removing theCover ................................................................................................. 5

2.2 Adding Disk Drives .................................................................................................. 6

2.3 InstallingPlug-inCards ............................................................................................. 7

2.4 ReplacingtheFan .................................................................................................... 7

2.5 ReplacingtheFilter................................................................................................... 8

Appendix A Passive Backplane ................................................................................... 9

Appendix B Parts Ordering Guide .............................................................................. 11

Appendix C Safety Instructions.................................................................................. 13

C.1 English........................................................................................................................... 13

C 2 German - Wichtige Sicherheishinweise ........................................................................ 14

IPC-602 User's Manual

Chapter 1 General Information

1.1 Introduction

The IPC-602 is a compact rugged 19" 2U-height rackmount chassis designed for space-limited applica-

tion. With its rugged, sturdy and well-cooled steel chassis specially designed to withstand heavy

shocks and thick dust, the IPC-602 can be used in the harshest of environments. It is ideal for Computer

Telephony or network system configurations that require high availability within a limited space, such as

computer telephony and networking systems.

1.2 Specifications

•Construction: Heavy-duty steel

•Disk drive capacity: One 5.25" and two 3.5" drive bays

•Indicators: LEDs for power On/Off, HDD and 3.3 V

•Controls: Power On and Reset switches on front panel

•Cooling fan: Two 42 CFM fans on front panel, with air filters

•Weight: 9.8 kg (21.8 lbs)

•Dimensions (W x D x H): 481.2 x 449.5 x 88 mm (19" x 17.7" x 4")

•Interior paint color: Black 2U, 2X; Fabric Texture

Passive backplane (PCA-6106P3V)

•Slots: 2 ISA / 3 PCI / 1 PICMG

•PC board: 6-layer PCB with ground and power planes for reduced noise and low power-supply

impedance

•Indicators: LEDs for +5 V, +12 V, -5 V, -12 V, +3.3 V

Power supply (PS-300ATX)

•Output rating: 300 watts max.

•Input rating: 90 ~ 130 Vac or 180 ~ 265 Vac @ 47 ~ 63 Hz, switchable

•Output voltage: +5 V @ 30 A, +12 V @ 13 A, -5 V @ 0.5 A, -12 V @ 0.8 A, +3.3 V @ 26 A,

+5 VSB @ 2 A

•Minimum load: +5 V @ 1 A, +12 V @ 0.2 A

•MTBF: 100,000 hours @ 25° C, full load

•Safety: UL/CSA/CE/NOROIC CENELEC/CB approved

•EMI: Meets FCC/VDC CISPR 22

IPC-602 User's Manual

Power supply (PS-30XDC48-BPS)

•Output rating: 300 watts max.

•Input rating: -40 ~ 56 Vdc @ 47 ~ 63 Hz

•Output voltage: +5 V @ 30 A, +12 V @ 12 A, -5 V @ 0.5 A, -12 V @ 1 A, +3.3 V @ 20 A,

+5 VSB @ 1.5 A

•Minimum load: +5 V @ 3 A, +12 V @ 1 A

•MTBF: 119,122 hours @ 75% load

•Safety: UL/TUV

•EMI: Meets FCC/VDC Class A

Environmental specifications

•Operating temperature: 0 ~ 45° C (32 ~ 113° F)

•Relative humidity: 10 ~ 95% @ 40° C, non-condensing

•Safety: UL / CE approved

•CE compliant

IPC-602 User's Manual

1.3 Dimensions

COMPACT

110V

RESET

POW ER

3.3V

HDD

3.3V

POW ER

Unit: mm (inches)

IPC-602 User's Manual

Chapter 2 System Setup

The following procedures are provided to assist you in installing drives and plug-in cards into the

IPC-602.

2.1 Removing the Cover

Unscrew the six screws on the front and rear panels , and then slide the cover toward the rear chassis.

See Figure 2-1 below:

Figure 2-1: Removing the cover

Step 1

Step 3

Step 2

IPC-602 User's Manual

2.2 Adding Disk Drives

After removing the cover, you can easily install disk drives. Refer to Figure 2-2 below and do the

following:

1. Remove the four outer screws which mount the drive bay to the chassis.

2. Slide the drive bay about 1 cm. toward the rear, to a location where it is not obstructed by the upper

rim. Lift it free of the chassis.

3. Remove the cover of the front drive bay, and insert the drives into their proper locations in the drive

bay.

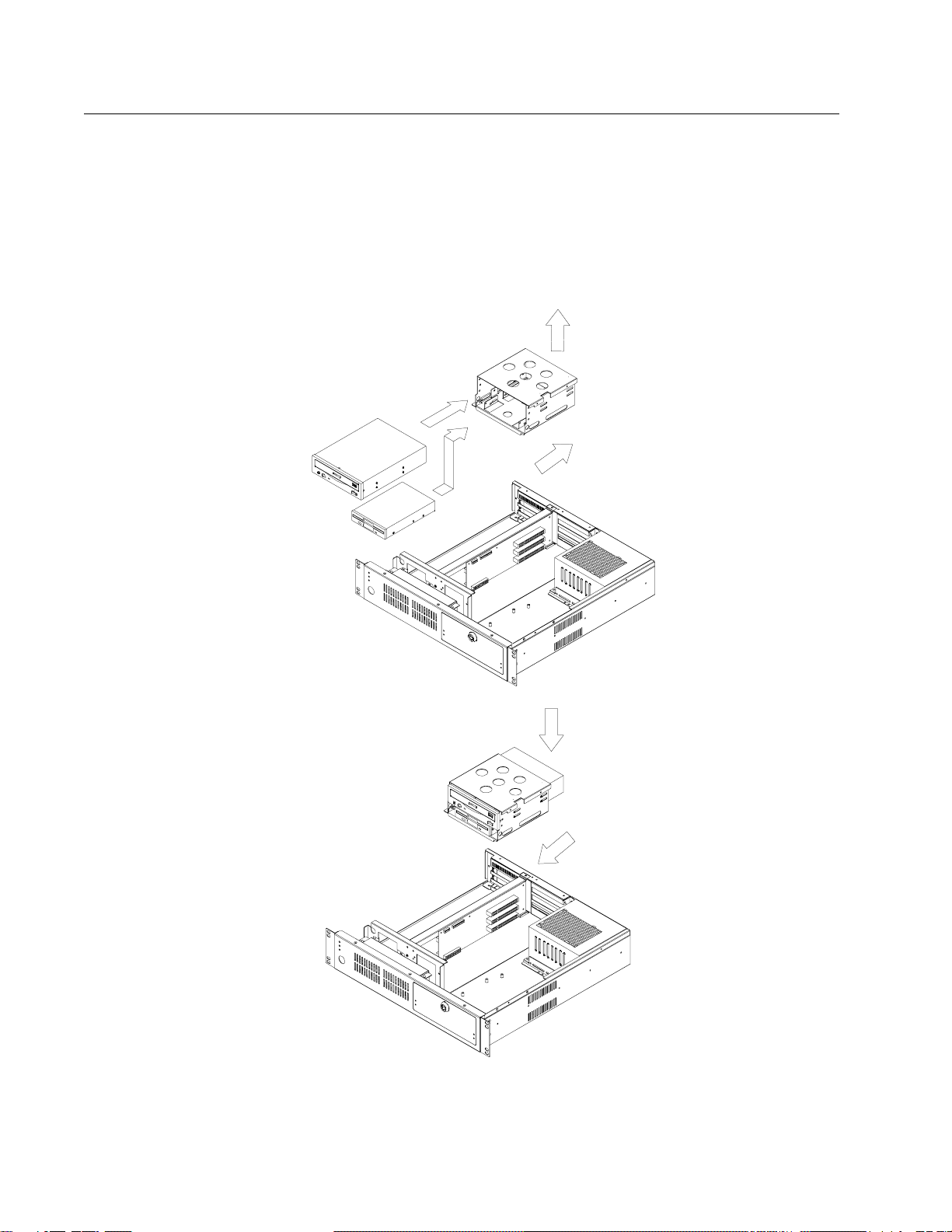

Figure 2-2: Adding disk drives

IPC-602 User's Manual

2.3 Installing Plug-in Cards

After removing the cover, you can easily install plug-in cards. See Figure 2-3 below:

Figure 2-3: Installing plug-in cards

2.4 Replacing the Fan

Unscrew the two screws on the fan, and slide the cover toward the rear chassis. See Figure 2-4 below:

Figure 2-4: Replacing the fan

Step 1 Step 2
