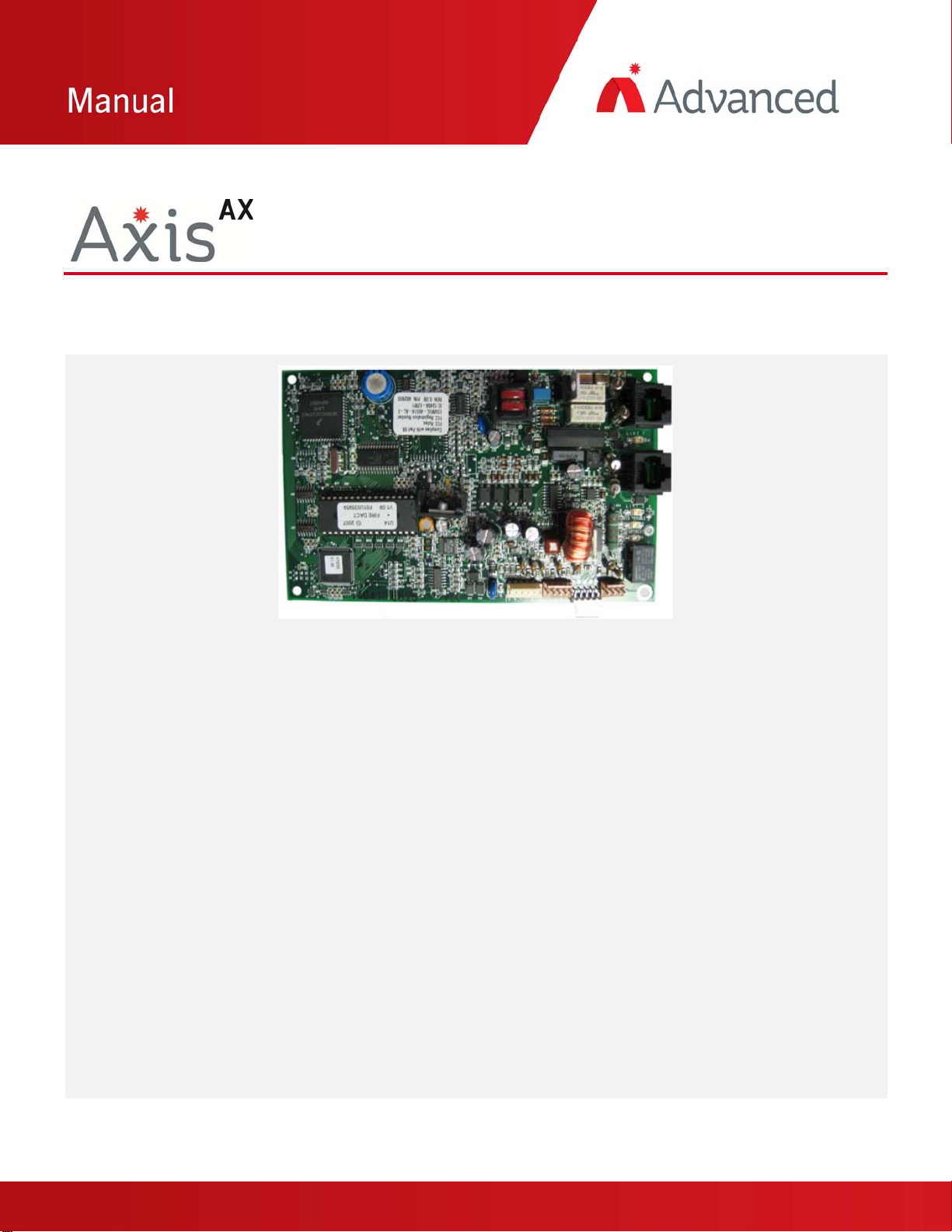

Advanced Axis D9068 Manual de usuario

www.advancedco.com

D9068P DACT

Digital Alarm Communicator Transmitter

D9068

Installation & Operation Manual



www.advancedco.com

Table of Contents Page

1OVERVIEW...........................................................................................................................................................6

1.1SYSTEM OVERVIEW ........................................................................................................................................6

1.2FEATURES AND SPECIFICATIONS.....................................................................................................................6

1.2.1Power.......................................................................................................................................................6

1.2.2System Supervision .................................................................................................................................6

1.2.3Trouble Contact........................................................................................................................................6

1.2.4User Interface...........................................................................................................................................7

1.2.5Communication........................................................................................................................................7

1.2.6History Buffer ...........................................................................................................................................7

1.2.7General Specifications.............................................................................................................................8

1.2.8Parts List..................................................................................................................................................8

1.1.1AX-SEB Serial Expansion Board Layout ...............................................................................................10

2INSTALLATION..................................................................................................................................................11

2.1D9068P MOUNTING WITHIN THE AX-CTL-1 ENCLOSURE ................................................................................11

2.2D9068P MOUNTING WITHIN THE /E AND /V ENCLOSURE (AX-CTL-1L, -2 AND -4)............................................13

2.3AX-SEB MOUNTING TO AX-CTL-1, -1L, -2 AND -4 BASE CARDS...................................................................15

2.4INSTALLING TELCO CABLE ASSEMBLIES........................................................................................................15

2.4.1Telephone Connections.........................................................................................................................16

2.5CONNECTING THE DACT-PRG LCD KEYPAD TO THE AX-SEB MODULE........................................................17

3D9068P START UP............................................................................................................................................17

3.1AX SERIES INTELLIGENT FIRE ALARM CONTROL PANEL AND D9068P POWER UP ..........................................18

3.1.1Before Powering up................................................................................................................................18

3.1.2After Power up .......................................................................................................................................18

3.2D9068P QUICK START.................................................................................................................................18

4D9068P OPERATION.........................................................................................................................................19

4.1COMMUNICATOR OPERATION ........................................................................................................................19

4.1.1Phone Line and Phone Number Selection.............................................................................................19

4.1.2Telephone Line Supervision ..................................................................................................................20

4.1.3Wait for Dial Tone ..................................................................................................................................20

4.1.4Call Routing............................................................................................................................................20

4.1.5Call Attempts..........................................................................................................................................21

4.1.6Communication Fault.............................................................................................................................21

4.1.7Programming Fault.................................................................................................................................21

4.1.8Lost Data and Limited Reports ..............................................................................................................21

4.1.9Communications Tests...........................................................................................................................22

4.2KEYPAD OPERATION ....................................................................................................................................23

4.2.1DACT-PRG LCD Keypad.......................................................................................................................23

4.2.2Scrolling Menus......................................................................................................................................24

4.2.3Selecting Menu Items.............................................................................................................................25

4.2.4History....................................................................................................................................................26

4.3RESET..........................................................................................................................................................27

5PROGRAMMING................................................................................................................................................27

5.1USING THE KEYPAD......................................................................................................................................27

5.2PROGRAMMING KEY SEQUENCES..................................................................................................................28

5.3PROGRAMMING MENU TREE..........................................................................................................................30

5.4PROGRAMMING THE D9068P........................................................................................................................33

5.4.1PROG TIME...........................................................................................................................................33

5.4.2PROG TIMERS......................................................................................................................................34

5.4.3PROG INPUTS ......................................................................................................................................35

5.4.4PROG RELAY........................................................................................................................................36

www.advancedco.com 3

5.4.5PROG ACC’NTS....................................................................................................................................36

5.4.6PROG FORMATS..................................................................................................................................39

5.4.7PROG DEFLTS......................................................................................................................................40

5.4.8SERIAL CONECTN ...............................................................................................................................40

5.5OPERATING MODES......................................................................................................................................40

5.5.10- PROGRAM ........................................................................................................................................41

5.5.21- STATUS.............................................................................................................................................41

5.5.32- HISTORY...........................................................................................................................................41

5.5.43- TEST..................................................................................................................................................41

5.5.54- RESET...............................................................................................................................................41

6APPENDIX A: TROUBLESHOOTING...............................................................................................................42

6.1ON-BOARD LEDS........................................................................................................................................42

6.2INPUT POINTS...............................................................................................................................................43

6.3TROUBLE RELAY..........................................................................................................................................43

6.4MANUAL TEST REPORT FAILURE...................................................................................................................43

6.5REPORTS IN QUEUE......................................................................................................................................43

6.6ERROR DURING COMM TEST.........................................................................................................................44

7APPENDIX B: D9068P REPORTING ................................................................................................................45

8APPENDIX C: D9068P PROGRAMMING DEFAULTS.....................................................................................49

9APPENDIX D: REPORT ROUTING...................................................................................................................51

www.advancedco.com

Notices

FCC Compliance Notice

This equipment was tested and complies with the limits for a Class A digital device, pursuant to Part 15 of the

Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection

against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio

frequency energy. When this equipment is not installed and used according to the instructions, it might cause

harmful interference to radio communications. There is no guarantee that interference will not occur in a particular

installation. If this equipment causes harmful interference to radio or television reception that can be determined by

turning the equipment off and on, correct the interference by:

• Reorienting or relocating the receiving antenna.

• Increasing the separation between the equipment and the receiver.

• Connecting the equipment to an outlet on a circuit different from that the receiver is connected to.

• Consulting the dealer or an experienced radio or TV technician for help.

FCC Telephone Connection to Users

This control complies with Part 68 of the FCC rules. The ringer equivalence number (REN) for this equipment is

0.0B. When requested, you must provide this information to your local telephone company. The REN helps

determine the quantity of devices that can be connected to your telephone line and still have all of those connected

devices ring when your telephone number is called. In most areas the sum of the RENs of all devices connected to

one line should not exceed five (5.0). To verify the number of devices you can connect to your line, contact your

local telephone company to determine the maximum REN for your local calling area. The FCC registration number

is ESVMUL-46514-AL-E. The ringer equivalence is 0.0B. Do not use this equipment on coin service provided by

the telephone company or connected to party lines. If this equipment harms the telephone network, the telephone

company might temporarily discontinue your service. When possible, the telephone company notifies you in

advance. If advanced notice is not practical, you are notified as soon as possible. You are informed of your right to

file a complaint with the FCC.

The telephone company can make changes in its facilities, equipment, operations, or procedures affecting the

proper functioning of your equipment. If they do, you are notified in advance so you can maintain uninterrupted

telephone service.

If you experience trouble with this equipment, contact the Installing Distributor or Advanced for information on

obtaining service or repairs.

The telephone company might ask you to disconnect this equipment from the network until the problem is corrected,

or until you are sure the equipment is not malfunctioning.

Operating this equipment can also be affected if events such as accidents or acts of God interrupt telephone

service.

Industry Canada Notice

The Industry Canada label identifies certified equipment. This certification means the equipment meets certain

telecommunications network protective, operational, and safety requirements. Industry Canada does not guarantee

the equipment operates to the user’s satisfaction.

Before installing this equipment, verify you have permission to connect it to the facilities of the local

telecommunications company. Install the equipment using an acceptable method of connection. Verify the customer

is aware that compliance with the above conditions might not prevent degradation of service in some situations.

An authorized Canadian maintenance facility, designated by the supplier, should make the repairs to the certified

equipment. If you make repairs or modifications to this equipment, and if the equipment malfunctions, the

telecommunications company might ask you to disconnect the equipment.

For your own protection, ensure the electrical ground connections of the power utility, telephone lines, and

internal metallic water pipe s

stem, if present, are connected to

ether.

Do not attempt to make such connections. Contact the appropriate electric inspection authority or electrician.

The manufacturer, not the user, must make the repairs to this equipment.

www.advancedco.com 5

Installation Guidelines for UL Systems

D9068P UL Requirements

• D9068P is UL Listed for Commercial Digital Alarm Communicator applications (Type service: remote station and

central station), UL Standard UL864.

• Install the digital alarm communicator transmitter (DACT) according to NFPA 72 for Commercial Fire installations.

• Use, enable, and supervise both telephone lines.

Failure to install and program the D9068P according to the requirements in this section voids its listing mark.

Test according to NFPA 72 following any modifications, repairs, upgrades, or adjustments to the system.

www.advancedco.com

1 Overview

1.1 System Overview

The D9068P Fire Communicator is a complete communicator for use with AX Series Intelligent Fire Alarm Control

Panels. Alarms and communications to the D9068P are accomplished via serial connection. The D9068P includes:

Multiple data protocols (Contact ID, and SIA 300)

100-event history buffer

Dual telephone line interface

Connections for programming LCD Keypad (DACT-PRG)

LEDs for heartbeat, DACT trouble, and telephone line trouble (one per line)

Serial port for connection to the AX Series Intelligent Fire Alarm Control Panel

Real-time clock

1.2 Features and Specifications

1.2.1 Power

Table 1: Power Specifications

Input Voltage 10.2 to 28 VDC

Standby Current 150 mA

Alarm Current 190 mA

Power for the D9068P is wired directly to the AX Series Intelligent Fire Alarm Control Panel via the AX-SEB cable.

Although the D9068P can withstand short power losses up to 5 minutes, power losses (AC & DC) greater than 5

minutes, could possibly cause the following:

History buffer might clear and all stored events are lost.

Output (report) buffer might clear and all pending reports are lost.

Alarms initiated before the power loss might reset. If the alarm conditions persist when power is restored,

new alarms will be generated.

DACT time might reset to its default setting.

1.2.2 System Supervision

Watchdog: The D9068P is supervised with a hardware watchdog circuit. Failure of the control program causes a

hardware reset within 2 sec. The AX Series Intelligent Fire Alarm Control Panel will indicate a DACT trouble

condition under this situation.

Self Testing: Occasionally, the dialer (DACT), EEPROM memory, and telephone lines are automatically tested.

The EEPROM checksum is verified every 10 minutes. If the EEPROM checksum fails, a DACT trouble condition is

indicated on the AX Series Intelligent Fire Alarm Control Panel and a Trouble Report is sent to the Central Station.

1.2.3 Trouble Contact

The D9068P has one Form C relay rated 1 Amp @ 30 VDC. The Form C relay is normally held active and

deactivates on any DACT trouble condition.

Note: The trouble contact is not utilized when utilizing the D9068P in conjunction with an AX Series Intelligent Fire

Alarm Control Panel. All DACT trouble conditions are reported to the FACP via the supervised serial connection.

If a power loss occurs, programmed settings such as point configuration, telephone numbers, and account

number remain intact.

www.advancedco.com 7

1.2.4 User Interface

A Programming LCD Keypad (DACT-PRG) connects to a five-pin connector located on the AX-SEB board. The

DACT-PRG is used to program and troubleshoot the D9068P.

Note: The DACT-PRG must be set to address 1 for proper use.

1.2.5 Communication

Formats

The D9068P supports two protocols: Contact ID, and SIA 300.

Report Routing

There are six different report groups that can be routed to one of the following phone settings:

PHONE 1 ONLY: The report is sent to Phone #1 only.

PHONE 2 ONLY: The report is sent to Phone #2 only.

PHONE 1 & 2: The report is sent to Phones #1 and #2.

PHONE 2 BACKUP: The report is sent to Phone #1, and then to Phone #2 if Phone #1 fails.

These reporting groups consist of non-supervisory alarms (NONSUP ALRM), supervisory alarms (SUPVSY ALRM),

alarm restoral’s and resets (ALM RSTR, RST), supervisory restoral’s (SUPVSY RSTR), tests (TESTS), and troubles

and trouble restoral’s (TBL, TBL RSTR).

Reset Report

A Reset Report is issued when the D9068P is reset from any off normal condition.

Telephone Line Selection

The D9068P follows a predetermined sequence to choose between the two telephone lines. It also implements the

new NFPA requirements for alternating telephone lines during test reporting. The D9068P maintains a variable that

selects either Phone Line 1 or Phone Line 2 for Auto Test Reports. After each successful Test Report, the variable

switches to select the other telephone line.

Users can select the telephone line for Manual Test Reports.

Communication Failed Indication: The D9068P indicates a communication failure after ten attempts to

communicate are completed without success. This causes an AX Series Intelligent Fire Alarm Control Panel DACT

trouble.

1.2.6 History Buffer

The D9068P has a history buffer that retains up to 100 events. Each event is tagged with the date and time of

occurrence. This buffer can be viewed when a DACT-PRG is attached to the AX-SEB board. When the buffer is full,

old events are discarded to make room for new events. A watchdog reset is entered in the buffer and does not reset

the buffer.

The history buffer might clear when the system loses AC and DC power for more than 5 min.

Only use the DACT-PRG LCD Keypad to program the D9068P. Temporarily connect this unit to the D9068P for

programming only.

www.advancedco.com

1.2.7 General Specifications

Table 2: General Specifications

Storage/Operating

Temperature 32

F to 120

(00C to 490C)

Lightning

Protection Metal oxide varistors (MOVs) and spark gaps provide protection from lightning surges and static

discharges for inputs and telephone interface.

1.2.8 Parts List

Table 3: Parts List

1 D9068P Serial DACT PC board

4 DACT PC board mounting clips and screws (not required for AX Series use)

4 sets cable assemblies

(only DACT-PRG cable assembly required, others not required with AX Series use)

2 sets telco cable assemblies RJ31X

1 ground wire

(not required for AX Series use)

5 end-of-line (EOL) resistors

(not required for AX Series use)

1 AX-SEB Serial Expansion Board

1 AX-SEB ON/OFF jumper

1 AX-SEB PL2 cable

1 AX-SEB PL4 cable

1 AX-SEB round standoff with screw

(required for AX-CTL-1 Mounting)

www.advancedco.com 9

1 – Mounting holes (4) 6 – System (DACT) trouble LED

2 – Phone line 1 7 – Heartbeat LED

3 – Phone line 1 LED 8 – To PL2 cable of AX-SEB

4 – Phone line 2 9 – To PL4 cable of AX-SEB

5 – Phone line 2 LED

Figure 1 – D9068P PC Board Layout

www.advancedco.com

1.1.1 AX-SEB Serial Expansion Board Layout

The AX Series Intelligent Fire Alarm Control Panel communicates to the D9068P DACT serially via an AX-SEB

serial expansion board. The AX-SEB Serial Expansion Board plugs into a ten-pin serial expansion port socket

located on the bottom left corner of the AX-CTL Base Card. See figure 2. Refer to Section 2.3 regarding AX-SEB

installation

Note: When utilizing the AX-SEB the jumper must be set in the DACT “ON” position. When programming the AX

Series Intelligent Fire Alarm Control Panel via the PC-NeT software tool the jumper must be placed in the DACT

“OFF” position, and upon completion of programming returned to the DACT “ON” position.

PL2 cable to (8) of D9068P

PL4 cable to (9) of D9068P

DACT-PRG

AX Series

Programming

Jumper

Figure 2 – AX-SEB Serial Expansion Board Layout

Tabla de contenidos

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
