1.0. Introduction
Mobile devices have an easy and intuitive interface that enables fast and convenient access to
different applications, and provides myriad opportunities to shop, network, and explore. Leveraging on
this, ACS introduces the AMR220-C mPOS reader, which can support EMV™ chip‒enabled contact
cards, contactless cards, and most mobile NFC devices.
This mPOS reader supports mobile devices running on the Android™ platforms. It connects wirelessly
with these devices via Bluetooth. Four LEDs and a speaker make transactions using AMR220-C easy
to follow.
.
This document provides general procedures on how to read a contact card and contactless card with
AMR220-C mPOS reader and an Android Bluetooth device (tablet or smartphone).
1.1. Install the Bluetooth demo application on Bluetooth device
1. Install the app “BLE test” on a Bluetooth device
2. Prepare the script for reading card in order to run the test.
Advanced Card Systems Limited
AMR220-C – User Manual [email protected].hk
Version 0.01 www.acs.com.hk
Page 5 of 12
1.2. How to read a contact card
1.2.1. Connect AMR220-C to a bluetooth device
1. Press the power button for 2 seconds to turn on AMR220-C.
2. On the bluetooth device (tablet or smartphone), execute the app “BLE Test”.
3. For Control code, please input 3500
Advanced Card Systems Limited
AMR220-C – User Manual [email protected].hk
Version 0.01 www.acs.com.hk
Page 6 of 12
4. Press the bluetooth button to turn on the bluetooth feature on AMR220-C.
5. In the App, Tap “SCAN” to serach Bluetooth device
6. Tap the ▼ button to select the name of Bluetooth device and type of reader (ICC) going to
connect
Remark: Select ICC for reading contact card while select PICC for reading contactless cards
Advanced Card Systems Limited
AMR220-C – User Manual [email protected].hk
Version 0.01 www.acs.com.hk
Page 7 of 12
1.2.2. Read a contact card
1. On the app, Tap “SELECT FILE” and choose “scripts”
2. Select “acos3.txt” as the script for running
3. Insert a contact card (ACOS3 card) on AMR220-C
4. Tap “Transmit” on the app
Advanced Card Systems Limited
AMR220-C – User Manual [email protected].hk
Version 0.01 www.acs.com.hk
Page 8 of 12

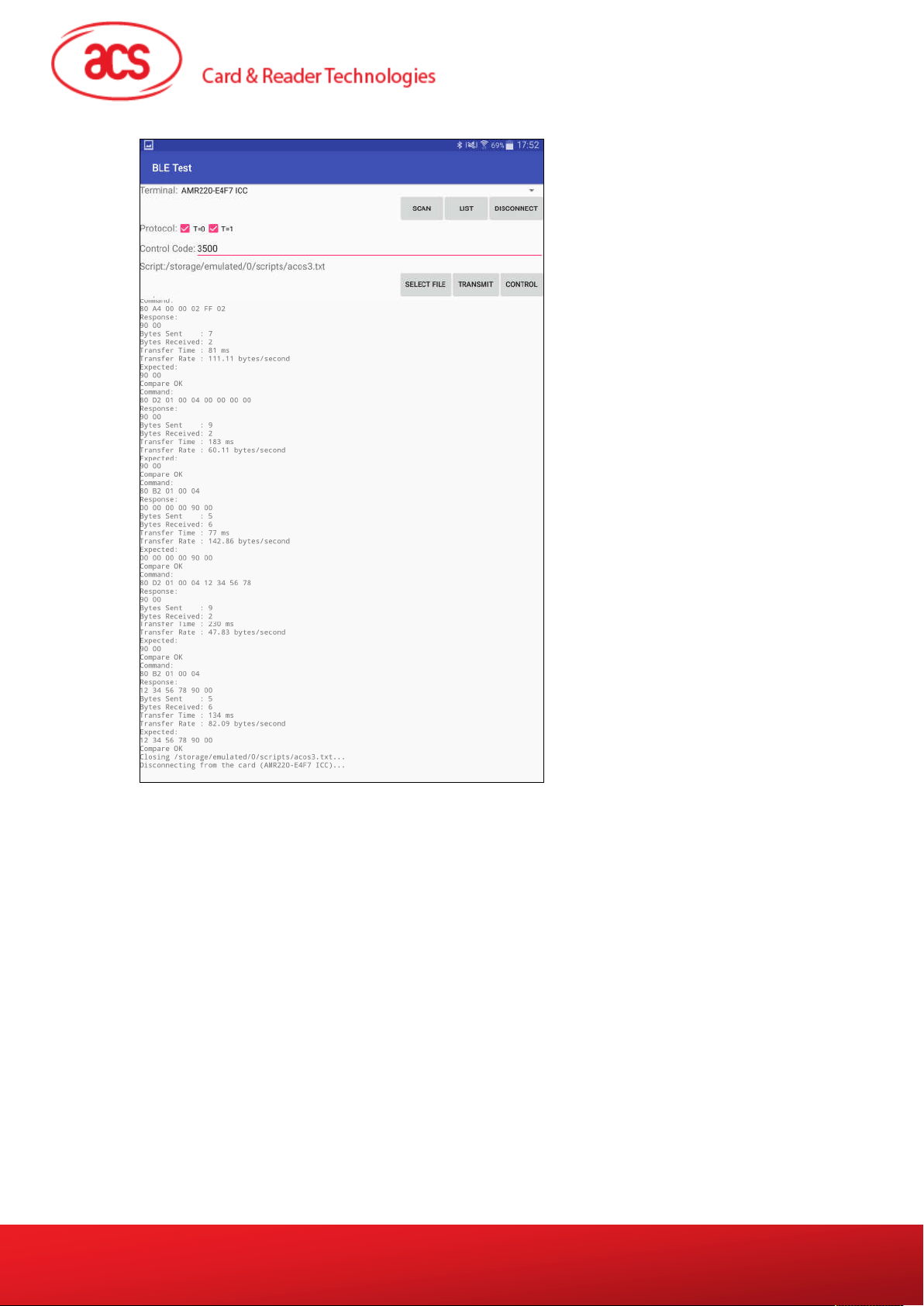

For reading the contact card successfully, similar information would be shown as below
5. Tap “Disconnect” after reading the card and disconnect AMR220-C from the bluetooth
device.
Advanced Card Systems Limited
AMR220-C – User Manual [email protected].hk
Version 0.01 www.acs.com.hk
Page 9 of 12
1.3. How to read a contactless card
1.3.1. Connect AMR220-C to a bluetooth device
1. Press the power button for 2 seconds to turn on AMR220-C.
2. On the bluetooth device (tablet or smartphone), execute the app “BLE Test”.
3. For Control code, please input 3500
Advanced Card Systems Limited
AMR220-C – User Manual [email protected].hk
Version 0.01 www.acs.com.hk
Page 10 of 12
4. Press the bluetooth button to turn on the bluetooth feature on AMR220-C.
5. In the App, Tap “SCAN” to serach Bluetooth device
6. Tap the ▼ button to select the name of Bluetooth device and type of reader (PICC) going to
connect
Remark: Select ICC for reading contact card while select PICC for reading contactless cards
