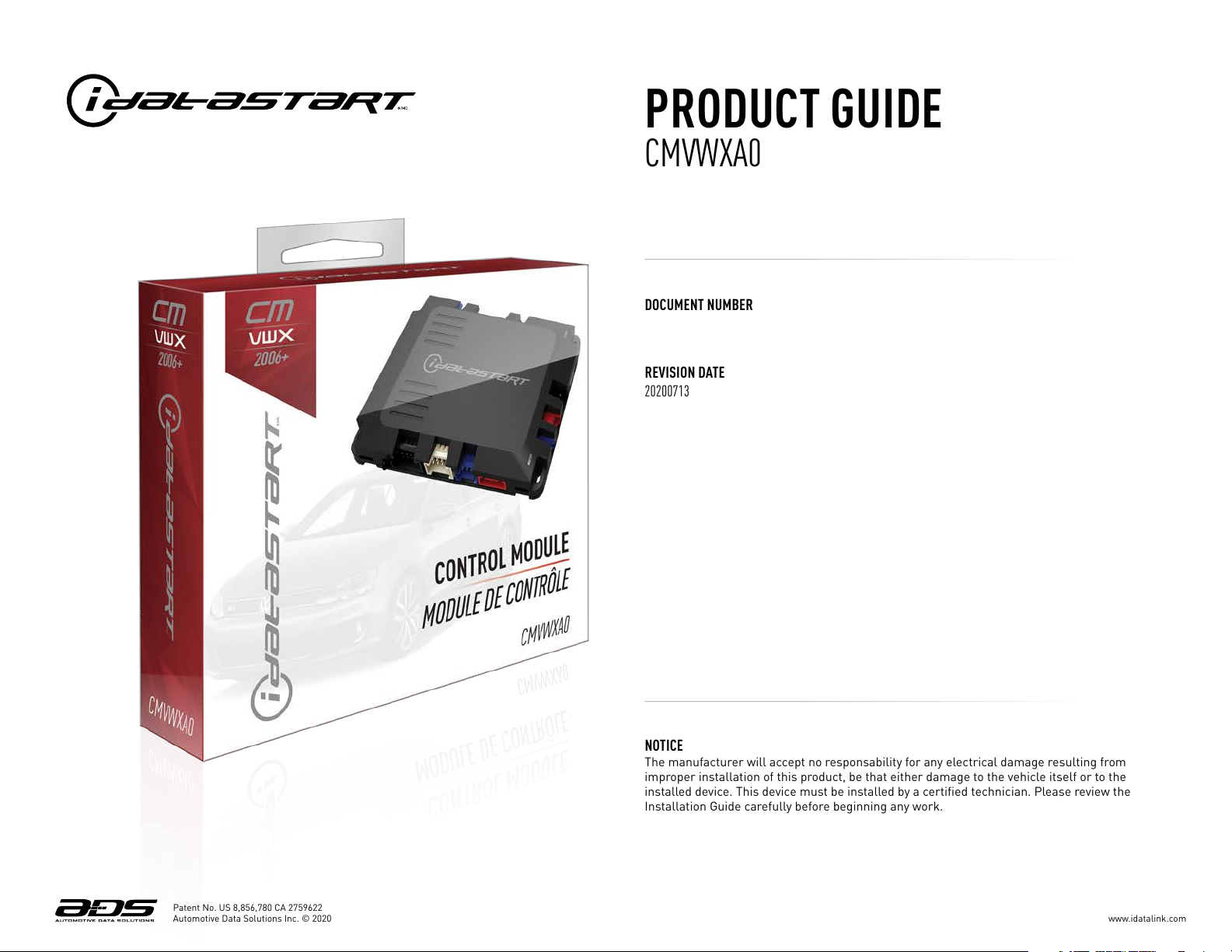

ADS idatastart CMVWXA0 Manual de usuario
REVISION DATE
20200713
DOCUMENT NUMBER
NOTICE
The manufacturer will accept no responsability for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the
installed device. This device must be installed by a certified technician. Please review the
Installation Guide carefully before beginning any work.
Patent No. US 8,856,780 CA 2759622
PRODUCT GUIDE
CMVWXA0
www.idatalink.comAutomotive Data Solutions Inc. © 2020
Patent No. US 8,856,780 CA 2759622
GETTING STARTED
WELCOME
NEED HELP?
Congratulations on the purchase of your VW
solution. You are now a few simple steps away
from enjoying your new remote starter unit with
enhanced features.
Before starting your installation, please ensure that
your VW module is programmed with the correct
firmware for your vehicle and that you carefully
review the install guide.
1 866 427-2999
idatalink.com/support
www.12voltdata.com/forum
www.facebook.com/groups/idatatech
TABLE OF CONTENTS
Box Contents 3
Tach Programming Procedure 4
Remote Programming Procedure 5
Valet Mode Programming Procedure 6
Compatible Accessories 7
Online Module Settings 9
Module Diagnostics 10
Remote Starter Error Codes 11
Module Reset Procedure 12
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 2 OF 12
• 20200713
Patent No. US 8,856,780 CA 2759622
AUTOMATIC
TRANSMISSION
CUT LOOP

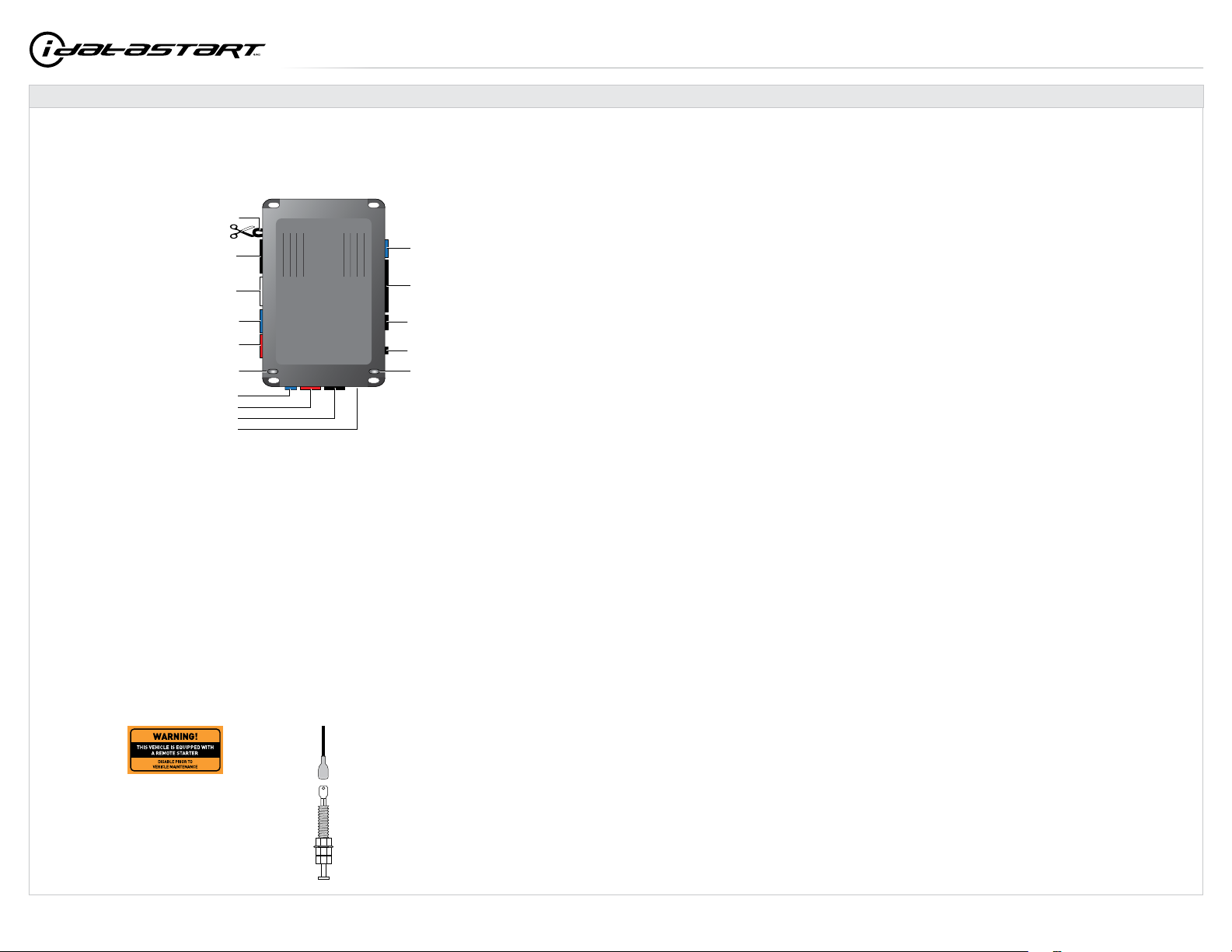

BOX CONTENTS
NC - 4 PIN RED
TELEMATIC 2 - 4 PIN RED
TELEMATIC 1 - 4 PIN BLUE 2 PIN BLACK - LED
PROGRAMMING BUTTON
THERMISTOR - 2 PIN BLUE
LED 1
LED 2
RF PORT/WEBLINK PORT - 4 PIN BLACK
USB
HOOD SWITCH
STICKERS
MODULE
M3 - 10 PIN WHITE
M2 - 12 PIN BLACK M5 - 6 PIN BLUE
M4 - 20 PIN BLACK
2X
BOX CONTENTS - 1 OF 1
ATTENTION: To complete this installation some accessories may be required.
Visit our website to see all the required accessories for your vehicle.
Use the T-harness ADS-THR-xxx to complete the installation.
Accessories sold separately.
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 3 OF 12
• 20200713
Patent No. US 8,856,780 CA 2759622
01
ENGINE
START
STOP
OFF ACC ON STARTSTART
START
02
03
04
05
06

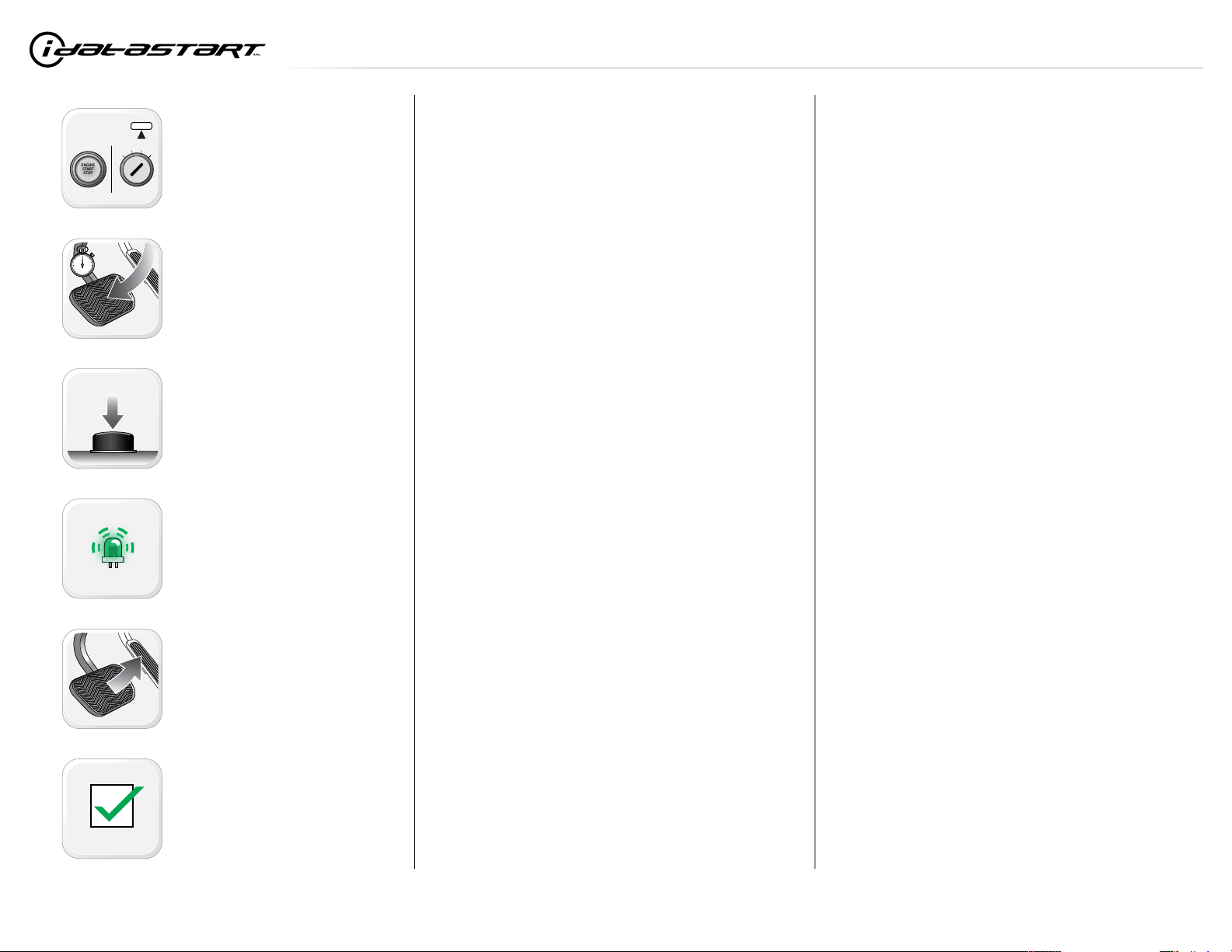

TACH PROGRAMMING PROCEDURE - 1 OF 1
START vehicle for 15 seconds.
Press and hold the brake pedal.
Press and release the module’s programming
button. (OR if the remotes are already
programmed to the vehicle, press and hold the
start button of the remote for 2.5 seconds.)
Wait, LED 2 will flash GREEN. (See the Module
Diagnostics page)
Release the brake pedal.
Module Programming Procedure completed.
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 4 OF 12
• 20200713
Patent No. US 8,856,780 CA 2759622
01 [4x]
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
05
06
07
08
ENGINE
START
STOP
OFF ACC ON STARTOFF
09

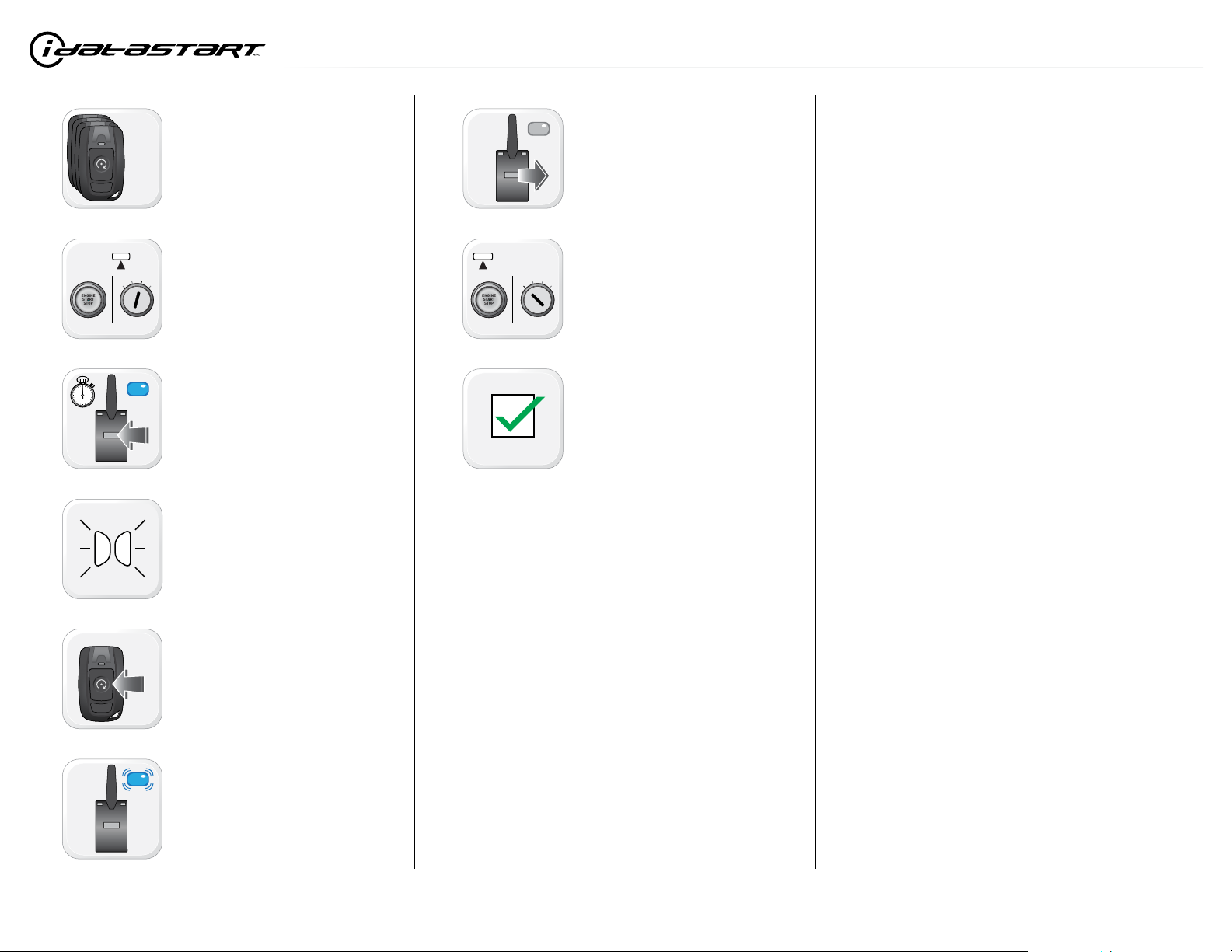

REMOTE PROGRAMMING PROCEDURE - 1 OF 1

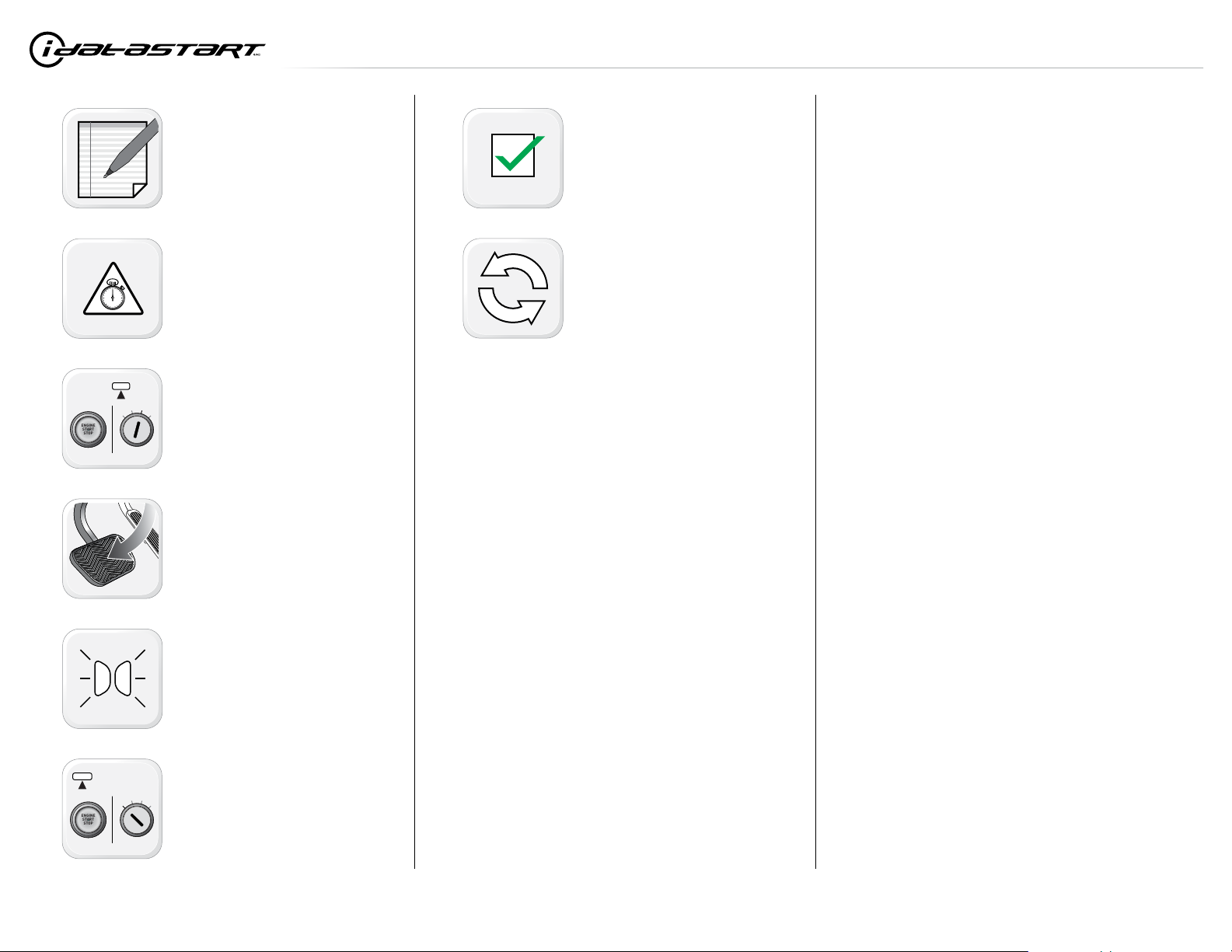

WARNING: Complete the module
programming procedure and tach
programming procedure before programming
the remotes. A maximum of four [4x] remotes
per system.
Set ignition to ON position.
Press and release the antenna button, then
press and hold the antenna button. The
antenna’s leds will turn solid BLUE.
Parking Light will flash once [1x].
Press once [1x] on the button of each remote.
The antenna’s leds will flash BLUE once [1x]
for each successful pairing.
Release the antenna button. The antenna’s
leds will turn OFF.
Set ignition to OFF position.
Remote Programming Procedure completed.
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 5 OF 12
• 20200713
Patent No. US 8,856,780 CA 2759622
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
05
ENGINE
START
STOP
OFF ACC ON STARTOFF
06
>>
VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON twice [2x OFF/ON] rapidly.
Press and release the BRAKE pedal three
times [3x].
Parking Light will flash once [1x] then will
flash twice [2x].
Set ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 5.
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 6 OF 12
• 20200713
Patent No. US 8,856,780 CA 2759622
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 7 OF 12
• 20200713

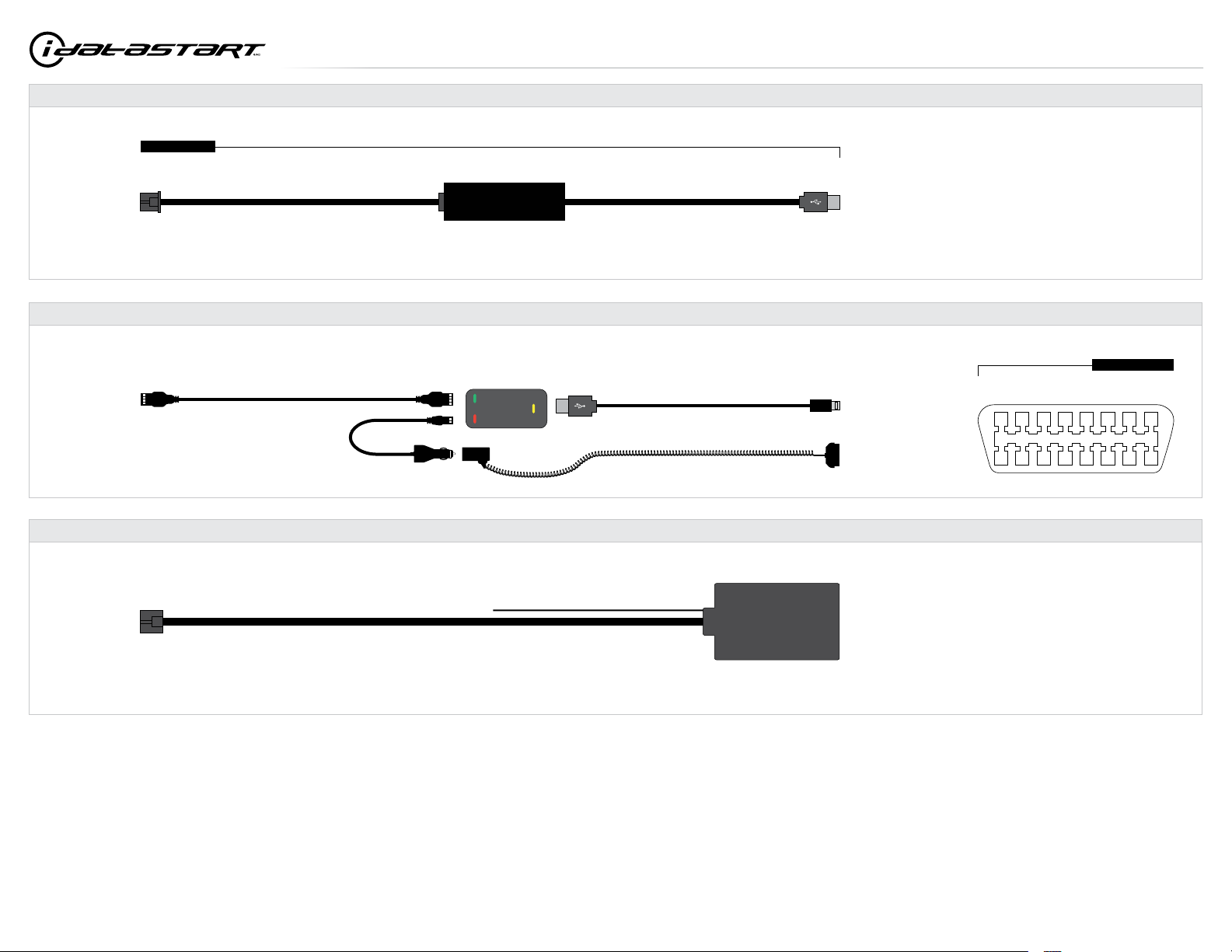

COMPATIBLE ACCESSORIES - 1 OF 2
MODULE
TELEMATIC BLUE PORT
*For SmartStart, use the module’s RED Telematic port.
(NC)
TELEMATIC KIT (accessory sold separately)
10 11 12 13 14 15 16
12345678
9
WEBLINK MOBILE (accessory sold separately)
MOBILE DEVICE
PORT
OBDII CONNECTOR

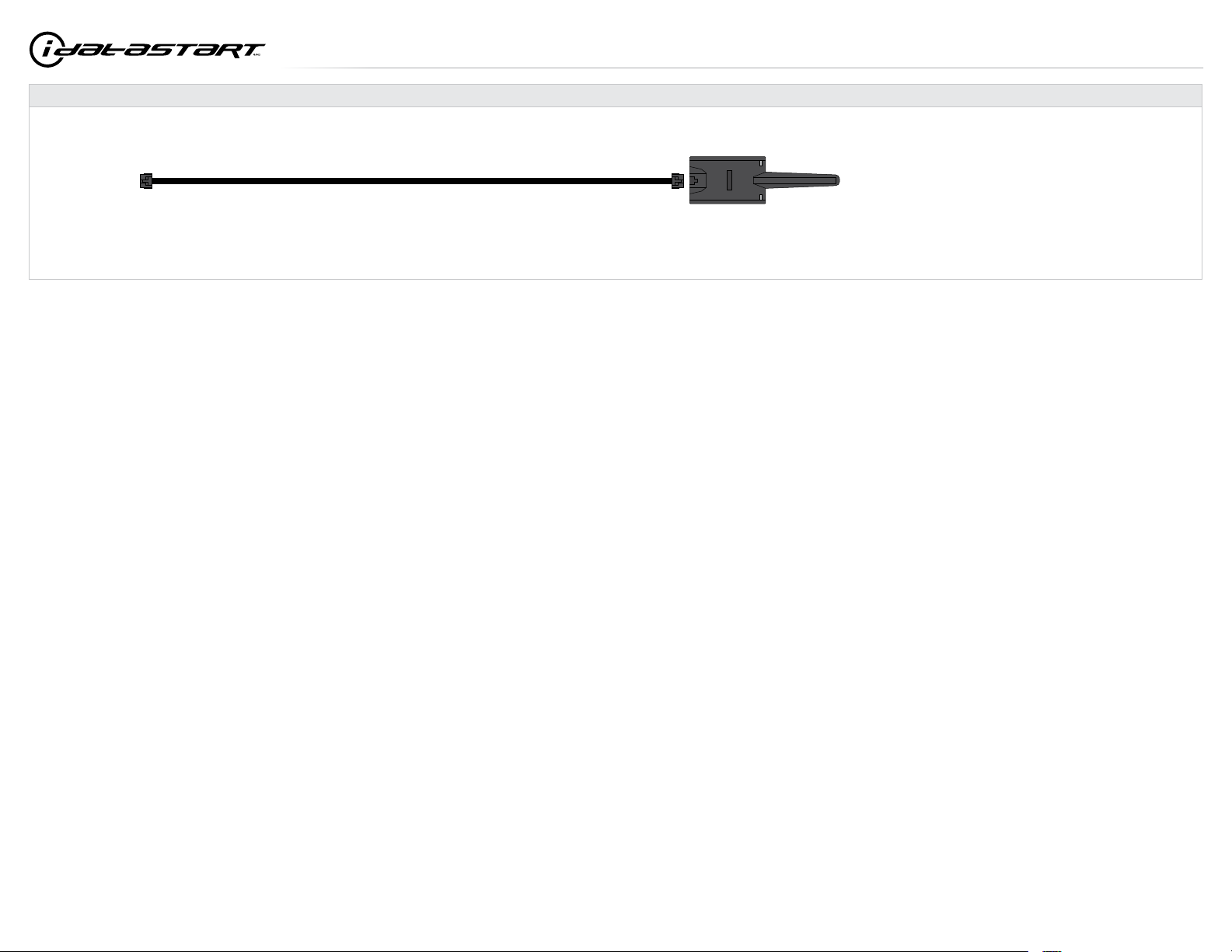

4 PIN BLACK CABLE
MODULE
WEBLINK PORT
OBDII CONNECTOR
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
Patent No. US 8,856,780 CA 2759622
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 8 OF 12
• 20200713
COMPATIBLE ACCESSORIES - 2 OF 2
4 PIN BLACK CABLE
MODULE
RF PORT
ANTENNA
RF KIT (sold separately)
Patent No. US 8,856,780 CA 2759622
ONLINE MODULE SETTINGS - 1 OF 1
WEB PROGRAMMABLE MENUS DESCRIPTION
MENU 1 – Remote Starter RS related configuration options
MENU 2 – Doorlock Options Convenience feature configuration options
MENU 3 – Security Options Alarm activation and settings
MENU 4 – AUX function assignments Set transmitter AUX buttons controls
MENU 5 – Programmable outputs (POC) Set actions for programmable outputs
MENU 6 – Pulse Timer Output Configuration (PTO) Set duration for pulse timer outputs (if used)
MENU 7 – Input Configurations Set inputs for Auto by firmware/Data/Analog
MENU 8 – Output Configurations Set outputs for Auto by firmware/Data/Analog
Programming options are avaible through Weblink and Weblink Mobile only.
www.idatalink.comAutomotive Data Solutions Inc. © 2020 CMVWXA0
PAGE 9 OF 12
• 20200713
Patent No. US 8,856,780 CA 2759622
MODULE DIAGNOSTICS - 1 OF 1
TEST MODULE
LED 1 STATUS
DIAGNOSTIC
I DURING MODULE PROGRAMMING
Flashing RED Missing/wrong information from firmware or vehicle.
Solid RED Module waiting for more vehicle information.
Flashing GREEN Additional steps required to complete module programming.
Solid GREEN then OFF Module correctly programmed.
OFF No activity or module already programmed.
II DURING TACH PROGRAMMING
1 GREEN flash Tach signal programmed in Analog
2 GREEN flashes Tach signal programmed in Data
3 RED flashes No tach signal detected
4 RED flashes System is in valet mode
6 RED flashes Tach set for ‘assumed start’. No tach programming required
III DURING REMOTE START
Flashing RED Module incorrectly programmed.
Solid RED Module incorrectly programmed.
Flashing GREEN Module correctly programmed and operational.
Solid GREEN then OFF Reset in progress.
OFF Invalid ground when running status from remote starter.
IV WITH IGNITION OFF
Flashing RED Module incorrectly programmed or connected.
Solid RED Module not programmed. Waiting for more vehicle information.
Flashing GREEN False ground when running status from remote starter.
Solid GREEN then OFF Reset in progress.
OFF Module at rest and ready for a remote start sequence.
