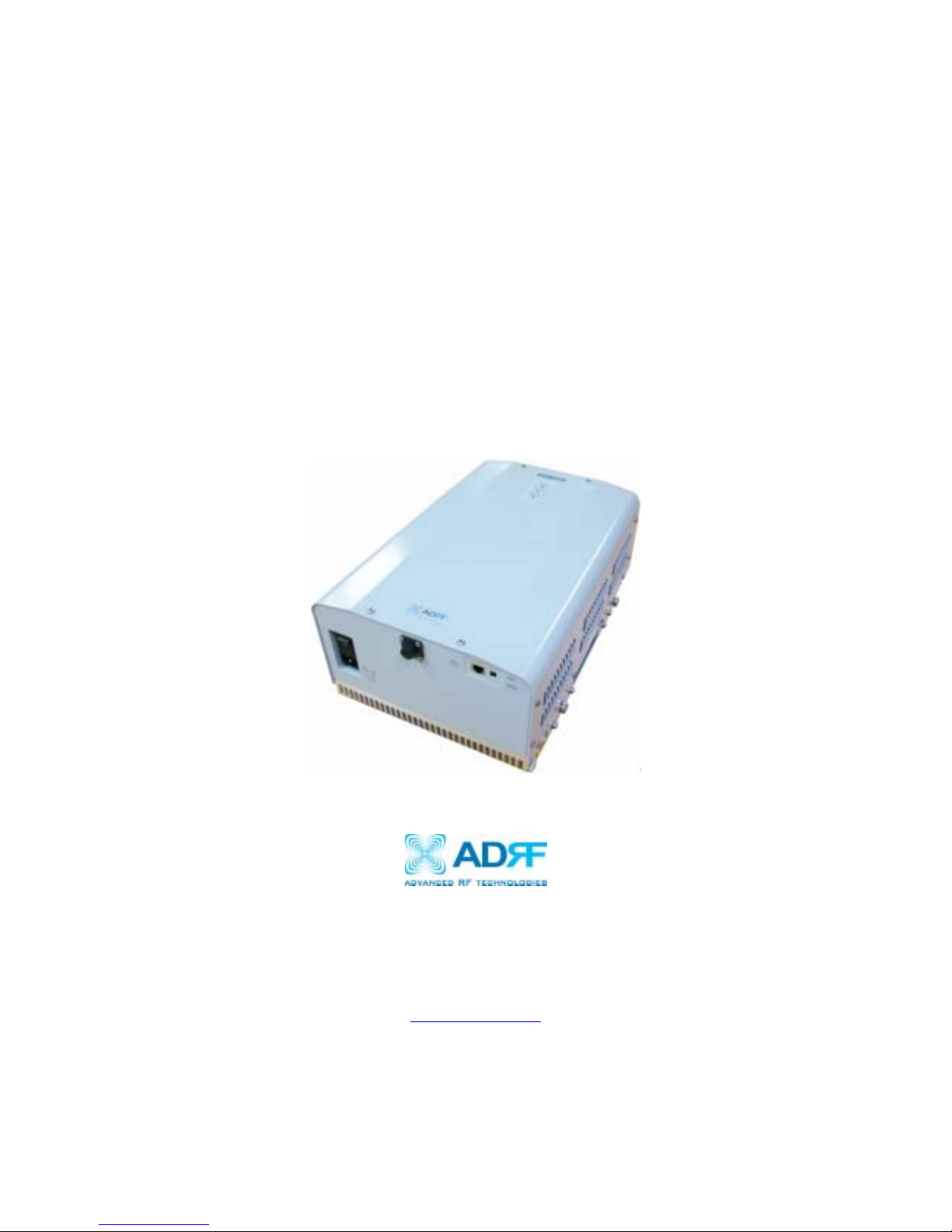

ADRF Epoch-III-P8024 Manual de usuario
Epoch-III-P8024/8030/8037NM
USER MANUAL
Version 1.6
2607 Colorado Blvd.
Los Angeles, CA 90041
USA
Tel: 323-254-8131
Fax: 323-254-4928
www.adrftech.com
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 2 of 41
Glossary
The following is a list of abbreviations and terms used throughout this
document.
Abbreviation/Term Definition
AGC Automatic Gain Control
ALC Automatic Level Control
AROMS ADRF’s Repeater Operation and Management
System
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CW Continuous Wave (un-modulated signal)
DAS Distributed Antenna System
DL Downlink
Downlink The path covered from the Base Transceiver
Station (BTS) to the subscribers service area
via the repeater
HPA High Power Amplifier
HW Hardware
iDEN Integrated Digital Enhanced Network
IF Intermediate Frequency
LNA Low NoiseAmplifier
MS Mobile Station
PLL Phased Locked Loop
PS Power Supply
RF Radio Frequency
SW Software
UL Uplink
Uplink The path covered from the subscribers service
area to the Base Transceiver Station(BTS) via
the repeater
VSWR Voltage Standing Wave Ratio
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 3 of 41
Version 1.6 (Released March 31, 2008)
Information in this document is subject to change without notice.
Advanced RF Technologies, Inc. 1996-2008.
All rights reserved.
Please send comments to:
E-Mail: [email protected]
Phone: (323) 254-8131
(800) 313-9345
Fax: (323) 254-4928
Address: Advanced RF Technologies, Inc.
Attention: Technical Publications Department
2607 Colorado Blvd., 1st Floor
Los Angeles, CA 90041
USA
www.adrftech.com
Revision History
Version Author Description Date
1.0 Peter Son March 15, 2007
1.1 B.C. Kim March 22, 2007
1.2 Julie Song April 2, 2007
1.3 Namchul Lee Update for Epoch-III-P8037NM July 16, 2007
1.4 Namchul Lee Update for UL approval October 17, 2007
1.5 Julie Song Update for external modem box November 18, 2007
1.6 Namchul Lee Update for FCC March 31, 2008
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 4 of 41
TABLE OF CONTENTS
1. EPOCH-III-P8024/8030/8037NM............................................................................. 6
1.1 Introduction........................................................................................................ 6
1.1.1 Highlights ..................................................................................................... 6
1.1.2 Parts List....................................................................................................... 7
1.1.3 Repeater Quick View.................................................................................... 8
1.2 Warnings and Hazards ........................................................................................... 9
2. EPOCH-III-P8024/8030/8037NM OVERVIEW ................................................... 11
2.1 Operation Modes.............................................................................................. 11
2.1.1. Local Web GUI ......................................................................................... 11
2.1.2. Remote Web GUI...................................................................................... 11
2.2 Switches & Indicators ...................................................................................... 12
2.2.1 LEDs......................................................................................................... 12
2.2.2 AC Power Switch & DC Power Port for External Modem Box.............. 13
2.2.3 Mode Selection Switch and Ethernet Port................................................ 13
2.3 Installation........................................................................................................ 14
2.3.1 Tools......................................................................................................... 14
2.3.2 Procedure.................................................................................................. 14
2.3.3 Grounding................................................................................................. 16
2.3.4 Antenna Separation/Isolation................................................................... 17
2.3.5 Line of Sight............................................................................................. 18
3. EPOCH-III-P8024/8030/8037NM AROMS SETUP............................................. 19
3.1 Repeater/PC Connection Using AROMS ............................................................ 19
3.2 Repeater Status..................................................................................................... 21
3.3 Repeater Control .................................................................................................. 23
3.4 Repeater Install..................................................................................................... 25
3.5 Repeater System................................................................................................... 27
4. MAINTENANCE GUIDE FOR EPOCH-III-P8024/8030/8037NM.................... 29
4.1 Periodic Inspection Checklist............................................................................... 29
4.2 Preventive Measures for Optimal Operation........................................................ 29
4.2.1 Recommendations ...................................................................................... 29
4.2.2 Precautions.................................................................................................. 29
5. WARRANTY AND REPAIR POLICY ................................................................. 30
5.1 General Warranty................................................................................................. 30
5.2 Limitations of Warranty....................................................................................... 30
5.3 Limitation of Damages......................................................................................... 30
5.4 No Consequential Damages................................................................................. 30
5.5 Additional Limitation on Warranty...................................................................... 30
5.6 Return Material Authorization (RMA) ................................................................ 31
APPENDIX A: SPECIFICATIONS.............................................................................. 32
A.1 Electrical Specifications...................................................................................... 32
A.2 Mechanical Specifications................................................................................... 33
A.3 Environmental Specifications.............................................................................. 33
A.4 Power Specifications........................................................................................... 34
A.5 Other Specifications............................................................................................ 34
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 5 of 41
APPENDIX B: MECHANICAL DRAWING .............................................................. 35
APPENDIX C: EPOCH-III-P8024/8030/8037NM OVERVIEW............................... 38
C.1 Block Diagram..................................................................................................... 38
C.2 Components......................................................................................................... 39
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 6 of 41
1. Epoch-III-P8024/8030/8037NM
1.1 Introduction
Epoch-III-P8024/8030/8037NM is a CDMA 1900 MHz RF repeater which
enhances in-building wireless coverage in the most effective and cost efficient
way. For its intelligent design and versatility, the Epoch-III-P8024/8030/
8037NM is the ideal choice for wireless coverage problems indoors. Epoch-III-
P8024/8030/8037NM can be used as a stand-alone repeater with passive antennas
connected to it or it can also be used as a feeder repeater to a DAS (Distributed
Antenna System).
1.1.1 Highlights
• Covers the 65 MHz PCS band including G band
• Supports up to three (3) non-contiguous band combinations
• Supports up to six (6) different instantaneous bandwidths;
5, 10, 15, 20, 25 and 30 MHz
• 24/30/37 dBm composite output power
• 80 dB gain
• 40 dB AGC Range @ 0.5 dB Step [Epoch-III-P8024NM]
• 30 dB AGC Range @ 0.5 dB Step [Epoch-III-P8030/8037NM]
• Sharp out-of-band rejection; 50 dBc @ 1 MHz Sub-band edge
• Automated installation
• Web GUI via DHCP
• Remote Monitoring Capability using External Modem Box (MBOX-DET1)
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 7 of 41

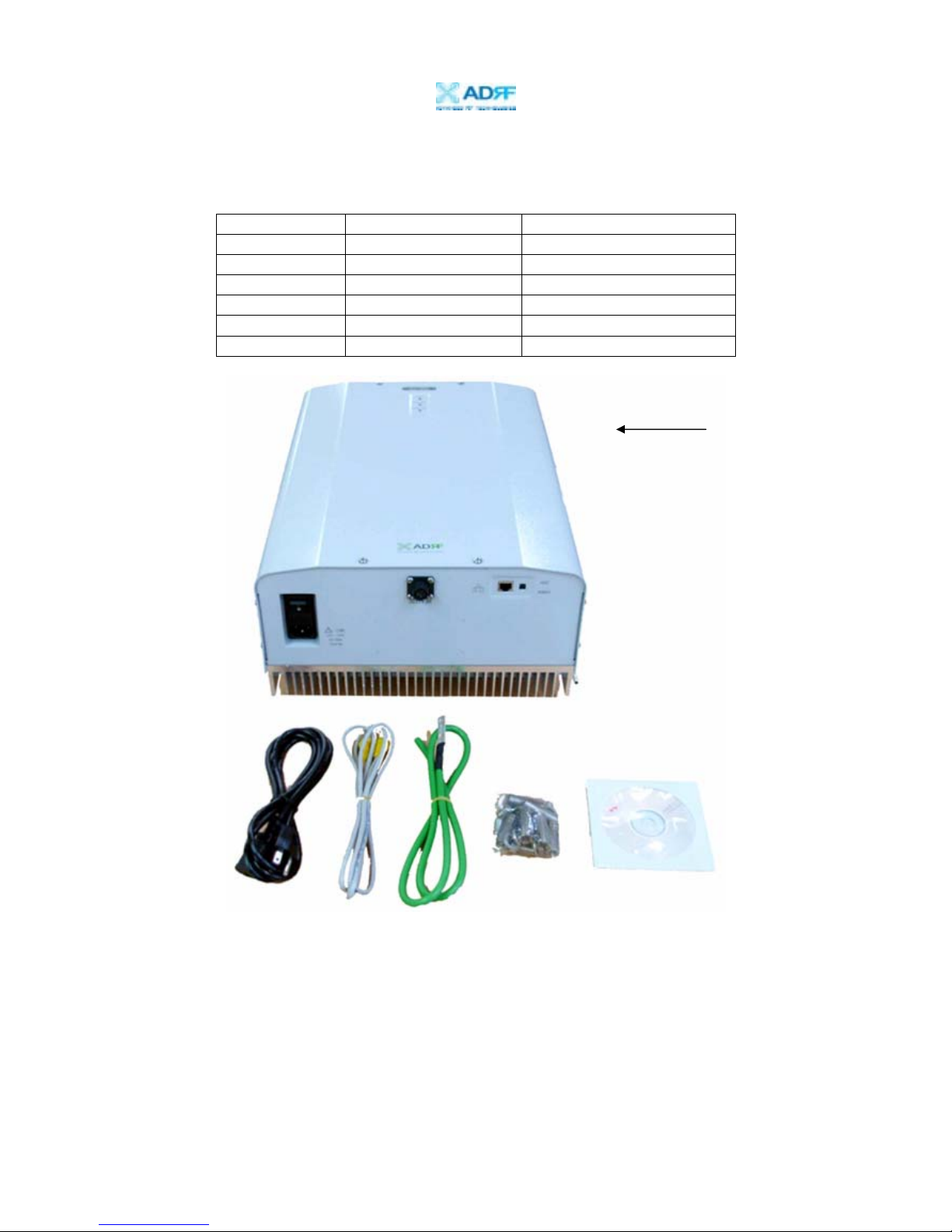

1.1.2 Parts List
Label Qty Description
A 1 PCS Repeater
B 1 AC Power Cable
C 1 Ethernet Cable (cross over)
D 1 Ground Cable
E 6 Anchor Bolts
F 1 CD**
** CD includes: (1) Epoch-III-P8024/8030/8037NM User Manual & (2) Epoch-
III-P8024/8030/8037NM Quick Start Guide
Figure 1 – Epoch-III-P8024/8030/8037NM Repeater Parts List
Table 1 – Parts List
A
B DC E F
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 8 of 41
1.1.3 Repeater Quick View
Figure 2 – Epoch-III-P8024/8030/8037NM Front & Side Views
Fi
g
ure 3
–
E
p
och-III-P8024/8030/8037NM Bac
k
,
Botto
m
,
&To
p
Views
Power LED
(Page12)
Soft Fail LED
(Page12)
Hard Fail LED
(Page12)
Upper Guard Screw
(Page15)
Bracket Screw
(Page15)
Lower Guard Screw
(Page15)
Ground Hole
(Page16)
DC power port for
external modem box
Donor Antenna Port
(Page17) Server Antenna Port
(Page17)
Wall Mounting
Bracket (page15)
Anchor Bolt
Hole (page15)
AC power switch (page13)
Mode Selection
Switch (page13) Ethernet Port (page13)
DC power port for
external modem box
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 9 of 41
1.2 Warnings and Hazards
Actual separation distance is determined upon gain of antenna used.
Please maintain a minimum safe distance of at least 50 cm while operating near the
donor and the server antennas. Also, the donor antenna needs to be mounted
outdoors on a permanent structure.
RF EXPOSURE & ANTENNA PLACEMENT Guidelines
Operating the Epoch-III-P8024/8030/8037NM with antennas in
very close proximity facing each other could lead to severe
damage to the repeater.
WARNING! DAMAGE TO REPEATER
Working with the repeater while in operation, may expose the
technician to RF electromagnetic fields that exceed FCC rules for
human exposure. Visit the FCC website at www.fcc.gov/oet/rfsafety
to learn more about the effects of exposure to RF electromagnetic
fields.
WARNING! EXPOSURE TO RF
Opening the Epoch-III-P8024/8030/8037NM could result in
electric shock and may cause severe injury.
WARNING! ELECTRIC SHOCK
Epoch-III-P8024/8030/8037NM
User Manual V1.6
Advanced RF Technologies, Inc. Proprietary Document Page 10 of 41
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Part 15 Class A
Lithium Battery : CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS.
Ethernet Instructions : This equipment is for indoor use only. All cabling should be
limited to inside the building.
Opening or tampering the Epoch-III-P8024/8030/8037NM will void all warranties.
WARRANTY
