Admiral ACC-0206 Manual de usuario

ACC-0206

Digital, Multi-Function,

GPS Speedometer

1:1

Contents

Notice

Product Accessories List

Product Specification

Product Wiring Diagram

User Interface

User Operation

Product Operation

Physical Features

Specification & Parameter

Product Installation

Product Dimension

1.Please make sure to refer to the installation instructions in the Operating Instructions to avoid damage caused by installation errors.

2.The product included the battery inside and cannot be replaced, do not disassemble or replace the battery by yourself.

3. Do not pull the wiring when using it to prevent falling off or poor contact happened.

4. Please install the product in a proper location to avoid the possibility of this product being hit and prevent damage to the product.

5. The product is waterproof, but cannot be used in deep water or soaked in rain for a long time.

6. Please use the product at the specified temperature, high temperature environment may cause damage to the product.

Notice

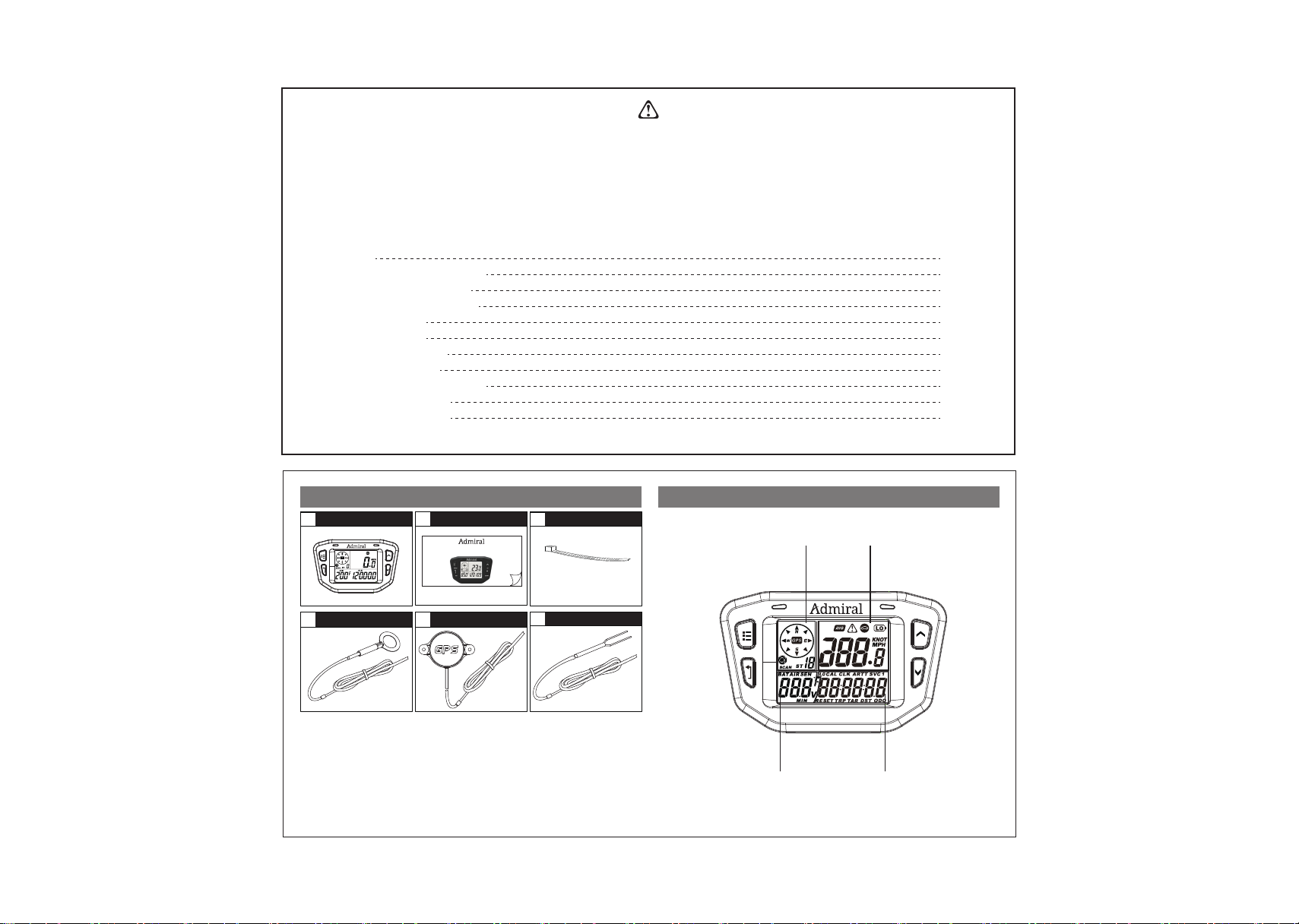

Product Accessories List

Product*1

1 2

User Manual*1

GPS Sensor*1

Power Wire*1

Cable tie*3

Temp

Sensor

PT100*1

Product Specification

- 1 -

- 2 -

1:1

SET

DOWN

SET

DOWN

Speed display

Clock/MileageVoltage/Temperature

Motion direction

Number of satellite

ACC-0206

Digital, Multi-Function,

GPS Speedometer

Please install the product and wiring according operation Instruction

to ensure the normal working.

Function Icon Units Range

Odometer

Trip Mileage

Target Mileage

Total Hours

Job Hours

Clock

SVC Hours 1

SVC Hours 2

Function Icon Units Range

The Air Temperature for reference only, it maybe existed deviation with actual value.

Battery Voltage

Maximum

Battery Voltage

Engine

Temperature

V 12-36V

72V

400°

Temperature

sensor

Temperature sensor

Power Input

Fasten the black shielded wire's ring terminal near

engine or motor for temperature reading. Do not

connect to DC motor power terminals.

- 3 -

1:1

- 4 -

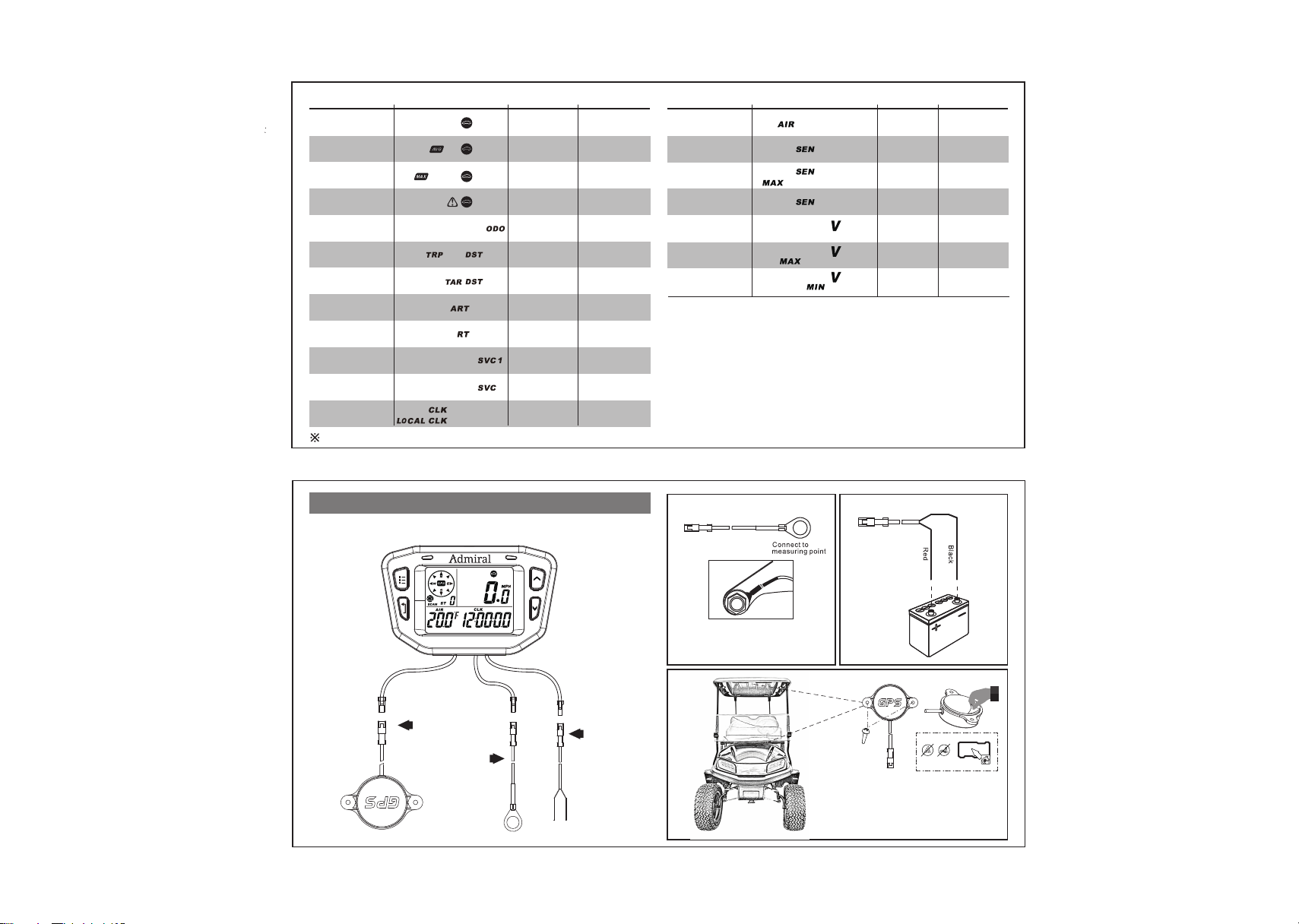

Product Wiring Diagram

KM/H or M/H or KNOT

H:M

H:M:S

0-1000KM/H

0-99999.9H

0-500000KM

0-1000H

24H

Air Temperature

Engine

Temperature

Alert

Temperature

Maximum

Engine Temperature

-20℃—+70℃

-4℉—+158℉

-20℃—+250℃

-4℉—+482℉

-20℃—+250℃

-4℉—+482℉

-20℃—+250℃

-4℉—+482℉

℃/℉

SET

DOWN

GPS Sensor

1. 2.

Two installation ways

1. screws(installation surface may be broken,

please reconsider it before installation)

2. 3M double-sided adhesive tape

(Before installation, please clean the installation

surface and keep it without dust,water and greasy dirt

Current Speed

KM/H or M/H or KNOT

0-399KM/H

Average Speed

Maximum Speed

Alert Speed

User Interface User Operation

All the information that pilot is on one of these 3 screens. The user

has the choice of staying on Screen 1 ,Screen 2 or Screen 3.

Press "MENU", the 3 main interfaces could be switched freely.

1 Screen 1 Operation

Screen 1:

●Direction of motion

●Number of satellites

●Speed

●AIR Temperature

●Clock

2 Screen 2 Operation

Screen 2:

●Direction of motion

●Number of satellites

●Speed

●Battery voltage

●Odometer (ODO)

Under the Screen 1 interface, press the “UP” or “DOWN” button can

view more data information.

Under the Screen 2 interface, press the “UP” or “DOWN” button can

view more data information)

●Max speed

●Max AIR temperature

●Clock

●Average speed

●Max battery voltage

●Clock

●Alert speed

●Min battery voltage

●Clock

●Max speed

●Max engine temperature

●Trip distance

●Average speed

●Max battery voltage

●Target distance

Screen 1

●Direction of motion

●Number of satellites

●Speed

●AIR Temperature

●Clock

Screen 2

●Direction of motion

●Number of satellites

●Speed

●Battery voltage

●Odometer (ODO)

Screen 3

●Direction of motion

●Number of satellites

●Speed

●Engine TEMP

●Total time (ART)

Back to Main Interface

At Circle

1:1

- 5 -

- 6 -

Product Operation

1.Setup speed units (Defaults:KM/H)

3 Screen 3 Operation

Screen 3:

●Direction of motion

●Number of satellites

●Speed

●Engine TEMP

●Total time (ART)

Under the Screen 3 interface, press the “UP” or “DOWN” button can

view more data information)

●Max speed

●Max engine temperature

●Job hours

●Average speed

●Max battery voltage

●SVC1 hour

●Alert speed

●Min battery voltage

●SVC2 hour

●Alert speed

●Min battery voltage

●Target distance

Back to Main Interface

At Circle

Back to Main Interface

At Circle

a) Press any button to turn on the device.

b) Press and hold the “MENU” button for 2s to off at any interface.

A.Product Startup and shutdown

a) Press the “MENU” button until display Screen 1 or Screen 2 or Screen 3.

a) Press “SET” + “DOWN” 1s to exit.

b) Exit automatically 30s later.

c) Press “SET” or “MENU” to switch the Setup.

b) Press the “UP” or “DOWN” button until you get desired unit , release the

button and finish your confirm.( Press the “SET” button can enter next setup)

b) Setup at circle as following

KM/H → Speed Alert → Temp Unit → Temp Alert → SVC1→ SVC2→ TAR DST

→ CLK→ H

B.Setup Mode

C.Exit Setup

a) Press and hold the “SET” button

until screen display “SET” icon and

“KM/H” icon start flashing.

1:1

- 7 -

- 8 -

LOCAL CLK→ H →M→S

2. Setup alert speed value (Defaults: 100KM/H)

3. Setup Temperature units (Defaults: C )

4. Setup Alert Temperature Value (Defaults: 100℃)

Press the “UP” or “DOWN” button until you get desired alert speed value ,

release the button and finish your confirm.( Press the “SET” button can enter

next setup) .

Press the “UP” or “DOWN” button until you get desired alert temperature value ,

release the button and finish your confirm.( Press the “SET” button can enter

next setup)

6. Setup SVC (Defaults: 0—1000H)

7. Setup Target mileage (Defaults: 0—1000KM)

Press the “UP” or “DOWN” button until you get desired SVC Timer value ,

release the button and finish your confirm.( Press the “SET” button can enter

next setup)

8. Setup clock mode (CLK )

Press the “UP” or “DOWN” button until you get desired clock mode , release

the button and finish your confirm.( Press the “SET” button can enter next setup)

Press the “UP” or “DOWN” button until you get desired Target mileage value ,

release the button and finish your confirm.( Press the “SET” button can enter

next setup)

Press the “UP” or “DOWN” button until you get desired temperature unit ,

release the button and finish your confirm.( Press the “SET” button can enter

next setup)

1:1

- 9 -

- 10 -

5. Setup SVC1 (Defaults: 1000H )

Press the “UP” or “DOWN” button until you get desired SVC1 Timer value ,

release the button and finish your confirm.( Press the “SET” button can enter

next setup)

H:0-23hour

M:0-59minutes

S:0-59seconds

Select CLK mode Select LOCAL CLK mode

DOWN

C.Reset

a) Press and hold the “SET”button for 2s to into reset at any sub-interface.

a) Press button “UP/DOWN”, reset the value of the current interface.

b) Product defaulted get into the Max Speed Reset Interface, the current reset

value start flashing.

b) Press button “MENU/SET” to switch to the next desired value.

1.Get into reset

2.Reset Operation

a) Press and hold buttons “SET”+ “DOWN” for 1s to exit the reset interface.

b) It will exit without no operation within 30s.

3.Reset exit

a) Reset the Max Speed Value

d) Reset the Max Temp of air Value

c) Reset the Min Voltage value

4.Reset Interface demo

Press UP/DOWN to reset

Before After

Press UP/DOWN to reset

After

Press UP/DOWN to reset

Before After

1:1

- 11 -

- 12 -

Before

e) Reset the Max Temp of Sensor Value

Press UP/DOWN to reset

Before After

f) Reset Job Hours Value

Press UP/DOWN to reset

Before After

b) Reset the Max Voltage Value

Press UP/DOWN to reset

Before After

DOWN

g) Rest Trip Distance Value

Press UP/DOWN to reset

Before After

1:1

- 13 -

- 14 -

D. Other

a) The upper left of LCD display number of satellites and

direction of motion.

b) The upper right of LCD display current speed.

c) The lower left of LCD alternate display battery voltage and

ambient temperature.

d) The lower right of LCD display time and mileage.

Theme 1 : speed+ AIR temperature+clock

1.SM002 will enter into screen 1 after reset

The main display when standby

2.The backlight will off without any operation within 30s. It will

only display clock and no other display if without any operation

for 5 min(as below picture); it will back to normal display when

have button operation and GPS speed.

Setting time: Please set it after receiving the stallite signal

and the stallite keep good.

If user choose "CLK" mode, only enter the hours value to

finish the setting, no need to enter the minutes and

seconds.

If user choose "LOCAL CLK", enter all the values including

hours, minutes and seconds to finish the setting.

DOWN

B.Warning alert

Specification & Parameter

Physical features

warning type

Settable range

LCD Reminder

Method

LED Reminder

Method

Speeding alert

Over-temperature alert

Low voltage of

internal battery

Bad satellite signal

0-399KM/H

-20℃-250℃

Warning icon flashes

Battery icon flashes

“SCAN”icon flashes

Red light flashes

Product Name

1.Specifications 2.Parameter

12-72VDCExternal Voltage

Supply

RL-SM002

Black

ABS

White backlight

365g

IP67

Item No. 3.7v lithium battery

500mAh rechargeable

Internal Battery

Color

Housing Material

Product Size

Display Mode

Display window size

Product Weight

Waterproof rate

0-399KM/H

Speed Range

-20-250℃

Temperature Range

0-99999.9H

Total Time

0-99999.9H

0-500000KM

(Can be reset)

Partial time

Total Mileage

Partial Mileage

1:1

- 15 -

- 16 -

1.When reach to the alert value, red flashing at twice every 5s, and LCD

display the current reminder content.

2. When happen Multiple reminders at the same time, display alternately.

3. Press and hold the button “SET” for 1s to clear the reminder.

A.SVC alert

Physical features

SVC type

Settable range

LCD Reminder

Method

LED Reminder

Method

SVC1

SVC

Target mileage

reached alert

0-1000H

“SVC1”icon flashes

“SVC2”icon flashes

“TAR”icon flashes

Yellow Flashes

1.Multiple reminders may occur simultaneously.

2. Press and hold the set button for 2S to clear reminders.

57.8x43.4mm

115.6x72x23.6mm

GPS Speed table

/ /

Product Dimension

Unit:mm

1:1

- 17 -

- 18 -

M3 Brass nut

1/4 Brass nut

14.3

57.8

43.4

23.6

115.6

SET

DOWN

Inside contain the battery,

Keep installation location

away from the heat source.

3 - TEMP SENSOR

CONNECTION HOLE

2 - GPS SENSOR

1 - DC.POWER

4 - X

5 - X

Reset

4 5

2 3

Steering Column and dash mounting brackets sold separately. Visit golfcart.com for speedometer mounting options.

Installation Method 1

Product Installation

Tabla de contenidos

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
