ADLINK Technology USB-2405 Manual de usuario

USB-2405 Quick Start Guide Rev. 2.00

USB-2405

4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module

Getting Started

Package Contents

Your package should contain:

• Rail mount kit

• ADLINK All-in-One CD

• Quick Start Guide

(this document)

• USB-2405

• Stand

• USB cable (2m)

P/N 50-40230-5000 Aug. 23, 2013

Features

Installing the Driver

• Hi-Speed USB 2.0

• USB bus powered

• 24-bit Sigma-Delta ADC with

built-in anti-aliasing filter

• 4-CH simultaneous sampling

analog input, up to 128kS/s

• AC or DC input coupling,

software selectable

• Analog or digital triggering

• Supports 2mA excitation output on

each analog input channel for

IEPE sensor measurement

• Full auto-calibration

• Ready-to-use testing application

(U-Test) provided

1. Download the latest UD-DASK driver & U-Test from:

http://www.adlinktech.com/

and run.

2. Follow the installation instructions

Check Product Package

Install USB-2405 driver

(UD-DASK)

& utility (U-Test)

Connect USB-2405

to USB 2.0/3.0 port

Perform quick test

with U-Test

utility

USB-2405 Quick Start Guide Rev. 2.00

P/N 50-40230-5000 Aug. 23, 2013

Advance Technologies

Automate the World

Web: http://www.adlinktech.com

Service: service@adlinktech.com

Tel: +886-2-8226-5877

Fax: +886-2-8226-5717

Contents and specifications subject to change

without notice.

Contact ADLINK

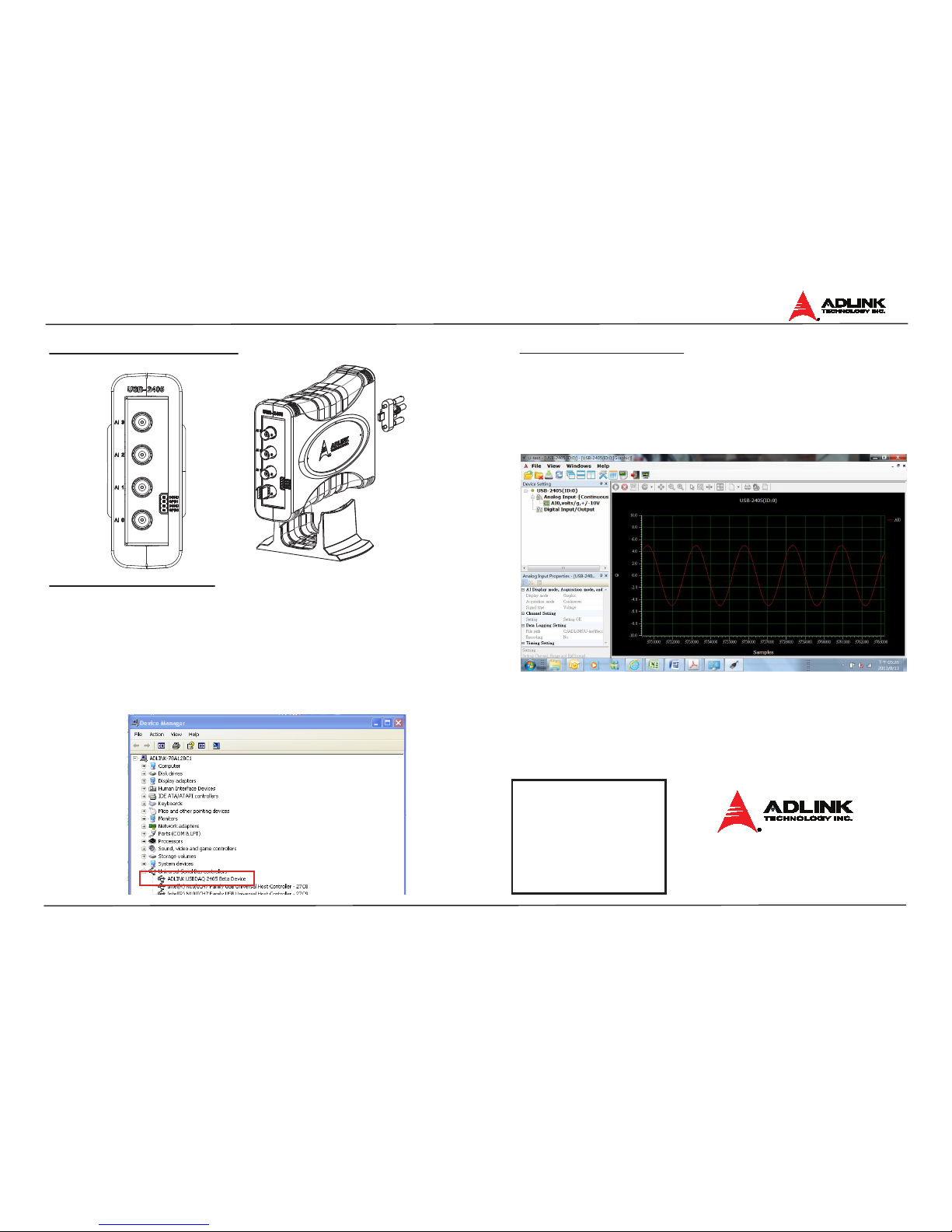

Connecting the USB-2405

1. Connect the USB-2405 module to one USB 2.0 or 3.0 port on the computer

using the included USB cable

2. The first time the USB-2405 module is connected, a New Hardware message

appears. It will take around 6 seconds to load the firmware. When complete,

the LED indicator on the rear of the USB DAQ module changes from amber

to green and the New Hardware message closes.

The USB-2405 module can now be located in the hardware Device Manager,

as shown.

I/O, Mounting, & Connectivity Quick Testing with U-Test

1. Connect IEPE sensors (microphone or accelerometer) to the USB-2405

2. Launch the U-Test Utility from either the Start menu, or

C:\ADLINK\U-test\U-Test.exe

3. Once the connected USB-2405 is detected automatically, configure the

necessary channel settings and run to implement quick testing
