ADJ FOCUS SPOT ONE Manual de usuario

User Manual

FOCUS SPOT ONE

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be trade-

marks or registered trademarks of their respective companies and are hereby acknowledged. All

non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Focus Spot One 400 User Manual Page 2

Date Document

Version

Software

Version DMX Channels Notes

2016 1 1.2 15/17 Initial Version

06/07/19 2 1.3 15/17 Target Mode Added

12/11/20 3 1.4 No Change Update primary/secondary modes

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of

this document may be available online.

Please check www.adj.com for the latest revision/update of this manual

before beginning installation and/or programming.

Focus Spot One General Information

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 3

Unpacking: Thank you for purchasing the Focus Spot One by ADJ Products, LLC. Every Focus

Spot One has been thoroughly tested and has been shipped in perfect operating condition. Carefully

check the shipping carton for damage that may have occurred during shipping. If the carton appears

to be damaged, carefully inspect your xture for any damage and be sure all equipment necessary to

operate the unit has arrived intact. In the event damage has been found or parts are missing, please

contact our toll free customer support number for further instructions. Please do not return this unit

to your dealer without contacting customer support rst.

Introduction: The Focus Spot One is a DMX intelligent, moving head, mini LED wash. The Focus

Spot One can operate as a stand alone xture or in a Primary/Secondary set up. The Focus Spot

One has three operating modes; a sound active, show mode, DMX controlled. This xture is suitable

for theaters, studios, retail stores, and other similar locations. For best results use fog or special ef-

fects smoke to enhance the beams projections.

Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help

and to answer any questions should you encounter problems during your set up or initial operation.

You may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours

are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 832-2941

E-mail: [email protected]

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 4

To optimize the performance of this product, please read these operating instructions carefully to

familiarize yourself with the basic operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please keep this manual with the unit, for

future reference.

Focus Spot One General Instructions

Focus Spot One Features

• DMX-512 Protocol Compatible

• 2 DMX Channel Modes: 15 Channels & 17 Channels

• 3 Operating Modes - Sound Active, Show Mode, & DMX Control

• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)

• Internal Microphone

• Digital Display for Address and Function Setting

• 4 Preprogrammed Shows

• UC IR and Airstream IR Compatiable (Not Included)

Focus Spot One Warranty Registration

The Focus Spot One carries a 2 year (730 days) limited warranty. Please ll out the enclosed warranty

card to validate your purchase and warranty.

You may also register your product online at www.adj.com. All returned service items, whether under

warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. If the

unit is under warranty you must provide a copy of your proof of purchase invoice. Please contact ADJ

Products, LLC customer support for an R.A. number.

Focus Spot One Handling Precautions

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid touching the unit with bare hands

while in use.

ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-

vance of this manual or any unauthorized modication to this unit.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 5

Focus Spot One Safety Precautions

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before

You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required voltage for your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break o the ground prong from the electrical cord. This prong is used

to reduce the risk of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when its cover is removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)

between this device and a wall.

• Do not attempt to operate this unit if has been damaged.

• This unit is intended for indoor use only, and use of this product outdoors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the appliance.

• Cleaning - The xture should be cleaned only as recommended by the manufacturer. See the

Cleaning section of this manual for cleaning details.

• Heat - This xture should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including ampliers) that produce heat.

• The xture should be serviced by qualied service personnel when:

A. Objects have fallen on, or liquid has been spilled into, the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a marked change in perfor-

mance.

Focus Spot One Safety Precautions

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 399NM -

430NM.

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER PROTECTIVE

LENS.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH

OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE

DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE

DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 6

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 7

Focus Spot One Mounting

When installing the unit, the trussing or area of installation must be able to hold 10 times the weight

without any deformation. When installing the unit must be secured with a secondary safety attach-

ment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, remov-

ing, or servicing the unit.

Overhead mounting requires extensive experience, including calculating working load limits, instal-

lation material being used, and periodic safety inspection of all installation material and unit. If you

lack these qualifications, do not attempt the installation yourself.

The installation should be checked by a skilled person once a year.

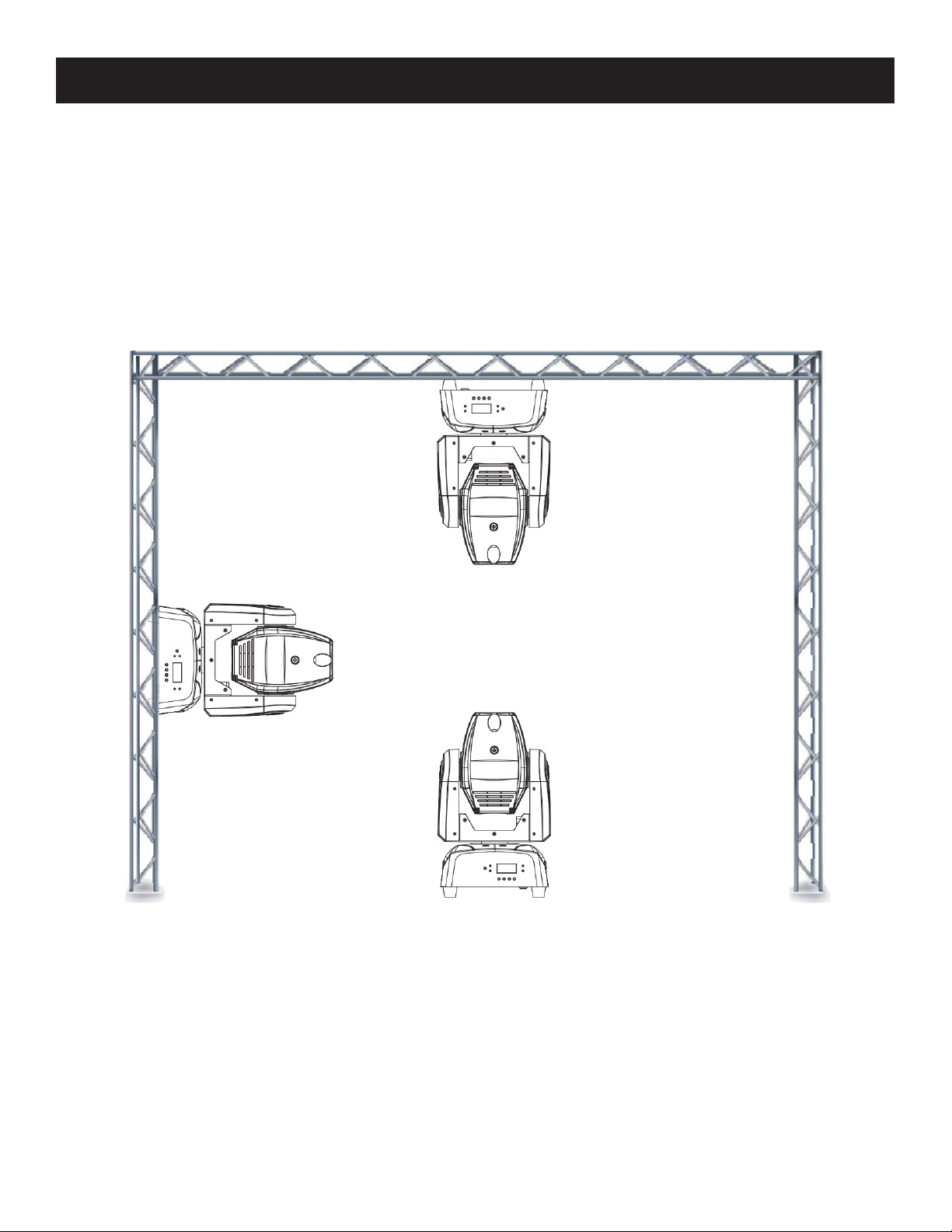

The Focus Spot One is fully operational in three different positions: hanging upside-down from a

ceiling or trussing, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture

is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install an

appropriately rated safety cable as a safety measure to prevent accidental damage and/or injury in

the event the clamp fails (see next page).

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 8

Focus Spot One Mounting

NOTICE: The suitable enviromental temperature for this lighting fixture is between -25˚ C to 45˚ C.

Do not place this lighting fixture in an enviroment where the temperatures fall outside of this range.

This will allow the fixture to run at its best and help prolong the fixture life.

Screw one clamp via an M12 screw and nut to the included bracket. Attach the bracket using the

omega locks to the bottom of the Focus Spot One. Attach and pull the safety-cable through one of

the safety holes located on the bottom base and over the trussing system or a safe fixation spot.

Insert the end in the carabine and tighten the safety screw.

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 9

Focus Spot One CAD Drawing

ADJ Products, LLC - www.adj.com - Focus Spot One User Manual Page 10

Focus Spot One Base Layout

1. IR Receiver: To receive the IR signal.

2. LED:

DMX On DMX input present

Primary On Primary Mode

Secondry On Secondary Mode

Sound Flashing Sound activation

3. Button:

MENU To select the programming functions

UP To go backward in the selected functions

DOWN To go forward in the selected functions

ENTER To confirm the selected functions

4. Display: To show the various menus and the selected function.

5. DMX In/Out: 3-pin XLR connectors for DMX 512 operation.

6. Power In/Out: Connectors for power input/output.

7. Fuse (T6.3 Amp): Protects the unit from over-voltage or short circuit.
