ADJ Startec STINGER Manual de usuario

User Manual

STINGER

Rev. 12/2020

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be trade-

marks or registered trademarks of their respective companies and are hereby acknowledged. All

non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 2

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 3

Unpacking: Thank you for purchasing the Stinger by ADJ Products, LLC. Every Stinger has been

thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping

carton for damage that may have occurred during shipping. If the carton appears to be damaged,

carefully inspect your xture for any damage and be sure all equipment necessary to operate the unit

has arrived intact. In the event damage has been found or parts are missing, please contact our toll

free customer support number for further instructions. Please do not return this unit to your dealer

without contacting customer support rst.

Introduction: The Stinger is a 10 channel, DMX intelligent LED moon-ower, strobe, & laser xture.

The xture can operate in as a stand alone xture or in a Primary/Secondary conguration. The Stinger

has three operating modes: sound active, auto run, and DMX Control. For best results use fog or spe-

cial eects smoke to enhance the beams projections.

Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help

and to answer any questions that may arise during set up or initial operation. You may also visit us on

the web at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday

8:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: (323) 582-2650

Fax: (323) 582-2941

E-mail: [email protected]

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!

Stinger General Information

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 4

Stinger General Instructions

To optimize the performance of this product, please read these operating instructions carefully to

familiarize yourself with the basic operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please keep this manual with the unit, for

future reference.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,

please contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid touching the unit with bare hands

while in use.

ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-

vance of this manual or any unauthorized modification to this unit.

• DMX-512 Protocol Compatible (10 DMX Channels)

• RGBWAP Hex LED’s

• Green & Red Lasers

• 3 Operating Modes - Sound Active, Auto Run, & DMX Control

• Internal Microphone

• Digital Display for Address and Function Setting

• Power Cord Daisy Chain

The Stinger carries a 1 Year limited warranty. Please fill out the enclosed warranty card to validate

your purchase and warranty. You may also register your product online at www.adj.com. All returned

service items, whether under warranty or not, must be freight pre-paid and accompanied by a return

authorization (R.A.) number. If the unit is under warranty, you must provide a copy of your proof of

purchase invoice. Please contact ADJ customer support for an R.A. number.

Stinger Features

Stinger Warranty Registration

Stinger Handling Precautions

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 5

Stinger Safety Precautions

Safety Issues: This unit may “pop” the fuse if the maximum allotted load of 2 amps is reached.

• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture.

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is

used to reduce the risk of electrical shock and fire in case of an internal short. Do not attempt to

operate this unit if the power cord has been frayed or broken.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit if it has been damaged.

• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power cords should be routed so they are not likely to be walked on, pinched by items placed

upon or against them.

• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the

Cleaning section of this manual for cleaning details.

• Heat - The appliance should be situated away from heat sources such as radiators, heat regis-

ters, stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into, the unit.

C. The unit has been exposed to rain or water.

D. The unit does not appear to operate normally or exhibits a marked change in performance.

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 6

Stinger Laser Warnings and Safety

After setting up, and before public use, test laser to ensure proper function. Do not use if any defect

is detected. Do not use if laser emits only one or two laser beams rather than dozens/hundreds, as

this could indicate damage to the diraction grating optic, and could allow emission of higher laser

levels above Class 3R.

Do not point lasers at people or animals. Never look into the laser aperture or laser beams.

Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled bal-

conies, etc.

Do not point lasers at highly reective surfaces, such as windows, mirrors and shiny metal. Even

laser reections can be hazardous.

Never point a laser at aircraft, this is a federal oense.

Never point un-terminated laser beams into the sky.

Do not expose the output optic (aperture) to cleaning chemicals.

Do not use laser if the laser appears to be emitting only one or two beams.

Do not use the laser if the housing is damaged, the housing is open, or if the optics appear dam-

aged in any way.

Never open the laser housing. The high laser power levels inside of the protective housing can start

res, burn skin and will cause instant eye injury.

Never leave this device running unattended.

The operation of a class 3R laser show is only allowed if the show is controlled by a skilled and well-

trained operator who is familiar with the information enclosed in this manual.

The legal requirements for using laser entertainment products vary from country to country. The user

is responsible for determining the legal requirements at the location/country of use.

Always use proper lighting safety cables when hanging lights and eects overhead.

Stinger DMX Set Up

Power Supply: The ADJ Stinger contains an automatic voltage switch, which will auto sense the

voltage when it is plugged into the power source. With this switch there is no need to worry about

the correct power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and

controller manufacturers as a form of communication between intelligent xtures and controllers. A

DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as

serial data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals locat-

ed on all DMX xtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use

the shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned a DMX address of 1 may be placed

anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

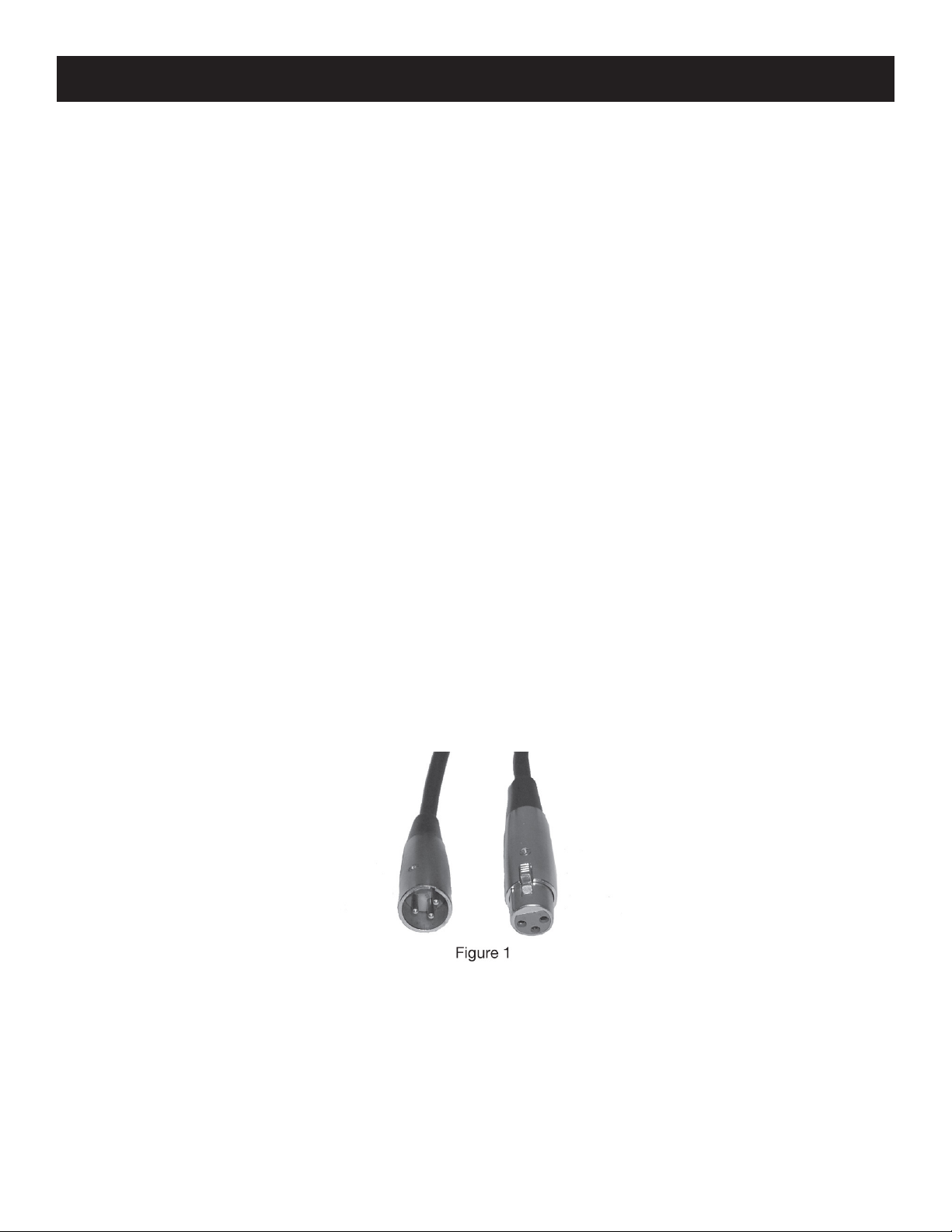

Data Cable (DMX Cable) Requirements: The Stinger can be controlled via DMX-512 protocol. The

Stinger is a 10-channel DMX device. The DMX address is set electronically using the controls on the

rear panel of the unit. Your unit and your DMX controller require an approved DMX-512 110 Ohm

Data cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you

are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may

be purchased at almost all professional sound and lighting stores). Your cables should be made with

a male and female XLR connector on either end of the cable. Also remember that DMX cable must

be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 7

Stinger DMX Set Up

Notice: Be sure to follow gures two and three when making your own cables. Do not use the

ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug

or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield

could cause a short circuit and erratic behavior.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-

nator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which

is connected between pins 2 and 3 of a male XLR connector (DATA+ and DATA-). This unit is inserted

in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable

terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

5-Pin XLR DMX Connectors. This unit use 5-pin DMX-512 data cables for DATA transmission. 5-pin

DMX xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in

to a 3-pin line, a cable adaptor must be used. These adaptors are readily available at most electron-

ics stores. The chart below details a proper cable conversion.

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 8

Stinger Installation

The unit should be mounted using a mounting clamp (not provided), which should be axed to the

mounting bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid

vibration and slipping while operating. Always ensure that the structure to which you are attaching

the unit is secure and is able to support at least 10 times the unit’s weight. Also, always use a safety

cable that can hold at least 12 times the weight of the unit when installing the xture.

The equipment must be installed by a professional, and it must be installed in a place where it is out

of the reach of people’s grasp.

Stinger Laser Warning Labels

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 9

NUMBER MENU FUNCTION

1 Addr Address setting, press DOWN/UP to choose 1-512

2 Show

Sh_1: LED show only

Sh_2: Strobe show only

Sh_3: Laser show only

Sh_4: LED + Laser mixed show

Sh_5: LED + Strobe mixed show

Sh_6: Laser + Strobe mixed show

Sh_7: LED + Strobe + Laser mixed show

3 Sens 0-99 sound sensitivity from low to high

4 Soun ON: Sound mode ON, run Sound mode

OFF: Sound mode OFF, run auto mode

5 Vers Ve1.4 software version

Stinger System Menu

ADJ Products, LLC - www.adj.com - Stinger User Manual Page 10

Tabla de contenidos

Otros manuales de Equipo de DJ de ADJ

ADJ

ADJ 3D Vision Manual de usuario

ADJ

ADJ UV LED BAR20 IR Manual de usuario

ADJ

ADJ WiFly QA5 IP Manual de usuario

ADJ

ADJ FREQ Matrix Manual de usuario

ADJ

ADJ Encore Profile 1000 WW Manual de usuario

ADJ

ADJ ENCORE FR150Z Manual de usuario

ADJ

ADJ 1223200047 Guía

ADJ

ADJ LTS COLOR Manual de usuario

ADJ

ADJ TRI18XS Manual de usuario

ADJ

ADJ Inno Pocket Spot Pearl Manual de usuario

ADJ

ADJ ENCORE BURST RGBW IP Manual de usuario

ADJ

ADJ 7P HEX IP Manual de usuario

ADJ

ADJ VIZ870 Manual de usuario

ADJ

ADJ ENCORE LP7P Manual de usuario

ADJ

ADJ American DJ FUSION FX BAR 1 Manual de usuario

ADJ

ADJ COB CannOn Wash DW Manual de usuario

ADJ

ADJ STARTEC BOOM BOX FX2 Manual de usuario

ADJ

ADJ MOD QA60 Manual de usuario

ADJ

ADJ WiFly Chameleon Manual de usuario

ADJ

ADJ VIZI BEAM 5RX Manual de usuario

ADJ

ADJ ELEMENT ST HEX Manual de usuario

ADJ

ADJ ELEMENT H6 FC Manual de usuario

ADJ

ADJ THEATRIX PRO 48 LED Manual de usuario

ADJ

ADJ M-103HD Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
