ADJ ENCORE BURST UV IP Manual de usuario

User Instructions

ENCORE BURST UV IP

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of

their respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation.

This device uses and can radiate radio frequency energy and, if not installed and used in accordance with

the included instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this device does cause harmful

interference to radio or television reception, which can be determined by turning the device off and on, the

user is encouraged to try to correct the interference by one or more of the following methods:

· Reorient or relocate the device.

· Increase the separation between the device and the receiver.

· Connect the device to an electrical outlet on a circuit different from which the radio receiver is

connected.

· Consult the dealer or an experienced radio/TV technician for help.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document

may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning

installation and/or programming.

07/03/19 11.1 1/2/3/6 Initial Version

Date Document

Version

Software

Version >

DMX Channel

Mode Notes

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 2

Encore Burst UV IP Table of Contents

Introduction

Features I Warranty Registration

Safety Guidelines

IP65 Notice

Overview

Installation

Connections

DMX Set Up

DMX Addressing

DMX Modes

System Menu

Multiple Unit Power Linking I Dimmer Mode Chart

Dimensional Drawing I Trouble Shooting I Cleaning

Limited Warranty (USA Only)

Specications

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 3

Encore Burst UV IP Introduction

Unpacking: Thank you for purchasing the Encore Burst UV IP by ADJ Products, LLC. Every Encore

Burst UV IP has been thoroughly tested and has been shipped in perfect operating condition. Carefully

check the shipping carton for damage that may have occurred during shipping. If the carton appears

to be damaged, carefully inspect your xture for any damage and be sure all accessories necessary

to operate the unit has arrived intact. In the case damage has been found or parts are missing, please

contact our toll free customer support number for further instructions. Do not return this unit to your

dealer without rst contacting customer support.

Introduction: The ADJ Encore Burst UV IP is a DMX intelligent, high powered LED fixture. To optimize

the performance of this product, please read these operating instructions carefully to familiarize yourself

with the basic operations of this unit. These instructions contain important safety information regarding

the use and maintenance of this unit. Please keep this manual with the unit, for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

https://forums.adj.com/ with questions, comments or suggestions.

Parts: To purchase parts online visit http://parts.americandj.com

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax 323-532-2941 | www.adj.com | info@adj.com

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

+31 (0)45 546 85 00 | Fax +31 45 546 85 99

www.adj.eu | [email protected]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufactures warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Encore Burst UV IP Features

• IP65 Outdoor Rated

• Electronic Dimming 0-100%

• DMX-512 protocol

• Multiple DMX Channel Modes

• IP65 Locking 5-Pin XLR Connector In/Out

• Frequency Adjustment

• Gamma Adjustment

• 6 Dimmer Curves With Dimmer Adjustment Speed

• Multiple Unit Power Linking (See page 19)

Included:

1 x IP65 Locking Power Cable

1 x Omega Bracket

Encore Burst UV IP Warranty Registration

The Encore Burst UV IP carries a 2 year limited warranty. Please fill out the enclosed warranty card to

validate your purchase. All returned service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on

the outside of the return package. A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you

must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by contacting

our customer support team on our customer support number. All packages returned to the service

department not displaying a R.A. number on the outside of the package will be returned to the shipper.

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 4

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 5

Encore Burst UV IP Safety Guidelines

FOR YOUR OWN PERSONAL SAFETY, PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY

BEFORE YOU ATTEMPT TO INSTALL OR OPERATE THIS UNIT!

• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS

YOURSELF; DOING SO WILL VOID YOUR MANUFACTURES WARRANTY. DAMAGES RESULTING FROM

MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND

GUIDELINES IN THIS MANUAL VOID THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO

ANY WARRANTY CLAIMS AND/OR REPAIRS.

• DO NOT PLUG THE FIXTURE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH THE FIXTURE DURING OPERATION AS IT MAY BE HOT!

KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

• ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC GREASE

(AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR

ELECTRICAL SHORT CIRCUIT.

• IF THE FIXTURE IS EXPOSED TO ENVIRONMENTAL TEMPERATURE CHANGES SUCH AS RELOCATION

FROM AN OUTDOOR COLD TO AN INDOOR WARM ENVIRONMENT, DO NOT POWER THE FIXTURE

ON IMMEDIATELY. INTERNAL CONDENSATION AS A RESULT OF ENVIROMENTAL TEMPERATURE

CHANGE CAN CAUSE INTERNAL FIXTURE DAMAGE. LEAVE THE FIXTURE POWERED OFF UNTIL IT HAS

REACHED ROOM TEMPERATURE BEFORE POWERING ON.

• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

• Be sure that the local power outlet is compatible with the required voltage for your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break o the ground prong from the electrical cord. This prong is used to

reduce the risk of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) between this

device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point

where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 20 for cleaning

details.

• Heat -This fixture should be situated away from heat sources such as radiators, heat registers, stoves, or other

appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when the appliance does not appear to operate

normally or exhibits a marked change in performance.

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 6

Encore Burst UV IP Safety Guidelines

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT FROM THE UV LED.

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE TO THE UV LED.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH

OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE

DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE

DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 7

Encore Burst UV IP IP65 Notice

IP65 RATED

An IP rated lighting xture is one, which is commonly installed in outdoor environments

and has been designed with an enclosure that eectively protects the ingress (entry)

of external foreign objects such as dust and water. The International Protection (IP)

rating system is commonly expressed as "IP" (Ingress Protection) followed by two

numbers (i.e. IP65) where the numbers dene the degree of protection. The rst digit

(Foreign Bodies Protection) indicates the extent of protection against particles entering

the xture and the second digit (Water Protection) indicates the extent of protection

against water entering the xture. An IP65 rated lighting xture is one, which has been

designed and tested to protect against the ingress of dust (6) and high-pressure water

jets from any direction (5).

MARINE/COASTAL ENVIRONMENT INSTALLATIONS

NOT suitable for marine and/or coastal environment installations. Installing

this xture in a marine and/or coastal environment may cause corrosion and/

or excessive wear to the interior and/or exterior components of the xture.

Damages and/or performance issues resulting from installation in a marine

and/or coastal environment will void the manufactures warranty and will NOT be subject

to any warranty claims and/or repairs.

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 8

Encore Burst UV IP Overview

LCD Screen

Mode Button

Up Button

Down Button

Enter Button

Safety Cable

Rigging Point

IP65 5-Pin DMX OutIP65 5-Pin DMX In

IP65 Power In IP65 Power Out

ADJ Products, LLC - www.adj.com - Encore Burst UV IP User Manual Page 9

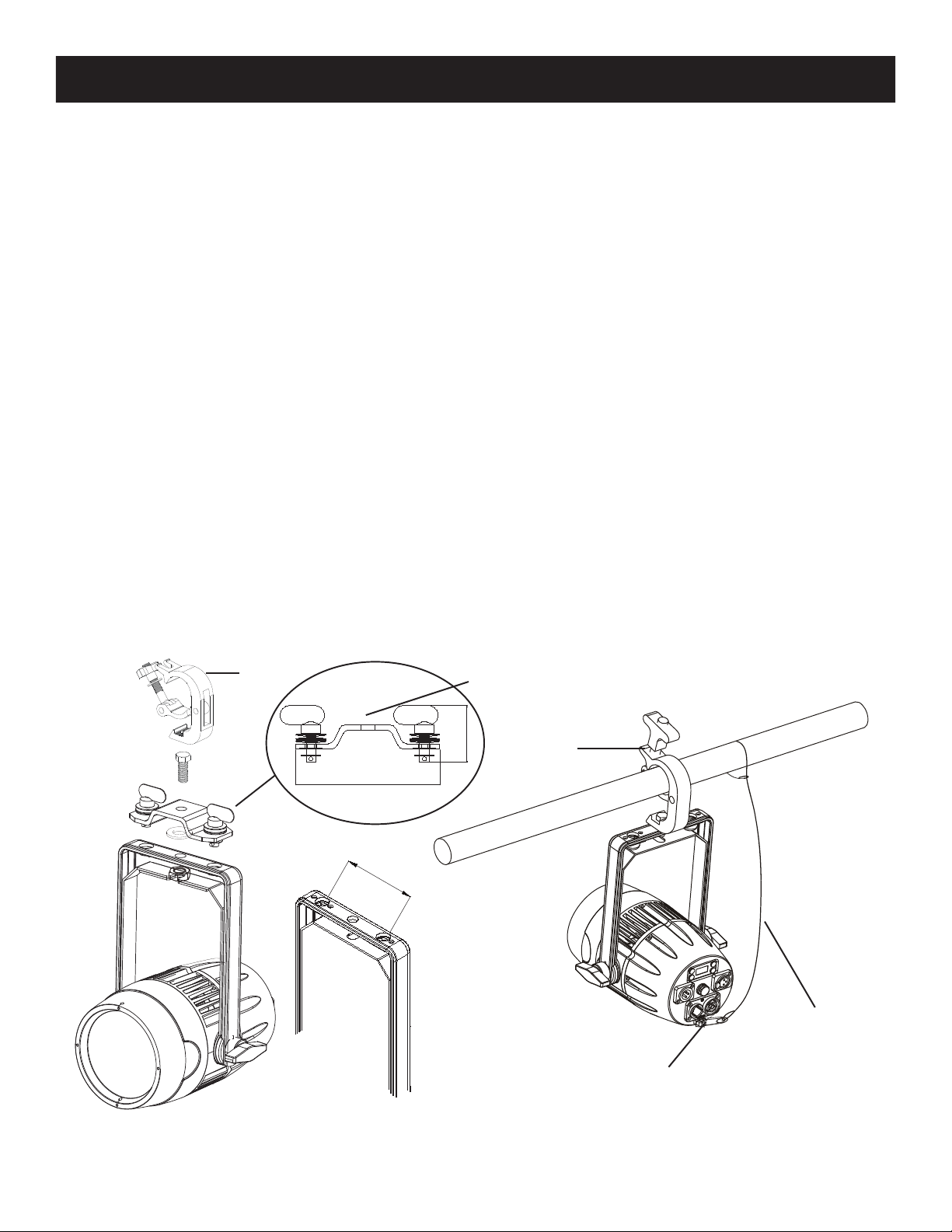

Encore Burst UV IP Installation

Always ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always

ensure that the structure to which you are attaching the unit is secure and is able to support a weight

of 10 times the unit’s weight. ALWAYS use safety cables that can hold 12 times the weight of the

unit when installing the xture. This equipment must be installed by a professional, and it must be

installed in a place where it is out of the reach of people’s grasp.

The Encore Burst UV IP is fully operational in three dierent mounting positions; hanging upside-down,

mounted sideways on trussing, or set on a at level surface. Be sure this xture is kept at least 12m

(40ft) away from any ammable materials (decoration etc.).

OVERHEAD RIGGING: The Encore Burst UV IP includes two rigging options.

1) OMEGA BRACKET - Mount the xture with an appropriately reated professional grade rigging

clamp (not included) to the included Omega Bracket using an M12 screw and nut (not included).

With the rigging clamp securely attached to the Omega Bracket, attach the Omega Bracket to the

xture by inserting both of the 1/4-turn quick-lock fasteners into the aligning holes on the xture

yoke bracket, and turning each clockwise to secure.

MAKE SURE THE OMEGA BRACKET IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!

2) MOUNTING YOKE - Mount the xture with an appropriately rated professional grade rigging clamp

(not included) to the xture yoke bracket center hole using an M12 screw and nut (not included).

MAKE SURE THE CLAMP IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!

SAFETY CABLE: Pull the safety-cable through the opening located on the rear of the unit and over

the trussing system or a safe xation spot. Insert the end in the carabine and tighten the safety

screw. ALWAYS use and install a safety cable as a safety measure to prevent accidental damage

and/or injury in the event the clamp fails.

4.21” / 107mm

5.35” / 136mm

2.12” / 54mm

OMEGA BRACKET

CLAMP

SAFETY CABLE

RIGGING POINT

CLAMP

SAFETY CABLE

(Not Included)

Otros manuales para ENCORE BURST UV IP

Tabla de contenidos

Otros manuales de Equipo de DJ de ADJ

ADJ

ADJ Par Z Move RGBW Manual de usuario

ADJ

ADJ 32 HEX PANEL IP Manual de usuario

ADJ

ADJ Color Stand LED Manual de usuario

ADJ

ADJ Dotz Par Manual de usuario

ADJ

ADJ XPress LED Manual de usuario

ADJ

ADJ wifly bar qa5 Manual de usuario

ADJ

ADJ HYD320 Manual de usuario

ADJ

ADJ WiFly QA5 IP Manual de usuario

ADJ

ADJ ENCORE PROFILE MINI COLOR Manual de usuario

ADJ

ADJ HYDRO BEAM X1 Manual de usuario

ADJ

ADJ Mega QPlus GO Manual de usuario

ADJ

ADJ FREQ Matrix Manual de usuario

ADJ

ADJ 18P HEX IP Manual de usuario

ADJ

ADJ HYDRO WASH X7 Manual de usuario

ADJ

ADJ TRI18XS Manual de usuario

ADJ

ADJ ENCORE PROFILE PRO COLOR Manual de usuario

ADJ

ADJ ECO UV Bar Plus Manual de usuario

ADJ

ADJ StarTec Series Manual de usuario

ADJ

ADJ Startec STINGER Manual de usuario

ADJ

ADJ BLACK-24BLB Manual de usuario

ADJ

ADJ 1226100374 Manual de usuario

ADJ

ADJ 3D Vision Manual de usuario

ADJ

ADJ WOLFMIX WMX1 Manual de usuario

ADJ

ADJ ikon profile ww Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
