ADF Web AXIS HD67555 Manual de usuario

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 1 of 20

User Manual

Revision 1.00

English

DeviceNet Master / PROFIBUS Slave -

Converter

(Order Code: HD67555)

for Website information:

www.adfweb.com?Product=HD67555

for Price information:

www.adfweb.com?Price=HD67555

Benefits and Main Features:

Very easy to configure

Low cost

PROFIBUS Baudrate up to 12M

Wide supply input range

Isolation between two buses

Industrial temperature range:

-40°C / 85°C (-40°F / 185°F)

For others Gateways / Bridges:

CANo en to Modbus

See also the following links:

www.adfweb.com?Product=HD67011 (Modbus RTU Slave)

www.adfweb.com?Product=HD67012 (Modbus RTU Master)

www.adfweb.com?Product=HD67514 (Modbus TCP Slave)

www.adfweb.com?Product=HD67515 (Modbus TCP Master)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD6700

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

HD67555

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 2 of 20

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

PROFIBUS 10

RS2 2 10

DEVICENET 11

USE OF COMPOSITOR SW67555 12

NEW PROJECT / OPEN PROJECT 12

SET COMMUNICATION 1

DEVICENET NETWORK 14

DEFINE BYTE 15

GSD FILE 15

UPDATE DEVICE 16

MECHANICAL DIMENSIONS 18

ORDER CODE 18

ACCESSORIES 18

DISCLAIMER 19

OTHER REGULATIONS AND STANDARDS 19

WARRANTIES AND TECHNICAL SUPPORT 20

RETURN POLICY 20

PRODUCTS AND RELATED DOCUMENTS 20

Pagina 2 di 20

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

To obtain the updated documentation for the product that you own, note

the “Document Code” (Abbreviated written "Doc. Code" on the label on

the product) and download the updated from our web site

www.adfweb.com/download/

REVISION LIST:

Revision

Date Author

Cha ter

Descri tion

1.000 07/07/2009

Fl All First release version

1.001 0/04/2010

Dp All Revision

1.002 15/07/2010

Ft All Revision

1.00 14/01/201

Nt & Fl All Added new chapters

WARNING:

ADFweb.com reserves the right to change information in this manual

about our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page of 20

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for

each individual application, legal and safety regulation. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit

switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who

have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated

by personnel untrained. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the

possibility of damage.

CONFORMITY

The declaration is made by us. You can send an email to support@adfweb.com or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 4 of 20

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 5 of 20

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67555

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 6 of 20

CHARACTERISTICS:

The Configurable DeviceNet Master / PROFIBUS Slave - Converter allows the following characteristics:

Two-directional information between network DeviceNet and PROFIBUS;

Eletrical isolation between two buses;

Up to 244 bytes in reading and 244 bytes in writing on PROFIBUS;

Power Supply 8…19V AC or 12… 5V DC;

Mountable on 5mm Rail DIN;

Temperature range -40°C to 85°C.

CONFIGURATION:

You need Compositor SW67574 software on your PC in order to perform the following:

Define the parameter of the DeviceNet;

Define the parameter of the PROFIBUS;

Define DeviceNet network;

Determinate which DeviceNet byte transfer in PROFIBUS and vice versa;

Create a GSD File;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 7 of 20

POWER SUPPLY:

The devices can be powered at 8…19V AC and 8… 5V DC. The consumption depends to the code of the device. For more details see the two

tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 19V 8V 35V

Consumption at 24V DC:

Device Consum tion [W/VA]

HD67555 .5

HD67555

Caution: Not reverse the olarity ower

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 8 of 20

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 9 of 20

LEDS:

The device has got three LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: DeviceNet State

(yellow)

ON: At least one DeviceNet Slave

device defined in the Compositor

isn’t answering to the Master

OFF: All DeviceNet Slave devices

are in communication

Not used

2: Not used (green) Not used Not used

: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DeviceNet Master

ROFIBUS

Slave

Document code: MN67555_ENG Revision 1.00 Page 10 of 20

PROFIBUS:

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right

figure.

Here some codes of cables:

Belden: p/n 18 079A - Continuous Armor DataBus® ISA/SP-50 PROFIBUS Cable;

RS232:

The connection from RS2 2 socket to a serial port (example one from a personal computer), must be made with a Null

Modem cable (a serial cable where the pins 2 and are crossed). It is recommended that the RS2 2C Cable not exceed

15 meters.

The serial port is used for programming the device.

Tabla de contenidos

Otros manuales de Hardware de red de ADF Web

ADF Web

ADF Web HD67609-A1 Manual de usuario

ADF Web

ADF Web J1939 to Ethernet Manual de usuario

ADF Web

ADF Web HD67879-A1-XX Manual de usuario

ADF Web

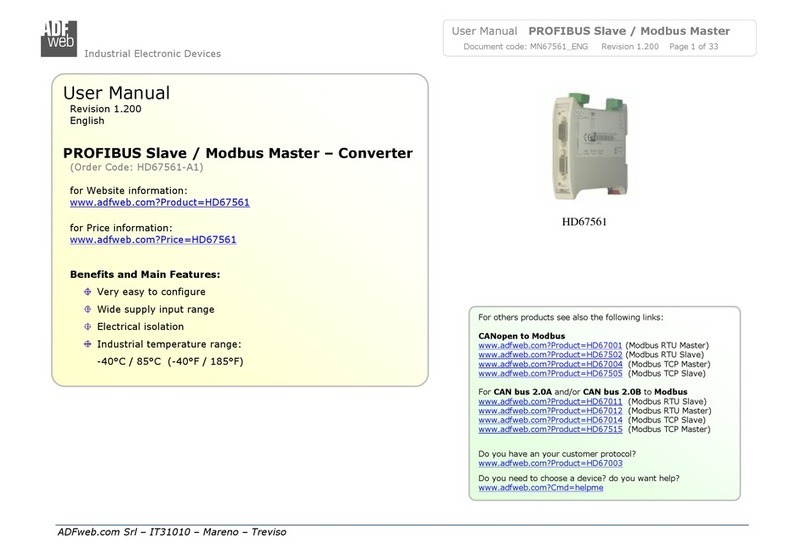

ADF Web HD67561 Manual de usuario
