ADF Web HD67038-2 Manual de usuario

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 1 of 25

User Manual

evision 1.400

English

Converter / Adapter

Ethernet to RS232 / RS485

(Order Code: HD67038-2 HD67038-2-M

HD67038-25 HD67038-25-M)

for Website information:

www.adfweb.com?Product=HD67038-2

www.adfweb.com?Product=HD67038-2-M

www.adfweb.com?Product=HD67038-25

www.adfweb.com?Product=HD67038-25-M

for Price information:

www.adfweb.com?Price=HD67038-2

www.adfweb.com?Price=HD67038-2-M

www.adfweb.com?Price=HD67038-25

www.adfweb.com?Price=HD67038-25-M

Benefits and Main Features:

Galvanic isolation between Ethernet and S232

Protocol independent

Suitable for supervision software

SCADA/HMI and the connection to a Personal Computer

Automated control of the line directions.

Easy to use software configuration.

Temperat

ure range

30°C to 70°C

;

For others Converter / Adapter:

RS232 / RS485

See also the following link:

www.adfweb.com?Product=HD67119

Do you have an your customer protocol?

See the following link:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

Similiar

Products

HD67038

HD67038-25-M

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 2 of 25

NDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

EVISION LIST 2

WA NING 2

T ADEMA KS 2

CONNECTION SCHEME 3

CHA ACTE ISTICS 7

POWE SUPPLY 7

CONFIGU ATION 8

USE OF SW67038 COMPOSITO 8

GENE AL PA AMETE 9

ODALITY

EMOTE

COM

O T

ODALITY

UNNEL

OINT TO

OINT

ODALITY

UNNEL

OINT TO

ULTIPOINT

UPDATE VIA TCP 16

UPDATE VIA SE IAL 17

SOME EXAMPLES 18

CHA ACTE ISTICS OF THE CABLES 19

ACTIVE SE IAL D IVE 20

CHANGE BAUD AND PA ITY ON THE FLY 22

MECHANICAL DIMENSIONS 23

O DE CODE 24

ACCESSO IES 24

WA ANTIES AND TECHNICAL SUPPO T 25

ETU N POLICY 25

P ODUCTS AND ELATED DOCUMENTS 25

UPDATED DOCUMENTAT ON:

Dear customer, we thank you for your attention and we remind you that you

need to check that the following document is:

Updated

elated to the product you own

To obtain the most recently updated document, note the “document code” that

appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/ and

search for the corresponding code on the page. Click on the proper “Document

Code” and download the updates.

To obtain the updated documentation for the product that you own, note the

“Document Code” (Abbreviated written "Doc. Code" on the label on the product)

and download the updated from our web site www.adfweb.com/download/

REV S ON L ST:

Revision

Date Author

Chapter

Description

1.000 20/10/2008 Fl All First release version

1.100 02/07/2009 Ml All evision

1.200 06/07/2010 FT All evision

1.300 31/03/2011 Dp All evision

1.400 28/03/2012 Dp All evision

WARN NG:

ADFweb.com reserves the right to change information in this manual about our

product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 3 of 25

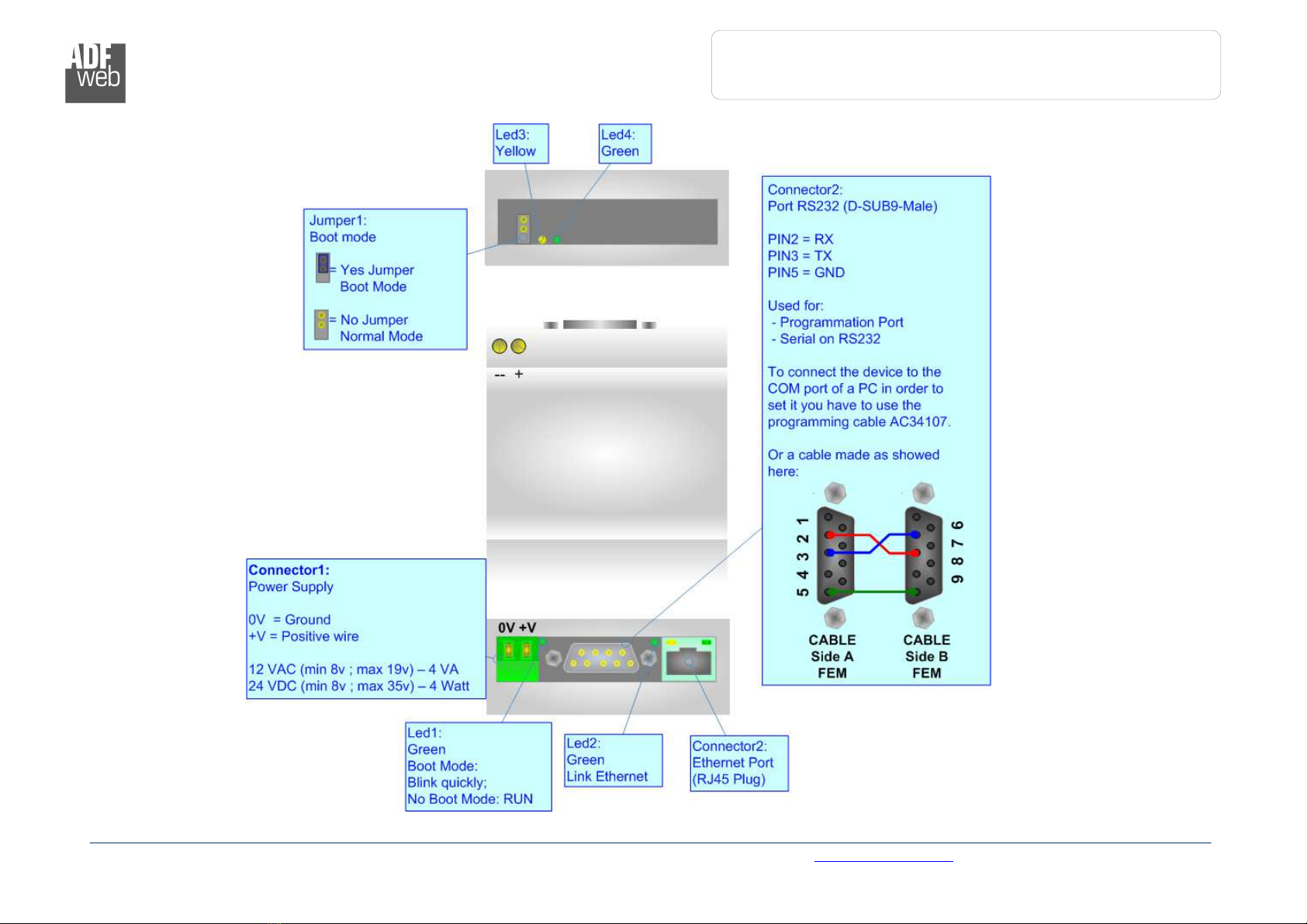

CONNECT ON SCHEME:

Figure 1: Connection scheme for HD67038

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 4 of 25

Figure

: Connection scheme for HD67038

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 5 of 25

Figure

: Connection scheme for HD67038

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 6 of 25

Figure

: Connection scheme for

HD67038

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 7 of 25

CHARACTER ST CS:

Ethernet to S232/ S485 is a professional device for using COM port through Ethernet line.

The Converter allows the following characteristics:

Galvanic isolation between Ethernet and S232 / S485;

ail DIN mountable;

Auto-sensing Ethernet 10/100;

Baud ate and Parity changeable with software;

Possible Baud ates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps;

Fixed Stop bit (1);

Temperature range -30°C to 70°C;

EMS EN 61000-6-2.

POWER SUPPLY:

Caution: Not reverse the polarity power

Recommended Power Supply

VDC VAC

24v 12v

VDC VAC

Vmin Vmax Vmin Vmax

8v 35v 8v 19v

HD67038

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 8 of 25

CONF GURAT ON:

This device allows the following configurations:

emote COM Port;

Tunnel Point to Point ( Ethernet bridge for a serial line);

Tunnel Point to Multipoint.

USE OF COMPOS TOR SW67038:

To configure the Converter use the available software that runs with

Windows, called SW67038. It is downloadable on the site

www.adfweb.com and its operation is described in this document.

When launching the SW67038 the right window appears (Fig. 5).

Figure

Main window

for SW67038

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 9 of 25

GENERAL PARAMETER:

By Pressing the “General Parameter” button from the main window for SW67038 (Fig. 5), the window “General Parameter” appears.

This window is divided in three sections: in the first you can select the Operating Modality, the second is used to configure the Ethernet and the

last to configure the Serial line.

In the section “Operating Modality” it is possible to select the function mode of the Converter from these options:

Remote COM Port;

Tunnel Point to Point;

Tunnel Point to Multipoint.

These operating modalities are described in the following pages.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Ethernet to RS232

/ RS485

Document code: MN67038-2_ENG evision 1.400 Page 10 of 25

PERAT NG

ODAL TY

EMOTE

COM

ORT

It consists of a configuration in which the device is generally controlled by a PC

that is connected using the TCP protocol line on the 10001 port. It writes bytes

that automatically are sent on the serial line and each byte read from the serial

port is transmitted through the line to the connected PC.

The means of the fields for “Ethernet Configuration” are:

In the field “IP Address” the IP address of the Converter is defined;

In the field “SubNet Mask” the Subnet Mask of the Converter is defined;

In the field “Port” the Port of the Converter is defined;

If the field “Use Gateway” is checked, in the field below it is possible to

insert the IP Address of the gateway used for going out to the net in the

field under;

In the field “Socket Disconnect TimeOut (S)” enter a time in seconds. If

no data pass through the socket for the seconds defined, the socket

disconnects.

The means of the fields for “Serial Configuration” are:

If you are using HD67038-2 or HD67038-2-M Converter, the field

“ S232” must be checked; instead if you are using HD67038-25 or

HD67038-25-M Converter, if the field “ S485” is checked the serial line

in use is the S485 otherwise is the S232;

In the field “Baud ate” the velocity of the serial line in use is defined;

In the field “Parity” the parity of the serial line in use is defined.

If select the “Enable Change baudrate on the fly” is possible to change

the baudrate and parity from the Ethernet (see Change Baudrate and

Parity On The Fly chapter for more info).

In the field ”Port” the port to change baudrate and parity is defined.

The button "ACTIVE SE IAL D IVE " is used to activate the "Serial to Ethernet Connector". For more details go to page 17.

Figure

“

General arameter

”

window

(Remote COM ort)
