ADF Web HD67324-B2-E-232-4GB Manual de usuario

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 1 of 44

User Manual

Revision 1 200

English

Modbus / CAN – Datalogger

(Order Code: HD67324-B2-E-232-4GB, HD67324-B2-E-485-

4GB,

HD67324-B2-E-CAN-4GB)

for Website information:

www adfweb com?Product=HD67324

for Price information:

www adfweb com?Price=HD67324-B2-E-232-4GB

www adfweb com?Price=HD67324-B2-E-485-4GB

www adfweb com?Price=HD67324-B2-E-CAN-4GB

Benefits and Main Features:

Very easy to configure

Electrical isolation

Temperature range: -40°C/85°C (-40°F/185°F)

For other M-Bus products:

See also the following link:

Converter M-Bus to

www adfweb com?Product=HD67021 (RS232

www adfweb com?Product=HD67022 (RS485

www adfweb com?Product=HD67030 (Ethernet

Extender and Repeater, M-Bus

www adfweb com?Product=HD67032

Gateway M-Bus / Modbus RTU

www adfweb com?Product=HD67029M-232 (on RS232

www adfweb com?Product=HD67029M-485 (on RS485

Gateway M-Bus / Modbus TCP

www adfweb com?Product=HD67044-B2

Gateway M-Bus / CANopen

www adfweb com?Product=HD67051

Gateway M-Bus / PROFIBUS

www adfweb com?Product=HD67053M

Do you have an your customer protocol?

See the following link:

www adfweb com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www adfweb com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 2 of 44

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

CONNECTION SCHEME 4

CONFIGURATION 7

CHARACTERISTICS 7

POWER SUPPLY 8

FUNCTION MODES 9

LEDS 10

RS232 12

RS485 13

CAN 14

ETHERNET 15

USE OF SW67324 16

NEW CONFIGURATION 17

LOAD CONFIGURATION 18

SAVE CONFIGURATION 19

UPDATE DEVICE 20

SOFTWARE PREFERENCES 23

CONFIGURATION SETTING 24

DOWNLOAD DATA 32

DATE & TIME SETTINGS 34

WEBSERVER INTERFACE 35

MECHANICAL DIMENSIONS 40

ORDERING INFORMATIONS 41

ACCESSORIES 42

DISCLAIMER 43

OTHER REGULATIONS AND STANDARDS 43

WARRANTIES AND TECHNICAL SUPPORT 44

RETURN POLICY 44

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that you

need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/ and

search for the corresponding code on the page Click on the proper “Document

Code” and download the updates

REVISION LIST:

Revision Date Author

Chapter

Description

1 002 07/02/2013

Nt All Added new chapters

1 003 20/05/2013

Fl All Add USB driver location

1 100 23/12/2015

Ff All Added Ethernet version

1 200 22/12/2017

Ff All Added CAN version

WARNING:

ADFweb com reserves the right to change information in this manual about

our product without warning

ADFweb com is not responsible for any error this manual may contain

TRADEMARKS:

All trademarks mentioned in this document belong to their respective owners

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 3 of 44

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and

safety regulation are required for each individual application The same applies also when using accessories

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e

independent limit switches, mechanical interlocks, etc )

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job

ESIDUAL

ISKS

The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage

CONFORMITY

The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 4 of 44

CONNECTION SCHEME:

Figure 1a: Connection scheme for HD67324-B2-E-232-xGB

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 5 of 44

Figure 1b: Connection scheme for HD67324-B2-E-485-xGB

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 6 of 44

Figure 1b: Connection scheme for HD67324-B2-E-CAN-xGB

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 7 of 44

CHARACTERISTICS:

The HD67324 is a Modbus / CAN Datalogger

It has the following characteristics:

Electrical isolation for bus (RS232, RS485, CAN, Ethernet) connection;

Mountable on Rail DIN;

Power Supply 8…24V AC or 12…35V DC;

Temperature range -20°C to 70°C

CONFIGURATION:

You need Compositor SW67324 software on your PC in order to perform the following:

Define the parameter of Modbus line;

Set Time and Date;

Manage the Datalogger’s functions;

Update the device

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 8 of 44

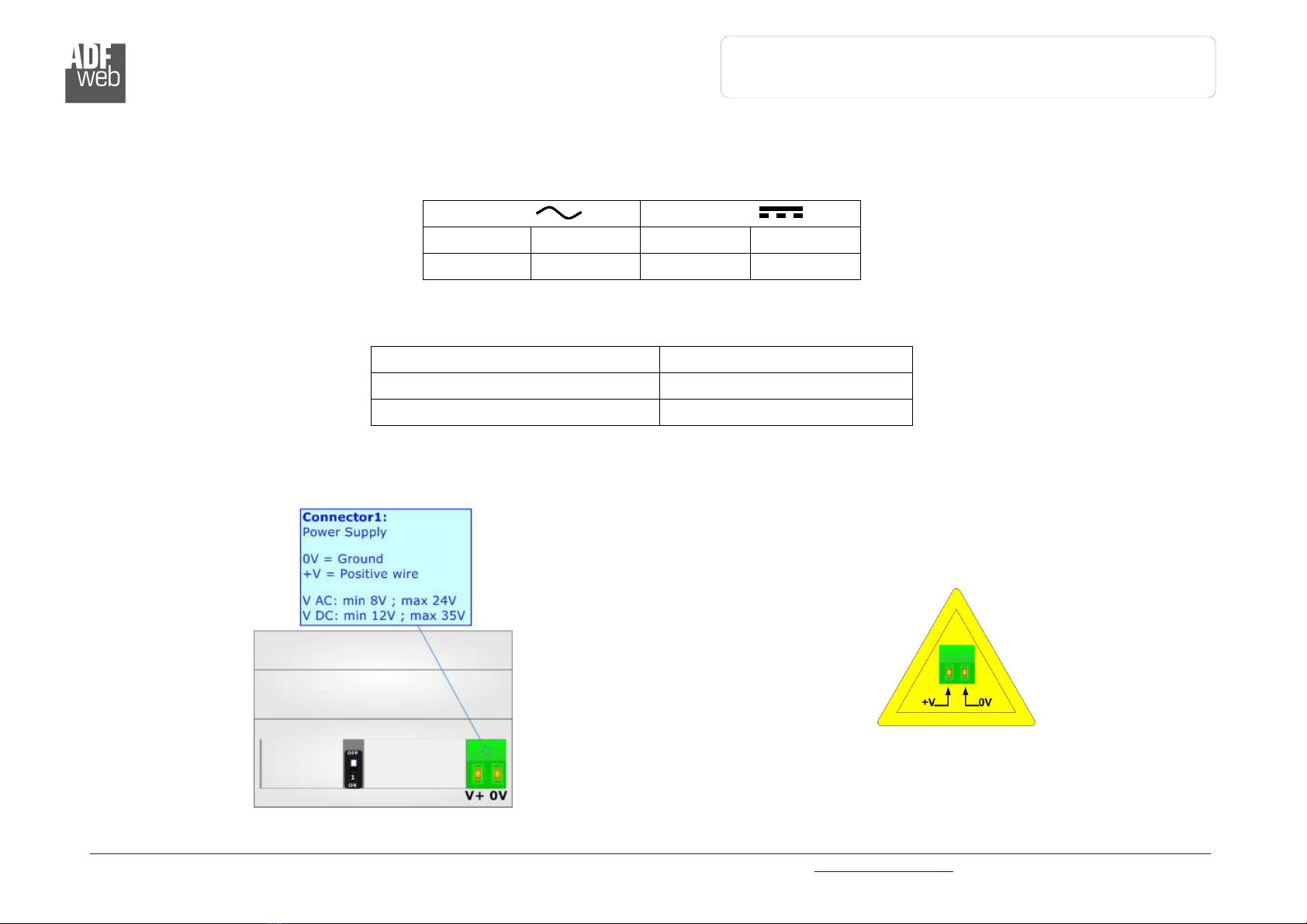

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67324-B2-E-232/485-xGB 3 5

HD67324-B2-E-CAN-xGB 3 5

HD67324-B2-E-232/485-xGB

HD67324-B2-E-CAN-xGB

Caution: Not reverse the polarity power

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 9 of 44

FUNCTION MODES:

HD67324-B2-E-xxx-xGB

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of

the device

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project

and/or Firmware

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Modbus / CAN

Datalogger

Document code: MN67324_ENG Revision 1 200 Page 10 of 44

LEDS:

HD67324-B2-E-232-xGB

HD67324-B2-E-485-xGB

The device has got five LEDs that are used to give information of the functioning status

The various meanings of the LEDs are described in the table below

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

2: Ethernet communication

(yellow) Blinks when Ethernet request is received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

3: Modbus communication

(yellow) Blinks when Modbus frame (RS232/RS485) is received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

4: Modbus error (yellow)

ON: At least one Modbus request hasn’t a correct

response

OFF: No errors are present

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz : update in progress

5: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Este manual sirve para los siguientes modelos
