Addonics Technologies AEMEDUSIB25F Manual de usuario

Addonics

TECHNOLOGIES

Combo Hard Drive USIB25

Mobile Rack USIB25

For following models: AEMEDUSIB25U,

AEMEDUSIB25F, AEMEDUSIB25C, AEMEDUSIB25S,

AEMEDUSIB25UW, AEMEDUSIB25FW,

AEMEDUSIB25CW, AEMEDUSIB25SW, AERHDUS25I,

AERHDUS25WI

Users Guide

Revision 1.0

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a class

B digital device pursuant to Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy. If not installed and used in accordance with the instructions, it may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If the

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment on and off, the user is

encouraged to try and correct the interference by one or more of the following

suggestions.

• Reorient or relocate the receiving antenna

• Increase the distance between the equipment and the receiver

• Connect the equipment to a different power outlet other than the

one where receiver is connected

• Consult a certified television or radio technician

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 1

Contents

FCC Warning.......................................................................................1

Contents................................................................................................2

Chapter 1 Preface.................................................................................3

Features ...............................................................................3

Chapter 2 Hard Drive Installation guide ...........................................4-5

Internal Power Setting for the USIB board ..........................6

Jumper Setting for the Enclosure..........................................7

External Power setting for the Enclosure.............................8

Connecting Internally to the motherboard header................9

Chapter 3 USB Interface Cable Installation ......................................10

Serial ATA Interface Cable Installation ...........................11

Firewire Interface Cable Installation ................................12

CardBus/PCMCIA Interface Cable Installation ..........13-16

Technical Support & Contact Information ......................................…17

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 2

Chapter 1

Preface

This is a Preliminary version of the manual intended to provide advance

information on the Addonics Technologies’ Combo Hard Drive USIB25. The

information is as complete and as accurate as possible as of the publication date,

but will be superseded and updated periodically by revised manuals. The

contents are subject to change without notice.

Features

! Use standard 2.5" IDE hard drive (up to 12.7 mm in height) as removable data

cartridge or as external hard drive

! An external portable hard drive with a simple installation of hard drive

into drive enclosure.

! A removable hard disk cartridge via a drive cradle that mounts inside

standard 3.5" drive bay or 5 1/4" drive bay.

! Flexible internal interface connection via the included patent pending

USIB drive cradle connect to either USB 2.0/1.1, Firewire, Serial ATA

using different Addonics interface cables or to IDE port using standard

IDE cable

! Flexible external interface connection between drive enclosure and

computer -

connect externally to any computer via USB 2.0/1.1, Firewire/iLink,

CardBus/PCMCIA or Serial ATA using different Addonics interface

cables.

! Flexible power connection -

hard drive cab be powered from USB port, Firewire port, PCMCIA slot,

PC power supply or AC/DC adapter

Note: Different model comes with different components in the package.

Please refer to the contents as outlined on the package box of each model.

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 3

Chapter 2

Hardware Installation Guide

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 4

DO NOT REMOVE

The Jumper Block

NOTE:

! High Capacity Hard drives requires more power so Bus power is

not recommended.

! Hot Swap using Serial ATA connection is supported only on

Controller using Silicon Image chipset.

! Only one data cable connection at anytime. Cannot have IDE

cable connected or any USIB cable connected at the same time.

! DO NOT REMOVE The jumper block on the USIB board

It is for the activity light.

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 5

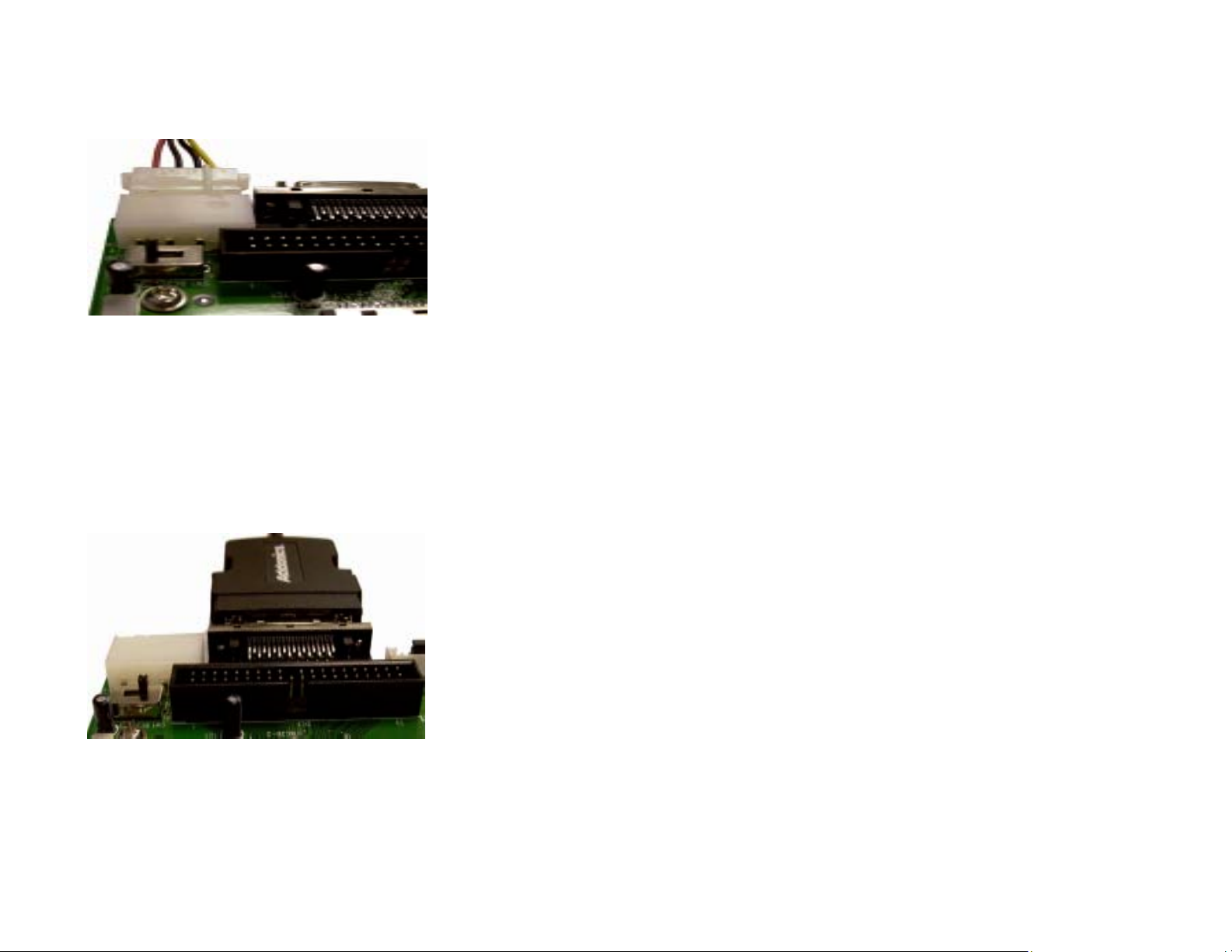

POWER Configuration for Internal Connection

! To get power from the Computer’s Power supply,

The power switch must be set closer to the edge of

The board or to Pin 1-4.

! When PC power supply is attached the switch must be set to

the picture shown.

! This is the recommended setup to ensure adequate power to

the drive.

! To get power from the Interface cable (Bus Power) the

power switch must be set closer to the IDE connector.

! When the drive cradle is powered from the interface cable no

PC power supply is needed.

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 6

Jumper settings inside the Combo Hard Drive25 Case

Internal Hard Drive Internal Hard Drive External Hard Drive

With USIB Interface cable With IDE cable

Default jumper setting

(Use This setting when the

USIB drive cradle is

connected to USB, Firewire

or SATA)

Jumper setting to enable

DMA When USIB drive

cradle is connected to

the IDE controller

Default Jumper Setting

(When the enclosure is

used as an External

Hard Drive)

JP4 = Jumper to the Right

JP3 = No Jumper

JP2 = No Jumper

Note:

There may be spare

jumpers in JP2 and JP3.

These spare jumpers

should be sitting on the

outer pin only

JP4 = Jumper to the Left

JP3 = Jumper to the Left

JP2 = No Jumper

JP4 = Jumper to the Right

JP3 = No Jumper

JP2 = No Jumper

Note:

There may be spare

jumpers in JP2 and JP3.

These spare jumpers

should be sitting on the

outer pin only

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 7

Power Setting for the Combo Hard Drive25 Enclosure

EXTERNAL POWER SETTING

! If the Combo hard drive25 is used Externally with the use of

External AC/DC power adapter, the Switch from the enclosure must

be switched to the right to grab power from external power supply.

INTERNAL POWER SETTING

! If the Combo hard drive25 is used Externally without the use of

external AC/DC power adapter, the Switch from the enclosure must

be switched to the left to grab power from system or from the

Interface Cable such as USB, Firewire etc.

Note:

! We recommend setting the hard drive to MASTER mode/setting at

all times. (Default setting)

! We recommend using AC/DC power adapter to power the hard

drives.

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 8

Connecting the HardDrive25 to the Motherboard USB header

Cable Installation

Red: + 5V / Voltage + / VCC

White: USB - / Data - / D -

Green: USB + / Data + / D +

Black: GND / Voltage - / Ground

1. On most motherboards, the USB header consists of 9 pins

arranged in 2 rows; and each header allows for 2 USB

connections (i.e. USB1 and USB2). Normally, the pins for

USB1 and USB2 are in separate rows.

2: Simply plug the connector onto the header of the

motherboard pins, in such that; the wires are correctly

connected to the appropriate pins (i.e. wire assignments and

pin assignments are matched).

3. Connect the USB male end connector from the drive to the

female end connector coming from the motherboard.

Please check the motherboard documentation for the correct

header pin out of your USB port.

To the

Motherboard

header.

To the USB

Interface Cable

Connector

Addonics Technologies – Combo Hard Drive USIB25 Users Guide v1.0 9
