Addonics Technologies AESN5DA35 Manual de usuario

www.addonics.com

Technical Support

If you need any assistance to get your unit functioning properly, please have your

product information ready and contact Addonics Technical Support at:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

v6.1.11

T E C H N O L O G I E S

User Guide

Snap-In Disk Array

(AESN5DA35)

www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/

Drive Power & Activity LED

for Each Drive Bay

Main Power LED

Door Lock

Individual

Drive Bay

Door

Front

Insert Hard Drives

with Top Facing Right

Cooling Fans

4-Pin Molex Power Connector

SATA (Black)

SAS (Yellow)

Connectors

Back

3 - 5.25”

Drive Bay Size

www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/

Installing the Snap-In Disk Array

1. Slide the Snap-In Disk Array into a set of

three standard 5.25” drive bays on your

system or storage chassis. Orient the Disk

Array so that the drive door open to the right

in horizontal mount or swing open downward

in vertical mount. Be sure there is no

metal tabs on the inside of any one of the

three drive bays that may interfere with the

installation.

2. Secure the Snap-In Disk Array to the drive

bay on both sides with the screws that come

with the unit. Note: using other long screws

may interfere with the hard drive

installation.

3. Connect the two 4-pin Molex power

connectors on the Disk Array unit to the

system power supply

4. Connect the 4 SATA connectors to SATA

host or the 4 SAS connector to SAS host in

your system

5. Power on your system. Check to make

sure the main power LED is lit and that the

two cooling fans are spinning.

Adding and removing hard drives

from the Snap-In Disk Array

1. Be sure the lock on each drive door is in an unlock position. If not, use the key that

comes with the Disk Array to unlock the drive door. Pull on the door lever to swing open

the drive door all the way.

2. Slide a 3.5” SATA hard drive into the drive slot with the drive connector side facing in.

Be sure to orient the hard drive correctly as shown in the yellow label on the inside of

the drive door – with drive door swing open at the bottom, the top of the hard drive

should face to the right. The drive should slide all the way into the slot with very

little resistance. Forcing the drive into the slot will cause drive damage or

permanent damage to the Disk Array.

3. Once the drive is all the way into the drive slot, close the door all the way till the drive

door latch securely. This will engage power and data connection with the hard drive.

The LED lit for the drive slot should lit if the Disk Array already powered on. You may

lock the drive door with the key

4. To remove the hard drive from the Disk Array, simply follow the step 2 – 3 in reverse.

Standard 5.25” Drive Bay

Use a plier to shift

the metal tabs to

face vertically or

remove the metal

tabs

www.addonics.com

Phone: 408-573-8580

Fax: 408-573-8588

Email: http://www.addonics.com/sales/query/

Tabla de contenidos

Otros manuales de Sistema de matriz de discos de Addonics Technologies

Addonics Technologies

Addonics Technologies AESN4DA25-N Manual de usuario

Addonics Technologies

Addonics Technologies RTIV535HEU3 RAID Tower IV Manual de usuario

Addonics Technologies

Addonics Technologies RAID Tower XIII RT134SDMS Manual de usuario

Addonics Technologies

Addonics Technologies Z4SN25NML Manual de usuario

Addonics Technologies

Addonics Technologies SR46S4R5HM Manual de usuario

Addonics Technologies

Addonics Technologies R14ES Manual de usuario

Addonics Technologies

Addonics Technologies S4SHU3 Manual de usuario

Addonics Technologies

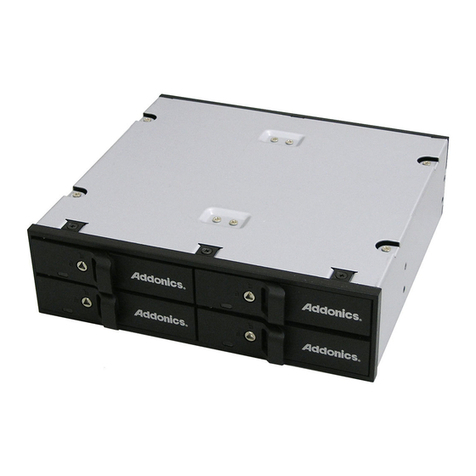

Addonics Technologies AESN4DA25 Manual de usuario
