ADDER AdderView DDX Manual de usuario

AdderView DDX

User Guide

Experts in

Connectivity

Solutions

Switching

Solutions

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

Welcome................................................................................................................2

Access permissions........................................................................................2

Port designations............................................................................................3

Supplied items.......................................................................................................4

Optional extras.....................................................................................................6

Installation

Locations................................................................................................................7

Connections ..........................................................................................................8

Computer connections:Video.....................................................................8

Computer connections: USB .......................................................................8

Computer connections: Data link ..............................................................8

Switch connections: Computer links .........................................................9

Switch connections: User console links ....................................................9

Switch connections: Network link..............................................................9

Switch connections: Options port..............................................................9

Switch connections: Power ........................................................................10

Console connections:Video.......................................................................11

Console connections: USB.........................................................................11

Console connections:Audio ......................................................................12

Console connections: Data link ................................................................12

Console connections: Options port ........................................................12

Console connections: Power.....................................................................13

Conguration

Accessing DDX Matrix.....................................................................................14

Using DDX Matrix.............................................................................................15

The Dashboard page ...................................................................................15

Quick guide to creating a new installation .............................................16

The Control page.........................................................................................17

The Congure pages ...................................................................................18

Congure > Consoles...........................................................................20

Congure > Consoles > Receivers ....................................................22

Congure > Computers .......................................................................23

Congure > Computers > Transmitters ...........................................25

Reallocating ports...................................................................................26

The Users page.............................................................................................27

The Maintenance pages...............................................................................28

Maintenance > Diagnostics ..................................................................28

Maintenance > System Operations ....................................................29

Maintenance > Settings .........................................................................30

Resetting and recovering .................................................................................31

Operation

Viewing the OSD................................................................................................32

Using Audio .........................................................................................................33

Indicators .............................................................................................................34

Further information

Getting assistance ..............................................................................................36

Appendix 1 - Link cable interference protection........................................37

Appendix 2 - Firmware upgrades for basic extender installations .........38

Warranty and Safety information ...................................................................39

Radio frequency energy....................................................................................40

Index

Contents

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

WELCOME

Thank you for choosing the AdderView DDX system. This adaptive system makes

sharing numerous host computers among multiple users straightforward and exible.

Every computer is linked, via its USB and video ports, to a compact DDX-CAM

module while each set of peripherals are connected to a DDX-USR module (to form

Consoles).

The various computers and consoles are then linked, via standard CAT7 cable, to

a central DDX switch. Each user can then, subject to the privileges granted by the

admin, gain quick access to any of the required computers.

If required, computers and consoles can be individually

connected in order to take advantage of the DDX extender

properties without the switching.

An integral part of DDX switches is the DDX Matrix, a browser-based conguration

and management tool that allows one or more remote admin user(s) to monitor

and maintain all aspects of operation.

Access permissions

The DDX switch uses a system of hierarchal Access permissions to mediate between

numerous consoles and multiple computers. Each console is granted the use of up to

four types of access permissions to each computer, most of which inuence how other

users can gain simultaneous access to the same computer. The four access permissions,

and their effects on other console users are as follows:

VIEW ONLY

The console user

can view the chosen

computer’s output but

cannot control it.

Once selected,

other consoles can

simultaneously use

VIEW ONLY,

SHARED ACCESS or

EXCLUSIVE

for the same computer.

SHARED ACCESS

The console user can

view and control the

chosen computer’s

output.

Once selected,

other consoles can

simultaneously use

VIEW ONLY or

SHARED ACCESS

for the same computer.

EXCLUSIVE

The console user can

view and control the

chosen computer’s

output.

Once selected,

other consoles can

simultaneously use

VIEW ONLY

for the same computer.

PRIVATE

The console user can

view and control the

chosen computer’s

output.

Once selected, all

other consoles are

completely locked

out from the same

computer.

Note:The hierarchy of permissions shown here increases from left to right.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Port designations

By default the DDX switch provides 10 user console ports on its front panel and 20

computer ports along its rear panel, however, these designations are not xed. If your

installation requires a greater number of computers or has a need for more user

consoles, you can alter the allocation of these standard ports to suit:

Ports 21 to 23 can be

reallocated as computer

ports.

Any of the 20 rear

panel computer ports

can be reallocated as

user console ports

For more details, please see Reallocating ports.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

SUPPLIED ITEMS

Information wallet

containing:

Four self-adhesive rubber feet

Safety document

AdderView DDX

switch

Power adapter with locking

connector and country-

specic power cord

DDX switch package

19” rack mount

brackets and four

screws

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Information wallet

containing:

Four self-adhesive rubber feet

Safety document

Power adapter with locking

connector and country-

specic power cord

DDX-USR package

DDX-USR module

DDX-CAM DisplayPort option

DDX-CAM module with USB

and DisplayPort connections

Part number: DDX-CAM-DP

DDX-CAM DVI option

DDX-CAM module with USB

and DVI-D connections

Part number: DDX-CAM-DVI

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

OPTIONAL EXTRAS

Audio cable 3m (3.5mm stereo jacks)

Part number:VSC22

USB cable 2m (type A to B)

Part number:VSC24

Replacement power adapter with locking

connector for DDX-USR module

Part number: PSU-IEC-12VDC-1.5A

Country-specic power cords

CAB-IEC-AUS (Australia)

CAB-IEC-EURO (Central Europe)

CAB-IEC-UK (United Kingdom)

CAB-IEC-USA (United States)

CAB-IEC-JAPAN (Japan)

50m CAT7 cable

Part number:VSCAT7-50

DVI-D 2m cable

Part number:VSCD1

Additional or replacement power adapter

with locking connector for DDX switch

Part number: PSU-IEC-12VDC-5A

Country-specic power cords

CAB-IEC-AUS (Australia)

CAB-IEC-EURO (Central Europe)

CAB-IEC-UK (United Kingdom)

CAB-IEC-USA (United States)

CAB-IEC-JAPAN (Japan)

Dual DDX-USR rack mount bracket

plus four retaining clamps and bolts

Part number: RMK8

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Installation

LOCATIONS

Please consider the following important points when planning the position of the

AdderView DDX modules:

• If used, position the DDX switch in a central position that serves the host computer

systems and user modules without exceeding the maximum link lengths. It will also

require a source of mains power.

• Situate each DDX-USR module close to the peripherals to which it will be connected

and near to a source of mains power.

• Consult the precautions listed within the Safety information section.

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

CONNECTIONS

Connections do not need to be carried out in the order given within this guide, however,

where possible connect the power in as a nal step. Connections are split into the

following three areas:

• Computer connections - a DDX-CAM module links to each host computer.

• Switch connections - when used, a DDX switch unit sits at the heart of the system.

• Console connections - the peripherals (keyboard, display, etc.) connect to DDX-USR modules.

Computer connections: Video

Two types of DDX-CAM modules are available:

• DVI-D and USB,

or

• DisplayPort and USB.

If a computer has more than one video output, use additional DDX-CAM modules to

separately link the additional video stream(s) with other ports on the DDX switch.

To connect the video port

1 Connect the video lead of the DDX-CAM

to the DVI-D or DisplayPort video port of

the host computer.

Computer connections: USB

Each DDX-CAM module requires a single USB connection to the computer.This

provides essential power for the DDX-CAM module in addition to the USB signals. Each

DDX-USR module acts as a USB 2.0 hub and thus provides four sockets for peripherals.

To connect the USB port

1 Connect the USB cable of the DDX-CAM module

to a vacant USB socket on your host computer.

USB lead from

the DDX-CAM

DisplayPort

video lead

from the

DDX-CAM

Computer connections: Data link

Each DDX-CAM module is linked via a CATx cable either to a central DDX switch

module or directly to a DDX-USR module (for a single system installation).

Use CAT7 cables to link all DDX-CAM modules. Maximum link cable lengths:

• DDX-CAM to DDX switch - 10 metres (32 feet) maximum.

• DDX-CAM to DDX-USR module - 50 metres (164 feet) maximum.

To link the DDX-CAM module

1 Connect the RJ-45 plug of the link cable to the socket located at the end of the DDX-

CAM module.

CATx link from

DDX switch

or DDX-USR

module

DVI-D video

lead from the

DDX-CAM

DVD-D video

port on the

host computer

DisplayPort

on the host

computer

OR

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

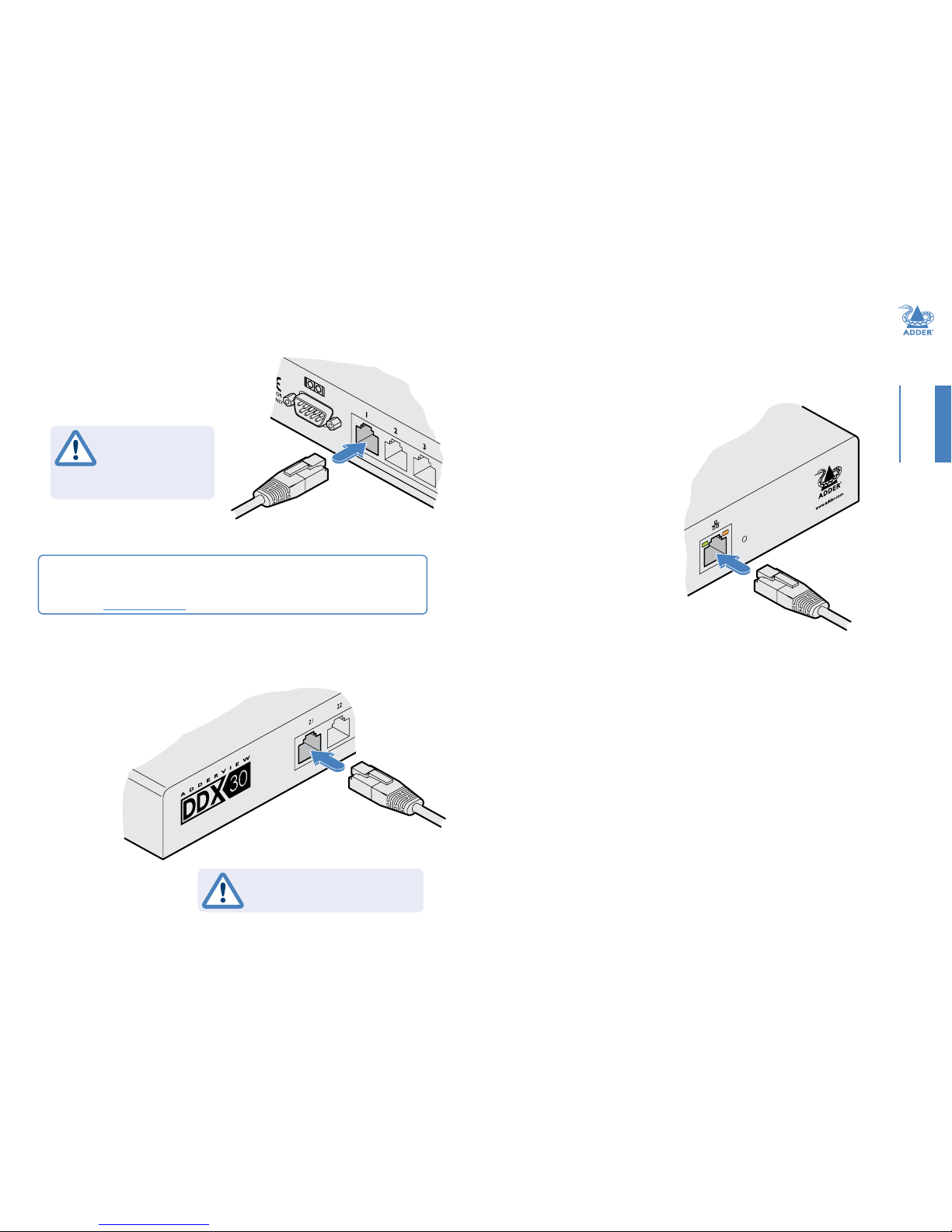

Switch connections: Computer links

The host computer links are made to the sockets on the rear panel of the DDX switch.

To connect a computer link

1 Connect the CAT7 cable from the

remote DDX-CAM computer module

to a vacant RJ-45 socket on the rear

panel of the DDX switch.

Switch connections: Network link

All system conguration is carried out via an Ethernet link, allowing adjustments to be

made by authorized admin users located next to the DDX unit, or anywhere. The auto-

sensing network port can determine between 10, 100Mbps or 1Gbps links and can also

adjust to straight or cross-over cables.

To connect a network link

1 Connect the CATx cable from an Ethernet switch or from

a local computer.

From a network switch

or nearby computer

From a remote DDX-CAM

computer module

These are NOT Ethernet/network

ports and must NEVER be connected

to any networking equipment.

Switch connections: User console links

The user console links are made via the sockets at the front of the DDX switch.

To connect a user console link

1 Connect the CAT7 cable from the

remote DDX-USR module to a

vacant RJ-45 socket on the

front panel of the DDX

switch.

From a remote

DDX-USR module

These are NOT

Ethernet/network

ports and must NEVER

be connected to any

networking equipment.

Switch connections: Options port

The options port is reserved for future use.

Reallocating ports

By default the DDX switch provides 20 computer ports along its rear panel and 10

user ports along its front panel. If necessary, these standard arrangements can be

changed. See Reallocating ports.

Tabla de contenidos

Otros manuales de Enrutador de red de ADDER

ADDER

ADDER AdderView CATxIP 5000 Manual de usuario

ADDER

ADDER AdderView CATxIP 5000 Manual de usuario

ADDER

ADDER ADDERLink INFINITY 4000 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
