ADC OmniReach MDU Rapid Fiber System Manual de usuario
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Spec Sheet
OmniReach®FTTX Solutions
MDU Rapid Fiber System
ADC’s new OmniReach®Rapid Fiber System is designed to eliminate the unique challenges posed
by today’s Multiple Dwelling Unit (MDU) buildings, when deploying FTTX networks. MDU buildings
present service providers with diverse challenges such as varying cable pathways and distances
between logical distribution points, demanding installation schedules and increased quality risks
due to splicing. ADC’s Rapid Fiber system is designed specifically to assist service providers when
deploying MDU optical fiber distribution networks for a variety of architectures—and do so in less
time and with less total cost on a consistent, high quality basis for every building.
ADC’s Rapid Fiber system is the ultimate plug-and-play solution for delivering fast, durable and
reliable service for mid- and high-rise MDUs and is available in multiple configurations to meet
the unique requirements of each building.
The OmniReach Rapid Fiber system for MDU applications includes the following
Fiber-to-the-Premises (FTTP) products:
Rapid Indoor Fiber Distribution Hub 3000i•
Rapid MDU Collector Enclosure•
Rapid Fiber Distribution Terminal•
ADC’s Rapid Fiber system provides for quick and easy deployment with increased reliability which
allows for fast service turn-up, improved network reach and lower overall network operating and
maintenance costs.
Features and Benefits
Reduces overall lead-time and installation process•
Innovative RapidReel• ™technology
Provides flexibility in deployment with various size terminals, cable types and standard cable lengths•
Utilizes Reduced Bend Radius Fiber•
Miniaturized cable requires less space for slack storage of excess fiber cable•
Simplifies ordering and inventory•
10/08•105783AE OmniReach®FTTX Solutions
2
www.adc.com • +1-952-938-8080 • 1-800-366-3891
OmniReach®FTTX Solutions
MDU Rapid Fiber System
XSplice Point
Spliced or Stubbed
Indoor FDH
Configurations with Spliced or Stubbed IFDH
Indoor FDH Configurations with Built-in MT Connectors
Rapid Indoor FDH
with built-in MT
Rapid MDU Collector Enclosure
Rapid FDT with built-in spool
Rapid FDT with built-in spool
10/08•105783AE OmniReach®FTTX Solutions
3
www.adc.com • +1-952-938-8080 • 1-800-366-3891
ADC’s OmniReach®Rapid IFDH is an inside plant
cabinet which serves as the main distribution
and cross-connect point for the MDU. It supports
integrated splicing, stubbed cables or integrated
MT connectors. The Rapid IFDH is available in a
variety of fiber counts accommodating up to 432
living units from a single cabinet.

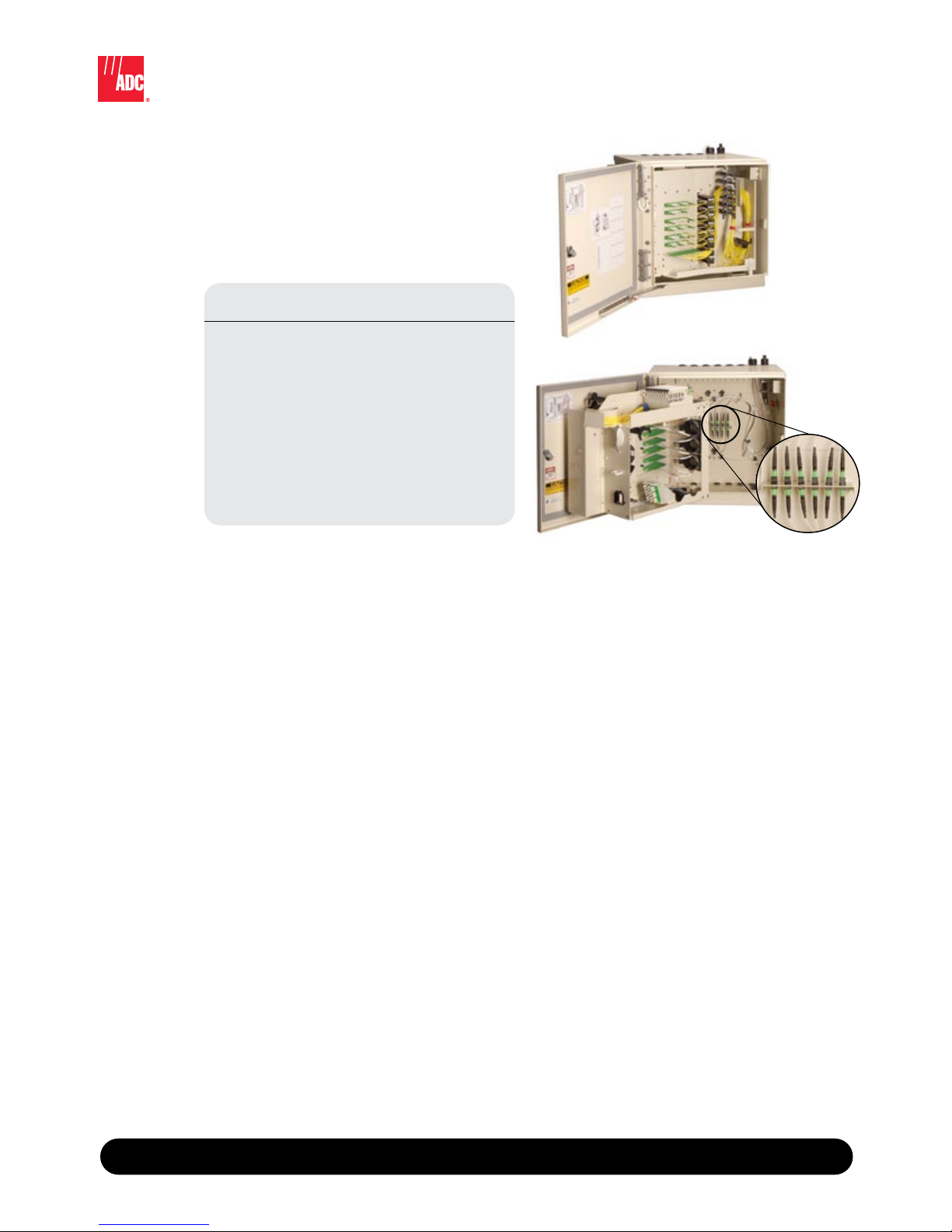

Rapid Indoor Fiber Distribution Hub 3000i
Rapid Indoor FDH
with built-in MT
Features and Benefits:
Configurations include spliced, stubbed and•
MT connectors
All configurations can be either wall or rack•
mounted with the hardware provided
The MT connector configuration eliminates•
the need for MDU Collector Enclosure
Traditional swing-frame design allows superior•
rear access
Designed to meet NEMA-12 requirements•
IFDH-72 IFDH-144/288 IFDH-432
Terminations: Upto72 Upto288 Upto432
Connectors: SC/APC SC/APC SC/APC
F1 Splice Tray: 24-Fiber 48-Fiber 48-Fiber
F2 Splice Tray: 72-Fiber 288-Fiber 432-Fiber
Splitter Ports: 9 18 22
Rating: NEMA-12 NEMA-12 NEMA-12
Height (wall-mount): 21” 29” 39”
Height (floor-mount): 33” 41” 51”
Width: 21” 21” 21”
Depth: 14.5” 14.5” 14.5”
Weight: 35lbs. 50lbs. 75lbs.
Specifications
Rapid Indoor FDH
with easy access to
built-in MT panel
10/08•105783AE OmniReach®FTTX Solutions
4
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Rapid Indoor Fiber Distribution Hub 3000i
Ordering Information
Distribution Fiber Count
072 72fiberdistribution
144 144 fiber distribution
216 216 fiber distribution
288 288 fiber distribution
360 360 fiber distribution
432 432 fiber distribution
Catalog Number
FD3-M __ __ __ __ __ __ __ __ __ __ __
Cabinet Size
KIndoor72cabinet
M Indoor 288 cabinet
N Indoor 432 cabinet
Adapter Style
J SC/APC
N SC/UPC
No. Splitter Modules
0 No splitters
1 1 splitter
2 2 splitters
4 4 splitters
Splitter Type
0 No splitters
A 1x32 standard
C 1x16 standard
G 2x32 standard-power
J 1x8 standard
L Dual 1x8 standard
M Dual 1x16 standard
N 1x4 standard
P 2x16 standard
U Dual 1x4 standard
Distribution Cable Type
R Riser ribbon stub
L Riser loose tube stub
V Loose tube pigtails
0 Ribbon pigtails
M MT connectors
Distribution Stub Length
A50'stub
0 No stub
Distribution Cable Configuration
AAll72fiberstubs
B All 144 fiber stubs
C Highest stub count possible
DAll144fiberstubs,exceptfirst1-72
0 Spliced distribution
M MT patch
Feeder Fiber Count
A 12 fibers
B 24 fibers
C 48 fibers
D72fibers
Feeder Cable Length
A100'stubtopentry
0 Spliced input
Feeder Cable Type
A Indoor/outdoor ribbon stub
B Riser ribbon stub
C Indoor/outdoor loose tube stub
D Riser loose tube stub
E Stranded pigtails (splice)
F Ribbon pigtails (splice)
10/08•105783AE OmniReach®FTTX Solutions
5
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Rapid MDU Collector Enclosure
ADC’s OmniReach®Rapid MDU Collector
Enclosure serves as zoned, intermediate
distribution points within the MDU for designs
using MT cable stubs instead of splices. Each
enclosure is wall mounted within the MDU
building and accommodates up to six MT pairs
andshipswith72-fiberriserribbonstubs.
Rapid MDU Collector Enclosure
(open)
Features and Benefits:
Accommodates up to 6 MT mated pairs•
Shipswith72-berriserribbonstubs•
Slotted foam grommet provides easy drop•
installs while maintaining seal
Same mounting pattern as the Fiber•
Distribution Terminal
Fibers: 72
Cable Ports: 1 Top and Bottom
Jumper Ports: 1 Top and Bottom
Rating: NEMA-12
Dimensions (HxWxD): 6.0”x9.0”x2.5”
Catalog Number
MCA-S __ __ __ 1 __ __ __
Fiber Count
72 72fiber
Cable Type
A Indoor/outdoor ribbon
B Riser ribbon
C Plenum ribbon
Length
A50'
B100'
Enclosure Type
A 6 MT indoor enclosure
Stubbed End Configuration
0 Stub (no connector)
Enclosure End Configuration
M12FMT'swithenclosure
0 Stub (no connector)
Specifications
Ordering Information
10/08•105783AE OmniReach®FTTX Solutions
6
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Rapid Fiber Distribution Terminal
ADC’s OmniReach®Rapid Fiber Distribution
Terminal serves as the final distribution point
between the IFDH and living unit. It eliminates
the need for splice cases and separate cable
assemblies by integrating the patent-pending
RapidReel™cable payout system. The RapidReel
system includes a built-in reel enabling quick
payoffofupto500feetofMTstubbed12or24
count optical fiber cable from a single 6"x 9" wall
box. The MT stub is pulled for installation into
either the MDU Collector Enclosure or directly to
an IFDH equipped with an MT patch panel. After
installation the spool flanges can be broken away
and the wall box is secured to the wall safely
storing the remaining slack cable. Use of factory
terminated and tested MT connectors instead of
splicing provide a plug and play environment that
reduces labor costs and speeds project completion.
Rapid FDT with built-in spool
Features and Benefits:
Built-in spool allows for easy payoff of MT stub•
RapidReel technology allows the cable to payoff•
from the complete stubbed enclosure assembly
Patented break-away spool flanges reduce slack•
storage size to within the enclosures footprint
Designed for indoor and outdoor use•
Utilizes Reduced Bend Radius Fiber•
Designed to meet NEMA-4 and NEMA 12•
requirements
Rapid FDT-12 Rapid FDT-24
Fibers: 12 24
Splice Trays: (2) 12-fiber (2) 12-fiber
Cable Ports: 1 top and bottom 1 top and bottom
Jumper Ports: 1 top and bottom 1 top and bottom
Rating: NEMA-4, NEMA-12 NEMA-4, NEMA-12
Dimensions (HxWxD)
no splice tray: 6”x 9”x 3.5” 6”x 9”x 3.5”
with optional splice tray: 6”x 9”x 5” 6”x 9”x 5”
Rapid FDT using slider adapter packs
Specifications
10/08•105783AE OmniReach®FTTX Solutions
7
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Rapid Fiber Distribution Terminal
Ordering Information
Enclosure Type
J 24 fiber
Catalog Number
RDT- __ __ ___ __ __ __ __ ____ __ __
Configuration
S Standard
Fiber Count
12 12
24 24
Connector Type
J SC/APC
Splice Trays
0 No tray
2 Heat shrink fusion
3 Mechanical/ribbon
Customer Side Pigtails
P 3 mm, 12 fiber fanouts
with 2 mm outputs
0 No pigtails, no splice trays
Cable Type
B 3 mm loose tube riser
(zipcord for 24 fiber)
D 3 mm loose tube plenum
(zipcord for 24 fiber)
Stubbed End Configuration
A MT connectors
0 No connectors
Enclosure End Configuration
2 2 mm fanouts
0 No connectors
Cable Length
100 100'
200 200'
300 300'
Website: www.adc.com
FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080
Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.
ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101
Specifications published here are current as of the date of publication of this document. Because we are continuously
improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may
verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features
contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer
105783AE 10/08 Revision © 2008 ADC Telecommunications, Inc. All Rights Reserved
Spec Sheet
