Acumen AiS-S32L Manual de usuario

AiS HD Series

Speed Dome Camera

INSTRUCTION MANUAL

2/89

Safety Precaution

Make sure to turn off the power before installing camera.

Do not install under the direct sunlight or in dusty areas.

Make sure to use the product within the temperature and humidity specified in the

specification.

Do not operate the product in presence of vibrations or strong magnetic fields.

Do not put electrically conducting materials in the ventilation hole.

Do not open the top cover of the products. It may cause a failure or electric shock on the

components.

To prevent from overheating, make sure to keep the distance at least 10cm from the

ventilation hole.

Make sure proper voltage before connecting the power.

We appreciate your purchasing Megapixel IP PTZ camera.

Before installing the product, please read the following with care.

3/89

Table of Content

Chapter 1 Production........................................................................................................................................ 6

1.1 Introduction............................................................................................................................................ 6

1.1.1 About this manual........................................................................................................................ 6

1.1.2 Features...................................................................................................................................... 6

1.1.3 Product and Accessories............................................................................................................. 8

1.1.4 Part Names and Functions.......................................................................................................... 9

1.1.5 System Connections ................................................................................................................. 10

1.2 Installation ............................................................................................................................................ 12

1.2.1 Installation Camera with Brackets............................................................................................. 12

1.2.2 Installation using Wall Mount Bracket ....................................................................................... 13

1.2.3 Check if it works........................................................................................................................ 14

Chapter 2 Network Connection..................................................................................................................... 15

2.1 Setting the Network Zoom Camera over the LAN................................................................................ 15

2.1.1 Wiring over the LAN................................................................................................................... 15

2.1.2 Detecting and Changing the IPAddress.................................................................................... 16

2.2 Setting the Network Zoom Camera over the WAN........................................................................ 17

2.2.1 Static IP Connection ................................................................................................................ 17

2.2.2 Dynamic IP Connection........................................................................................................... 18

Chapter 3 Access to the Network .............................................................................................................. 21

3.1 Accessing by Web Browsers............................................................................................................. 21

3.2 Accessing by Client Software............................................................................................................ 23

Chapter 4 Live View ...................................................................................................................................... 25

4.1 Live View Page .................................................................................................................................. 25

4.2 Starting Live View............................................................................................................................... 26

4.3 Recording and Capturing Pictures Manually.................................................................................... 27

4.4 Operating PTZ Control....................................................................................................................... 27

4.4.1 PTZ Control Panel................................................................................................................... 27

4.4.2 Setting / Calling a Preset ....................................................................................................... 27

4.4.3 Setting / Calling a Patrol ........................................................................................................ 28

4.4.4 Configuring Power Off Memory .............................................................................................. 29

4.4.5 Configuring Park Actions......................................................................................................... 30

4.5 Configuring Live View Parameters.................................................................................................... 31

Chapter 5 Camera Configuration................................................................................................................. 32

5.1 Configuring Local Parameters ........................................................................................................... 32

5.2 Configuring Time Settings.................................................................................................................. 33

5.3 Configuring Network Settings ............................................................................................................ 36

4/89

5.3.1 Configuring TCP/IP Settings.................................................................................................... 36

5.3.2 Configuring Port Settings......................................................................................................... 37

5.3.3 Configuring PPPoE Settings.................................................................................................... 37

5.3.4 Configuring DDNS Settings..................................................................................................... 38

5.3.5 Configuring SNMP Settings..................................................................................................... 41

5.3.6 Configuring 802.1X Settings.................................................................................................... 42

5.3.7 Configuring QoS Settings........................................................................................................ 43

5.3.8 Configuring FTP Settings......................................................................................................... 44

5.3.9 Configuring UPnP™ Settings.................................................................................................. 45

5.3.10 Configuring NAT (Network Address Translation) Settings.................................................. 46

5.3.11 Configuring Email Settings..................................................................................................... 46

5.4 Configuring Video and Audio Settings ............................................................................................. 48

5.4.1 Configuring Video Settings...................................................................................................... 48

5.4.2 Configuring Audio Settings...................................................................................................... 49

5.4.3 Configuring ROI........................................................................................................................ 50

5.5 Configuring Image Settings................................................................................................................ 51

5.5.1 Configuring Display Settings ................................................................................................... 51

5.5.2 Configuring OSD Settings ....................................................................................................... 56

5.5.3 Configuring Text Overlay Settings .......................................................................................... 57

5.5.4 Configuring Privacy Mask........................................................................................................ 58

5.6 Configuring and Handling Alarms..................................................................................................... 59

5.6.1 Configuring Motion Detection .................................................................................................. 59

5.6.2 Configuring Video Tampering Alarm....................................................................................... 62

5.6.3 Handling Exception................................................................................................................... 64

Chapter 6 Record Settings........................................................................................................................... 65

6.1 Configuring NAS Settings.................................................................................................................. 65

6.2 Configuring Recording Schedule....................................................................................................... 66

6.3 Configuring Snapshot Settings .......................................................................................................... 69

Chapter 7 Playback........................................................................................................................................ 72

Chapter 8 Log Searching.............................................................................................................................. 75

Chapter 9 Others............................................................................................................................................ 76

9.1 Managing User Accounts................................................................................................................... 76

9.2 Configuring RTSPAuthentication......................................................................................................... 78

9.3 Configuring Anonymous Visit............................................................................................................. 78

9.4 Configuring IPAddress Filter................................................................................................................ 79

9.5 Viewing Device Information ............................................................................................................... 79

9.6 Maintenance........................................................................................................................................ 80

9.6.1 Rebooting the Zoom camera.................................................................................................. 80

5/89

9.6.2 Restoring Default Settings....................................................................................................... 80

9.6.3 Importing/Exporting Configuration File.................................................................................... 81

9.6.4 Upgrading the System............................................................................................................. 81

9.6.5 Enabling/Disabling Telnet......................................................................................................... 82

Appendix .......................................................................................................................................................... 83

Appendix 1 SADP Software Introduction ................................................................................................ 83

Appendix 2 Port Mapping......................................................................................................................... 84

6/89

Chapter 1 Production

1.1 Introduction

1.1.1 About this manual

This User Manual provides information on operating and managing the megapixel IP PTZ camera. The

Manual includes instructions of installation, operation and configuration of megapixel IP PTZ camera as well

as how to make troubleshooting.

1.1.2 Features

This product is a megapixel PTZ network-based camera with remote live monitoring, audio monitoring and

control via an IP network such as LAN, ADSL/VDSL, and Wireless LAN.

Video

Highly efficient compression algorithm, H.264 & MJPEG support

Wide range of transmission rates: 32kbps ~ 16mbps

Various transmission modes: CBR, VBR

Motion

detection

Audio

Multi-transmission mode: Simplex (IP PTZ camera Client PC or Decoder, Client PC or Decoder IP

PTZ camera), Full Duplex

Network

Fixed IP & Dynamic IP (DHCP) support

1:1, 1:N support

Multicasting

Various types of Protocol support : TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP

OnVIF, PSIA compliant

Serial Data

Data pass-through mode : Serial data communication between megapixel IP PTZ camera and Decoder

Event Alarm

Event Alarm notification, camera can be set to move to the corresponding Preset position.

7/89

User Interface

Diagnose and upgrade through dedicated program called ACUMEN INT.CORP

System configuration using Internet Explorer

High Reliability

Reliable embedded system

Powerful Pan/Tilt Functions

Max. 150/sec high speed Pan/Tilt Motion

Using Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result, time to

target view is reduced dramatically and the video on the monitor is very natural to watch.

For jog operation using a controller, since ultra slow speed 0.05/sec can be reached, it is very easy to

locate camera to desired target view. Additionally it is easy to move camera to a desired position with

zoom-proportional pan/tilt movement.

Preset, Pattern, Swing, Group

MAX. 128 Presets are assignable and characteristics of each preset can be set up independently,

Max. 8 set of Swing action can be stored. This enables to move camera repetitively between two preset

positions with designated speed.

Max. 1 of Patterns can be recorded and played back. This enables to move camera to follow any

trajectory operated by joystick as closely as possible.

PTZ(Pan/Tilt/Zoom) Control

Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware..

Easy Installation and Perfect Outdoor Environment Compatibility

Fans is built-in in camera for hot temperature environment. Also idealistic mechanical design protects

camera from water and dust

It is easy to install and maintain camera with terminal for cable connection in brackets.

8/89

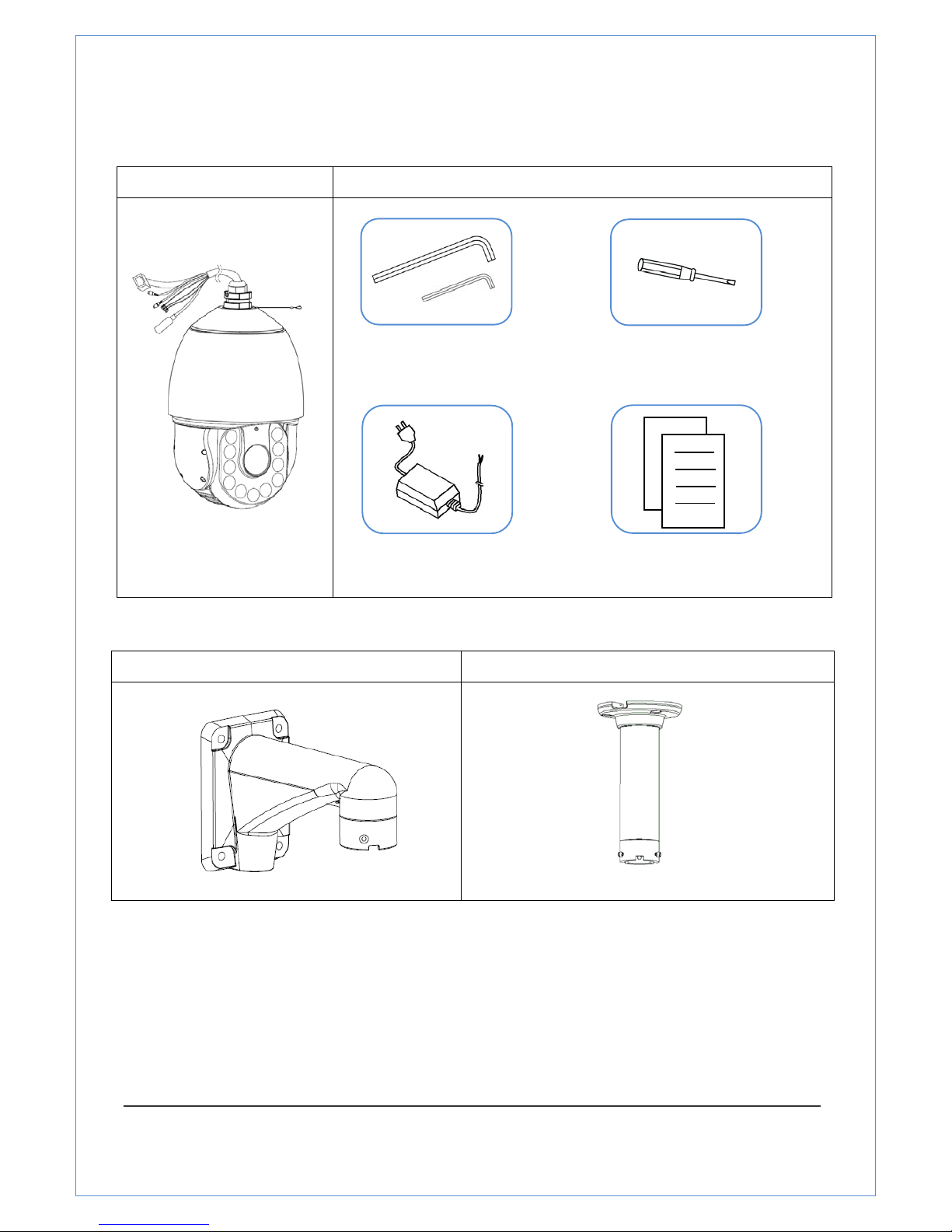

1.1.3 Product and Accessories

Note: Mount Brackets are optional.

Wall Mount Bracket Ceiling Mount Bracket

[Screws :Allen Screw HM612, Hex Lag #1450] [Screws : Allen Screw M612,Anchor Bolt 3/8"70]

Main body Accessories

exKey:CRV5.0MM Straight screwdriver

CRV2.5MM

Power Supply Installation manual

9/89

1.1.4 Part Names and Functions

A. 3/4'' Silicone Knockout Plug

B. Safely Rope

C. Camera Assembly

D. Water Joint

E. Connecter

F. Wall Mount

G. I/O Cable

H. 5.0 mm Hex Key

2.5 mm Hex Key

•Dome CoverDo not detach protection vinyl from dome cover before finishing all

installation process to protect dome cover from scratches or dust.

•Drop Prevention

Spring This part keeps the camera from dropping during installation and

maintenance. After install the Bracket, please, hang the spring to

the drop prevention hook of main body as shown in picture for

further tasks.

•Mounting Screw

Hole This hole is for screws that assembles the main body with a

bracket.

•LAN Port Used for the Ethernet connection

•Audio Port Used for the audio in/out connection.

•Video (BNC) Used for the composite video out connection

•Power Connector Used for the power wire connection cable.

10/89

1.1.5 System Connections

IP Camera can be connected in either 1 to 1 connection where one camera is connected to one PC client or a

decoder system or 1 to many connections where one camera can be connected to several PCs and decoder

systems. (video server can work as a video decoder which takes the data from a video server or IP camera,

decodes and outputs analog video.)

Topology

Generally, megapixel IP Camera and PC or a decoder is connected in 1-to-1 mode or 1-to many configuration.

1:1 Connection .

One camera is installed at a site where video images are transmitted. A PC or a decoder is installed at a

central location to receive and view the video images on an analog monitor. Audio and serial data are

transferred in either direction.

1:N Connection .

Site Remote Center (Decoder) Remote Center

Site Remote Center (PC SW)

Site Remote Center

Tabla de contenidos

Otros manuales de Cámara de seguridad de Acumen

Acumen

Acumen AirForce Series Manual de usuario

Acumen

Acumen AiS series Manual de usuario

Acumen

Acumen AiP-B26A Manual de usuario

Acumen

Acumen AiP HD Series Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
