ACU-RITE 01202 Manual de usuario

Instruction Manual

SAVE THIS MANUAL FOR FUTURE REFERENCE.

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features and Benets: Sensor ... 2

Features and Benets: Display ... 3

Setup .................................... 6

Sensor Setup ......................... 6

Display Setup ........................ 7

Set the Time, Date and Units.... 8

Backlight Settings................... 8

Placement Guidelines ............. 9

Using the Weather Station.....10

Programmable Alarms........... 11

Troubleshooting ....................12

Care and Maintenance .........13

Calibration ...........................13

Specications........................14

FCC Information ...................14

Customer Support .................15

Warranty..............................15

Weather Station

model 01202

Questions? Contact Customer Support at

www.AcuRite.com/support or email support@chaney-inst.com

Congratulations on your new AcuRite product. To ensure the best possible

product performance, please read this manual in its entirety and retain it for

future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display

2. Outdoor Sensor

3. Power Adapter

4. Instruction Manual

Features and Benets

OUTDOOR SENSOR

1. Integrated Hanger

For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent to the

display.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

5. Battery Compartment Cover

PRODUCT REGISTRATION

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

Wi-Fi Setup for Weather UndergroundTM and Dark Sky

Forecast

This weather station features wireless internet connectivity in order to connect and down-

load forecasts from Dark Sky. You also have the option to share your temperature and

humidity data with Weather Underground, but this is not required to get a forecast.

2. Power on the display using included power cord. If the unit has been powered on for

more than 30 minutes, press and release the “ ”

button to re-activate Wi-Fi setup.

3. Connect to the Wi-Fi signal (named AcuRite

01202M)of the AcuRite display from your

computer or mobile device.

1. (OPTIONAL) If you do not already have a WU (Weather UndergroundTM) account

and would like to send your data to WU, please create your account at

wunderground.com prior to following the next steps. To add this weather station to

your WU account:

Enter all required location info.

When prompted for “Station Hardware”, select “AcuRite Pro Weather Center”.

You will be provided with a WU Station ID and Station Key once you have

submitted all required info (record for step 5, below).

5. Select or enter your wireless network name and password. Fill in your country and

postal code to download your 2-day forecast from Dark Sky. If you want to send

data to Weather Underground, enter your Station ID and Station Key. Press“Save”

to save your credentials.

NOTE: This weather station display only supports 2.4 GHz wireless networks.

6. A W

connection was not successful, please verify your credentials and/or visit the

Troubleshooting section (see page 13).

7. Within an hour after the display is connected to Wi-Fi, forecasts from Dark Sky will

be shown on your display. If you entered your WU credentials, data from your

sensor will automatically begin to upload to Weather UndergroundTM. Monitor

sensor data remotely at www.wunderground.com or from a mobile device using

the Weather UndergroundTM app, available from the iOS App Store or Google

Play Store.

4. Open your web browser on the device that is

connected to the AcuRite display. Type

“192.168.4.1” in the address bar and hit enter to

access the AcuRite Wi-Fi display settings website

(shown right).

Features and Benets

BACK OF DISPLAY

1. Integrated Hang Hole

For easy wall mounting.

2. Fold-out Tabletop Stand

3. Power Adapter

4. Plug-in for Power Adapter

5. RESET Button

For full reset to factory defaults.

6. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure units

synchronize.

7. Backup Battery Compartment

8. Battery Compartment Cover

(not shown)

8 9

1. Current Outdoor Temperature

Arrow icon indicates the direction

temperature is trending.

2. Chance of Rain Indicator

Indicates the likelihood of rain when

connected to Wi-Fi.

3. Today’s Forecast

Includes forecasted high & low

temperatures. Powered by Dark Sky

when connected to Wi-Fi.

4. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

5. Date

6. Button

For viewing daily high & low records

7. and Buttons

For setup preferences

8. Sensor Low Battery Indicator

9. Outdoor Sensor Signal Strength

10. Current Outdoor Humidity

Arrow icon indicates the direction

humidity is trending.

11. Icon

Indicates display is connected to your

wireless network in addition to the

signal strength.

12. Severe Weather Indicator

Indicates one of the following is in the

forecast:

•Wind

•Sleet

•Possible Tornado

•Hail

•Ice

•Fog

13. Tomorrow’s Forecast

Includes forecasted high & low

temperatures. Powered by Dark Sky

when connected to Wi-Fi.

14. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

15. Clock

16. Display Low Battery Indicator

17. Auto Dim Icon

Indicates display is in auto-dimming

brightness mode (see page 9).

18. Button

For setup preferences.

19. Button

For momentary backlight and

dimmer settings.

20. Yesterday’s Conditions

(not shown)

Includes high & low temperature

readings. Only shown when not

connected to Wi-Fi (see page 11).

max

min

SETUP

Sensor Setup

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display in order for the units

to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline batteries in the outdoor

sensor for the best product

performance. Heavy duty or

rechargeable batteries are not

recommended.

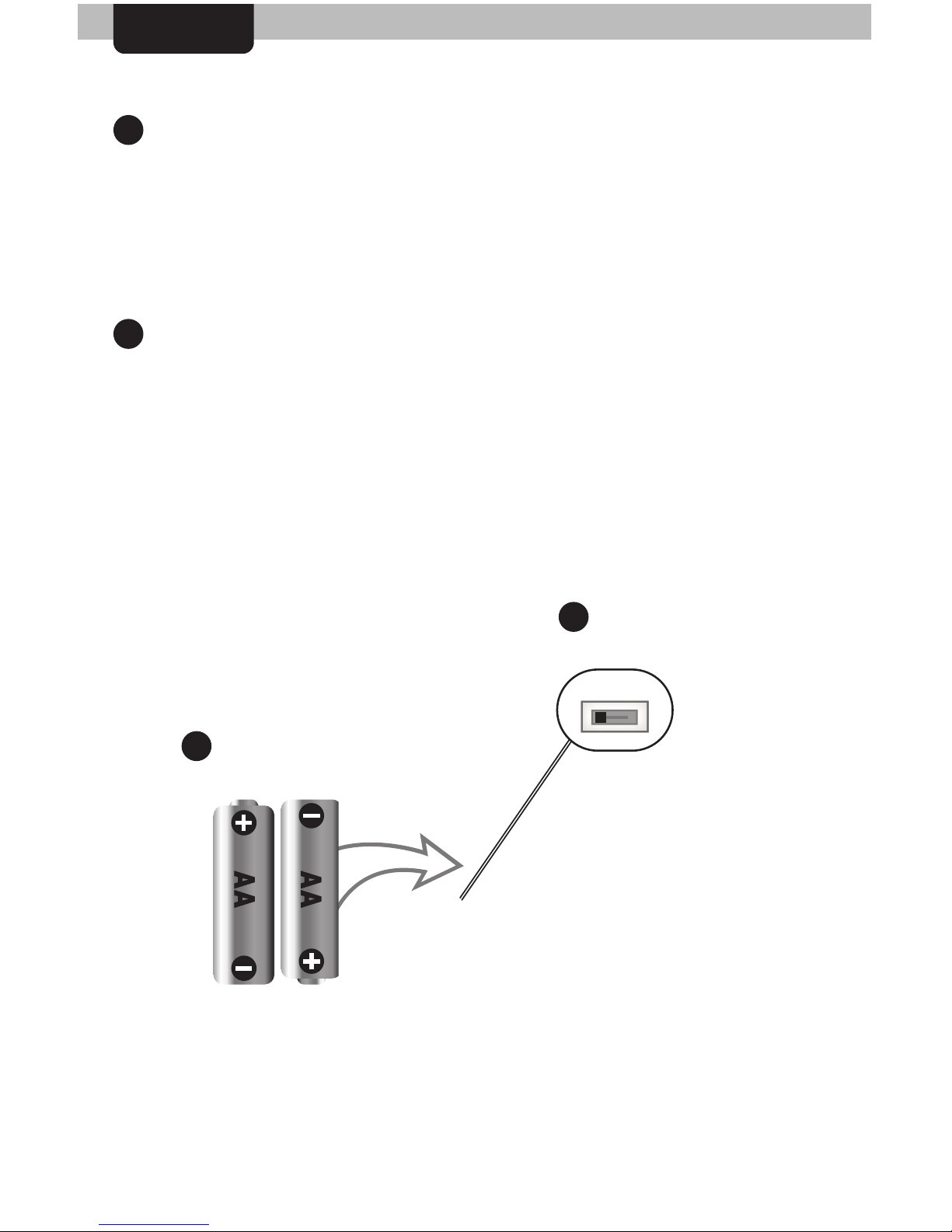

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment for display

setup.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

2Install Batteries

2 AA batteries

A B C

1A-B-C Switch

Set to match

display

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment that will not

be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of

used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries

recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

IMPORTANT: Batteries are

a backup power source to

preserve records in the event of

a power outage. Display will

not have Wi-Fi functionality on

batteries alone. Power adapter

is recommended as the primary

power source to enjoy the full

functionality of this product.

Display Setup

1Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display and

the sensor in order for the units to

synchronize.

Install or Replace Backup

Batteries (optional)

1. Remove the battery

compartment cover.

2. Insert 3 x AAA alkaline

batteries into the battery

compartment, as shown. Follow

the polarity (+/–) diagram in

the battery compartment.

3. Replace the battery cover.

Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

3Plug in

Power

Adapter

1A-B-C Switch

Set to match

sensor

Install Backup

Batteries

3 AAA Batteries

(optional)

A B C

Set the Time, Date and Units

Press and release the “ ” button, located on the front of the display, to enter

SET MODE. Once in set mode, the preference you are currently setting will

blink on the display.

To adjust the currently selected (ashing) item, press and release the “ “ or

“ “ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust the

next preference. The preference set order is as follows:

Auto Change for DST (Daylight Saving Time YES or NO)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºC or ºF)

*If you live in an area that observes DST, DST should be set to YES, even if it is

not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 10 seconds.

Enter setup mode at any time by pressing the “ ” button.

Display Backlight Settings

This weather station’s colour display features three different lighting settings:

High (100%) brightness, Medium (50%) brightness and Low (15%) brightness.

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the Backlight button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press “ ” button once to dim to 50% brightness; press

again to dim to 15%, press a 3rd time to enter AUTO DIM mode. “AUTO

DIM” will appear next to the clock.

NOTE: Pressing and holding the “ ” button for 5 seconds will disable the

backlight. Once any button is pressed, the backlight will return to your selected

setting.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day.

6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 15% brightness

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display and outdoor sensor are critical to the accuracy

and performance of this product.

Display Placement

Place the display in a dry area free of dirt and dust. Display

stands upright for tabletop use and is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor

use, however, to extend its life place the sensor in an area

protected from direct weather elements.

Hang the sensor using the integrated hang hole or hanger,

or by using string (not included) to hang it from a suitable

location, like a well covered tree branch. The best location is

4 to 8 feet (1 to 2 metres) above the ground with permanent

shade and plenty of fresh air to circulate around the sensor.

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

• Display and outdoor sensor must be within 330 ft (100 m) of each other.

• To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

• To prevent wireless interference, place both units at least 3 ft (90 cm) away

from electronic devices (TV, computer, microwave, radio, etc.).

(100 metres maximum)

(330 feet)

3 feet

(90 cm)

Setup is Complete

The sensor will now synchronize with the display. It may take a few minutes for

synchronization to complete. Please refer to the troubleshooting section of this

manual if anything appears to be functioning improperly.

Tabla de contenidos

Otros manuales de Estación meteorológica de ACU-RITE

ACU-RITE

ACU-RITE 00787 Manual de usuario

ACU-RITE

ACU-RITE 00609SBDIA1 Manual de usuario

ACU-RITE

ACU-RITE 01120M Manual de usuario

ACU-RITE

ACU-RITE 1035 Manual de usuario

ACU-RITE

ACU-RITE 2008 Manual de usuario

ACU-RITE

ACU-RITE 06086 Manual de usuario

ACU-RITE

ACU-RITE 518346 Manual de usuario

ACU-RITE

ACU-RITE 03001W Manual de usuario

ACU-RITE

ACU-RITE 06034RM Manual de usuario

ACU-RITE

ACU-RITE 00899 Manual de usuario

ACU-RITE

ACU-RITE 00215 Manual de usuario

ACU-RITE

ACU-RITE 00786 Manual de usuario

ACU-RITE

ACU-RITE 06022RM Manual de usuario

ACU-RITE

ACU-RITE 00594W Manual de usuario

ACU-RITE

ACU-RITE 433981 Manual de usuario

ACU-RITE

ACU-RITE 1602RX Manual de usuario

ACU-RITE

ACU-RITE 13044 Manual de usuario

ACU-RITE

ACU-RITE 1055 Manual de usuario

ACU-RITE

ACU-RITE 06044 Manual de usuario

ACU-RITE

ACU-RITE 01033W Manual de usuario

ACU-RITE

ACU-RITE 1506 Manual de usuario

ACU-RITE

ACU-RITE 00829 Manual de usuario

ACU-RITE

ACU-RITE 06088 Manual de usuario

ACU-RITE

ACU-RITE 00639W Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
