ScreenBeam™Mini 2 Kit

Catalog# SBWD60KIT02

ScreenBeam Mini 2 Model# SBWD60A

ScreenBeam USB Transmitter 2 Model# SBT200DI

This Installation Guide provides step-by-step instructions on how to

set up your ScreenBeam Mini 2 Kit. We’ll show you how to:

A. Install the application software . . . . . . . . . 1

B. Set up the ScreenBeam Mini 2 receiver. . . 3

C. Pair the ScreenBeam USB Transmitter 2

and ScreenBeam Mini 2 receiver. . . . . . . . 4

D. Set wireless display preferences. . . . . . . . 6

screenbeam.com |1

1. Download the ScreenBeam Wireless Display software to your PC

or laptop from www.actiontec.com/products/sbupdate.php.

2. Click on ScreenBeam_setup.exe.

3. Follow the onscreen instructions, and complete the installation.

A. Install the application software

screenbeam.com |3

Optional

HDMI Extension Cable

Power

Adapter

Power

Outlet

1. Remove the receiver, power adapter, USB cable, and HDMI

extension cable from the box.

2. Plug the small male connector of the USB cable to the receiver’s

micro USB port labeled Power.

3. Plug the receiver into an available HDMI port on your HDTV.

Note: If the receiver cannot reach the HDMI port on your TV, use

the provided HDMI extension cable to connect the receiver.

4. Plug the large male connector of the USB cable to the power

adapter and plug the power adapter into a power outlet.

5. Turn on your TV and switch the input source until you see the

Ready to Connect screen.

B. Set up the ScreenBeam Mini 2 receiver

4|screenbeam.com

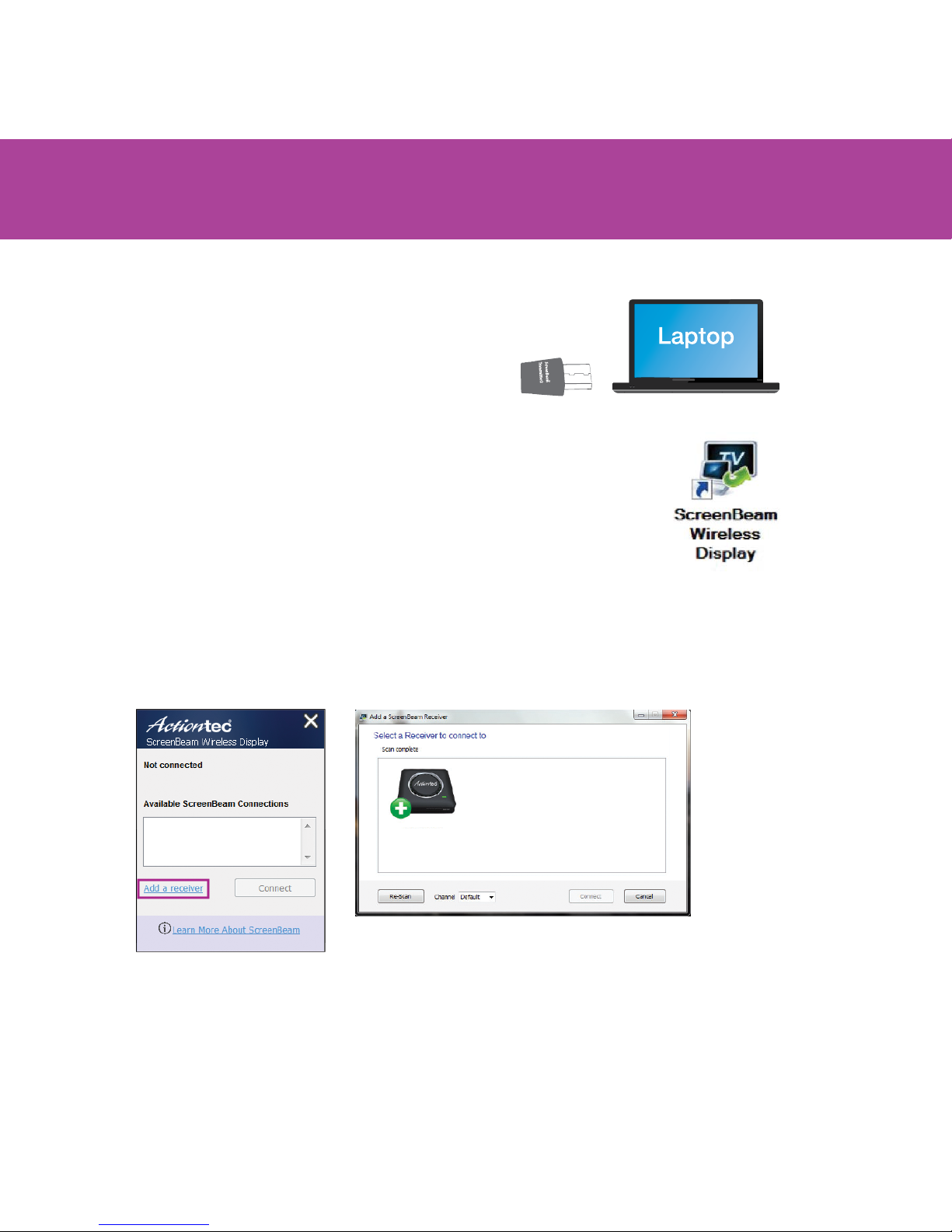

1. Plug the ScreenBeam USB

Transmitter 2 into a USB port

on your PC or laptop.

2. Launch the ScreenBeam Wireless Display

software by clicking the shortcut on the

Windows desktop.

3. Click Add a Receiver on the control panel of the software, and

nd your receiver name. This is the same name that appears on

the Ready to Connect screen on the monitor or projector.

C. Pair the transmitter and receiver

4. A Personal Identication Number (PIN) appears on the screen.

Enter the PIN in the software, and click Next to pair your

transmitter and receiver.

screenbeam.com |5

6|screenbeam.com

1. Right-click on the ScreenBeam icon

from the system tray of the laptop/

PC’s desktop. When the options

menu appears, select Preferences.

2. Change the setting with your

preferences.

A. Language

Select the language of the

application software.

B. Wireless Channel

The wireless channel on which ScreenBeam operates can

be changed here. “Auto” is recommended; this setting

automatically selects the clearest channel available. To

manually select a channel:

1. Make sure your laptop/PC is disconnected from the

ScreenBeam receiver.

2. Select a desired channel, and click OK.

3. Reconnect the ScreenBeam receiver to your laptop/PC.

The selected channel will be used.

D. Setting the wireless display preferences

screenbeam.com |7

C. Display Content

This allows ScreenBeam to be congured for an optimal

viewing experience. Select Video Playback for better video

display. Select Presentation/Slideshow for a better still

image display.

D. Adjust

Screen Size

Use the slider

to adjust the

size of the

picture on the

HDTV monitor.

Continue

adjusting until

the entire picture

appears on the

HDTV screen.

8|screenbeam.com

E. Enable Push Button pairing

Selecting this option allows devices or laptops to connect to

your ScreenBeam receiver without having to enter a PIN.

F. Enable Low Resolution mode

Selecting this option transmits a lower resolution picture to

the monitor, providing a smoother viewing experience.

D. Setting wireless display preferences, cont.

screenbeam.com

Visit actiontec.zendesk.com for more information

• User Manual • Troubleshooting Tips • FAQs

Support: (888) 436-0657

Support email:[email protected]

ScreenBeam is a trademark of Actiontec Electronics, Inc. All other names are properties of their

respective owners. Specications subject to change without notice. 072617

P/N 0530-0816-000
