Acrosser Technology AR-ES5432FL Manual de usuario
Revision: 1.0
1
Revision Description Date
1.0 Release 2009/11/19
AR-ES5432FL
Installation Guide
Revision: 1.0
2
Contents
1Introduction to AR-ES5432FL................................................................ 3
1.1 Specifications...................................................................................................3
1.2 Packing List......................................................................................................3
2Procedure of Assembly/Disassembly................................................... 7
2.1 2.5” Hard Disk Installation...............................................................................7
2.2 Accessory (CF card, Outline bracket) Installation ......................................14
3Appendix ............................................................................................... 17
Revision: 1.0
3
1 Introduction to AR-ES5432FL
AR-ES5432FL is a Fan-less system product mainly for general industry PC applications.
With powerful Intel CPU core & diverse memory card extension (CF card, SO-DIM),
AR-ES5432FL can satisfy the users requirements in any general industry applications
environment, especially in 0 to 60 environment fields. AR-ES5432FL has diverse physical
interface in the front panel, such as AUX port, 2×(10/100/1000Base-T) LANs, VGA/DVI
connectors, build-in LEDs, 4 USB Ports, 4 COM ports, ATX Power Switch &Remote
Switch/Audio/S-video, DC inlet. In addition, the system provides the capacity for extending
I/O device by option adding WiFi module depends on users needs.
1.1 Specifications
Item Description
System AR-ES5432FL
CPU Board AR-B5432 series
System Dimensions 250x166x67(mm)
1.2 Packing List
Description Quantity
AR-ES5432FL 1
Power adaptor 96watt DC input 1
Wall Mount Bracket(Including label for isolation ) 2
Compact Disk 1
SATA Power Cable 1
SATA Cable 1
2.5”HDD Bracket module(Screws-8PCS) 1
WiFi External Cable (Option) 1
Revision: 1.0
4
System Dissection
(1)Dimensions
AR-ES5432FL 2D Overview
(2)Front Panel “I/O”
DVI-inlet S-Video Audio/Remote
Power Switch COM1/COM2/COM3/COM4CF Card inlet
VGA
USB/ HDD&POWER LEDAntenna
AUX
DC Inlet
LAN1/LAN2
Revision: 1.0
5

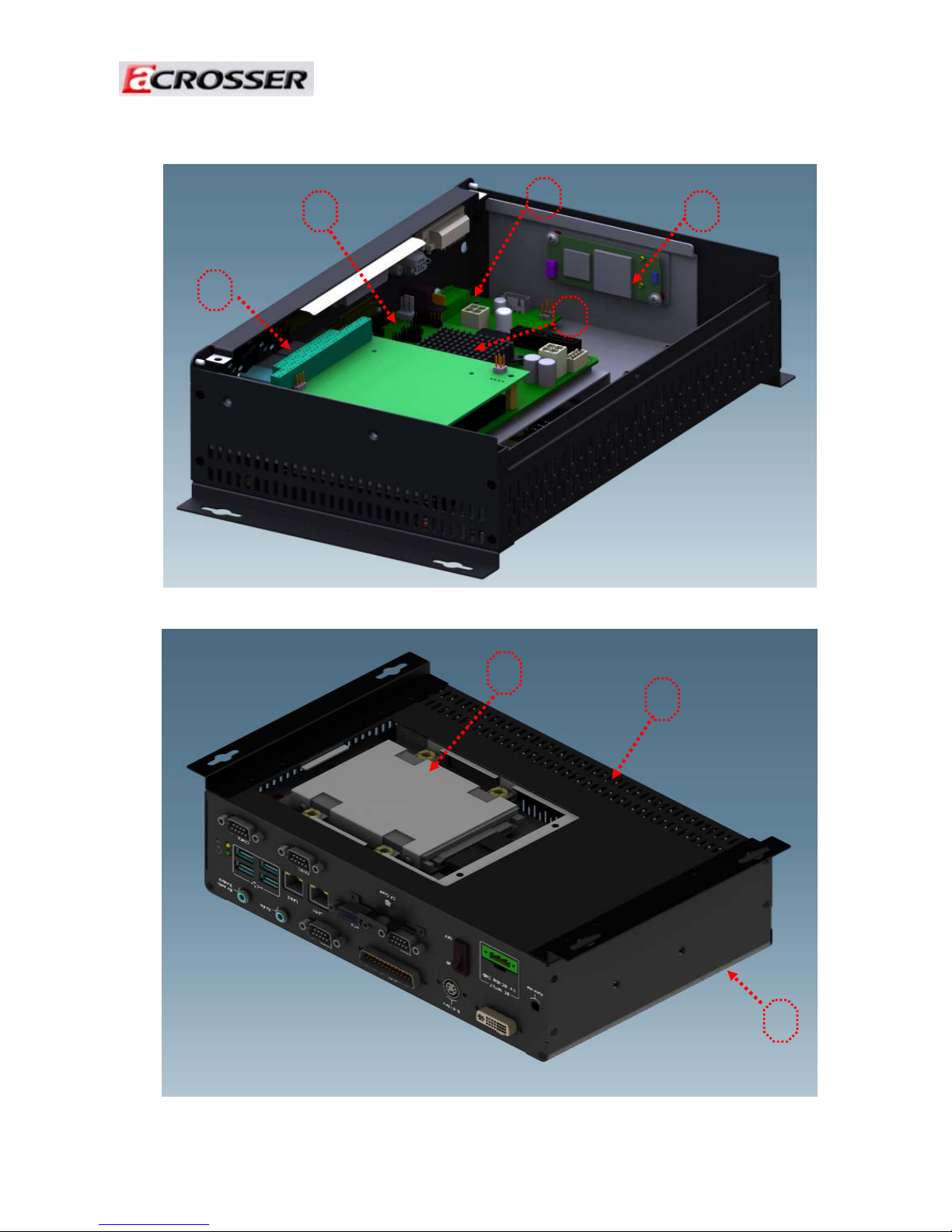

(3)System Configuration
6
.2
.1 .3
7
.4 .5
8
Revision: 1.0
6
Item Description Quantity
1 AR-B5432 1
2 PW-V9427B 1
3 WiFi Module(Option) 1
4 PC104 Card(Option) 1
5 Heatsink (for CPU/NB/SB) 3
6 Upper Case(including Corners) 1
7 Bottom Case(including I/O) 1
8 HDD Module 1
9 Mounting Bracket 2
10 HDD Door 1
11 CF Card Bracket 1
10 9
11
Revision: 1.0
7
2 Procedure of Assembly/Disassembly
2.1 2.5” Hard Disk Installation
The following instructions will guide you to install HDD step-by-step.
1. Remove the terminal plug from theAR-ES5432FL.
2. Unfasten the screw from top cover of AR-ES5432FL.
Unscrew
Revision: 1.0
8
3. Remove top cover by below photo direction.
4. Plug SATA cable and power cable into mainboard.
SATA Connecter
SATA Power connecter
Push
Remove
Push
Revision: 1.0
9
5. Run the cables through gateway to back side.
6. Unfasten the screws from HDD door.
Unfasten the screws!!
Cables gateway
Revision: 1.0
10
7. Unfasten four screws below to release HDD bracket.
8. Insert the rubbers into the HDD bracket.
Install the rubbers on the HDD bracket.
Unfasten the screws!!
