PC 8120
12-inch Core 2 Duo touch panel PC
1
Installation Guide
PC8120: 12-inchCore 2 Duotouchpanel PC
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
PC 5150
15-inch touch panel PC
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com
2
PC 8120
12-inch Core 2 Duo touch panel PC
Installing the CPU and DRAM
The standard PC8120 system is designed for IntelCore 2 Duo processors. The built-in CPU board provides two 240-
pin DDR2 DIMM sockets that support system memory up to 4GB.
Please refer to the instructions below illustrated with concise images, to upgrade the CPU, DRAM, PCI step by step:
Step 1: Unscrew screws to remove the rear chassis.
Step 2: Remove the riser card fix kit.
Step 3: Install the CPU and DDR DRAM in the PC
8120.
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
PC 8120
12-inch Core 2 Duo touch panel PC
3
Installing the Hard Disk Drive
The PC8120offers aconcenient drive baymodule for users
to install HDD. The system offers users of one 2.5” Hard
Disk Drive for installation. Please followthe steps:
Step 1: Unscrew screws to remove the rear chassis.
Step 2: Remove the riser card fix kit.
Step 3: Unscrew4 screws from the HDD drive bracket, and
take out HDD bracket kit to install 2.5” HDD.
Step 4: The installation is complete
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
PC 5150
15-inch touch panel PC
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com
4
PC 8120
12-inch Core 2 Duo touch panel PC
Add-on Card Installation
The PC 8120 provides ariser card for PCI slots
expansion. The riser card assemble can accomodate both
half-size expansion cards. To install the riser card, refer to
thefollowing figure and instructions below:
Step 1: Remove the rear chassis.
Step 2: Remove the riser card fix kit.
Step3: Removeplates.
Step 4: Insert the add-on card in the socket firmly
until it is completely sealed.
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
PC 8120
12-inch Core 2 Duo touch panel PC
5
Mountings Ways -- Panel/Wall/Desktop
There are several mounting ways available for the PC 8120 system: Panel, Wall, and Desktop.
Panel Mounting

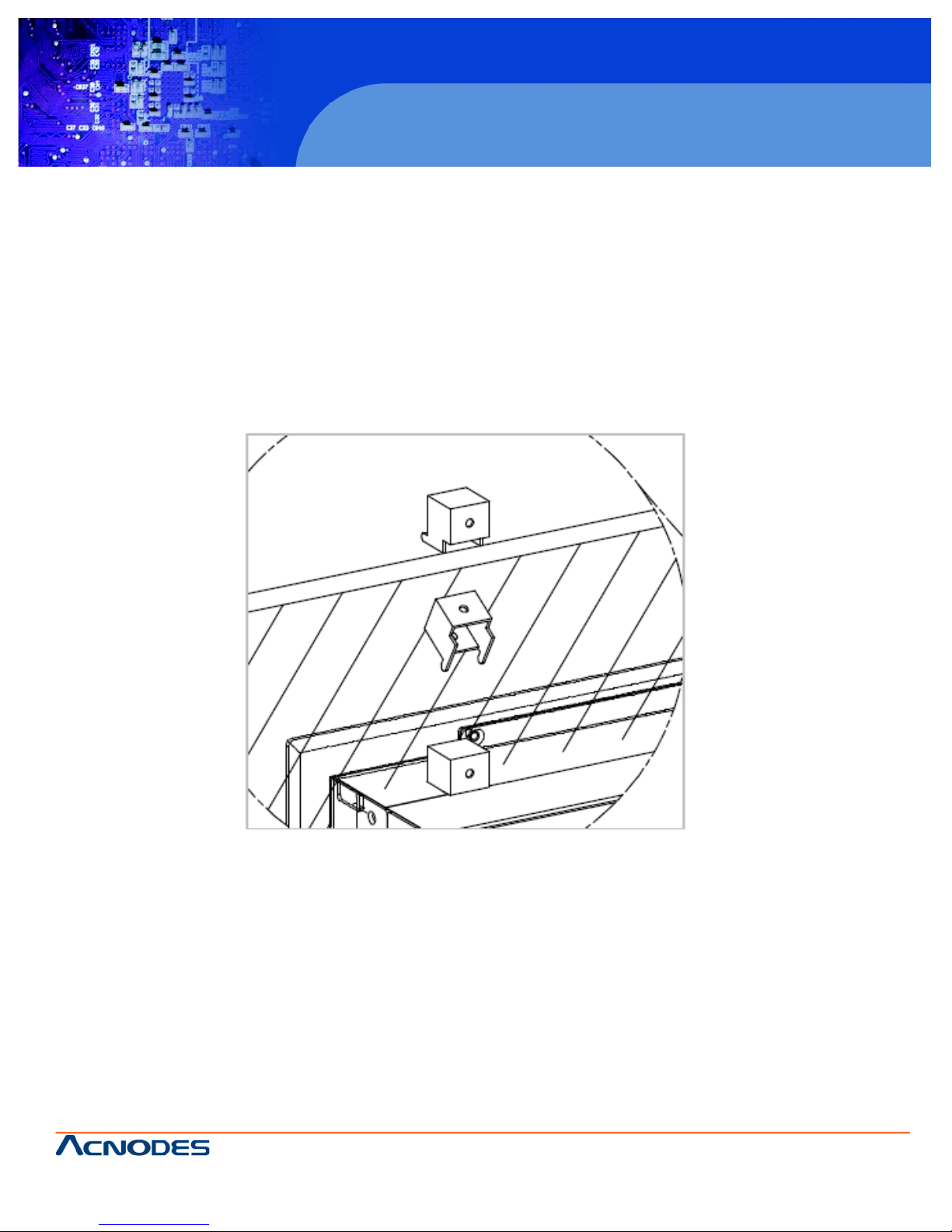

The PC 8120 is designed for panel mount application. To mount the PC 8120, the standard set of mounting kit (in-
cluded in the system packaging) is needed.
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
PC 5150
15-inch touch panel PC
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com
6
PC 8120
12-inch Core 2 Duo touch panel PC
Wall Mounting
The PC 8120 is designed for Wall mounting application. The wall mounting kit is optional. Please refer to the follow-
ingfigure.
Step 1: Use six screws to fix the wall mounting bracket.
Step 2: Completethe wall mounting.
661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com
© Copyright 2009 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.
PC 8120
12-inch Core 2 Duo touch panel PC
7
Desktop Mounting
The PC 8120 provides desktop mounting ways. It uses a wall bracket and a desktop stand. Please refer to the
followingsteps:
Step 1:Assemble the Wall mounting bracket
Step 2: Fix the desktop stand.
