Acnodes PANEL PC 1000 Manual de usuario

ACNODES.COM

[email protected]

PANEL PC 1000 INSTALLATION GUIDE

!""PANEL PC 1000 system unit x 1

!PANELPCUser’sManual,InstallationGuide,Driver&

UtilitiesCD-ROMx1

!""FDD external cable x 1

I. CHECK-LIST

!PS/2keyboard adaptercable x1

!Screwkit x1

!" Panel Mounting kit x 1

Make sure that all of the items listed above are present. Do not attempt to apply power to the system if there is damage to any of its

components.

II. INSTALLATION

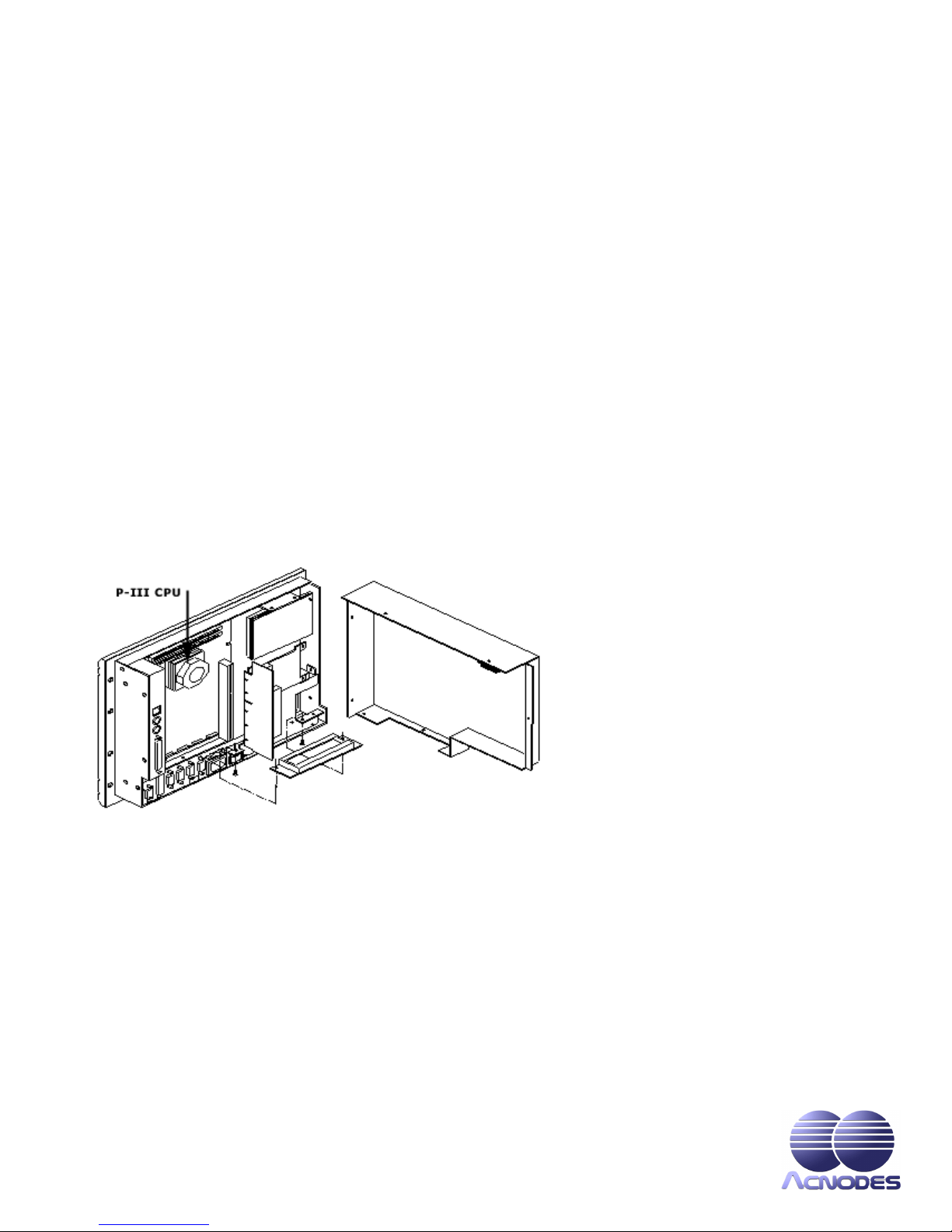

CPU

The standard PANEL PC 1000 system already builds in Pentium III-level CPU.

1. Remove the existing CPU using a chip puller.

2. Locate pin 1 of the CPU socket and align the CPU’s pin 1 with the pin 1 on the socket.

3. Mount the CPU in the socket. If the insertion of the CPU to the socket is not easy, check whether the notch on the

corner of the CPU and the notch on the socket are properly aligned.

4. Adjust settings on the system control board including CPU type, CPU bus clock and CPU voltage. Make sure all the

settings are correct for the installed CPU. (See the CPU jumper settings in the CPU card User’s Manual).

DRAM

1 x 168-pin DIMM sockets supporting system memory up to 256MBM.

To install the memory module:

1. Disconnect all power sources.

2. The memory module fits the socket in only one direction. Hold the memory module with the notch on the upper right

corner, and then insert the memory module at a 45°angle. Push the module upright until it snaps into place.

ACNODE.COM

[email protected]

PANEL PC 1000 INSTALLATION GUIDE

HDD

The standard PANEL PC 1000 already builds in a 2.5” hard disk drive.

To remove the existing device for repair or for a higher-capacity one, follow the installation instructions below.

1. Take out the screws and remove the HDD bracket. Mounting orientation of the HDD brackets on PANEL PC 1000 are not similar.

The four screws mounting the PANEL PC 1000 HDD bracket sits at the bottom of the bracket.

2. Reinstall the new hard disk drive to the HDD bracket and screw the HDD bracket to the system compartment again. The four rubber

stands act as cushions to lessen the vibration that usually causes damage to mechanical devices like a hard disk driver.

NOTE: Mounting screws of the PANEL PC 1000 HDD are installed from the both sides of the HDD bracket

III. I/O OUTLETS

Thefollowingfigure showstheI/O arrangementofthe PANEL PC1000.Thebackside ofthechassis containsmostofthe

connectors.

1. Ethernet RJ-45 phone jack

2. PS/2 mouse

3. Keyboard

4. External FDD

5. 4-channel Digital Inputs/outputs

6. Parallel port

7. COM4

8. COM3

9. COM2

10. COM1

11. VGA port IF

12. AC inlet

13. Power switch

14. +5V/12V DC outlet

NOTE: Default settingm for RS-232 type Touch-Screen on COM3

ACNODES.COM

[email protected]

PANEL PC 1000 INSTALLATION GUIDE

PANEL1000-370 10.4" FLAT PANEL PC (unit: mm)

IV. DIMENSION

ACNODE.COM

[email protected]

PANEL PC 1000 INSTALLATION GUIDE

IIV. PANEL MOUNT

ThePANELPC1000is mainly designedforpanel mount application.TomountthePANELPC 1000, thestandardsetof

mountingkit(includedinthesystempackaging)isneeded.Pleaserefer tothefollowingfigure.
