ACME STAGE PAR 100 COLOUR IP Manual de usuario

STAGE PAR 100 COLOUR IP

1. Safety Instructions............................................................................................................................1

2. Technical Specifications....................................................................................................................2

3. Installation and Connection .............................................................................................................3

4. How to set the unit...........................................................................................................................4

4.1 Rear Panel.......................................................................................................................................4

4.2 Main Function.................................................................................................................................5

5. How to control the unit ....................................................................................................................9

6. DMX512 configuration ................................................................................................................. 10`

7. DMX512 Connection.......................................................................................................................11

8.Troubleshooting...............................................................................................................................12

9. Fixture Cleaning..............................................................................................................................13

1. Safety Instructions

WARNING

Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure

that they also receive this instruction booklet.

Please unpack and check carefully there is no transportation damage before using the fixture.

Please disconnect main power before servicing and maintenance.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

The maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher

than this.

DO NOT connect the device to any dimmer pack.

The housing must be replaced if they are visibly damaged.

Unit surface temperature may reach up to 60℃. Don’t touch the housing bare-hand during its

operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing

or serving.

Stop using the fixture immediately and disconnect the power source for inspection if the fixture fails.

Do not repair it by yourself if you are non-professional technician. For any help, please contact your

nearest authorized sales or technical center.

2. Technical Specifications

4/6/7/8 channel Mode;

Dimmer, Strobe;

Please read the instruction carefully which includes important

information about the installation, usage and maintenance.

Ideal for Professional stages, Concerts, clubs, discotheques, Mobile DJs, etc.

Input Voltage:AC100V~240V，50/60Hz

Total Power consumption:

Beam Angle:

IP Grade:

LED Sources:

110W

7°/11.5°/16°/20.5°/25°

IP X4

PUMG-120F4A-ND4P

Dimension/Weight:

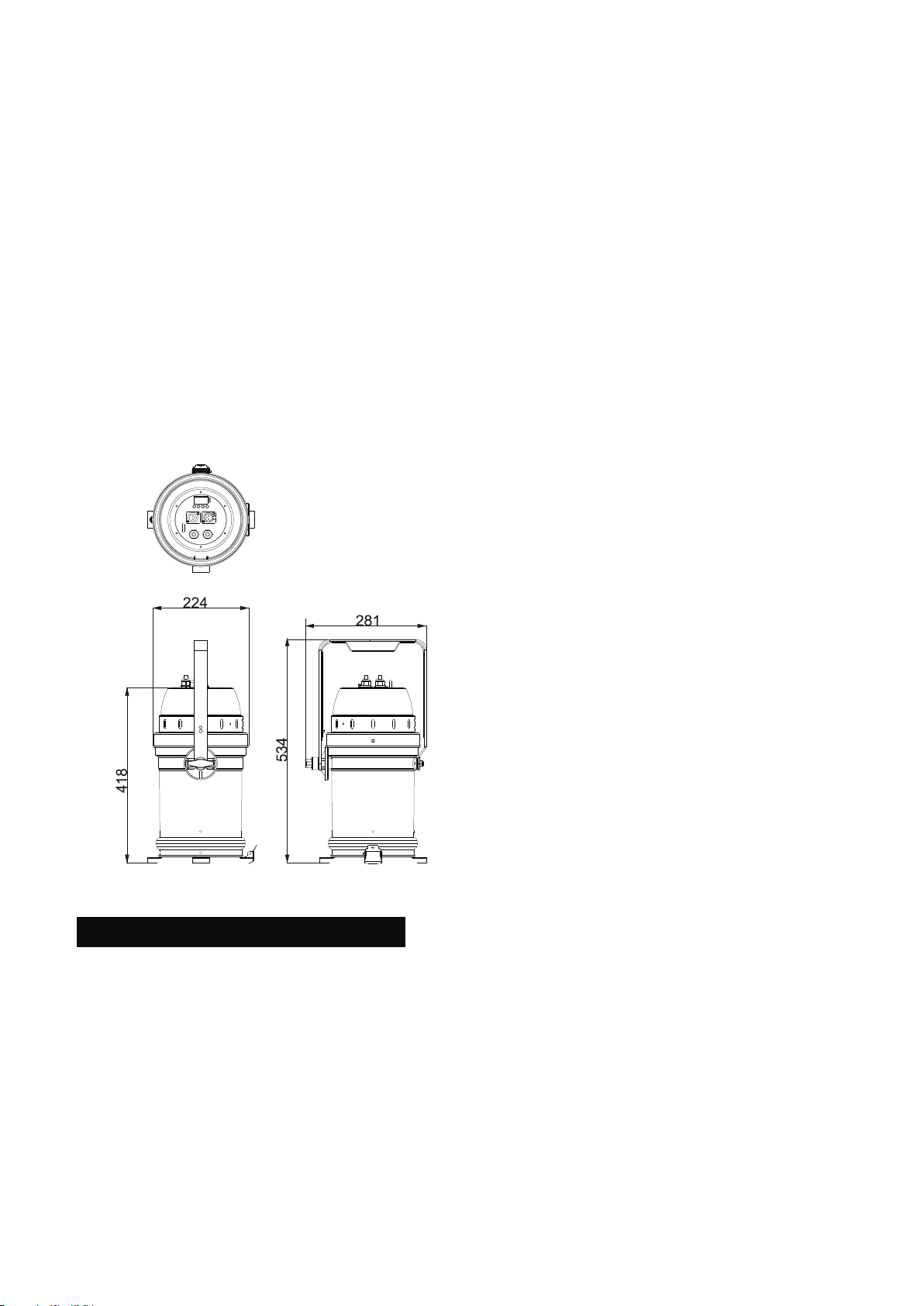

534 x 281 x 224mm, 4.5Kg

21"x11"x8.8"in, 9.9lbs

3. Installation and Connection

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed

to avoid vibration and slipping while operating. Always ensure that the structure to which you are

attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always

use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch

of people and has no one pass by or under it. The unit should be mounted in the height of 0 to 30m.

4. How to set the unit

4.1 Rear Panel

○

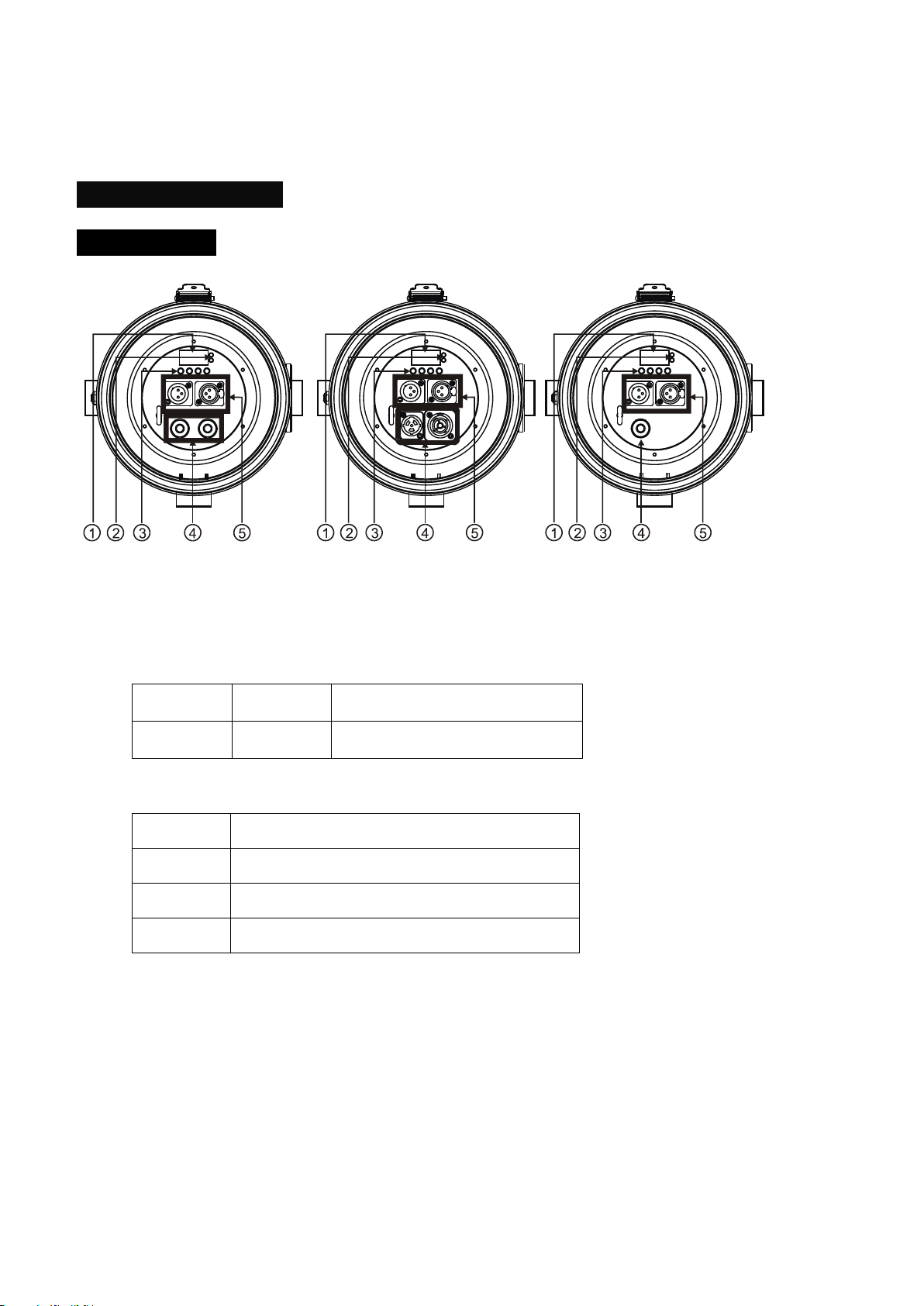

1Display: Show the various menus and the selected functions；

○

2 LED indicator：

POWER On Power On

DMX On DMX input present

○

3 Button：

To select the programming functions

DOWN

To go forward in the selected functions

To go backward in the selected functions

ENTER

To confirm the selected functions

○

4 Mains input/output:：Use Powercon true one mains connection.

○

5DMX input/output:

For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal, and to link the next unit.

The beam angle can be adjusted manually, which is 7°/11.5°/16°/2 0.5°/2 5 °.

4.2 Main Function

To select any functions, press MENU button until the required one is shown on the display. Select the

function by ENTER button. Use DOWN and UP button to change the mode. Once the required mode has

been selected, press ENTER button to setup or it will return to the main functions without any change

after idling 8 seconds automatically. Back to the functions without any change press MENU button. The

main functions are shown below:

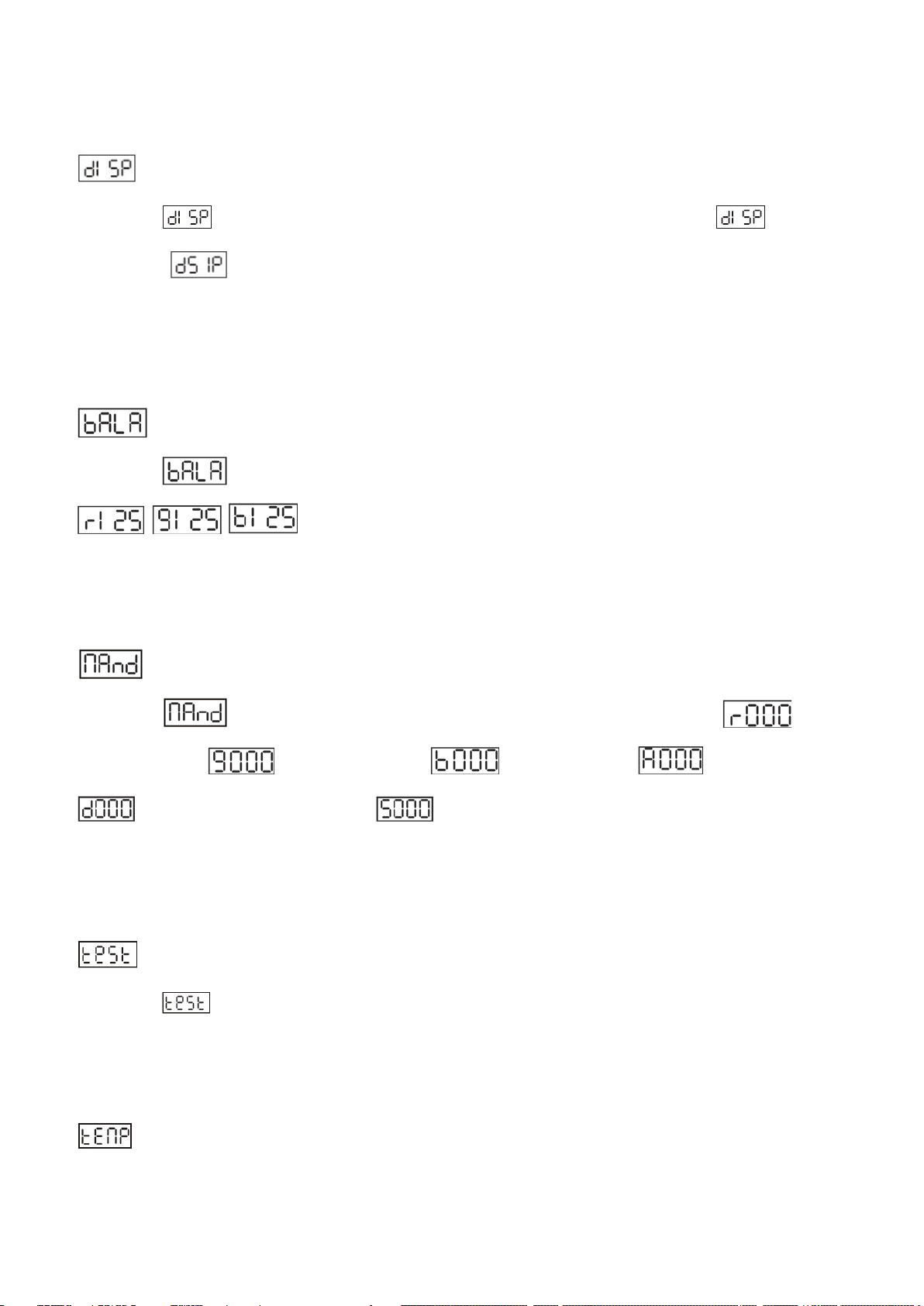

DMX 512 Address Setting

Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to

change the DMX 512 address（001-512）. Once the address has been selected, press the ENTER button to

setup or exit menu mode without any change after 8 seconds automatically. Back to the previous

functions without any change press the MENU button.

Channel Mode

Select the , press the ENTER button. Use the DOWN and UP button to select the channel mode

(4CH/ 6CH/7CH/8CH). Once the address has been selected, press the ENTER button to setup or exit

menu mode without any change after 8 seconds automatically. Back to the previous functions without

any change press the MENU button.

Dimmer Mode

Select the , press the ENTER button. Use the DOWN and UP button to select (Dimmer

Mode 1)… (Dimmer Mode 4). Once selected, press the ENTER button to setup or exit menu

mode without any change after 8 seconds. Back to the functions without any change press the MENU

button again.

Dimmer mode 1 Dimmer mode 2 Dimmer mode 3 Dimmer mode 4

Optically Linear Square Law Inverse-Square Law S-Curve

Mode 1(Optically Linear): The increase in light intensity appears to be linear as DMX value is increased.

Mode 2(Square Law): Light intensity control is finer at low levels and coarser at high levels.

Mode 3(Inverse Square Law): Light intensity control is coarser at low levels and finger at high levels.

Mode 4(S-cure): Light intensity control is finger at low levels and high levels and coarser at medium

levels.

Dimmer Speed

Select the , press the ENTER button. Use the DOWN and UP button to select (Fast) or

(Smooth). Once selected, press the ENTER button to setup or exit menu mode without any

change after 8 seconds. Back to the functions without any change press the MENU button again.

DMX State

Select the , press the ENTER button. Use the DOWN and UP button to select

(Blackout) or (Hold the last state) . Once selected, press the ENTER button to setup or exit

menu mode without any change after 8 seconds. Back to the functions without any change press the

MENU button again.

Display Inverse

Select the , press the ENTER button. Use the DOWN and UP button to select (Display

Normal) or (Display Inverse). Once selected, press the ENTER button to setup or exit menu

mode without any change after 8 seconds automatically. Back to the functions without any change press

the MENU button again.

White Balance

Select the , press the ENTER button. use the DOWN and UP button to select

/ / , You can choose values between 125-255,and press the ENTER button to

setup or automatically exit menu mode without any change after 8 seconds. To go back to the functions

without any change press the MENU button

Manual mode

Select the , press the ENTER button. Use the DOWN and UP button to select

RED(R000-R255)/ GREEN(G000-G255)/ BLUE(B000-B255)/ AMBER(A000-A255)/

the brightness (d000-d255)or strobe(S000-S255). Once selected, press the ENTER

button to setup or exit menu mode without any change after 8 seconds automatically. Back to the

functions without any change press the MENU button again.

Auto Test

Select the , press the ENTER button and the unit will run self-test by built-in program. To go back

to the functions press the MENU button again. Hold and press the MENU button about one second or

wait for one minute to exit the menu mode.

Temperature Display

Select the , press ENTER button and the display will show the temperature，To go back to the

functions press the MENU button.

Fixture Hour

Select the , press ENTER button and the display will show the number of working hours of the

unit. To go back to the functions press the MENU button.

Software Version

Select the , press ENTER button and the display will show the version of software of the unit.

To go back to the functions press the MENU button.

RDM function

Select the DMX start menu to change the DMX 512 address（001-512）

Select the manufac tuner menu to display the lamp brand acme.

Select the device model description menu to select the lamp model STAGE PAR 100 COLOUR IP.

Select the DMX performance menu to set the lamp channel 4channel / 6channel / 7channel / 8channel.

Select the device label menu to change the lamp model. The initial model is STAGE PAR 100 COLOUR IP..

Select the identity device menu, and the off / on option will appear. When you select on, the strobe will

appear on the lamp, and select off to turn off the strobe.

Select the device hours menu to display the lamp usage time.

Select the DMX personal menu to display the channel mode used by the luminaire.

Select reset device menu, and the warm / cold option will appear. When warm is selected, the lamp will

restart, and exit when cold is selected.

Select the software menu and the lamp program version number will be displayed.

Select the LED menu to display the LED temperature of the lamp.

5. How to control the unit

1.By DMX controller；

No need to turn the unit off when you change the DMX address, as new DMX address setting will be

affected at once. Turn on the unit, under the DMX signal , the LED will display the saved channel address

（001-512）.
