ACME DAZZLED COLORLED-430 Manual de usuario

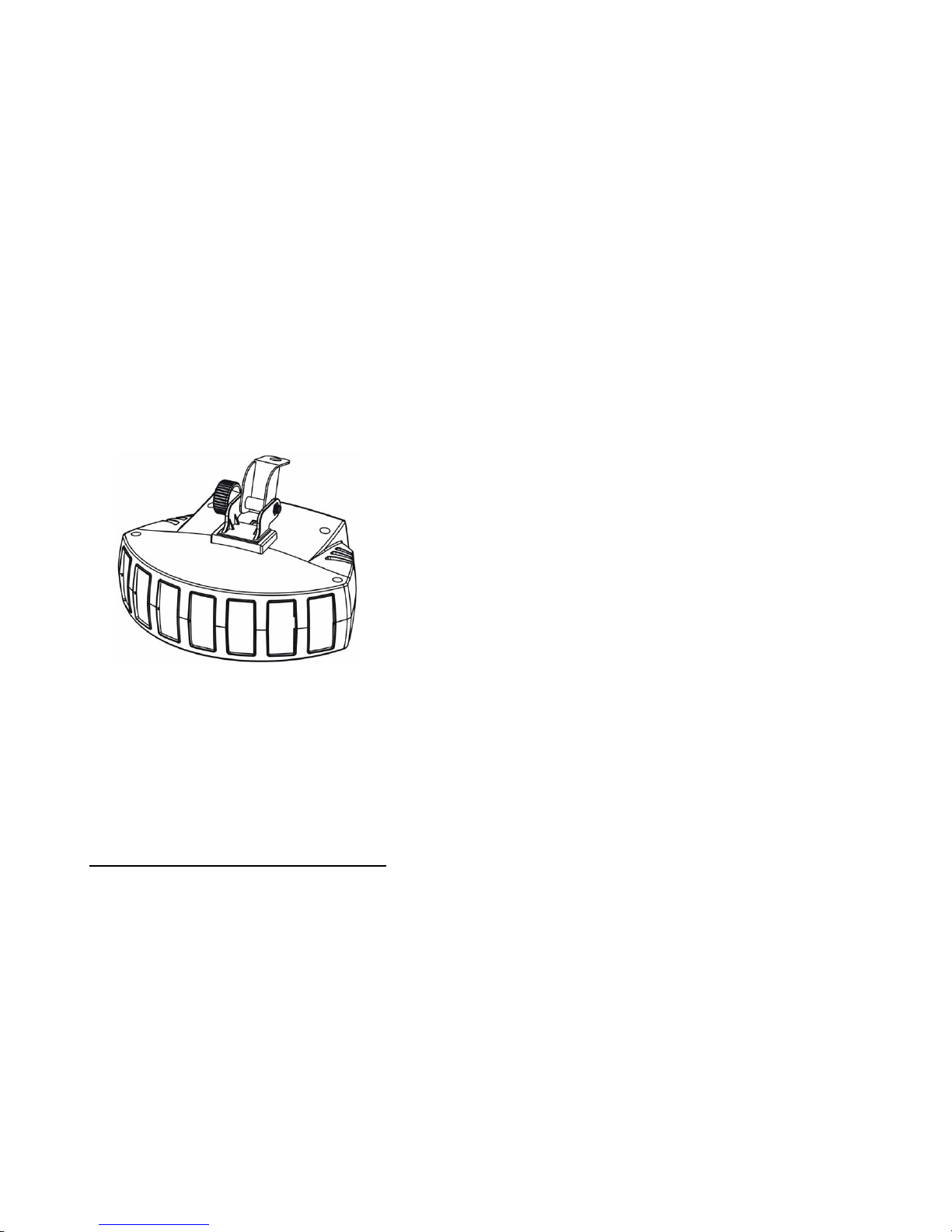

DAZZLED COLOR
LED-430
User Manual
Professional Entertainment Technology
1B
2B
TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
3. Installation
4. How to Control the Unit
5. DMX 512 Configuration
6. DMX 512 Connection
7. Fixture Cleaning
3B
1. Safety Instruction
WARNING
♦Please keep this User Manual for future consultation. If you sell the unit to another user,
be sure that they also receive this instruction booklet.
♦Unpack and check carefully there is no transportation damage before using the unit.
♦Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
♦It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
♦The unit is for indoor use only and use only in a dry location.
♦The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
♦Disconnect mains power before fuse replacement or servicing.
♦Replace fuse only with the same type.
♦Make sure there are not flammable materials close to the unit while operating as it is fire
hazard.
♦In the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repair carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center and
always use the same type spare parts.
♦Do not touch any wire during operation as high voltage might be causing electric shock.
Please read the instruction carefully which including important
information about the installation, operation and maintenance.
For power supply, do not connect in series much more than 86 units, use
another mains supply for next 86 units.
4B
2. Technical Specification
yIt can be operated by DMX512 control or can be used as an individual unit without
controller.
yIt can be linked together as many as required in master/slave mode, and perform the
great built-in programmed lighting shows triggered by music.
yPlease use a 3 pin XLR cable/plug when connecting them together.
yFan cooled.
y4Channels:
Channel 1 = Red
Channel 2 = Green
Channel 3 = Blue
Channel 4 = Dimmer/Strobe
yVoltage: AC 100V-240V 50/60Hz
yPower: 7 W
yLight Source: 1×3W RGB LED

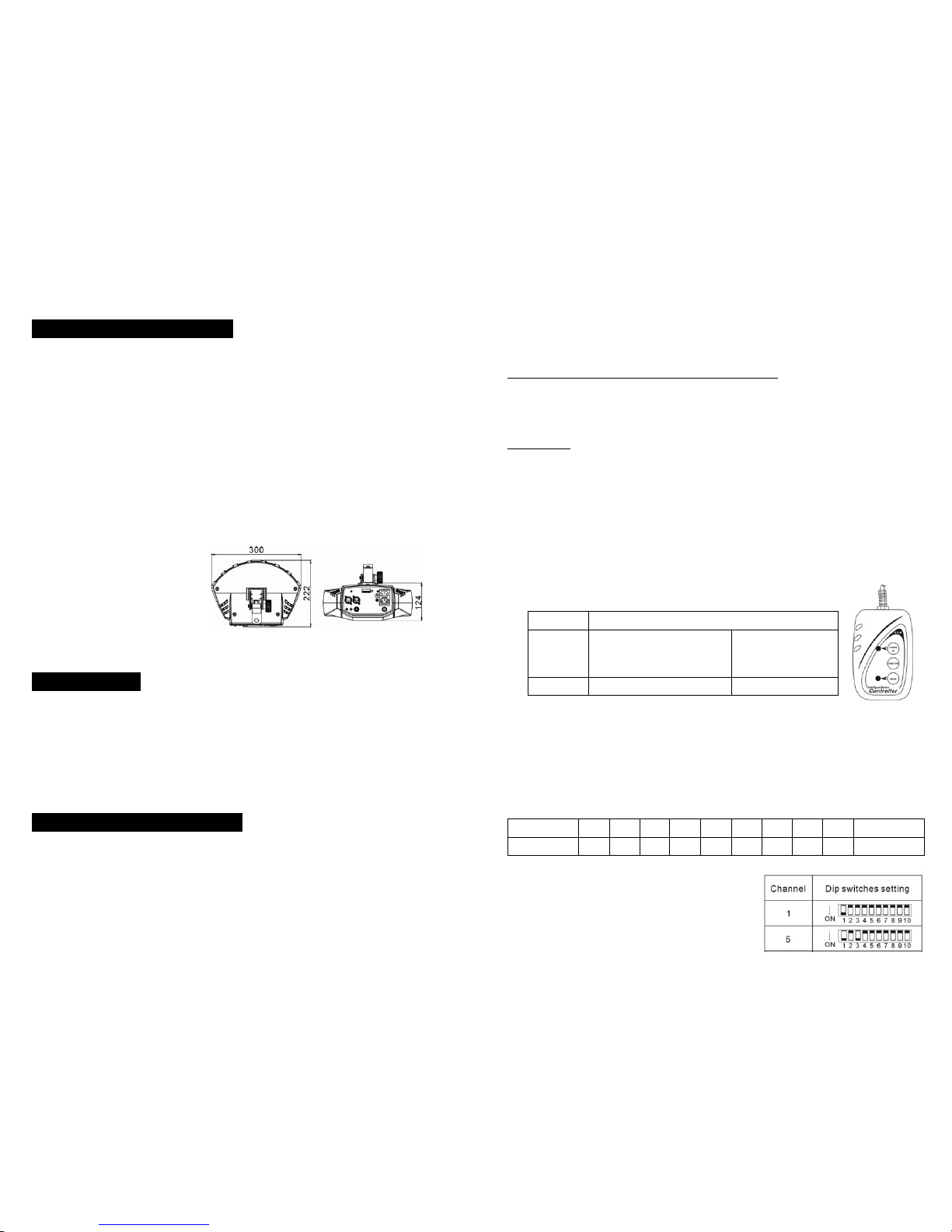

yDimension: 222x300x124mm
yWeight: 1.3 kg
3. Installation
You can install the unit on the truss or ceiling, Use clamps to fix the unit to truss. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always
ensure that the structure to which you are attaching the unit is secure and is able to support
a weight of 10 kg for each unit.
4. How To Control The Unit
Three ways to operation:
A. Master/Slave operation
B. Easy controller CA-8
C. Universal DMX controller
5B
A. Master/Slave operation
The unit can be linked together in daisy chain as many as you need in master/slave mode to
perform the great built-in pre-programmed lighting shows triggered by music.
In Master/Slave mode, refer to the DMX settings below:
Master unit: DIP switch #10 = ON
Slave units: All DIP switches OFF
2-light show:
Turn on the DIP switch #10 for the first unit and DIP switches #1 and #3 for the other, then
you can enjoy different lighting shows of the two units.
B. Easy Controller (by CA-8)
The easy remote control is used only in master/slave mode. By connecting to the 1/4”
microphone jack of the first unit (its DMX input plug is not used), you will find that the remote
control all the first unit will control all the other units for Stand by, Function and Mode. Built-in
lighting shows triggered by Easy Controller:
Stand by Blackout the unit
Function
1. Synchronous Strobe
2. Four light Strobe
3. Sound Strobe Chase
Mode Strobe (LED OFF) Latch (LED ON)
C. Universal DMX controller
When using a universal DMX controller to control the chain of units, you have to set DMX
address by Dip switches from 1 to 9 to make sure all the units will receive its DMX signal.
Please refer to the following diagram to know how to address your DMX 512 system in the
binary code.
DMX 512 Address Chart:
Dip-switches#1#2#3#4#5#6#7#8#9 #10
Value 1 2 4 8 16 32 64 128 256 4-light show
•Examples:
Channel 1：dip / on: #1 (=1)
6B
Channel 5：dip / on: #1, #3 (1+4=5)
Channel 9：dip / on: #1, #4 (1+8=9)
Channel 13：dip / on: #1, #3, #4 (1+4+8=13)
5. DMX 512 Configuration
6. DMX 512 Connection
The DMX 512 is widely used in intelligent lightings and with a maximum of 512 channels.
7B
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120
ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin
XLR-plug and plug it in the DMX-output of the last unit.
3. Connect the unit together in a ‘daisy chain’ by XLR plug from the output of the
unit to the input of the next unit. The cable can not be branched or split to a ‘Y’
cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables,
solder joints or corroded connectors can easily distort the signal and shut down
the system.
4. The DMX output and input connectors are pass-through to maintain the DMX
circuit, when power is connected to the unit.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
8B
accumulation of dirt on the unit’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
9B
10B
EC - Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements
11B
