ACME Eventx 100 Manual de usuario

User Manual

Please read the instructions carefully before use

English Version 1.0

Table of contents

1. Introduction ………..……………………………………………………………………………………..……………………… 2

2. Safety instructions ……………………………………………………………………………………..………………………. 2

2.1 Preventing electric shock ………………………………...........................................................………. 2

2.2 Preventing burns and fire ……………………………...........................................................………… 3

2.3 Avoid personal injury …………………………………………...........................................................…. 3

3. Installation ………………..………………………………………………………………………………………….…………… 3

3.1 Connection to the main ……………………………………..........................................................……. 3

3.2 Mounting the fixture on a truss …………………………..........................................................…… 4

3.3 DMX 512 connection …………………………................................................................................ 5

3.4 DMX 512 controller ………………………….................................................................................. 6

3.5 IR remote control …………………………..................................................................................... 6

3.6 Wireless connection ……………………...................................................................................... 7

4. Description of EventX 100 …………………..……………………………………………………………………………… 9

4.1 Dimension ……………………....................................................................................................... 9

4.2 Overview ……………………....................................................................................................... 9

4.3 Control board ……………………................................................................................................ 10

5. Menu …………………..……………………………………………………………………………………………..…………… 12

6. DMX chart ……………..…………………………………………………………………………………………..……………. 23

7. LEE colors and RGB DMX values ……………..………………………………………………………………………… 25

8. Technical specifications ……………………………………………………………………….…………………………… 26

9. Troubleshooting ………………………………………………………………………………………..….…………………. 27

10. Maintenance and cleaning …………………………………………………………………….…….…………………… 27

1 - Introduction

Thank you for your trust. We believe that products and service can satisfy you. Please keep this User Guide for future

consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.

All fixtures are intact from the manufact urer. Please, operator must be qualified and follow carefully the instructions of

this user manual. Artificial fault are not under guarantee repair.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or

any unauthorized modification to the device.

Unpack and check carefully that there is no transportation damage before using the unit.

Inside the box you should find :

1. One EventX 100

2. One Power cable

3. One charger

4. One IR controler

5. One manual

Do install and operate by operator.

2 - Safety Instructions

The EventX 100 is a multi-environmental fixture with an IP-rating 65, intented for professional use only. It is not

suitable for household use.

Operator must be qualified and follow carefully the instructions of this user manual. Do not allow children to operate

the fixture.

Do not operate in dirty and dusty environment, also cleaning fixtures regularly.

Avoid power wires together arounding other cables.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or filter must be replaced if they are visibly damaged.

Do not open the unit as there are no user serviceable parts inside. Never try to repair the unit by yourself. Repairs

carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical

assistance center.

Do use original packing materials once transport it again.

Disconnect the mains power if the fixture is not used for a long time.

If the device has been exposed to temperature changes due to environmental changes, do not switch it on

immediately. The arising condensation could damage the device. Leave the device switched off until it has reached

room temperature.

Be sure the place is well ventilled.

Always power off/unplug the fixture before removing any cover

Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Do not touch any wire during operation as there might be a hazard of electric shock.

Refer any service operation not described in this manual to a qualified technician.

Please read the instructions carefully which include important

informations about the installation, operation and maintenance

2.1 Preventing electric shock

Look over power wires carefully, replace immediately if there is any damage.

Install at least 0.5m away from the objects to be illuminated.

Don’t connect the device to any dimmer pack.

Make sure there are no flammable materials close to the unit while operating, as it is fire hazard.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

The applicable temperature for Eventx 100 is between -40℃to 45℃. Don’t operate it where the temperature is lower

or higher than this.

The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the fixture to cool

for at least 10 minutes before handling.

For temporary installation with clamps, ensure that the quarter-turn fasteners are turned fully and secured with a

suitable safety cable.

Use safety chain when fixes the unit specially when the fixture is working at height. This safety chain must be approved

for a safe working load of 10 times the weight of the fixture, and it must have a minimum gauge of 2 mm.

Ensure that any supporting structure used can hold at least 10 times the weight of all devices they support.

Unit surface temperature may reach up to 80℃. Don’t touch the housing bare-hand during its operation.

Do not look directly at the LED light beam while the fixture is on.

Do not operate the fixture with missing or clamaged of any part of the device.

3 - Installation

This product contains a sophisticated optical system which can cause damage the led if the front glass is expose to

sunlight or other strong light source.

So if these light source hits the front glass, sheild it or point the head in the opposite direction to the light source.

3.1 Connection to the main

If you use EventX 100 with his charger, ensure that the voltage and frequency of power supply match the power

requirements of the charger.

Input Charger: 100-240 Vac 50/60Hz

Output Charger: DC 29.4 V 4A

The earth has to be connected.

If you have any doubts about proper installation, consult a qualified electrician.

2.2 Preventing burns and fire

2.3 Avoid personal injury

Exposition warning

Warning

3.2 Mounting the fixture on a truss

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid

vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure

and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold at least 10

times of the weight of the unit when installing the fixture.

The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people and

has no one pass by or under it.

The fixture must never be fixed swinging freely in the room.

This fixture can be placed on the stage floor or rigged on a truss without altering its operation characteristics.

Always use a safety cable that can hold at least 10 times of the weight of the unit when installing the fixture. Using the

attachment point marked “SAFETY WIRE” in the base of the fixture. This attachment point is designed to fit a

carabiner clamp, and turn around the truss as shown on the pictures below.

Note: If the safety wire is too long, whip it several times around the trusss in order to attach the fixture tightly. In case

of an accident, the way of the falling fixture will be shorter.

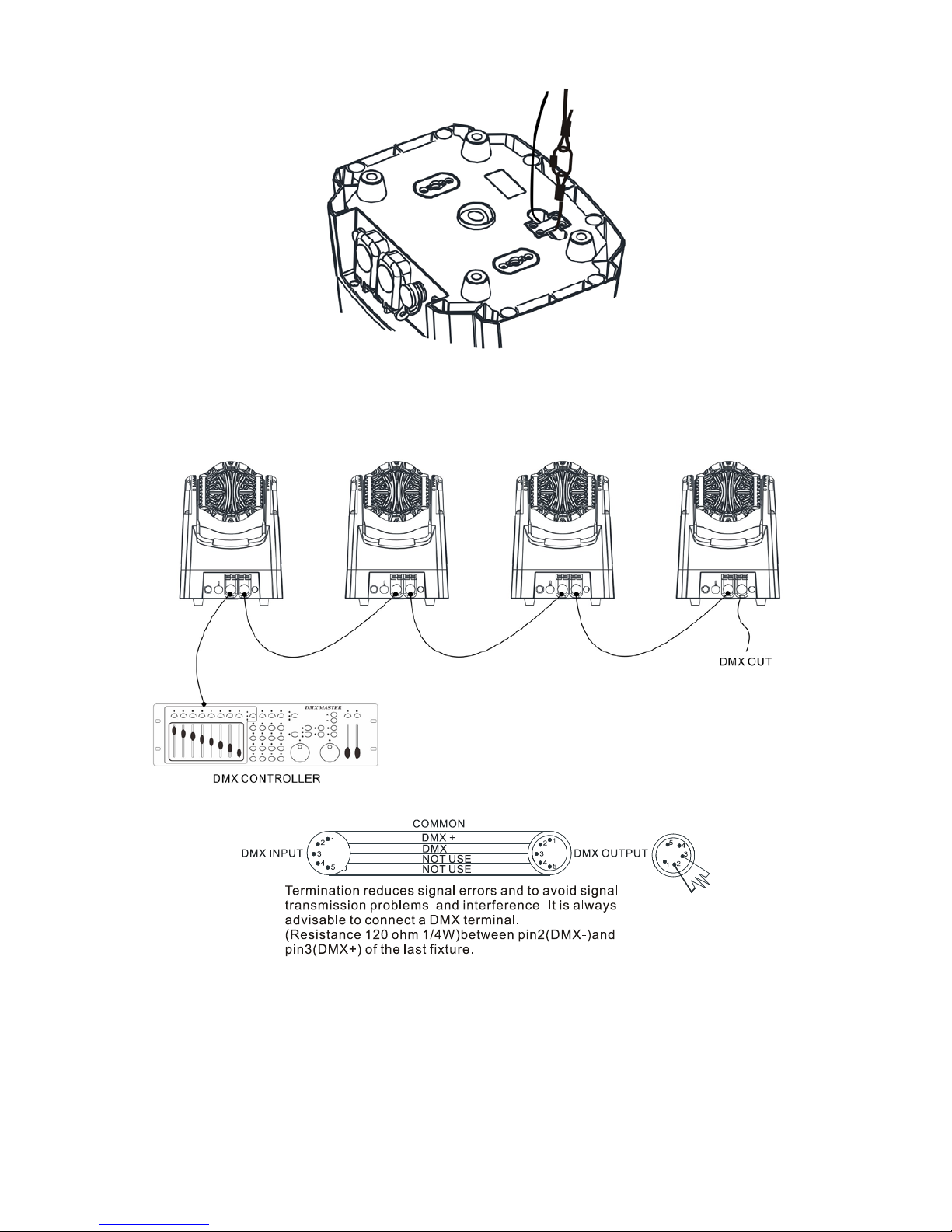

3.3 DMX512 connection

- If you using a controller with 3 pins DMX output, you need to use a 3 to 5 pin adapter-cable.

- At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin

2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit.

- Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the next unit.

The cable can not branched or split to a `Y` cable. DMX 512 is a very high-speed signal. Inadequate or damaged

cables, soldered joints or corroded connectors can easily distort the signal and shut down the system.

INSTALLATION

The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the units’ power

is disconnected.

- Each lighting unit needs to have an address set to receive the data sent by the controller. The address number is

between 0-511 (usually 0 & 1 are equal to 1).

The end of the DMX 512 system should be terminated to reduce signal errors.

3 pin XLR connectors are more popular than 5 pin XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.

3.4 DMX 512 controller

Use universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that the units

can receive DMX signal.

If all units have same DMX address, they will do simultaneously the same task as order the DMX controller.

If you set different address, each unit will start to respond of the DMX controller signal channel, based on the quantity

of control channels of the unit.

Press the MENU button up to when the DMX Address is showing on the display. Press the ENTER button and the

display will blink. Use the DOWN and UP button to change the DMX512 address. Once the address has been selected,

press and keep the ENTER button pressed up to when the display stops blinking or storing automatically 8 seconds

later. To go back to the functions without any change press the MENU button again.

Please refer to the following diagram to address your DMX512 channel for the first 4 units.

Channel mode Unit 1

Address

Unit 2

Address

Unit 3

Address

Unit 4

Address

5 Channels 1 6 11 16

7 Channels 1 8 15 22

8 Channels 1 9 17 25

3.5 IR remote control

STANDBY: Press the button to blackout the unit. It is invalid to press the other buttons when entry the Standby status;

And it will return to the original state when exit the Standby status.

FULL ON: Press and hold the button can show all the light, and it will return to the original state when release the

button.

ZOOM+/ZOOM-: Press these buttons to zoom in or zoom out.

DIMMER+/DIMMR-: Press these buttons to adjust the output intensity.

COLOR WHEEL +: Press the button to select the mexy color in the pre-programmed sequence. (Totally 33 colors)

COLOR WHEEL -: Press the button to select the previous color in the pre-programmed sequence. (Totally 33 colors)

FAST/MEDIUM/SLOW: Press these buttons to acive and setup the speed of show for color random.

RED/FUSHIA/BLUE/LIGHT BLUE/GREEN: Press these buttons to select the color.

2800K/3200K/4000K/5600K/8000K: Press these buttons to select the color temperature.

3.6 Wireless connection

To setup the WDMX you need a Wireless Transceiver as our XP-LR 512 RT.

Press Menu button 2 seconds if the display is locked, else one impulsion on the Menu button is necessary to access to

the main menu.

The display will show “ DMX Address ”.

Use the UP/DOWN button to select Reset Function.

Press the ENTER button to confirm.

The display will show “ Zoom Motor ”.

Use the UP/DOWN button to select Radio Clear Code.

Press the ENTER button to confirm.

Use the UP/DOWN button to select Yes or No.

Press the ENTER button to confirm.

The display will show “ Press up and down key, Hold over 5s ”.

Do not press now. You must first press the Function button of the Wireless Transceiver.

The green led named RF Link will flash.

Then press Up and Down buttons, hold them over 5s.

During this process the display will show '' Radio Code Clearing ''

You can release Up and Down buttons when the display come back to the main menu. WF will appear.

4 - Description of EventX 100

4.1 Dimensions
