Acer Aspire 5534 Series Manual de usuario
Aspire 5534 Series
Quick Guide
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Copyright © 2009. Acer Incorporated.
All Rights Reserved.
Aspire 5534 Series Quick Guide
Original Issue: 08/2009
Aspire 5534 Series Notebook PC
3
First things first
We would like to thank you for making an acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the Just for Starters... poster helps you get started with setting up your
computer.
The Aspire Generic User Guide contains useful information applying to all
models in the Aspire product series. It covers basic topics such as using the
keyboard and audio, etc. Please understand that due to its nature, the Generic
User Guide as well as the AcerSystem User Guide mentioned below will
occasionally refer to functions or features which are only contained in certain
models of the series, but not necessarily in the model you purchased. Such
instances are marked in the text with language such as "only for certain
models".
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the AcerSystem User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion
options and troubleshooting. In addition it contains warranty information and
the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.
Follow these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not
installed on your computer, clicking on AcerSystem User Guide will run the
Adobe Reader setup program first. Follow the instructions on the screen to
complete the installation. For instructions on how to use Adobe Reader,
access the Help and Support menu.
4
English
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Acer notebook.

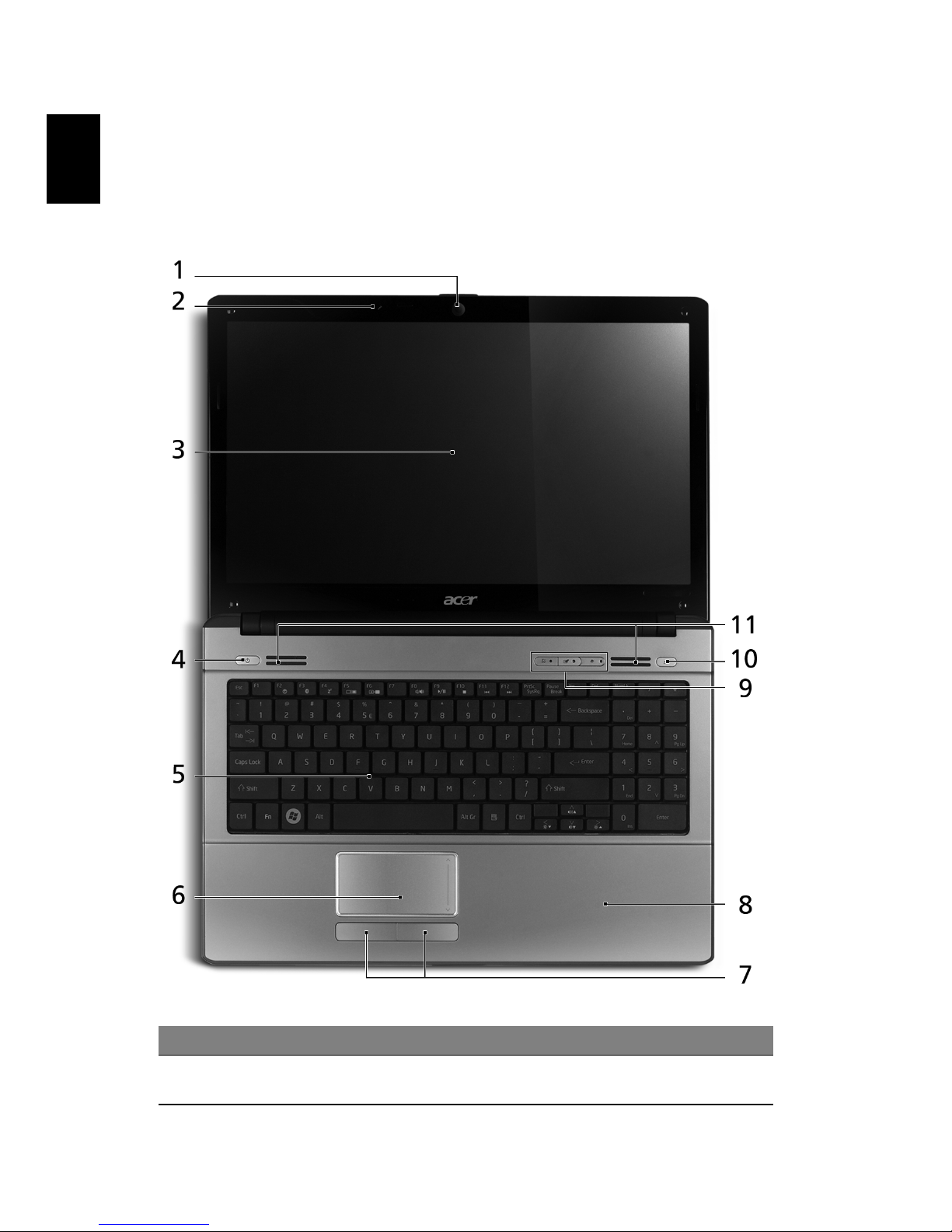

Top view
#Icon Item Description
1 Acer Crystal Eye
webcam
Web camera for video communication.
(only for certain models)
5
English
2 Microphone Internal microphone for sound recording.
3 Display screen Also called Liquid-Crystal Display (LCD),
displays computer output
(Configuration may vary by models).
4 Power button /
indicator
Turns the computer on and off. /
Indicates the computer's power status.
5 Keyboard For entering data into your computer.
6 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
7 Click buttons (left
and right)
The left and right buttons function like
the left and right mouse buttons.
8 Palmrest Comfortable support area for your hands
when you use the computer.
9 Wireless LAN
communication
button/indicator
Enables/disables the wireless LAN
function. Indicates the status of wireless
LAN communication.
Touchpad toggle Turns the internal touchpad on and off.
HDD Indicates when the hard disk drive is
active.
10 Eject button Presses to eject the optical disk from the
drive.
11 Speakers Left and right speakers deliver stereo
audio output.
#Icon Item Description
6
English
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key
in the hotkey combination.

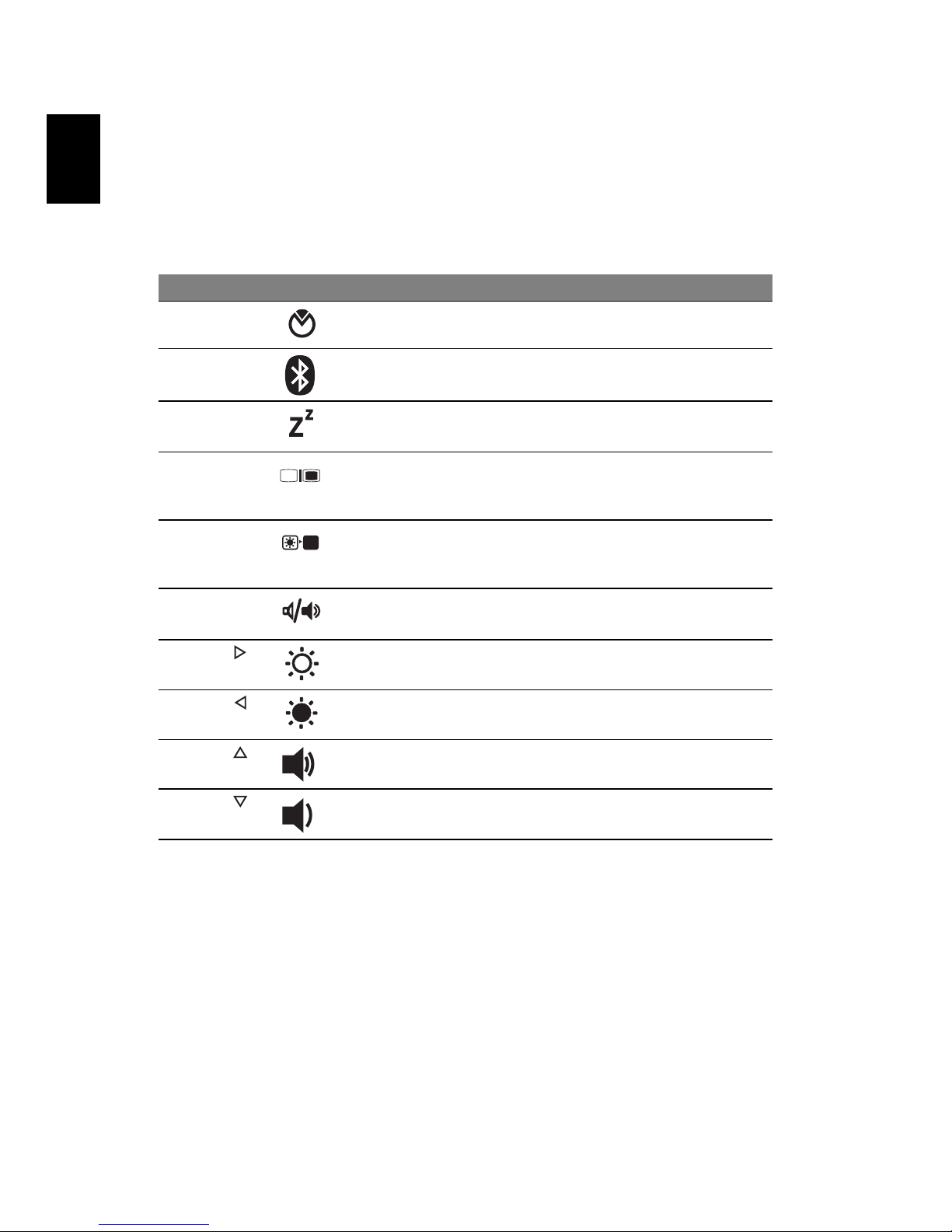

Hotkey Icon Function Description
<Fn> + <F2> System
property
Starts System Property for displaying
system information.
<Fn> + <F3> Bluetooth Enables/disables the Bluetooth
function. (only for certain models)
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the
display screen, external monitor (if
connected) and both.
<Fn> + <F6> Screen blank Turns the display screen backlight off
to save power. Press any key to
return.
<Fn> + <F8> Speaker
toggle
Turns the speakers on and off.
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness
down
Decreases the screen brightness.
<Fn> + < > Volume up Increases the sound volume.
<Fn> + < > Volume down Decreases the sound volume.
7
English

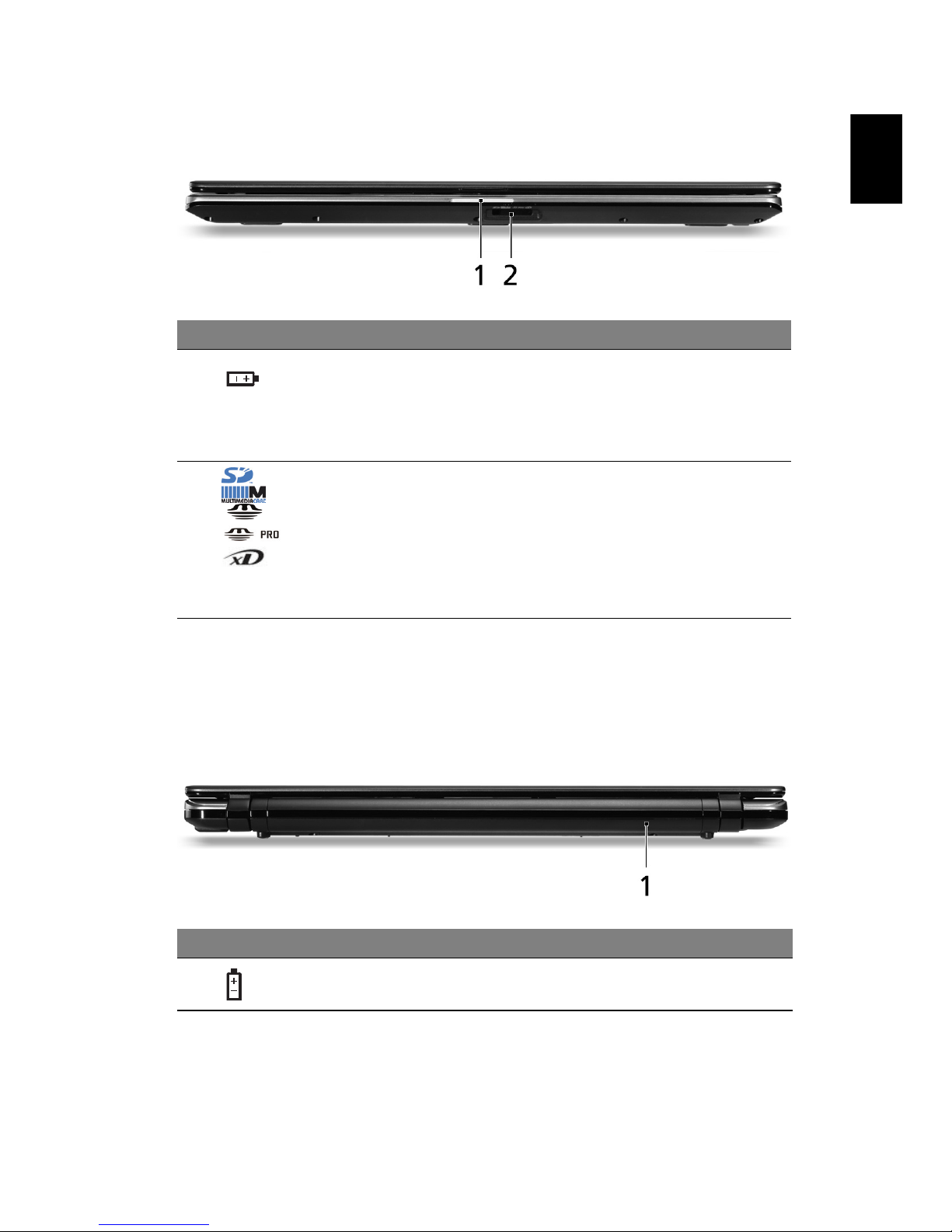

Closed front view
1. The front panel indicators are visible even when the computer cover is closed
up.
Rear view
#Icon Item Description
1Battery1Indicates the computer's battery status.
1. Charging: The light shows amber
when the battery is charging.
2. Fully charged: The light shows blue
when in AC mode.
2 Multi-in-1 card reader Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick
(MS), Memory Stick PRO (MS PRO), xD-
Picture Card (xD).
Note: Push to remove/install the card.
Only one card can operate at any given
time.
#Icon Item Description
1 Battery bay Houses the computer's battery
pack.
8
English

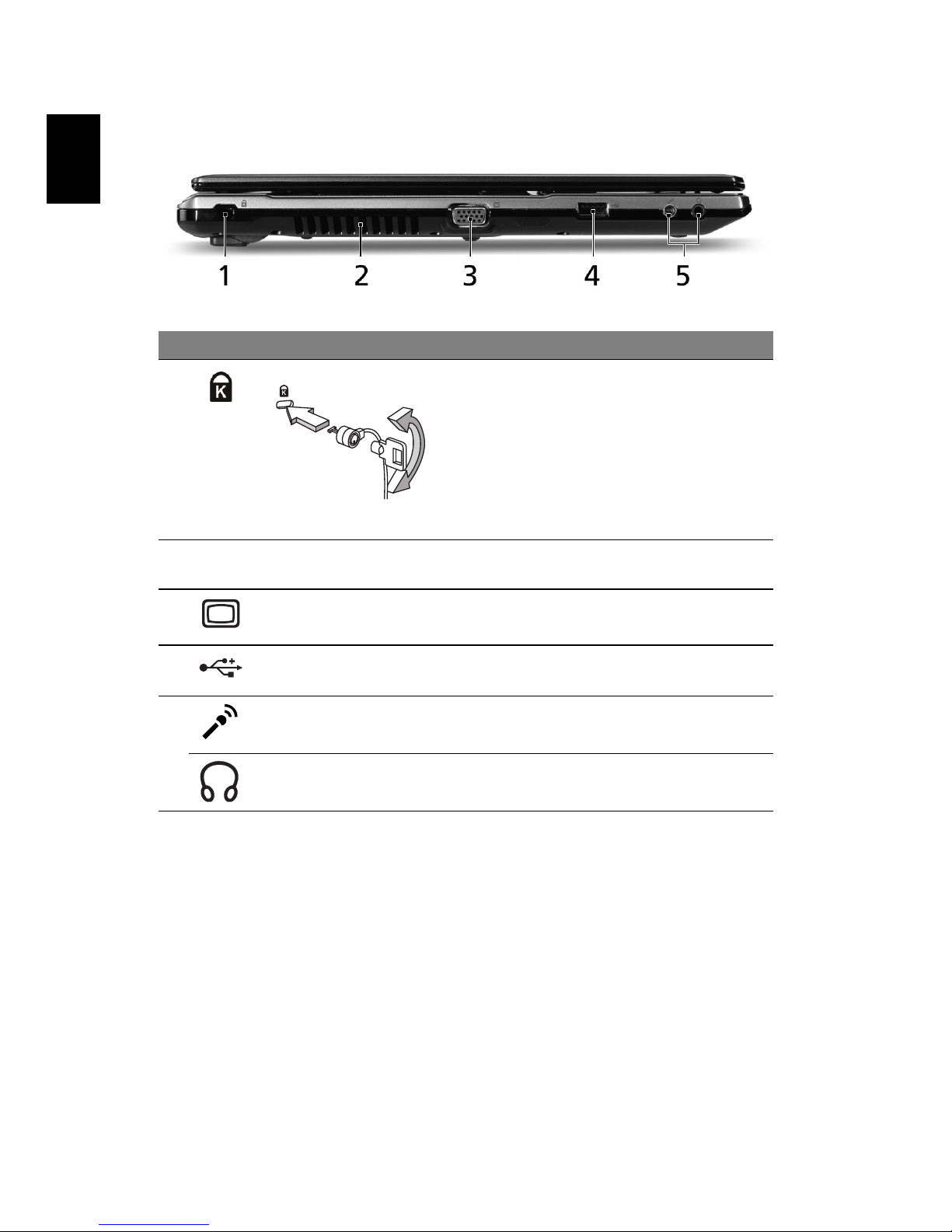

Left view
#Icon Item Description
1 Kensington lock slot Connects to a Kensington-compatible
computer security lock.
Note: Wrap the computer security lock
cable around an immovable object such
as a table or handle of a locked drawer.
Insert the lock into the notch and turn
the key to secure the lock. Some keyless
models are also available.
2 Ventilation slots Enable the computer to stay cool, even
after prolonged use.
3 External display
(VGA) port
Connects to a display device (e.g.,
external monitor, LCD projector).
4 USB 2.0 port Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
5Microphone-in jack Accepts inputs from external
microphones.
Headphones/speaker/
line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
9
English

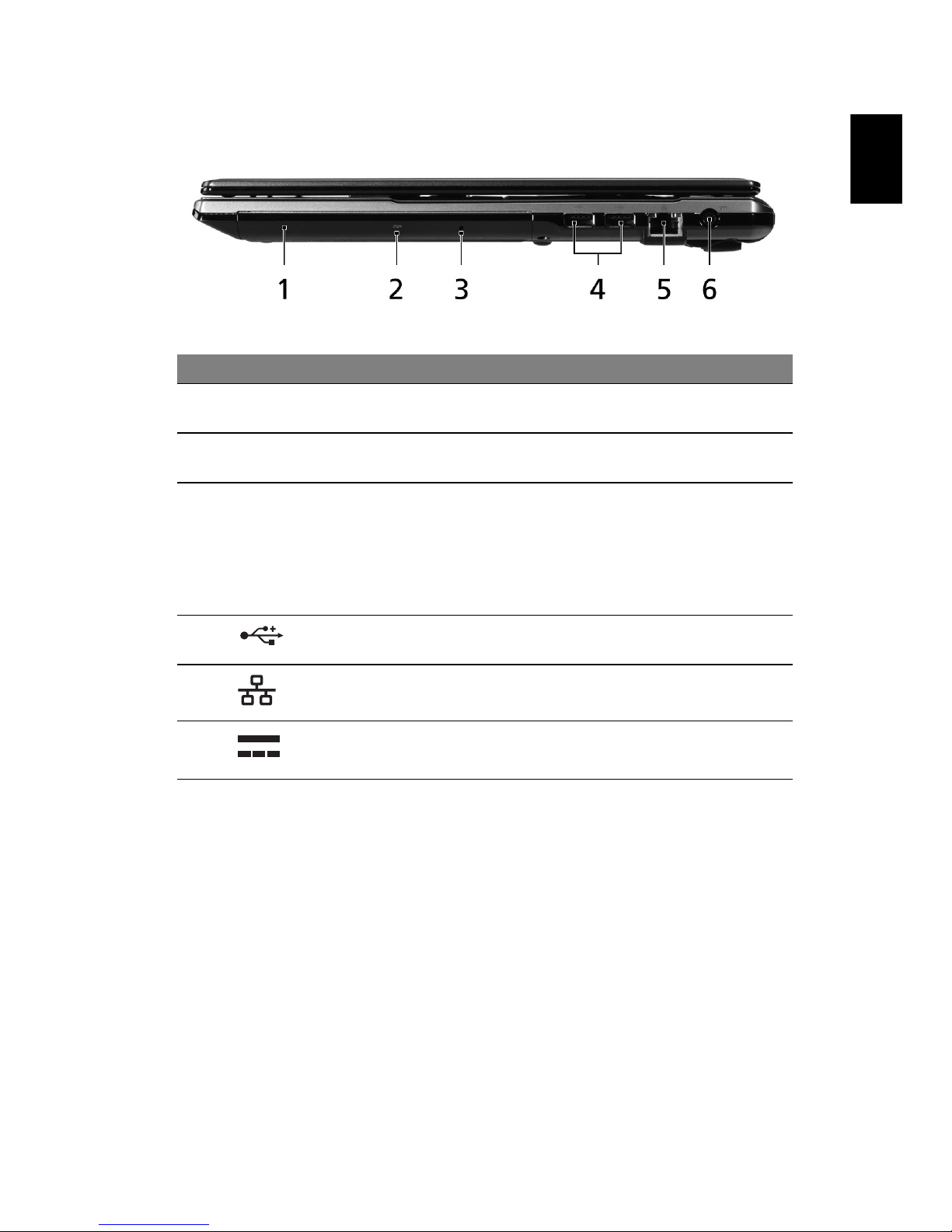

Right view
#Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or
DVDs.
2 Optical disk access
indicator
Lights up when the optical drive is
active.
3 Emergency eject
hole
Ejects the optical drive tray when the
computer is turned off.
Note: Insert a paper clip to the
emergency eject hole to eject the
optical drive tray when the computer
is off.
4 USB 2.0 port Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
5 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-
based network.
6 DC-in jack Connects to an AC adapter.
10
English

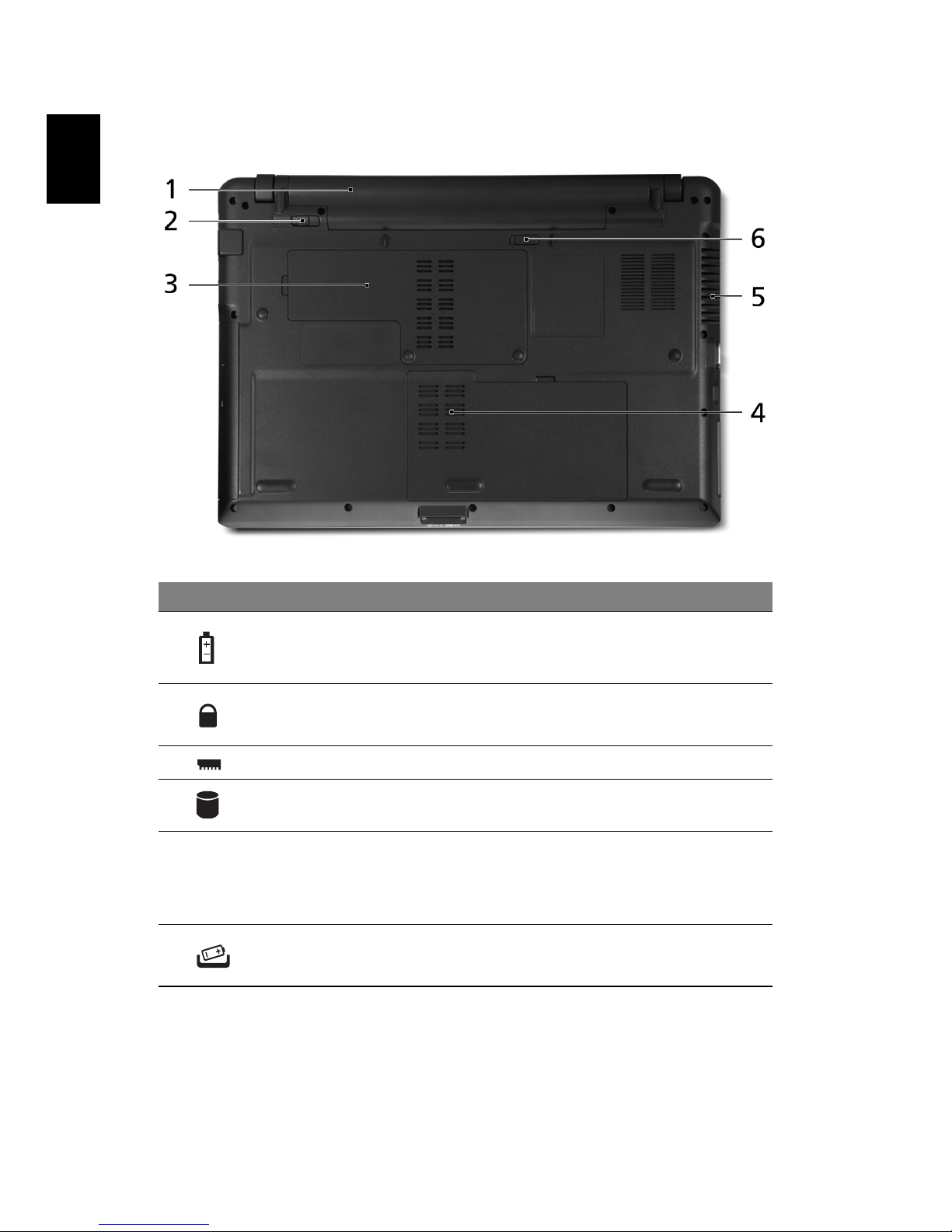

Base view
#Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery lock Locks the battery in position.
3 Memory compartment Houses the computer's main memory.
4 Hard disk bay Houses the computer's hard disk (secured
with screws).
5 Ventilation slots and
cooling fan
Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the
opening of the fan.
6 Battery release latch Releases the battery for removal.
