Accu-Scope EXC-350 Series Manual de usuario

MANUAL

73 Mall Drive, Commack, NY 11725 • 631-864-1000 (P) • 631-543-8900 (F)

www.accu-scope.com • [email protected]

EXC-350

MICROSCOPE SERIES

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 2

CONTENTS

SAFETY NOTES ..................................................................................................................3

CARE AND MAINTENANCE................................................................................................3

INTRODUCTION..................................................................................................................4

UNPACKING AND COMPONENTS DIAGRAMS..............................................................4-6

ASSEMBLY DIAGRAM & PROCEDURE ........................................................................7-10

ADJUSMENT & OPERATION

ILLUMINATION ...............................................................................................................11

SPECIMEN SLIDE...........................................................................................................11

FOCUSING................................................................................................................11-12

INTERPUPILLARY DISTANCE.........................................................................................12

CONDENSER .................................................................................................................13

FIELD IRIS DIAPHRAGM.................................................................................................13

APERTURE DIAPHRAGM................................................................................................13

OIL OBJECTIVE..............................................................................................................14

FILTER...........................................................................................................................14

FUSE REPLACEMENT.................................................................................................14

CAMERA ADAPTER.....................................................................................................15

SIMPLE POLARIZER....................................................................................................16

LED FLUORESCENCE............................................................................................17-18

TROUBLESHOOTING...................................................................................................19-21

MAINTENANCE..................................................................................................................22

SERVICE............................................................................................................................22

WARRANTY.......................................................................................................................22

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 3

SAFETY NOTES

1. Open the shipping carton carefully to prevent any accessory, i.e. objectives or eyepieces, from

dropping and being damaged.

2. Do not discard the molded foam container; the container should be retained should the microscope

ever require reshipment.

3. Keep the instrument out of direct sunlight, high temperature or humidity, and dusty environments.

Ensure the microscope is located on a smooth, level and firm surface.

4. If any specimen solutions or other liquids splash onto the stage, objective or any other component,

disconnect the power cord immediately and wipe up the spillage. Otherwise, the instrument may be

damaged.

5. All electrical connectors (power cord) should be inserted into an electrical surge suppressor to

prevent damage due to voltage fluctuations.

6. For safety when replacing the LED bulb or fuse, be sure the main switch is off (“O”), remove the

power cord, and replace the LED bulb after the bulb and the lamp house has completely cooled.

7. Confirm that the input voltage indicated on your microscope corresponds to your line voltage. The

use of a different input voltage other than indicated will cause severe damage to the microscope.

CARE AND MAINTENANCE

1. Do not attempt to disassemble any component including eyepieces, objectives or focusing assembly.

2. Keep the instrument clean; remove dirt and debris regularly. Accumulated dirt on metal surfaces

should be cleaned with a damp cloth. More persistent dirt should be removed using a mild soap

solution. Do not use organic solvents for cleansing.

3. The outer surface of the optics should be inspected and cleaned periodically using an air stream from

an air bulb. If dirt remains on the optical surface, use a soft cloth or cotton swab dampened with a

lens cleaning solution (available at camera stores). All optical lenses should be swabbed using a

circular motion. A small amount of absorbent cotton wound on the end of a tapered stick such as

cotton swabs or Q-tips, makes a useful tool for cleaning recessed optical surfaces. Avoid using an

excessive amount of solvents as this may cause problems with optical coatings or cemented optics

or the flowing solvent may pick up grease making cleaning more difficult. Oil immersion objectives

should be cleaned immediately after use by removing the oil with lens tissue or a clean, soft cloth.

4. Store the instrument in a cool, dry environment. Cover the microscope with the dust cover when not

in use.

5. ACCU-SCOPE®microscopes are precision instruments which require periodic preventative

maintenance to maintain proper performance and to compensate for normal wear. An annual

schedule of preventative maintenance by qualified personnel is highly recommended. Your

authorized ACCU-SCOPE® distributor can arrange for this service.

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 4

INTRODUCTION

Congratulations on the purchase of your new ACCU-SCOPE® microscope. ACCU-SCOPE®

microscopes are engineered and manufactured to the highest quality standards. Your microscope will

last a lifetime if used and maintained properly. ACCU-SCOPE® microscopes are carefully assembled,

inspected and tested by our staff of trained technicians in our New York facility. Careful quality control

procedures ensure each microscope is of the highest quality prior to shipment.

UNPACKING AND COMPONENTS

Your microscope arrived packed in a molded Styrofoam container. Do not discard the container: the

Styrofoam container should be retained for reshipment of your microscope if needed. Avoid placing the

microscope in dusty surroundings or in high temperature or humid areas as mold and mildew will form.

Carefully remove the microscope from the Styrofoam container by its arm and base and place the

microscope on a flat, vibration-free surface.

COMPONENTS DIAGRAM

Arm

Binocular Head

Eyepiece

Objective

Stage

Condenser

Focus Block

Field Iris Diaphragm

Light Adjustment Knob

Fine Focusing Knob

Coarse Focusing Knob

Tension Adjustment Knob

Nosepiece

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 5

COMPONENTS DIAGRAM

Lock Screw

Coarse Focusing Knob

Fine Focusing Knob

X-axis Adjustment Knob

Power Switch

Condenser

Objective

Nosepiece

Focus Block

Arm

Trinocular Head

Eyepiece

Y-Axis Adjustment Knob

Stage

Field Iris Diaphragm

Light Source

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 6

COMPONENTS DIAGRAM

EXC-350-470 Fluorescence Microscope

Filter Block

Adjustment Knob

Fine Focusing Knob

Focus Block

Coarse Focusing Knob

Power Switch

Condenser

Objective

LED Fluorescence

Illuminator

Nosepiece

Lock Screw

Trinocular Head

Eyepiece

Arm

Stage

Field Iris Diaphragm

Light Source

Fluorescence Light

Adjustment Knob

Light Shield

LED Fluorescence

Indicator

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 7

ASSEMBLY DIAGRAM

The diagram below shows how to assemble the various modules. The numbers indicate the order of

assembly. Your microscope was preassembled by our factory technicians at our New York facility prior

to shipment. Should you need to disassemble/assemble your microscope in the future, please follow the

instructions outlined below.

When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching

any parts or touching glass surfaces.

Eyepieces

Objectives

Condenser

Power Cord

①

②

③

④

⑤

Light Source

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 8

ASSEMBLY DIAGRAM

EXC-350-470 Fluorescence Microscope

Eyepieces

LED Fluorescence Illuminator

Light Shield

Power Cord

①

②

⑥

④

⑤

Light Source

③

Binocular Head

Objective

Condenser

⑦

⑧

⑨

EXC-350 MICROSCOPE SERIES

ACCU-SCOPE®73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com 9

ASSEMBLY (continued)

Condenser

The condenser was installed and centered by our

technicians prior to delivery. If the condenser needs

to be re-installed or adjusted in the future, rotate the

coarse focusing knob ①to raise the stage to the

highest position (see Fig. 1).

Rotate the condenser up-down knob ②to lower the

bracket of condenser to the suitable position.

Fully loosen the condenser lock-screw ③.

Insert the condenser into the hole of the stand

according to the directional arrow, until the

condenser is even with the stand, and then rotate

the condenser to make sure the iris diaphragm

control lever faces forward.

Tighten the lock-screw ③of the condenser, then

raise the condenser with the up-down knob to the

highest position.

Objectives

Rotate the coarse focusing knob ①to lower the

stage to a suitable position (see Fig. 2).

Install the objectives into the objective nosepiece ②

from the lowest magnification to the highest in a

clockwise direction from the rear.

Eyepieces

Remove the eyepiece caps ①.

Insert the eyepiece ②into the eyepiece tube ③

until it touches the surface of the eyepiece tube.

Repeat above for the other eyepiece (see Fig. 3).

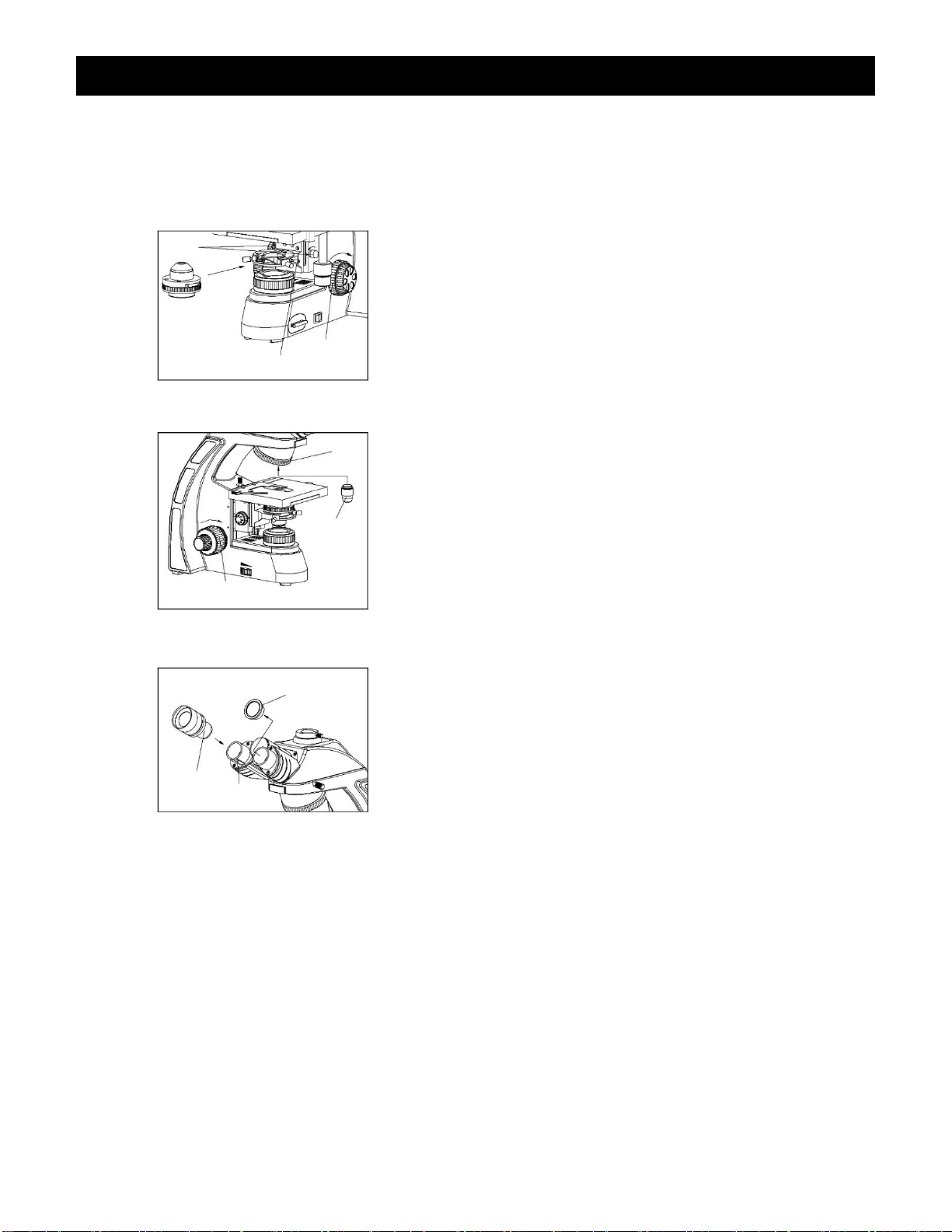

Fig. 1

Fig. 2

Fig. 3

①

③

②

①

③

②

①

③

②
