Abocom EFM560 Manual de usuario

External

Fax Modem 56K

User Guide

M73-APO02-210

HARDWARE INSTALLATION

To install the External Fax Modem 56K card perform

the following steps:

1. Turn off your computer. Make sure

the power switch of your External

Fax Modem 56K is also set to off.

2. Connect the RS-232 cable to your

External Fax Modem 56K with one

end to the RS-232 port on the

rear panel of the External Fax

Modem 56K and the other end to

the COM port of your computer.

3. Connect the provided power

adapter to the AC IN port and the

other end into a wall outlet.

4. Turn the Power Switch to ON and

power on your computer.

- 1 -

5. Connect the telephone line to the

RJ-11 Line port, connect the

other end of the line into a

telephone jack in your wall.

Note: Use only the power adapter

provided with this unit. Using any

incorrect power adapters will cause

permanent and unpredictable damage

to this External Fax Modem 56K.

- 2 -

SOFTWARE INSTALLATION

Windows 95/98

1. Be sure the External Fax Modem

56K is well connected to your

computer. Turn on your computer

and start Windows.

2. Windows will automatically detect

the new hardware device. Click

Next to continue.

3. Load the External Fax Modem 56K

floppy disk or compact disc into

your computer. When Windows

prompts you What do you want

Windows to do? Select Search for

the best driver for your device.

(Recommended). Click Next.

4. Follow the on-screen instruction

to proceed. The installation

program will proceed

automatically.

5. When Windows finish copying all

the necessary files to your

computer, window will prompt you

to complete the installation,

click Finish.

Installation for Windows 2000

1. Be sure the External Fax Modem

56K is well connected to your

computer. Turn on your system and

start Windows 2000.

2. Go to StartÆSettingsÆControl

PanelÆSystemÆHardwareÆDevice

Manager.

- 3 -

3. Modem icon should be found if

Windows 2000 detects the modem.

If not, go to

StartÆSettingsÆControl

PanelÆPhone and Modem Options.

4. Click the Modem tab and press the

Add button to add it in.

5. Click Next to set up the modem.

6. Click Finish.

7. Go back to your desktop, and

click StartÆSettingsÆControl

PanelÆSystemÆHardwareÆDevice

Manager.

8. Click Modems to expand. Right-

click Lucent Venus Modem PnP and

select Properties.

- 4 -

9. Click the Driver tab and press

the Update Driver button.

10.When the Upgrade Device Driver

Wizard window appears, click Next.

- 5 -

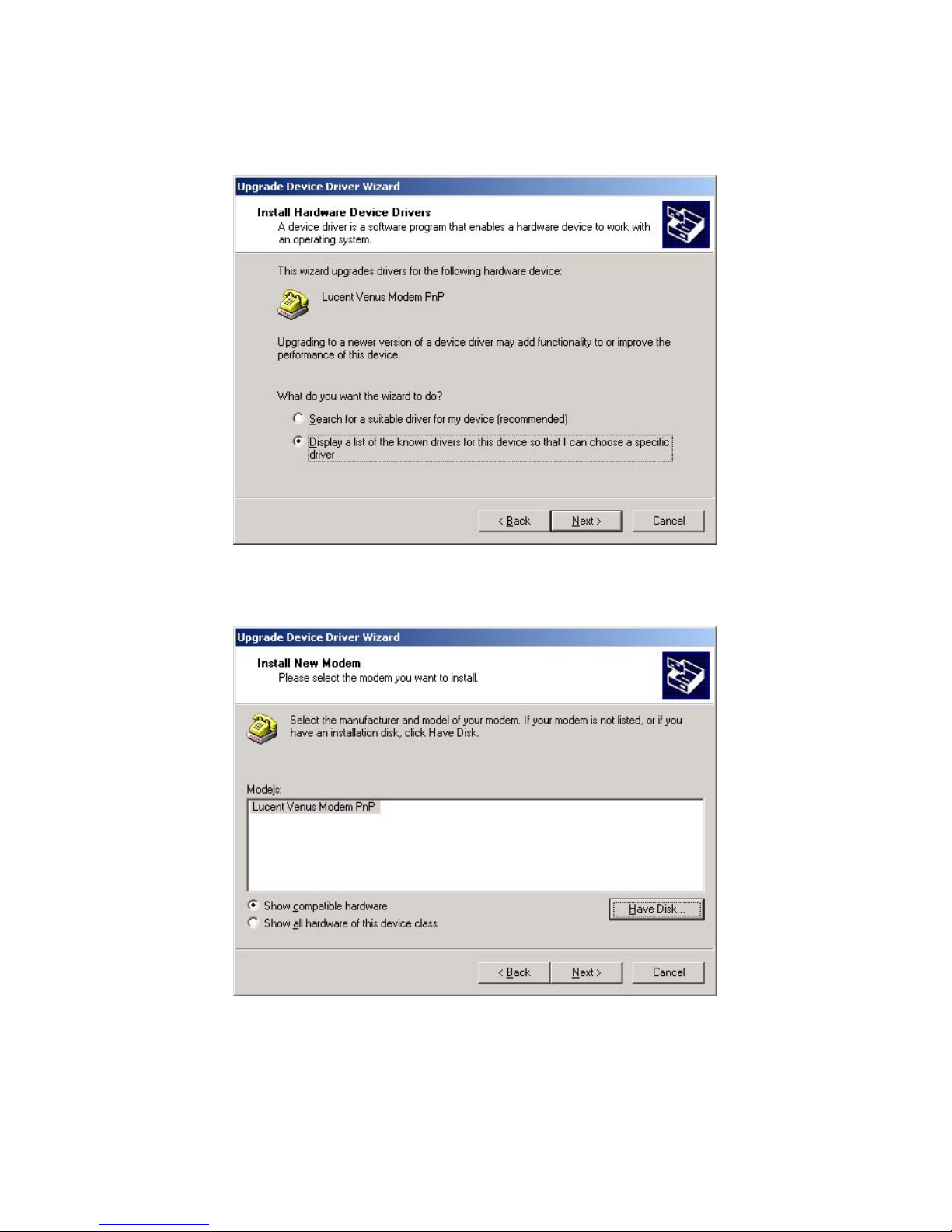

11.Select Display a list of the

known drivers for this device so

that I can choose a specific

driver and click Next.

12.Highlight Lucent Venus Modem PnP

and click the Have Disk button.

13.Load the floppy disk or compact

disc whichever contains the

device driver and type the drive

path. Click OK.

- 6 -

14.Click Next.

15.Click Next.

16.Click Yes.

- 7 -

17.Click Finish.

18.When back to the External Fax

Modem 56K Properties window,

click Close to complete the

driver updating.

19.To verify if the device is well

installed in your system and

enabled, go to the Device Manager

window. The External Fax Modem

56K should be found on the list.

If not, contact your dealer for

technical support.

- 8 -

Installation for Windows Millennium

1. Be sure the External Fax Modem

56K is well connected to your

computer. Turn on your system and

start Windows Millennium.

2. Go to StartÆSettingsÆControl

PanelÆSystemÆDevice Manager.

3. Modem icon should be found if

Windows Millennium detects the

modem. If not, go to

StartÆSettingsÆControl

PanelÆModems.

4. Click the General tab and press

the Add button to add it in.

- 9 -
