Ableconn MDP2HD4KA Manual de usuario
Ableconn
DP 1.2/Mini DP 1.2
to HDMI Adapter
User's Manual
www.ableconn.com
support@ableconn.com
Table of Contents
SAFETY INSTRUCTIONS ............................................................1
COPYRIGHT...........................................................................1
TRADEMARKS........................................................................1
REGULATORY COMPLIANCE.................................................2
FCC CONDITIONS ..................................................................2
CE......................................................................................2
WEEE INFORMATION.............................................................2
INTRODUCTION ..................................................................3
FEATURES.............................................................................3
PACKAGE CONTENTS...............................................................3
SYSTEM REQUIREMENTS .........................................................4
PRODUCT OVERVIEW .........................................................4
SPECIFICATION....................................................................5
CONNECTION......................................................................6
MULTI-MONITOR CONFIGURATION.....................................7
WINDOWS®7/ WINDOWS®8/ WINDOWS®10............................7
MAC OS®...........................................................................11
TECHNICAL SUPPORT........................................................15
1
Before attempting to connect, operate or adjust this product,
please save and read the User's Manual completely. The style
of the product shown in this User's Manual may be different
from the actual unit due to various models.
Safety Instructions
Always read the safety instructions carefully:
Keep this User’s Manual for future reference
Keep this equipment away from humidity
If any of the following situation arises, get the
equipment checked by a service technician:
- The equipment has been exposed to moisture.
- The equipment has been dropped and damaged.
- The equipment has obvious sign of breakage.
- The equipment has not been working well or
cannot get it to work according to the User’s
Manual.
Copyright
This document contains proprietary information
protected by copyright. All right are reserved. No part of
this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior
written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the
property of their respective owners or companies.
2
Regulatory Compliance
FCC Conditions
This equipment has been tested and found to comply
with Part 15 Class B of the FCC Rules. Operation is
subject to the following two conditions: (1) This device
may not cause harmful interference. (2) This device
must accept any interference received and include
interference that may cause undesired operation.
CE
This equipment is in compliance with the requirements
of the following regulations: EN 55 022: CLASS B
WEEE Information
For EU (European Union) member users: According to
the WEEE (Waste electrical and electronic equipment)
Directive, do not dispose of this product as household
waste or commercial waste. Waste electrical and
electronic equipment should be appropriately collected
and recycled as required by practices established for
your country. For information on recycling of this
product, please contact your local authorities, your
household waste disposal service or the shop where you
purchased the product.
3
Introduction
The DisplayPort/Mini DisplayPort to HDMI Adapter is
designed for connecting a DisplayPort embedded device
(laptop, desktop and etc.) to a HDMI embedded device
(television, monitor and etc.). With the HDMI and
DisplayPort 1.2a specifications, this adapter’s bandwidth
of video can be reached to 3.0 Gbps and the resolution
is up to 2160p. Besides, plug and play design makes it
easy to use; no need to install extra drivers when
plugging the adapter into the device. Simply attach the
adapter to the device and begin using right away.
Incorporates HDMI®technology.
Features
Support Plug & Play for easy use; no extra drivers
needed
High resolution up to 3840 x 2160@30Hz
Compliant with HDMI up to 3.0Gbps
Compliant with DP 1.2a
Package Contents
DP / Mini DP to HDMI Adapter x1
User’s Manual x1
4
System Requirements
Operating Systems:
- Microsoft: Windows®7/ Windows®8/
Windows®8.1/ Windows®10
- Apple: Mac OS®
Product Overview
DP 1.2 to HDMI Adapter
Mini DP 1.2 to HDMI Adapter
Mini DisplayPort
Connector
HDMI
Connector
DisplayPort
Connector
HDMI
Connector
5
Specification
Connector
Host Interface
DisplayPort / Mini DisplayPort
Video Output
HDMI Connector
Resolution
3840 x 2160@30Hz
Operating
System
Microsoft
Windows®7, Windows®8,
Windows®8.1, Windows®10
Apple
Mac OS®
Power
Power Mode
Bus-powered, 3.3V
Power
Consumption
Maximum (4K Mode): 782mW
Standby Mode: < 400mW
Physical
Properties
Housing
Alumimum + Plastic (PC+ABS)
Dimension
53(L) x 27(W) x 15(H) mm
Weight
58.7g
Working
Environment
Operation
Temperature
10~40 degree
Storage
Temperature
-20~70 degree
Compliance
CE, FCC
6
Connection
Follow the instructions below to check and connect your
mobile device to a display.
Make sure the source device is equipped with
DisplayPort / Mini DisplayPort.
Make sure the terminal device is equipped with HDMI
port.
Prepare a HDMI male to male cable to connect the
HDMI end to a terminal device. (Note that this cable is
not supplied)
Connect the DisplayPort/Mini DisplayPort end to a
source device.
DisplayPort
7
Multi-monitor configuration
An extra HDMI monitor can be connected through the
adapter directly. Once the extra monitor is connected, it
can be configured to use either “mirror mode”, “extended
mode” or be the primary display.
Windows®7/ Windows®8/ Windows®10
Position the mouse anywhere on the Windows
Desktop,
Right-click and select Screen Resolution.
8

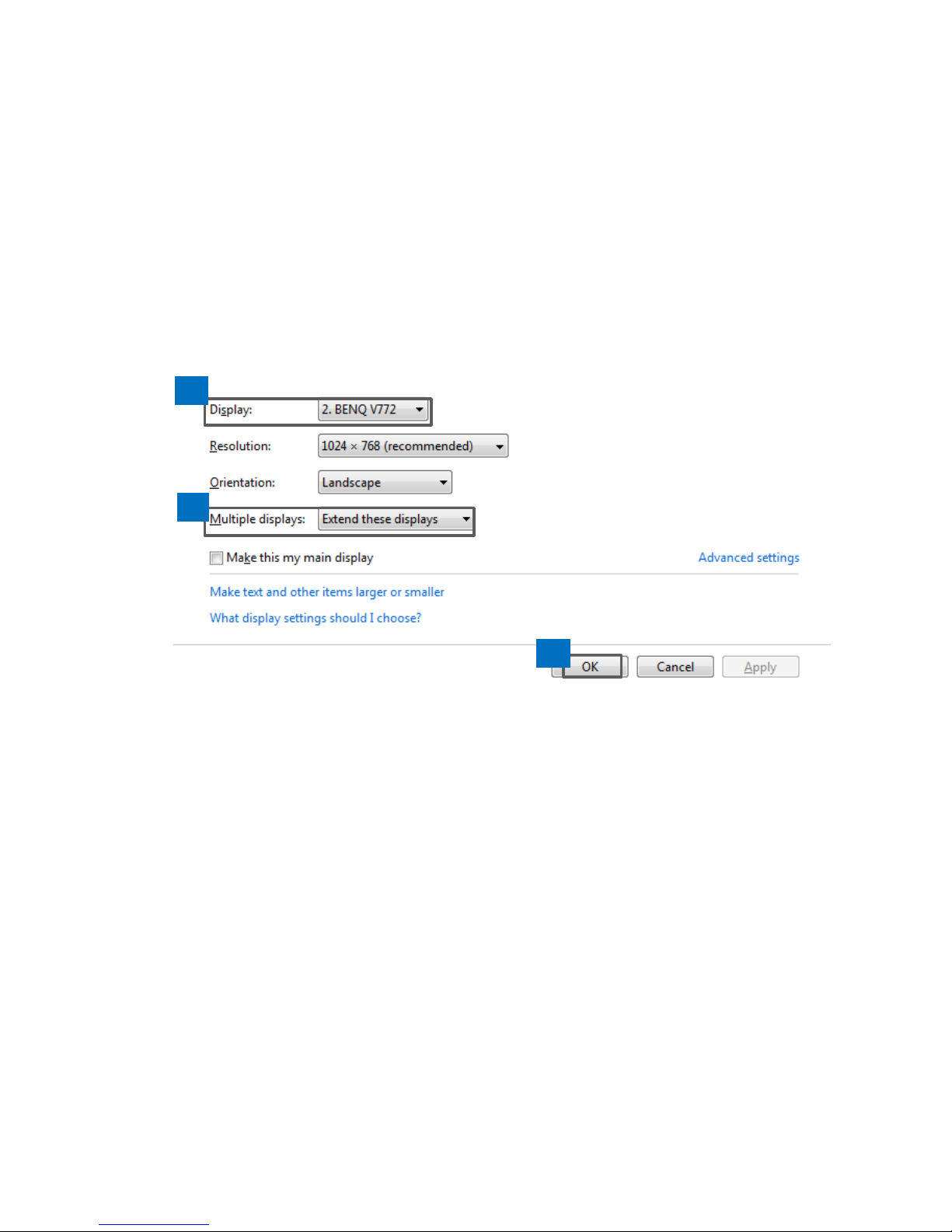

Extended mode
1. Open the configuration page.
2. In the Display drop-down menu, select the preferred
monitor.
3. Check the Multiple Displays > Extend these
displays on Window®7/ Window®8/ Window®10.
4. Click OK to confirm and close the settings screen.
5. Once the setting is completed, simply drag and drop
the application icons or the opened windows to the
add-on monitor. However, some applications may not
support to display on the extended desktop.
2
3
4
