Ability VS68211 Manual de usuario
AI-Eye 8M Auto Focus Dome Network Camera
Quick Start Guide
Model:
VS68210
VS68211 (with RS485)
AI IP Camera Quick Start Guide
1.1 Accessing via Web Browser
Default IP address
User name
Password
https://192.168.0.11
admin
AbAi.Camera1

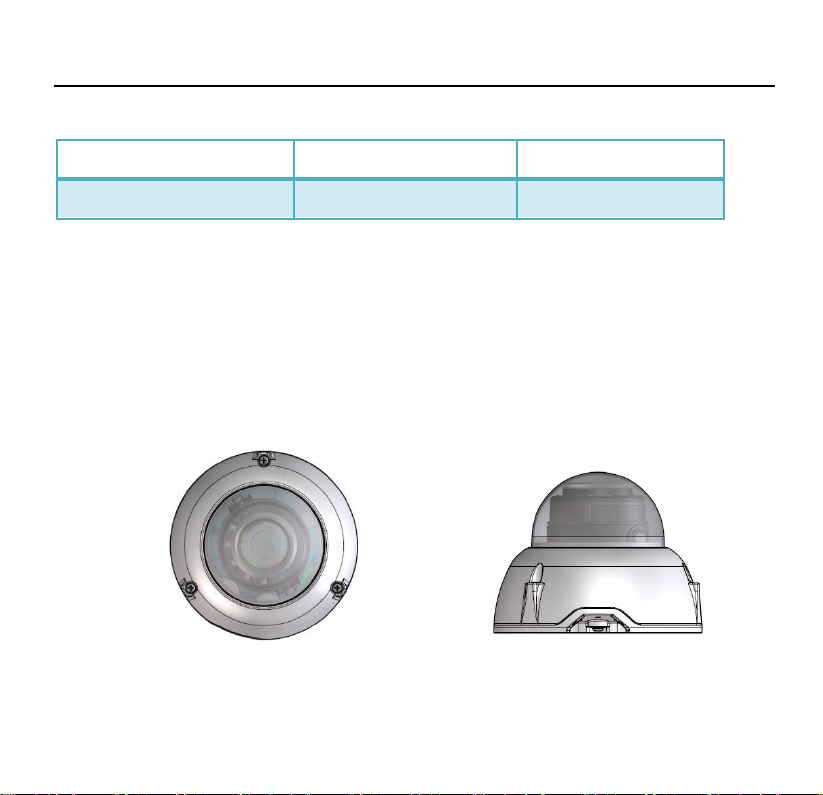

1.2 Appearance Description
The overview of the dome camera is shown below:
AI IP Camera Quick Start Guide
1.3 Packing list
Component
Pieces
Camera
1
Drilling sticker
1
Expansion tube
3
Tapping screw
3
Desiccant
1
AI IP Camera Quick Start Guide
1.4 Cable
No
Item
Description
1
LAN/POE
Ethernet/POE connection. This interface supports POE.
2
DC 12V+ / DC 12V –
Power input interface. DC 12V（9.0V～15.0V）
3
ALARM_OUT
COM
Alarm output and COM interfaces. The interface work
together to form the alarm output.
ALARM_IN
ALARM_GND
Alarm input interface. There may be multiple alarm
interfaces. For a given number of interfaces, n, they are
numbered (for example: ALARM_IN0,
ALARM_IN1, …,ALARM_INn). Each one connects to the
ALARM_GND connection to form a single alarm input.
4
AUDIO IN/
AUDIO OUT/
AUDIO_GND
Audio input (connect to MIC)/output interface and audio
ground interface.
5
RS485+/RS485-
(Optional)
RS485 interface. This interface provides a transparent data
channel used for half-duplex transmission between the
camera and the connected device.
AI IP Camera Quick Start Guide
Cable interface
1
2
3
4
5
546412
d12312
()Op()
(Optional)
AI IP Camera Quick Start Guide
2. Installation
2.1 Note
2.1.1Make sure the device in the package is in good condition and all the
assembly parts are included.
You will need the following:
2.2 Caution
Please do not lift a camera by its cable.
AI IP Camera Quick Start Guide
2.3 Top cover of the camera removes
Use a Philips screwdriver to remove the Top cover of the camera, and lift the
cover to open it. Then, you can see the Reset button and an SD card slot.
AI IP Camera Quick Start Guide
2.4 Reset Button
To restore the camera to factory settings and software reboot the camera,
you need to press and hold the reset button 5~10 seconds.
To restore the camera to factory settings and hardware reboot the camera,
you need to press and hold the reset button more than 10 seconds.
Reset Button
AI IP Camera Quick Start Guide
2.5 Micro SD card installation
The SD card slot supports only class 6 or higher Micro SD card. To replace a Micro SD
card, the device must be powered off. Otherwise, system exception may occur. When a
Micro SD card is used for the first time, log in to the web client of the device and format
the Micro SD card. For details, see the Configuration Guide.
Please refer to figure 2.5, insert the memory card to memory card slot on the rear
housing of the camera. During SD card installation, you are advised to turn the camera
maintenance position upward and insert the SD card into the SD card slot from upon to
avoid accidentally dropping the SD card into the camera.
SD Card Slot
AI IP Camera Quick Start Guide
2.7 Camera mounting
The suggested mounting height is over 3 meters at least.
The right height and angle of the camera is important to ensure image quality.
The figure of the camera is the installation requirements for concept and reference
only.
3~8m
8~22m
Tilt Angle=20∘
