Aastra 53i IP Phone Manual de instrucciones

Release Note

Release 2.0

SIP

PHONE

53i, 55i, 57i, 57i C

53i, 55i, 57i, 57i CT

RN-001029-00

Rev 01

Aastra Telecom will not accept liability for any damages and/or long distance charges, which result from

unauthorized and/or unlawful use. While every effort has been made to ensure accuracy, Aastra Telecom will

not be liable for technical or editorial errors or omissions contained within this documentation. The

information contained in this documentation is subject to change without notice.

RN-001024-00, Rev 01, Release 2.0 iii

Contents

About this Document ...................................................................................................... 1

General Information ........................................................................................................ 2

Release Content Information ...................................................................................... 2

Hardware Supported ................................................................................................... 2

Bootloader Requirements ........................................................................................... 2

IP Phone Models.............................................................................................................. 3

Model 53i IP Phone ..................................................................................................... 4

Model 55i IP Phone ..................................................................................................... 5

Model 57i IP Phone ..................................................................................................... 6

Model 57i CT IP Phone ............................................................................................... 7

Optional Equipment (for 55i, 57i, and 57i CT only)....................................................... 8

Model 536EM Expansion Module (for all models)....................................................... 9

Module 560EM Expansion Module (for 57i and 57i CT only) ...................................... 9

Changes in 2.0.1, Build 2000 ........................................................................................ 10

Daylight Savings Time Change................................................................................. 10

Contacting Aastra Telecom Support............................................................................ 20

RN-001029-00, Rev 01, Release 2.0 1

SIP IP Phone

Models 53i, 55i, 57i, and 57i CT

Release Note 2.0

About this Document

This document provides an introduction to Aastra’s new 5i Series IP phones (53i,

55i, 57i, and 57i CT), Release 2.0. It also provides a brief overview of the features

on each phone and optional equipment that may be purchased to work with the IP

phones.

For more detailed information about the features associated with each phone, and

for information on how to use the phones, see your phone-specific SIP IP Phone

Installation Guide and the SIP IP Phone User Guide. For detailed information

about more advanced features, see the SIP IP Phone Administrator Guide.

Topics in this release note include:

•General Information

(release content, hardware supported, bootloader requirements)

•IP Phone Models

•Optional Equipment (for 55i, 57i, and 57i CT only)

•Contacting Aastra Telecom Support

General Information

2 RN-001029-00, Rev 01, Release 2.0

IP Phone Release Notes 2.0

General Information

Release Content Information

This document provides release content information on the Aastra 53i, 55i, 57i,

and 57i CT SIP IP phone firmware.

Hardware Supported

This release of firmware is compatible with the following Aastra IP portfolio

products:

•53i

•55i

•57i

•57iCT

Bootloader Requirements

This release of firmware is compatible with the following Aastra IP portfolio

product bootloader versions:

• 53i - Bootloader 2.0.1.1055 or higher

• 55i - Bootloader 2.0.1.1055 or higher

• 57i - Bootloader 2.0.1.1055 or higher

• 57i CT - Bootloader 2.0.1.1055 or higher

Model Release Name Release Version Release Filename Release Date

53i Generic SIP 2.0 FC-001086-00-01 February 2007

55i Generic SIP 2.0 FC-001087-00-01 February 2007

57i Generic SIP 2.0 FC-001088-00-01 February 2007

57i CT Generic SIP 2.0 FC-001089-00-01 February 2007

IP Phone Models

RN-001029-00, Rev 01, Release 2.0 3

SIP IP Phone Models 53i, 55i, 57i, 57i CT Release Notes

IP Phone Models

Congratulations on your purchase of Aastra’s new release

of the 5i Series IP Phones (53i, 55i, 57i, and 57i CT)!

The IP Phone Models 53i, 55i, 57i, and 57i CT are multi-line open-standards

desktop phones that communicate over an IP network allowing you to receive and

place calls in the same manner as a regular business telephone.

The Aastra 53i is designed for use by the occasional users to the power users. The

Aastra 55i is designed for the power users and executives who require a graphical

display for advanced XML applications. The Aastra 57i is designed for the power

users and executives who require a large graphical display for advanced XML

applications. The Aastra 57i CT is designed for the power users, executives, and

warehouse, support, and retail staff who require mobility within a single site

facility. It includes an integrated WDCT cordless mobility handset for coverage of

up to 300,000 square feet.

Built on Aastra’s global form factor, the 5i Series IP phones maintain the same

quality and features that you are accustomed to with our existing

IP phone family - benefits without the compromise.

IP Phone Models

4 RN-001029-00, Rev 01, Release 2.0

IP Phone Release Notes 2.0

Model 53i IP Phone

Model 53i SIP IP phone offers the following features:

• 3-line LCD screen

• 6 top keys: programmable hard keys

(up to 6 programmable functions)

• 3 call appearance lines with LEDs

• Supports up to 9 call lines

• Full-duplex speakerphone for handsfree calls

• Headset support (modular connector)

• Built-in two-port, 10/100 Ethernet switch - lets you share a connection with

your computer

• Inline power support (based on 802.3af standard) which eliminates power

adapters.

• AC power adapter (included)

• Enhanced busy lamp fields*

• Set paging*

*Availability of feature dependant on your phone system or service provider.

IP Phone Models

RN-001029-00, Rev 01, Release 2.0 5

SIP IP Phone Models 53i, 55i, 57i, 57i CT Release Notes

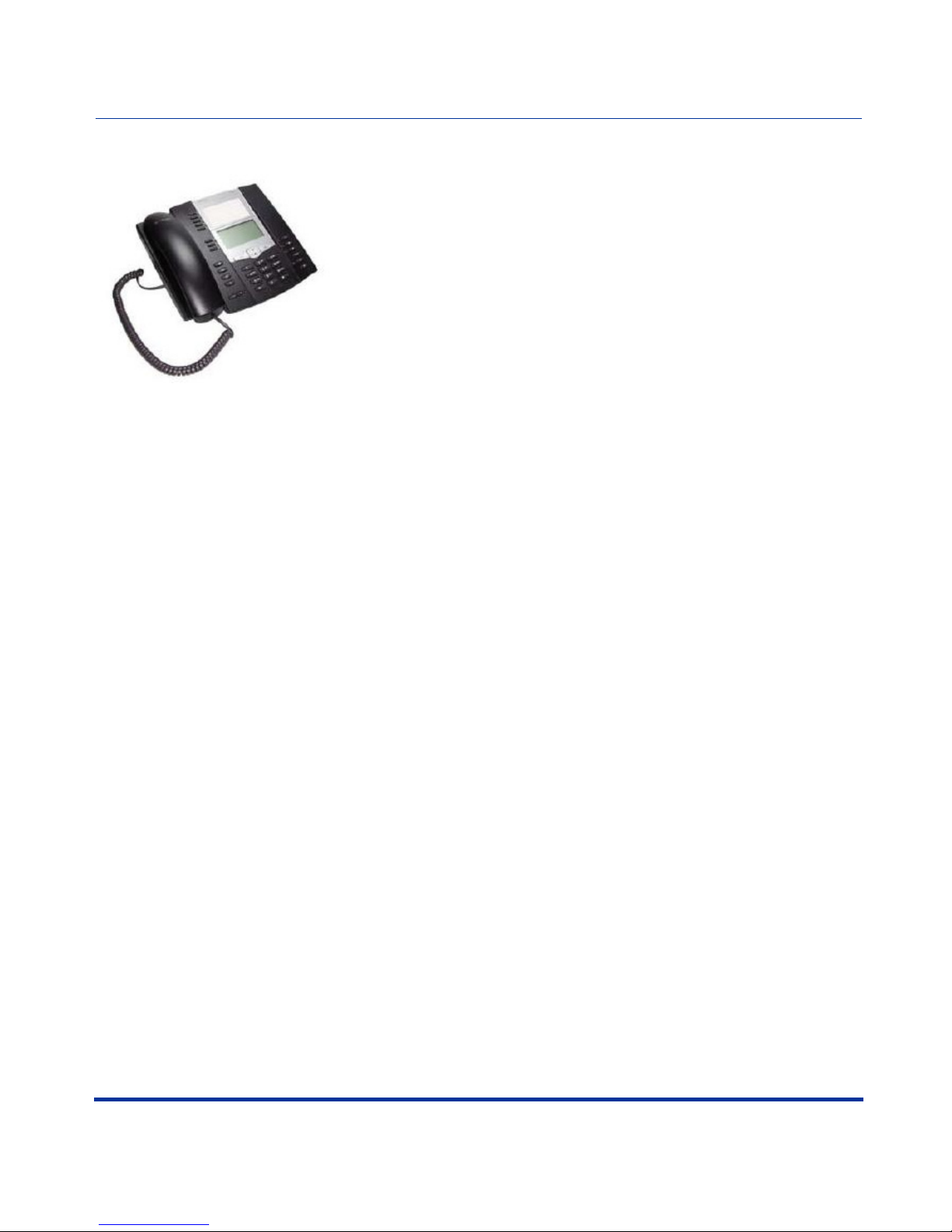

Model 55i IP Phone

Model 55i SIP IP phone offers the following features:.

• 8 line graphical LCD screen (144 x 75 pixels) with white

backlight

• 12 programmable keys

— 6 Top keys: programmable hard keys

(up to 6 programmable functions)

— 6 Bottom keys: programmable state-based softkeys

(up to 20 programmable functions)

• 4 call appearance lines with LEDs

• Supports up to 9 call lines

• Full-duplex speakerphone for handsfree calls

• Headset support (modular connector)

• Built-in-two-port, 10/100 Ethernet switch - lets you share a connection with

your computer.

• Inline power support (based on 802.3af standard) which eliminates power

adapters.

• AC power adapter (included)

• Enhanced busy lamp fields*

• Set paging*

*Availability of feature dependant on your phone system or service provider.

IP Phone Models

6 RN-001029-00, Rev 01, Release 2.0

IP Phone Release Notes 2.0

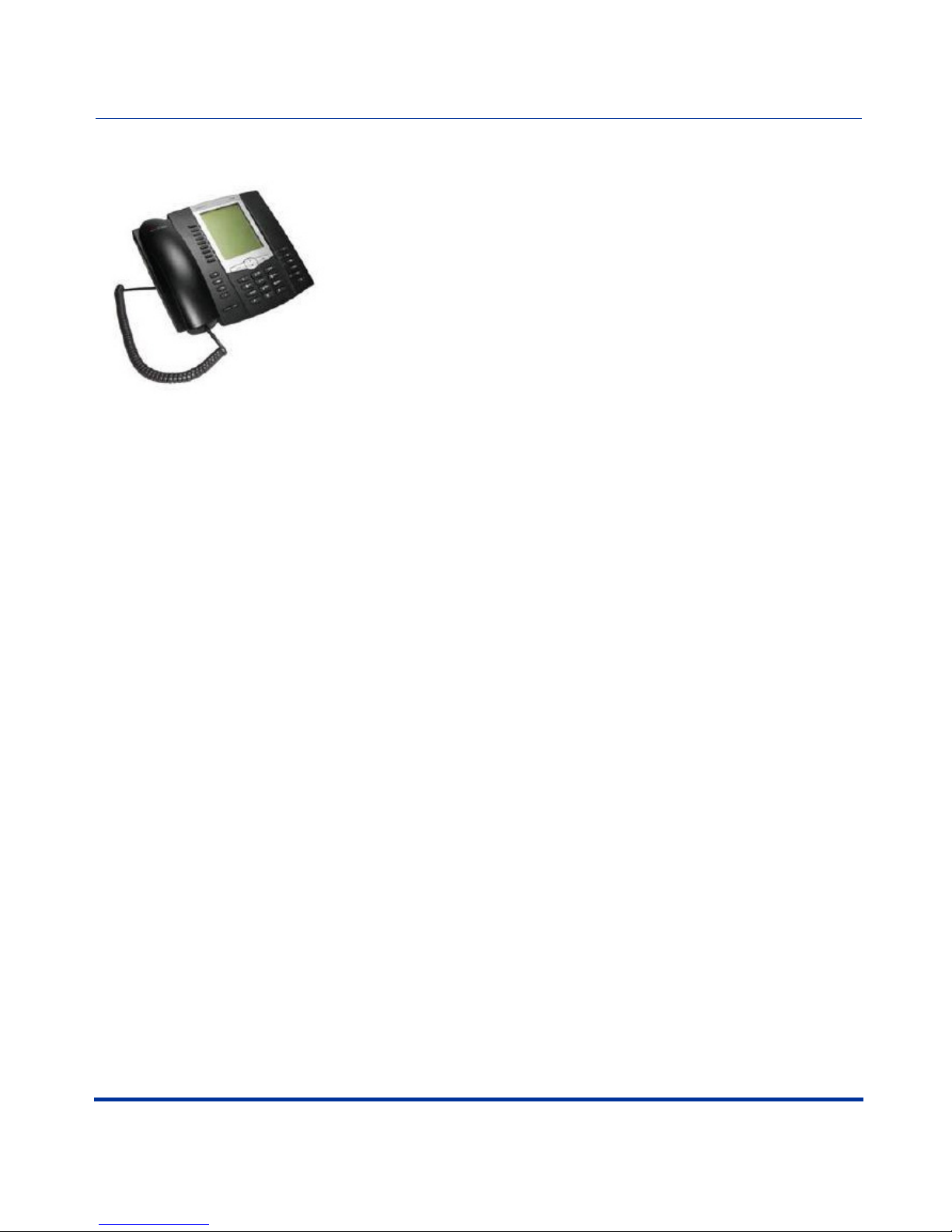

Model 57i IP Phone

Model 57i SIP IP phone offers the following features:

• 11 line graphical LCD screen (144 x 128 pixels) with white

backlight

• 12 multi-functional softkeys

— 6 Top Keys: programmable static softkeys

(up to 10 programmable functions)

— 6 Bottom Keys: programmable state-based softkeys

(up to 20 programmable functions)

• 4 call appearance lines with LEDs

• Supports up to 9 call lines

• Full-duplex speakerphone for handsfree calls

• Headset support (modular connector)

• Built-in-two-port, 10/100 Ethernet switch - lets you share a connection with

your computer.

• Inline power support (based on 802.3af standard) which eliminates power

adapters.

• AC power adapter (included)

• Enhanced busy lamp fields*

• Set paging*

*Availability of feature dependant on your phone system or service provider.
