A-CUBE USB-1 Manual de usuario

A - CUBE

1 to 128 LINES per PC

WELCOME

THANK YOU for purchasing the `A - CUBE` Analog Voice Logger / Phone

Recorder

The System comprises of Hardware andApplication software

This Product is the Result of Investment of more than 5000 hours of high

quality manpower. Specialists from different disciplines have worked

hard and like a team to make this a great success

You have 'Actually' purchased `100% Monitoring Capability and an

Absolute Control on the TelephonicActivities of your Organization

Special and serious efforts have been made to make the Product and

Software 'Very Simple and User Friendly'. Users can self install the

product in a few minutes The Product is also maintenance free

Free Help Desk / Software trouble shooting support is available both

during the 1st time Installation, as also, during the lifetime of the Product.

Your Vendor will be pleased to serve you

Management will not require more than 15 Minutes of briefing to

understand the Various Features and Advantages of the Product

The Users can comfortably learn its Working in less than 1 hour

The Report Formats are Simple, Incisive, and Powerful. These are

further supported by Database of Actual Recordings and Time / Activity

Logs

On Line Alerts and Monitoring Capabilities over the LAN Network

empowers Managers to keep themselves Informed, Monitor / Replay

Conversations and Act in Real Time or immediately thereafter

A - CUBE PHONE RECORDERS empower you to:

Reduce Telephone bills drastically

Enforce Courteous; Polite and Correct Telephonic Conduct by your Staff

Increase Office Discipline and Manpower Efficiency / Productivity

Analyze, and Respond Fast and Correctly to Customer / Caller Needs

Convert Telephonic Communications to and as a part of the Total

User Manual

1st Edition / Print April 2007

2nd Edition / Reprint April 2008

3rd Edition / Reprint January 2009

4th Edition / Reprint August 2009

5th Edition / Reprint September 2010

6th Edition / Reprint July 2011

7th Edition / Reprint October 2012

Reproduction of any part or whole of this manual in any format,

Electronic or print; without specific written permission is prohibited

A - CUBE

Corporate Transaction Record

Reduce Financial Losses / Litigation by ensuring Correct / Timely

Response

Prevent Information Leakage / Espionage

Make your Organization more Dynamic and Responsive

Generate Higher Revenues resultant to the above Factors

Yet, Maintain Confidentiality, Whenever / Wherever Required

The Product also places a Responsibility on the Purchaser

You may Use it to enhance the Efficiency of Your Organization and

Protect Your / Organizational Interests, by Installing it ONLY on the

Telephone Systems Owned / Subscribed to by-You / Your Organization

Indian Laws' or for that matter The Laws of any Country DO NOT allow

you to Install the Product on Telephone Connections that do not belong to

you / your Organization

Laws of Some Countries, require User to inform the Caller / Called Party

that the Call is being Recorded for purposes of Organizational Efficiency

The 'Seller' cannot be held responsible for any illegal activities by any

Purchaser / User The Onus for Correct and Lawful Use of the Product/s

lies ONLY with the Purchaser/s and User/s

We do hope you will be fully satisfied with the use of the `A - CUBE`

Phone Recorder We wish this to be

`The Best Purchase Decision, You ever made`

A - CUBE

PHONE LINE SETTINGS - QUICK REFERENCE GUIDE

EPABX/PHONE

LINE NO.

LOCAL PHONE NO.

RECORDER

PORT NO.

Manager Password ............................................................................

Please make photocopies (before filling) of this page for additional lines

INSTALLATION FORM

(Please Fill & Keep For Your Record)

Voice Logger : Model ______________ Serial No. _______________

PHONE LINE SETTINGS - QUICK REFERENCE GUIDE

EPABX/PHONE

LINE NO.

LOCAL PHONE NO.

RECORDER

PORT NO.

Manager Password ............................................................................

Please make photocopies (before filling) of this page for additional lines

INSTALLATION FORM

(Please Fill & Keep For Your Record)

Voice Logger : Model ______________ Serial No. _______________

User Manual

CONTENTS

1. Package Contents 9

2. System Requirements 10

3. Installation Procedure 11

4. Software Installation 12

5. Hardware Installation 13

6. Configuring Server Software 17

7. Using Server Software 30

8. Configuring and Using 'Client' 36

9. Configuring and Using Client Pop Up 39

10. Warranty 41

11. /SSC/ Notes 43-48AMC Archive -Analog/Archive - Digital/

A - CUBE

1. PACKAGE CONTENTS

Depending upon your Purchase, Each Package will Contain any of the

Following:

Package Contents 9

(2) Installation Form (Please Fill before Installation)

(3) Software CD also contains Electronic User Manual & Installation

Form

(4) User Manual Hard copy

Note 1: Some Installations may require 'Distribution Boxes'. These may

be purchased locally

Note 2: Installation Form is contained in the Product Package, and also

in the Software CD. It is recommended that the User fill the Installation

Form prior to Installation. This will help to make the installation Simpler,

faster and methodical.

The installation form will also come in handy at a later date when trouble

shooting or changes are required to be done.

(1) PRODUCT USB CABLE RJ-11/RJ-45 CABLES

USB-1 ü1

USB-2 ü2

USB-4 ü4

USB-8 ü8

USB-16 ü8x 2 PORT

PCI-4 NA 4 x 1 PORT

PCI-8 NA 4 x 2 PORT

PCI-16 NA 4 x 4 PORT

Note: Only 1 USB Device can be installed on a Single PC.

However, multiple PCI Cards can be installed on a single PC

to increase recording Line capacity

Notes

System Requirement

`The Best Purchase Decision, You ever made`

2. SYSTEM REQUIREMENTS

(1) P-IV, 1GHz / equivalent or Higher

(2) Minimum 128 MB RAM or higher depending on no. of lines installed/

traffic

(3) 20 GB / More Free Hard Disk Space; again depending on no. of lines

installed / traffic

(4) Windows XP / 2000 / 2003 / 2007

(5) CD Rom Drive

(6) Multimedia Speakers

A - CUBE

Installation Procedure 11

3. BEFORE INSTALLATION

1. Please fill the 'Installation Form'. This will help to make the

installation simpler, faster and methodical. The installation form will

also come in handy at a later date; when trouble shooting or changes

are required to be done.

Format of this Form is also available in the Software CD, provided

along with this Product . You may make extra copies / keep it at a

safe / secure place

2. The Installation Procedure, described below is based upon the

following assumptions :

(a) The Operating System is Windows 2000 and is installed on Drive

C Other Operating Systems viz. Windows XP / 2003 are almost

similar

(b) However, Windows 2000 is taken as the Operating system for

purposes of explaining in this Manual

`The Best Purchase Decision, You ever made`

A - CUBE

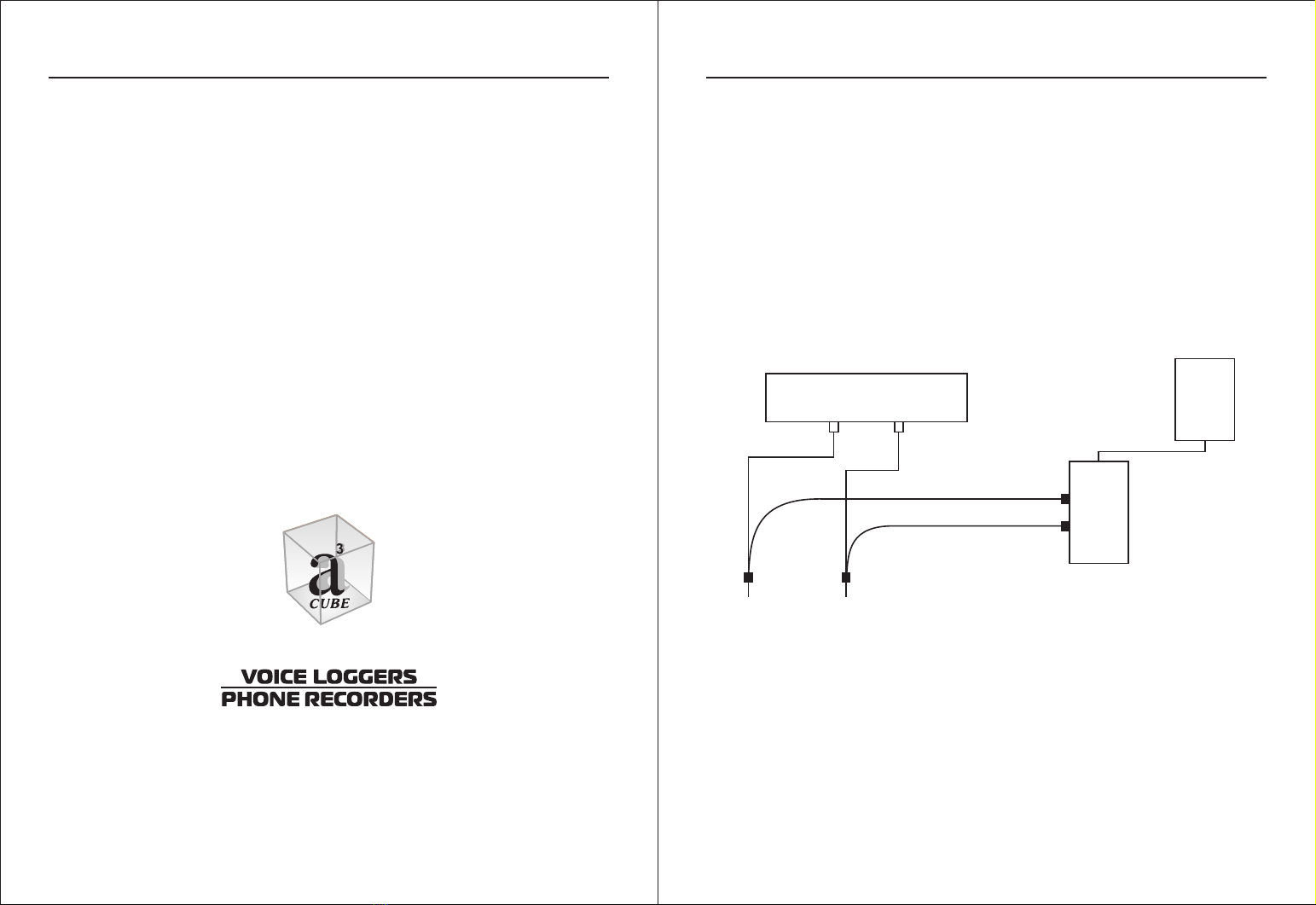

FIGURE 1.1

EPABX OR PHONES

1 2 PC

1 2

Main Lines

USB RECORDER

USB Cable

main line

Wiring Diagram A - CUBE Phone Recorders

Hardware Installation 13

5. HARDWARE INSTALLATION

a. Installation of USB Recorders: USB-1 / 2 / 4 / 8 & 16

Model USB-4 is being taken as an example for illustration in this

Manual Please see Figure 1.1 below and connect the Hardware as

below.

Note: Only 2 physical connections have been shown in Fig 1.1.

Balance connections are also to be done in the same manner

1. Please connect the USB port of the recorder to the USB port of PC

2. The Phone Recorder will be detected by the PC and you will be

asked for the Driver

3. Browse for C:/ Phones or any other folder/path where you have

installed the software.

4. Select Driver folder and click Ok. The Driver will install itself

Software Installation

4. SOFTWARE INSTALLATION

The application software is required to be installed first, and prior to

installation of the Hardware.

This is applicable both for USB and PCI Model Phone Recorders

a. Insert the software CD, provided along with the Product into the CD

ROM drive of the computer system.

b. Create Folder, C:/ Phones or any other folder as per your choice

c. Copy the `Application Software` folder into the above folder

`The Best Purchase Decision, You ever made`

A - CUBE

Hardware Installation

5. OpenApplication Software/Server/TMN

6. Create Shortcut of TMN by Right Clicking on TMN Folder. Copy

shortcut to Desk Top or any other location of your choice.

7. Double click on shortcut of TMN and activate it. Software Display will

open, and icon will be created in Task Bar.

8. Please refer to the Installation Form filled earlier, and connect the

Parallel Phone Lines into the Phone Recorder accordingly.

(You may label each parallel line by Phone No for easy

identification)

9. For Next Step Please go to 'Configuring Server Software' on Page 15

`The Best Purchase Decision, You ever made`

A - CUBE

Hardware Installation 15

(b) Installation of PCI Model Phone Recorders - PCI- 4 / 8 / 16 & 32

It is assumed the Application Software has already been copied to PC as

per Software Installation procedure given above.

1. Shut Down the Computer System

2. Take out the Main Power Plug which provides power to the PC

3. Open the Case of the PC

4. Insert the PCI Card gently and evenly into the PCI Slot of the

Mother board. Ensure that it sits firmly. Screw and tighten the clamp

of the PCI Card

5. Shut the PC Cover

6. Reconnect the Main Power Plug and Switch on the PC

7. Upon boot up the PC will detect the PCI card and ask for Driver

8 Browse for C:/ Phones or any other folder/path where you have

installed the software.

9. Select Driver folder and click OK. The Driver will install itself

10. Open Application Software/Server/TMN

11. Create Shortcut of TMN by Right Clicking on TMN Folder. Copy

shortcut to Desk Top or any other location of your choice.

`The Best Purchase Decision, You ever made`

A - CUBE

FIGURE 1.2

EPABX OR PHONES

1 2

Main Lines

RJ 45 Cable

PARALLEL OF MAIN LINE

2 3 4

PARALLEL OF MAIN LINE

4 Port

Wiring Diagram A - CUBE Phone Recorders

Hardware Installation

12. Double click on shortcut of TMN and activate it. Software Display will

open, and icon will be created in Task Bar.

13. Please refer to the Installation Form filled earlier, and connect the

Parallel Phone Lines into the Phone Recorder accordingly.

(You may label each parallel line by Phone No for easy

identification) Please refer Figure 1.2 below

14. For Next Step Please go to 'Configuring Server Software' on Page 15

Only 4 Physical Connections have been shown in the above Figure 1.2.

Balance Connections are also to be done in the same manner

A - CUBE

Configuring Server Software 17

6. CONFIGURING SERVER SOFTWARE

Note:The procedure for configuring Server Software for all Models is the

same and described below

(A) Auto - Start up of Software upon PC Boot up

1. You had created shortcut of TMN.EXE. as per page 12 for USB

Recorder and as per page 13 for PCI Recorder

2. Now Copy the shortcut and paste to C:/ Documents and

Settings/Adminstrator/Start Menu/Programs/Startup

3. This will create an AUTO.EXE file and the Recording system will

automatically activate on PC boot up.

4. Go Back to Server Folder and double click on the Shortcut of

TMN.EXE.This will activate the Programme and an icon will be

created on the Task bar

(B) Manual Activation of Software

Incase you do not want to execute automatic activation of the Phone

Recording system on PC boot up, you may not follow step A, above.

Instead you may create a short cut of `TMN.EXE` on the Desktop or

any other location of your choice. In such case you will have to

double click the shortcut file to activate the software manually every

time

In both cases A and B, the Phone Recorder will work in the

background, and the PC will remain free for use

A - CUBE

18 Configuring Server Software

Click on logon. Figure 2.1 below will appear

Default Username is 'Manager' and Default Password is 'Blank'

Note: Only 'Manager' will have power to access all Facilities/Software

features Manager has All Rights'. Manager Account cannot be

Modified or Deleted

Click OK. (User ID's and Password/s can / will be set later. The

procedure is described later, in this Manual. System>User Setting)

FIGURE 2.1

Configuring Server Software 19

All features of Software 'Call Data', Monitor, Customer, Statistics,

Line, System and Exit' will get highlighted as shown in Figure 2.2

below.

Please Note that above features are 'not active' in Figure 2.1

FIGURE 2.2

A - CUBE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
