USER MANUAL

EasyMini control box

Spa models: Savannah, Lisa 23 and Augusta 20, Anna 33

With and without circulation pump

INTRODUCTION – HOW YOUR SPA WORKS 3

Operating spa display 3

1 SPA OPERATION 4

1.1 Hydro-massage Pump 4

1.2 Lighting 4

1.3 Blower (where ﬁ tted) 4

2 WATER FILTRATION & TEMPERATURE 5

2.1 Filter Cartridges 5

2.2 Filtering 5

2.3 Water Temperature 6

2.4 Economy Mode 7

3 OTHER 7

3.1 Display Lock 7

3.2 Display Rotation 8

3.3 Stand By Function 8

3.4 Clock Function 8

4 HYDRO MASSAGE 9

4.1 Regulating the Jet power 9

4.2 Jets 9

5 EMPTYING THE SPA 9

6 WATERTREATMENT 10

6.1 Preparations 10

6.2 3-step Water treatment 10

7 IMPORTANT THINGS TO KNOW & DO TO MAINTAIN YOUR SPA 11

8 SERVICE 12

Contents

Dear 4SeasonsSpa Owner,

4SeasonsSpa congratulates you on your decision to enjoy your own Spa. This User Manual will acquaint you with the operation and general

maintenance of your Spa. In addition a technical manual has also been supplied for the installation and set-up of your Spa. This technical manual

provides a more detailed description regarding installation, operation and maintenance.

Operating spa display

The Spa is operated through the main display, enabling you to activate the

Spa pump, light and blower (where ﬁ tted) and control the settings (ﬁ ltration,

temperature, time).

Icon Solid Blinking

Pump 1 active at high speed Pump 1 active at low speed

Blower active

Light on

Display showing the desired temperature

Filter or Purge function active Filter or Purge function in stand-by

Heater active Heater not active due to Low Current setting

Economy function is activated Economy function is in stand-by

Icons meaning and light operation

(Fig.1)

Introduction – How your Spa works

1 Spa operation

1.1 Hydro-massage Pump

This Spa has 1 pump (two speed) enabling you to select the preferred intensity of hydro-massage. This pump is connected and operated through

the display (Fig.1).

• Press on the buttons to activate the pump at low speed.

• Press the same button a second time to turn to high speed.

• Pressing the same button a third time turns the Pump off.

A built-in timer automatically turns off the Pump after 20 minutes.

For spa’s without circulation pumps only: if the pump is running automatically at low speed or remains running on low speed then the heating and/or ﬁ ltration

cycle is operating and the pump will continue until the water has reached the desired temperature and/or the ﬁ lter cycle is ﬁ nished.

1.2 Lighting

• Press the to turn light on.

• Press a second time (within 4 seconds) to switch to a different color.

• Press a third time (within 4 seconds) to continue changing the color or alter the lighting sequence.

A built-in timer automatically turns off the light after 2 hours.

1.3 Blower (where ﬁ tted)

When your spa has a blower you can start it the following way:

• Press the to turn blower on.

• Press a second time to stop the blower.

A built-in timer automatically turns off the Blower after 20 minutes.

1 Spa Operation

To ensure the water in the Spa is clear and clean correct ﬁ ltration (in combination with proper water treatment) is essential. We need to differentiate

two types of spa: a spa equipped with a 24 hour circulation pump and spa without this extra circulation pump.

Spa without circulation pump:

The spa is using the jet pump on low speed for filtering and heating. The Spa filter cycles should always operate for at least 2 × 2hours a day. This can

be controlled through the display (Fig. 1). Filtration starts and stops automatically.

Spa with extra circulation pump:

The spa is using the extra circulation pump for ﬁ ltering and heating, this small pump is running for 24 hours a day which ensures a continuous ﬂ ow in

your spa. Beside the continuous ﬂ ow this spa will have some PURGE cycles as well. With a purge cycle (40 seconds) the jet pump is running on high

speed to clean the hoses and to have more water movement.

The water temperature is set at the desired level and is kept at this level through the heating system and the Spa insulation.

For proper water treatment according to local requirements please ask your dealer and check page 10.

2.1 Filter Cartridges

The Spa is equipped with 1 or 2 cartridge water ﬁ lters to ﬁ lter small impurities from the water. As a result the ﬁ lters may become clogged, resulting

In reduced water ﬂ ow. It is important to maintain a clean, unobstructed ﬁ ltration system. Clean the ﬁ lter cartridge every week by rinsing it with

a powerful water jet (a garden hose not a pressure washer). Our recommendation is that you renew the ﬁ lter cartridges every year. Your Spa dealer will

be able to provide you with special cleaning products for your ﬁ lter cartridge. Never use regular soap as it will have a detrimental effect on the water

quality in your Spa. When ﬁ lter cartridges are not cleaned in time a FLO message can show up in the display.

2.2 Filtering

For ﬁ ltering, we differentiate spa’s with and without circulation pump.

2.2.1 Filter cycles for spa’s without extra circulation pump

Each ﬁ lter cycle will start with the pump running for 40 seconds on high speed. After that the pump will continue on low speed. By pressing the

button and the and buttons the ﬁ ltration cycle can be controlled and adjusted. The duration of the cycle and the time to start the ﬁ rst cycle

can be selected, the subsequent cycles follow at 12 hourly intervals.

2 Water ﬁ ltration & Temperature

2.2.2 Filter cycles for spa’s with extra circulation pump

In this conﬁ guration your spa is equipped with a 24-hour circulation pump, running all day long. To have more water movement in the spa and to clean

all hoses from the inside the spa control will start a PURGE cycles a few times a day. During each purge cycle the jet pump is running for 40 seconds

on high speed. By pressing the button and the and buttons the purge cycle can be controlled and adjusted. When you enter a purge of

6 (recommended) the spa will have each 4 hours 1 purge cycles of 40 seconds (24 hour/6=4).

Filter Boost function

This function is used to activate an accelerated ﬁ lter cycle of limited duration. Pump 1 is started at high speed, and the ozone generator runs for

45 minutes. To activate the function, press and hold the button for 5 seconds. This function has to be activated after intensive use of the SPA

and/or addition of chemical products. The display shows the code BOO.

2.3 Water Temperature

• The display shows the current water temperature.

• By using the arrow buttons and you can adjust the water temperature to the desired level. The newly selected water temperature will

be shown on the display for ﬁ ve seconds, conﬁ rming the new settings, display shows . After 5 seconds the display will again show the current

temperature.

• The water will be re-heated when the temperature has dropped 0.5 degrees Celsius.

The water temperature can be set at a value between 15 and 40 °C.

be shown on the display for ﬁ ve seconds, conﬁ rming the new settings, display shows . After 5 seconds the display will again show the current

• FD – duration of the ﬁ lter cycle

The duration of the ﬁ lter cycles can be set from 0 hours (ﬁ ltering

disabled) to 12 hours (continuous ﬁ ltering) with 1 hour steps. We

recommend 2 or 3 hours each cycle.

• FS – start up time to start the ﬁ lter cycle

Now you can enter time when you wish to start the ﬁ rst ﬁ lter cycles.

After that the ﬁ lter cycles will start with an interval of 12 hours.

FDx: duration of the ﬁ lter cycles, FSx: time to start the ﬁ lter cycle for the ﬁ rst time

2 Water ﬁ ltration & Temperature

2.4 Economy Mode

The economy mode allows the temperature of the water in the Spa to drop up to 10 degrees below the set temperature without re-heating. Only

use this mode if your Spa will not be used for an extended period of time. Thanks to the high insulation values, keeping the Spa at the desired

temperature is more economical than constantly reheating the water.

By pushing the button you can program:

EDx – duration of the economy cycle, ESx – start time of the economy cycle

3 Other

3.1 Display Lock

It is possible to lock the display partially or entirely, which can be a useful safety measure when the Spa is often used by children.

There are two settings possible: Partial (LOCK P): buttons operating pumps and the light can be operated.

Full (LOCK F): none of the buttons will function.

• Press and hold the button for 3 seconds the partial display lock (LOCK P) is activated.

• Press and hold the button for 6 seconds all buttons are disabled (LOCK F).

• Press and hold the button again for 5 seconds the display is reactivated (ULOC).

• The ED (duration)

Condition varies from 0 to 24 hours selected with the arrow buttons.

0 = function deactivated and 24 = function always active.

• The ES (time to commence Economy Mode)

Now you can enter time that you want to start the first filter cycles.

After that the ECO cycles will start.

2 Water ﬁ ltration & Temperature

3.2 Display Rotation

This function is used to invert the direction of the display to make it easier to read when you are seated in the spa.

This function can be activated as follows:

Press and hold for 5 seconds the button. The function is disabled in the same way. The function is also disabled by switching the pack off.

3.3 Stand By Function

Allows you to lock all the functions (60-min duration) so as to carry out the ordinary maintenance operations without cutting off power to the spa.

The STAND-BY function is activated by pressing the key for 5 seconds. Whenever the function is active, the message “Sby” will be visualized

alternatively on your display and the elapsing time will be in minutes. The STAND-BY function locks the ﬁ ltering/purging cycles, which are

programmed and carried out every 40 min after the end of the stand-by function. This function can be terminated by pressing the key LIGHT

for 5 seconds or available time has elapsed (60 minutes).

3.4 Clock Function

This function is controlled by the user by the key , which helps you visualize and set the time on the clock of your Control.

Carry out the following steps, as listed below:

• Keep on pressing the key for 5 seconds until your display visualizes the time digits which will blink on and off slowly;

• By using the keys and on the keypad, choose your desired time;

• Press the key to change the minutes;

• By using the keys and , choose your desired minutes;

• Press for the third time the key to store the new settings.

3 Other

The Spa is emptied by using the gravity drain. Enter the technical compartment and to open the gravity drain remove the ﬁ rst cap and turn

the valve counter clockwise, after that pull the valve open, water will then ﬂ ow out. Only empty the Spa when the power to the Spa is completely

shut-off. Never leave the Spa empty during frosty periods as water might remain in the tubes and cause serious damage.

5 Emptying the Spa

The hydro-massage is regulated and set by using the pump on low or high speed (see display), activating the venturi system, regulating the water

direction and opening/closing individual jets.

4.1 Regulating the Jet power

The pump forces a large amount of water through the jets. It is possible to add more force to the jets by adding air to the water with the use of the

venturi system.

The air supply is regulated using one of the venturi air valves. Turn the valve to the left to open the air supply or to the right to close the air supply.

Each seat (combination) has its own venturi air valve.

You will only see an effect when the pump is operating at high speed. The air valves are the small controllers found on the top edge of the spa.

To regulate the water distribution, the large controller (diverter) can be used (only when present on the spa). By turning this water controller, it

distributes the water ﬂ ow to the desired seat(s) in the Spa.

Using these diverter the desired massage intensity can be set. Turn the pump off before setting/turning the diverter in the desired direction.

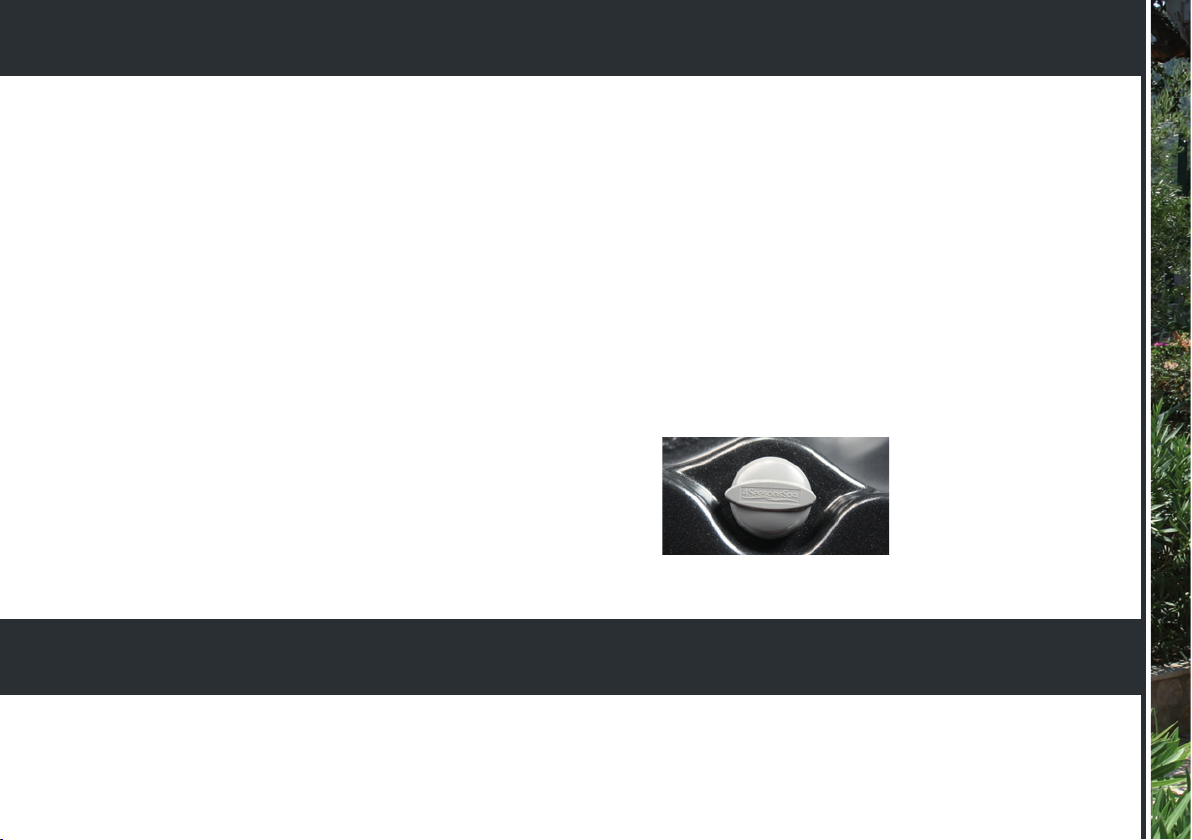

4.2 Jets

Each 4SeasonsSpa is equipped with the WIRP-system, based on 4 different

types of jets. Each jet type offers a different massage and comes in a variety

of sizes. Each individual jet can be opened and closed by turning it clockwise

or anti-clockwise.

4 Hydro-massage

6 Watertreatment

6.1 Preparations

• Speciﬁ c rules for water treatment in your residential spa cannot be prescribed. The minimum required standards for spa maintenance are outlined

below. 4SeasonsSpa is not responsible for providing information about water treatment. This page will only provide you with some guidelines.

Each region or country has its own rules about water treatment.

• Take into account the directions given by your dealer. Local dealers are familiar with different water treatment products, speciﬁ c to your region and

water-type. Make sure you are properly informed.

• Ensure proper information is provided on the chemicals being offered. Ensure the provided chemicals can be used for the water treatment in your

spa, and that they are allowed in the country you will be using your spa in. Very important: 4SeasonsSpa is not responsible for the water quality

in your spa, as this is entirely dependent on water treatment and the water quality from your supplier.

• To ﬁ ll your spa, use only regular tap water.

• As soon as the spa is ﬁ lled, begin water treatment. The ﬁ ltration mechanism has to be on continuously, which requires constant current

to be available.

6.2 3-step Water treatment

1 Test the pH value of the water and adjust if necessary. Keep the pH between 7.2 and 7.6. At this pH value disinfecting products will work best.

The total alkaline value should be kept between 80 and 120 ppm (mg/l). Record the values in a log-book for your records.

2 Free chlorine should be kept at 3.0–4.0 ppm.

3 Every two or three months, the night before draining the spa, add some special Anti-scale spa chemicals to your spa water and leave it to run

overnight. This will remove any lime scale from your pipes and pumps. The manufacturer is not liable for replacing pumps, heater, jets or other parts,

due to too high calcium levels.

A regular checkup (at least twice a week and before each spa use) of the water is necessary for the following parameters:

a) pH-value between 7.2 and 7.6

b) Free chlorine value must be 3.0–4.0 ppm

c) Bound chlorine should be at most 0.2 mg/l and always lower than Free chlorine

d) Total alkaline value should be between 80 and 120 ppm
