3S Vision N5072 Manual de usuario

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 2 -

TABLE OF CONTENT

INTRODUCTION .......................................................................................................................................................................... 4

FEATURES.......................................................................................................................................................................................... 4

PACKAGE CONTENTS............................................................................................................................................................................5

SYSTEM REQUIREMENTS ............................................................................................................................................................ 6

VIEW OF N5072 SPEED DOME NETWORK CAMERA .................................................................................................................... 7

Physical Description................................................................................................................................................................... 7

Dimension Diagram................................................................................................................................................................... 8

GETTING STARTED............................................................................................................................................................................... 9

MAKING CONNECTIONS ........................................................................................................................................................... 11

Power ......................................................................................................................................................................................11

Audio In ................................................................................................................................................................................... 12

Lan........................................................................................................................................................................................... 12

TRIPOD MOUNTING ................................................................................................................................................................. 13

SOFTWARE INSTALLATION ........................................................................................................................................................ 14

READY TO USE .......................................................................................................................................................................... 16

ACCESS TO THE IP CAMERA................................................................................................................................................................. 16

VIEW OF CAMERA MAIN PAGE ................................................................................................................................................. 18

LIVE VIEW .......................................................................................................................................................................................18

3Svision Logo...........................................................................................................................................................................18

Product Name ......................................................................................................................................................................... 19

Mode ....................................................................................................................................................................................... 19

Language................................................................................................................................................................................. 20

Video Format ..........................................................................................................................................................................21

View Size .................................................................................................................................................................................22

Streaming................................................................................................................................................................................ 23

Alert.........................................................................................................................................................................................24

Alert Message .........................................................................................................................................................................26

Alert Message Text ................................................................................................................................................................................. 26

Disable.................................................................................................................................................................................................... 27

Alert Snapshot ........................................................................................................................................................................................ 27

Clear ....................................................................................................................................................................................................... 27

PTZ Control Panel .................................................................................................................................................................... 28

Camera Direction.................................................................................................................................................................................... 29

Camera Speed......................................................................................................................................................................................... 29

Zoom....................................................................................................................................................................................................... 29

Focus....................................................................................................................................................................................................... 29

Aux.......................................................................................................................................................................................................... 29

Preset...................................................................................................................................................................................................... 30

Tour......................................................................................................................................................................................................... 31

Shortcuts ................................................................................................................................................................................. 32

+ZOOM IN............................................................................................................................................................................................... 32

-ZOOM OUT ............................................................................................................................................................................................ 33

Original Size............................................................................................................................................................................................ 33

Full Screen............................................................................................................................................................................................... 34

Jitter Time............................................................................................................................................................................................... 34

Record..................................................................................................................................................................................................... 35

Snapshot................................................................................................................................................................................................. 36

Version.................................................................................................................................................................................................... 36

Shortcut Bar ............................................................................................................................................................................ 37

Microphone ............................................................................................................................................................................................ 37

Buzzer ..................................................................................................................................................................................................... 37

Path ........................................................................................................................................................................................................ 38

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 3 -

Shortcut Bar Message............................................................................................................................................................................. 40

SETTING USER PREFERENCES............................................................................................................................................................... 42

Basic Setting............................................................................................................................................................................43

System .................................................................................................................................................................................................... 43

System Setting................................................................................................................................................................................... 43

System Log ........................................................................................................................................................................................ 44

Video/Image........................................................................................................................................................................................... 45

Video................................................................................................................................................................................................. 45

Overlay .............................................................................................................................................................................................. 46

Audio ...................................................................................................................................................................................................... 48

User ........................................................................................................................................................................................................ 49

Network.................................................................................................................................................................................................. 52

Network Setting ................................................................................................................................................................................ 52

Services Setting ................................................................................................................................................................................. 53

Stream Setting................................................................................................................................................................................... 53

PPPoE Setting (Dial-up Networking Setting)...................................................................................................................................... 55

DDNS (Dynamic Domain Name Server)............................................................................................................................................. 57

UPnP (Universal Plug and Play) ......................................................................................................................................................... 58

SMTP (Mail Server Setting)................................................................................................................................................................ 61

Samba ............................................................................................................................................................................................... 62

Notification ....................................................................................................................................................................................... 63

Multicast ........................................................................................................................................................................................... 64

Date/Time .............................................................................................................................................................................................. 65

IP Filter ................................................................................................................................................................................................... 66

Application Setting .................................................................................................................................................................. 67

Event....................................................................................................................................................................................................... 67

Event ................................................................................................................................................................................................. 68

Trigger ............................................................................................................................................................................................... 71

Event Servers (Upload Server) ........................................................................................................................................................... 73

Motion Detection.................................................................................................................................................................................... 75

Blind Detection ....................................................................................................................................................................................... 76

Privacy Mask........................................................................................................................................................................................... 77

Firmware upgrade .................................................................................................................................................................................. 79

Factory Default ....................................................................................................................................................................................... 81

Reboot .................................................................................................................................................................................................... 84

APPENDIX ................................................................................................................................................................................ 85

CHANGE THE INTERNET EXPLORER SETTINGS .......................................................................................................................................... 85

SET UP THE ROUTER SETTING WITH IP CAMERA ...................................................................................................................................... 86

DDNS APPLICATION.......................................................................................................................................................................... 87

How to apply and setup the DDNS service? ............................................................................................................................ 87

How to check if the DDNS service is successful?...................................................................................................................... 92

MOBILE APPLICATION ........................................................................................................................................................................93

Symbain System ...................................................................................................................................................................... 97

iPhone System .......................................................................................................................................................................100

SUPPORT THE CELLULAR /MOBILE PHONE LIST ....................................................................................................................................105

MULTICAST APPLICATION..................................................................................................................................................................106

H264 (Main) ..........................................................................................................................................................................109

H264 (Sub).............................................................................................................................................................................110

Motion JPEG .......................................................................................................................................................................... 111

TROUBLESHOOTING AND FAQS.......................................................................................................................................................... 114

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 4 -

Introduction

N5072 is a Speed Dome Network Camera which is with H.264 high resolution.

Unlike traditional CCTV, it is built in the Web Server and Camera to provides users with

mechanism for the 24 hours security and it can deliver dual video streams simultaneously

(H.264 or Motion JPEG), allowing for optimization in image quality and bandwidth. It provides

a professional application to remote monitors. (VMS)

It provides intelligent image detection system that can lock or target automatically and enlarge

the image when an abnormal object is detected.

It offers many application functions such as DDNS, samba, FTP, Mail, Multicast, motion

detection, privacy mask, event management and multi-level passwords for meeting user

variety level of security needs.

Features

N5072 can operate smoothly without the need to install additional software or hardware. All

you need is a PC that is equipped with IE browser (6.0 or above) and connect the Internet

Camera to the network to monitor the pre-set places remotely. It provides you with protection

of your personal, home, and property security.

H.264/MJPEG Dual Codec & Streaming simultaneously

Up to HD (1280x720 @25fps/1280x720@30fps)

High Resolution of 600TVL

18X in optical zoom (Optional with WDR)

Digital I/O for External Sensor and Alarm

Mechanical ICR

3D Noise Reduction

Intelligent Video Analytics

3GPP Supported

IP66 Weather proof

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 5 -

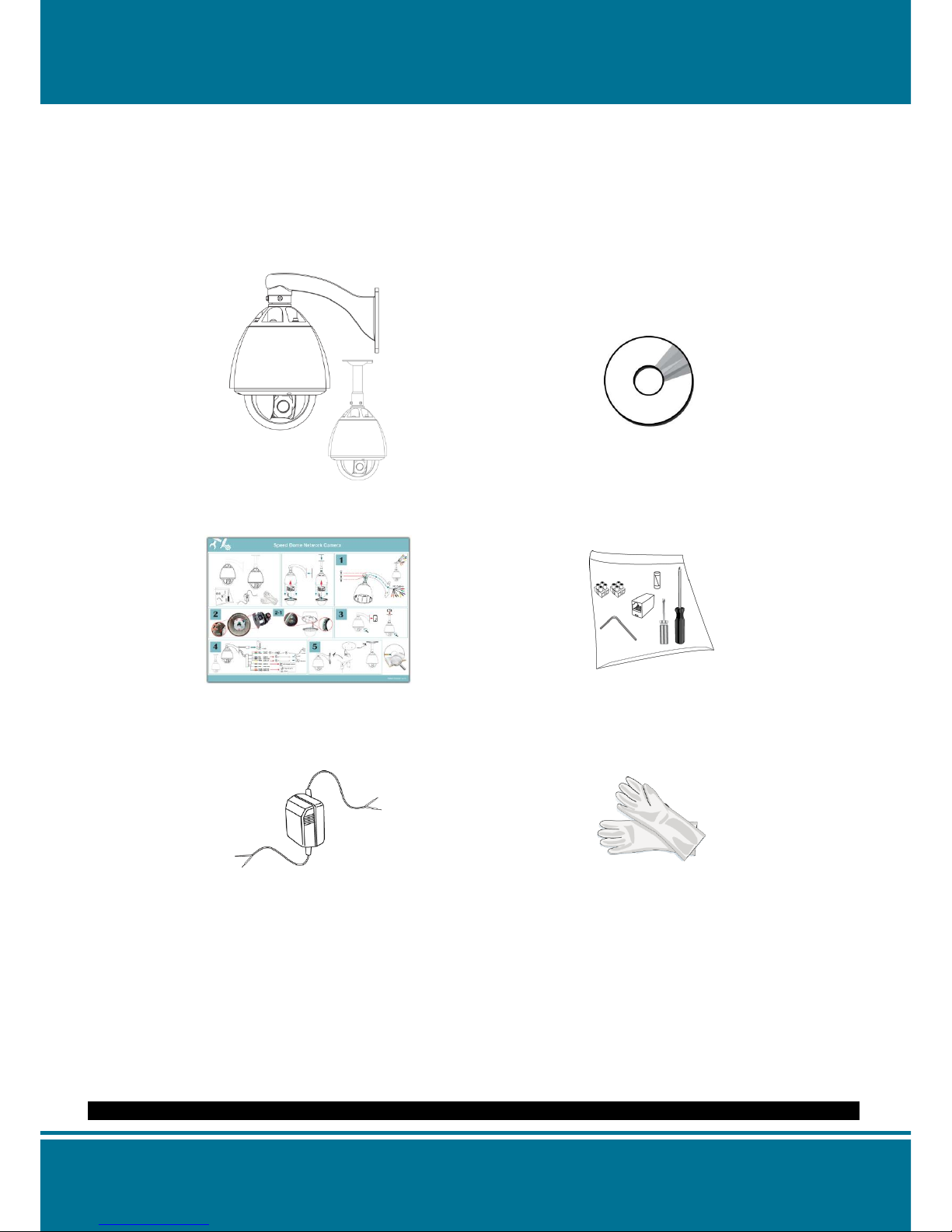

Package Contents

After unpacking, check that if all the following items have been included:

N5072 Speed Dome Network Camera

Installation CD (Manual & Software)

Installation Guide

Assembly Kit

AC24V Power Supply

Gloves

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 6 -

System Requirements

Before installing N5072 Speed Dome Network Camera, please make sure your system has

the following recommended minimum hardware requirements.

Internet Environment

Ethernet 10/100M Ethernet

Monitor System Requirements

OS support Windows 2000, XP, Vista and 7

Browser support Internet Explorer 6.x or later

Hardware CPU: Pentium 4 2.4 GHz or later

Memory: 512 MB (1G MB recommended)

VGA card resolution: 1024x768 or higher

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 7 -

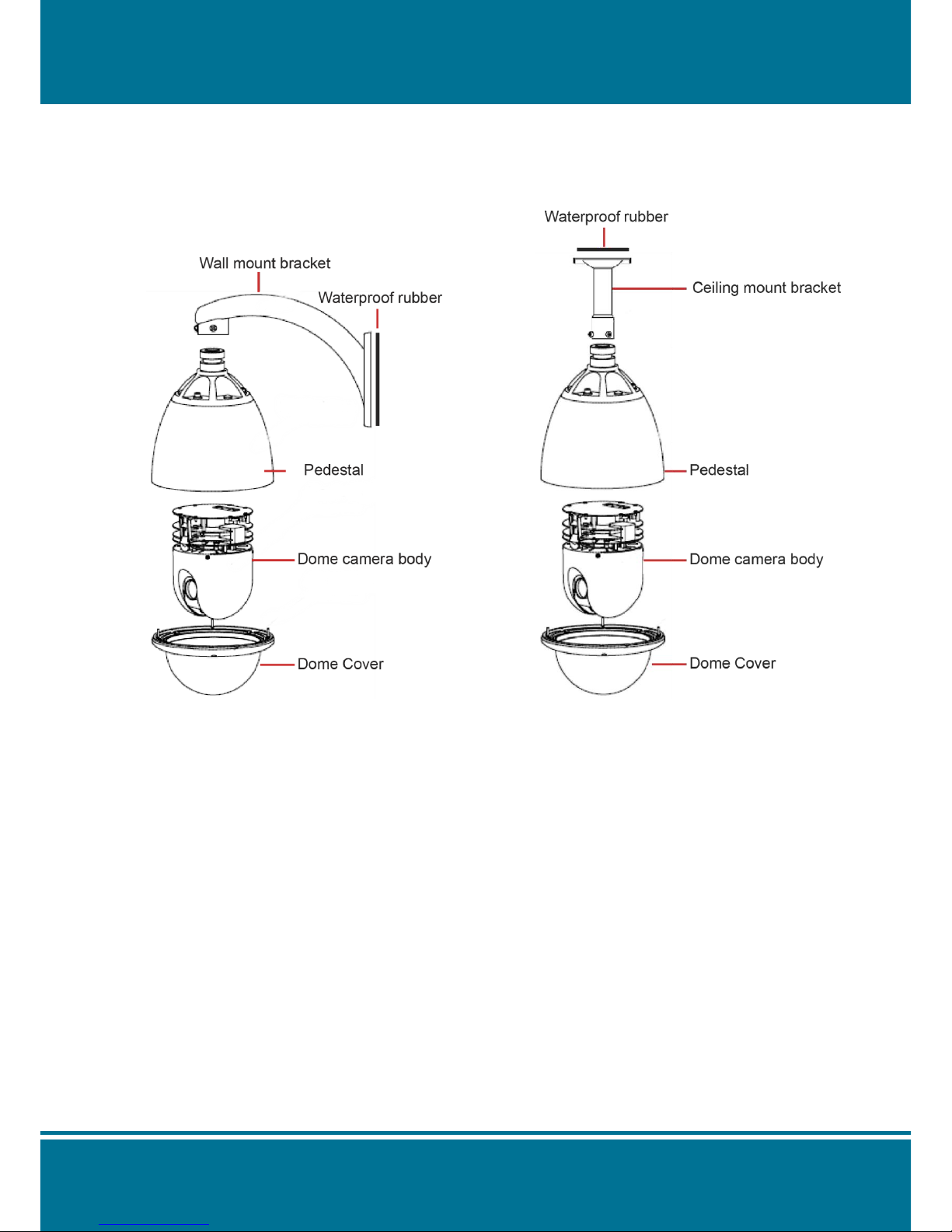

View of N5072 Speed Dome Network Camera

Physical Description

NOTE :

There are 2 different types for installations. Wall Mount and Ceiling Mount. It depends on the

type of model you are purchasing.

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 8 -

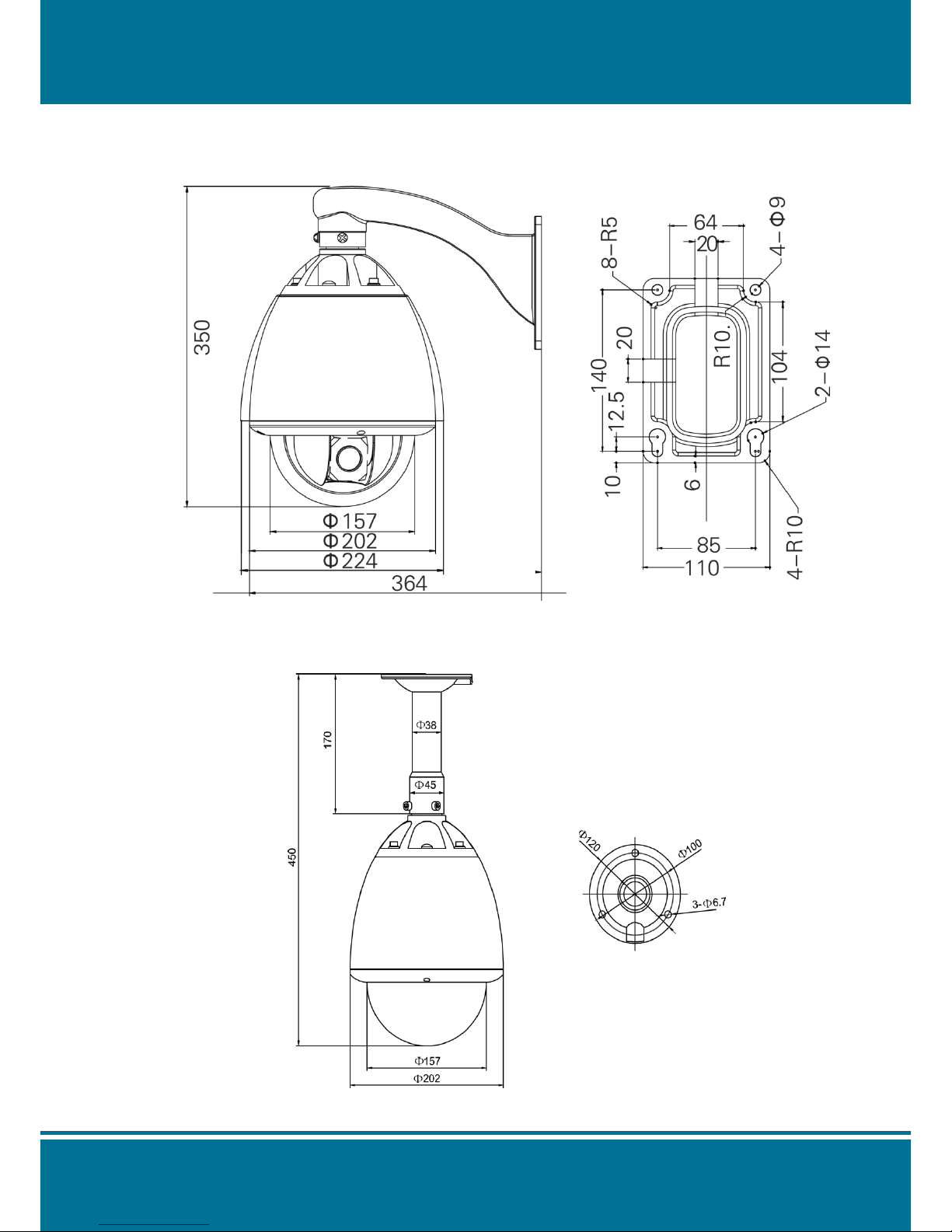

Dimension Diagram

Wall mount

Ceiling Mount

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 9 -

Getting Started

Before getting to start N5072 Speed Dome Network Camera, please adjust N5072 in

accordance with the following steps first.

1. Stabilize the Hardware

Use the screwdriver to lock the bracket and Pedestal securely by three M6 screws after the

I/O cables are put into the bracket.

2. Assembling the dome camera body by putting the dome camera body into the pedestal,

please take aim at the point as shown.

NOTE :

1. Make sure the plug-in is fully locked.

2. Take off by pull down the bar as shown.

N5072Speed Dome Network Camera 1.3M / 720P Real-Time / 18X

- 10 -

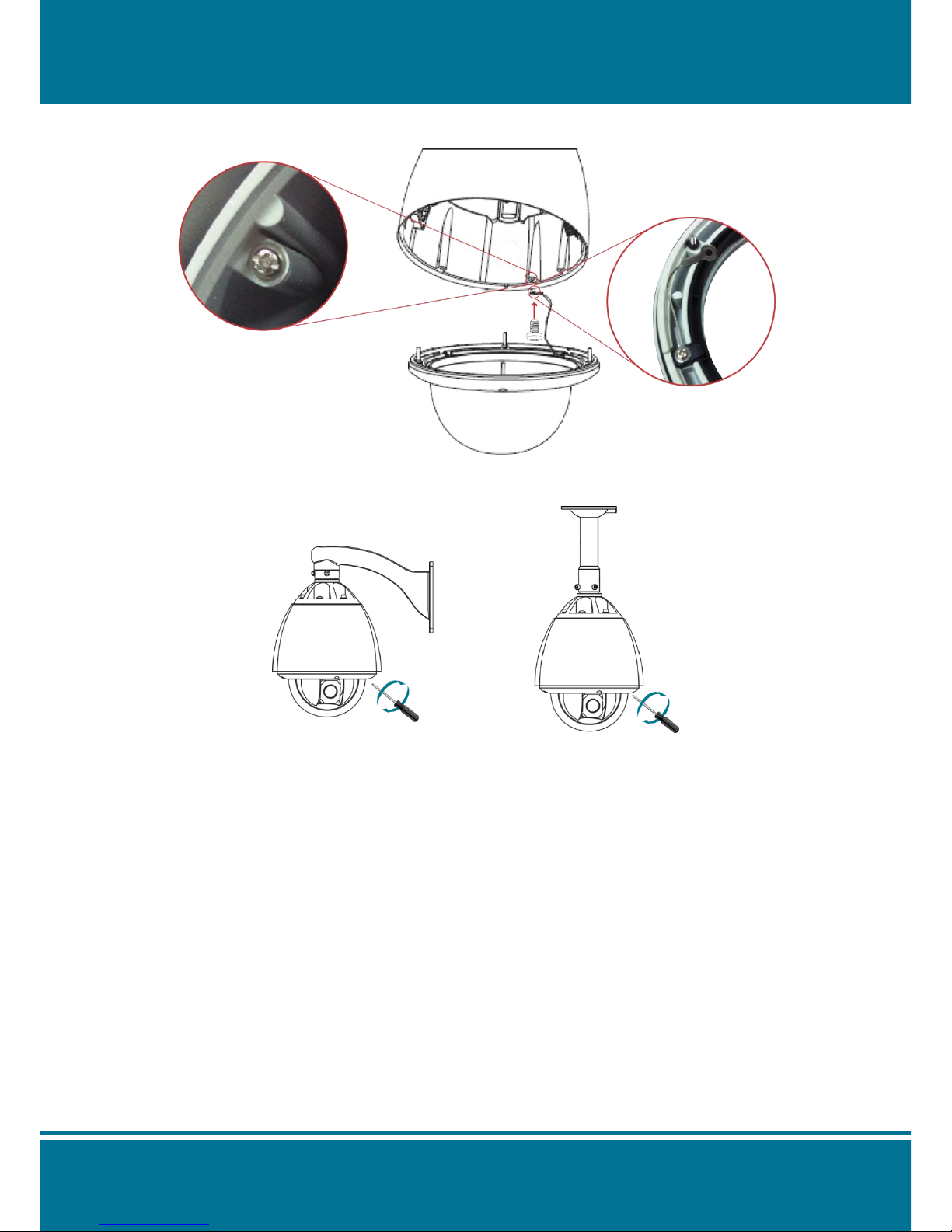

3. Attach the dome cover to the pedestal with rope.

4. Use the screwdriver to lock the dome cover with screws.

Tabla de contenidos

Otros manuales de Cámara de seguridad de 3S Vision

3S Vision

3S Vision N9012 Manual

3S Vision

3S Vision N5071 Manual de usuario

3S Vision

3S Vision N5011 Manual de instrucciones

3S Vision

3S Vision N1011 Manual de instrucciones

3S Vision

3S Vision N6074 Manual de usuario

3S Vision

3S Vision N1072 Manual de usuario

3S Vision

3S Vision N8072 Manual de usuario

3S Vision

3S Vision N9071 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
