OVERVIEW
The IRIS camera system enables you to view live and recorded images on your mobile phone from your
IRIS camera. This may be security surveillance or entertainment live video, simultaneously accessed by
more than one person dialling in from a registered mobile.
The remote camera can be utilised in two ways. You can connect to the camera at any time to view live
images or operate in ‘alarm mode’ when the camera is continually monitoring for movement. If movement
is detected the camera will immediately upload the captured images to a secure server and alert you by
sending an SMS (text message) to your phone.
These images can then be viewed on your mobile phone after loading the IrisPlayer software.
Remove all the items from the packaging.
www.videocommunity.tv is a web based community for all users of the Iris camera system.
The world wide forum gives members access to a whole host of interesting video clips and content from
other Iris users as well as the chance to connect to live Iris cameras around the world.
Also find out how to make your Iris camera publicly available and become an overnight TV star!
Watch entertaining videos, play games, enter competitions and win great prizes or simply meet and
discuss interesting topics with other like minded Iris camera users.
Upload video clips taken with your Iris camera. We will showcase the funniest, sexiest, craziest and just
plain silly videos from around the world. Just make sure they are entertaining!
Page 2
•Cross head/flat blade screwdrivers (large/small)
•Drill
•6mm drill bit*
*
Only required if fixing camera to a wall.
When working at heights, please use a suitable platform to work from.
•Fixings kit
•Documentation
•Camera
•Battery
•Power supply mains adaptor
Register your details today to become part of the rapidly expanding global Iris community. Visit
www.videocommunity.tv for more information.
REGISTERING YOUR CAMERA FOR USE
Information you need when registering your camera...
The IMEI number – this is printed on the side of the box and on the label inside the battery
compartment.
Billing details (name, address, etc.)
A pin number and name for the camera e.g. Lounge, Garage etc).
Your mobile phone number, plus make and model and numbers of any other mobile phones that you
wish to use to view the camera.
During registration you will be asked for several pieces of information. To ensure a trouble free
setup, please make sure you have this information to hand and ensure you call from a landline
and not the mobile that will be used to view the camera.
GETTING STARTED
Your mobile phone must have a colour
screen with minimum resolution of 128x128
pixels and be Java compatible (refer to the
User Manual supplied with your mobile).
It must also be GPRS compatible and have
GPRS data enabled.
Figure 1b
Note: It is possible for simultaneous viewing of any Iris camera by more than one registered mobile.
Figure 1a
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
Page 3
SCREW
TERMINALS
BATTERY AND
COMPARTMENT
COVER
BATTERY IS
ATTACHED TO
COMPARTMENT
COVER
BATTERY
TERMINALS
Attach the battery and secure using the
screw provided.
Plug the mains adaptor into the camera and
mains outlet socket.
If the product is being used externally the mains
outlet should be an IP rated approved unit.
A sheltered location is recommended as the IP54
rating will only provide limited protection and will
not make the camera immune to potential damage
in severe weather conditions.
Switch mains supply to ON and leave for at least
12 hours to ensure the battery is fully charged.*
*FAILURE TO DO THIS CAN DAMAGE THE BATTERY.
CAUTION: RISK OF EXPLOSION IF BATTERY IS
REPLACED BY INCORRECT TYPE.
Before using your camera for the first time, you will need to register the ownership. Please register
online at www.3rdisecure.tv and then call our call centre on 01443 819328 for the sim in your
camera to be activated to your account.
During charging a solid orange light will appear on the front of the camera this indicates that the
unit is charging but not usable. When the orange led starts to flash this indicates the camera
is fully charged and ready for use (A full description of LED status can be found on page 13).
Your existing mobile network provider will bill you each time you access the IRIS camera through
your mobile phone.
When deciding upon your GPRS data tariff, bear in mind that 1MB of data relates to approximately 150
seconds of camera monitoring. GPRS is charged according to the amount of data transmitted and not
by call duration. Advice should be sought from your network provider.
DOWNLOADING THE IRISPLAYER SOFTWARE
During registration of your camera the 3rdisecure
call center will send an SMS (text message) to
your mobile phone containing a link to the
IRISPLAYER software.
To download the IRISPLAYER software to your
mobile you need to follow the link contained in
the SMS. (The operator will guide you through
the process.)
After you have followed the link and accepted the
terms and conditions, the software will take
approximately 30 seconds to download.
The IRISPLAYER software will be placed on your
mobile. During the download process your mobile
may indicate the location of the IRISPLAYER
depending on the make and model of your
mobile phone, it normally appears in the games
or application menu.
If the mobile network is congested, it
may take up to 24 hours after registering
before you can access the camera.
SMS MESSAGE
DOWNLOAD COMPLETE
Follow the instructions as given on your
screen. The exact wording varies
depending upon model of phone or service
provider.
Learn more about IRIS and what it can do for you:
www.3rdisecure.tv
Page 4
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
I agree to use this software in accordance
with all applicable local laws governing
privacy, data protection, digital media rights
& viewing of content.
License Agreement
(1) Agree (2) Disagree
5. Accept Terms and Conditions by pressing 1.
The following screen will appear.
You will see this
screen when you first
access the camera.
You will see this
screen when you next
access the camera.
The camera system can be used either to provide ‘Online Cameras’ images of the viewing location or in
‘Alarm mode’ when it notifies you by text message that the camera has detected movement and
automatically recorded images. The video clips are stored at a central server ready to be retrieved later.
You are still able to access the camera and see ‘Online Cameras’ Images when in ‘Alarm mode’. If the
camera is not switched ON, pictures will not be available for viewing.
VIEWING ONLINE CAMERA IMAGES
Figure 2
1. Connect the camera to the power adaptor and
switch on the power supply.
Go to Applications or Games Folder or
Main Menu
3. Go to the location of the IRISPLAYER on your
mobile phone.
4. Select the IRISPLAYER.
Page 5
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
2. Press in and hold the camera ON/OFF switch
until the GREEN LED illuminates, then release.
The green light becomes solid when the unit is
ON. The red PIR light will flash recognising
movement. The YELLOW light will begin to
flash then turn to a solid light once connection
has been made to the network and our server.
The camera is now ready to transmit data
images.
6. Enter your pin number when prompted.
This is the number you provided at registration.
Press OK.
ON/OFF
SWITCH
IrisPlayer 1.03
Copyright Pedagog Limited
I agree to use this software in accordance
with all applicable local laws governing
privacy, data protection, digital media rights
& viewing of content.
License Agreement
(1) Agree (2) Disagree
Select one to launch:
Launch
IRIS
****
Security Key
OK
10. Press Disconnect to finish the session.
8. Select Online Cameras by pressing 1
on your keypad.
9. Select your new camera from the list by, for
example, pressing 1on your keypad.
11. To return to main menu, press 0.
12. Press 0 to exit from IrisPlayer.
After a short time you should see the camera
view on your mobile. A time lapse of a few
seconds is normal and may vary depending
upon network usage and size of image.
7. Select Connect by pressing 1on your keypad.
You are now presented with a list of options...
Some mobile handsets will request permission
to send information to the internet. If this
happens select ‘Yes’.
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
Page 6
You can switch the camera OFF by pressing
and holding the ON/OFF switch. The green light
will begin to flash confirming the shut down of
the camera, the green and red lights will go off.
The orange light will continue to flash, if you
have the unit plugged into mains power supply.
The flashing light indicates that the unit has
power and is ready for use.

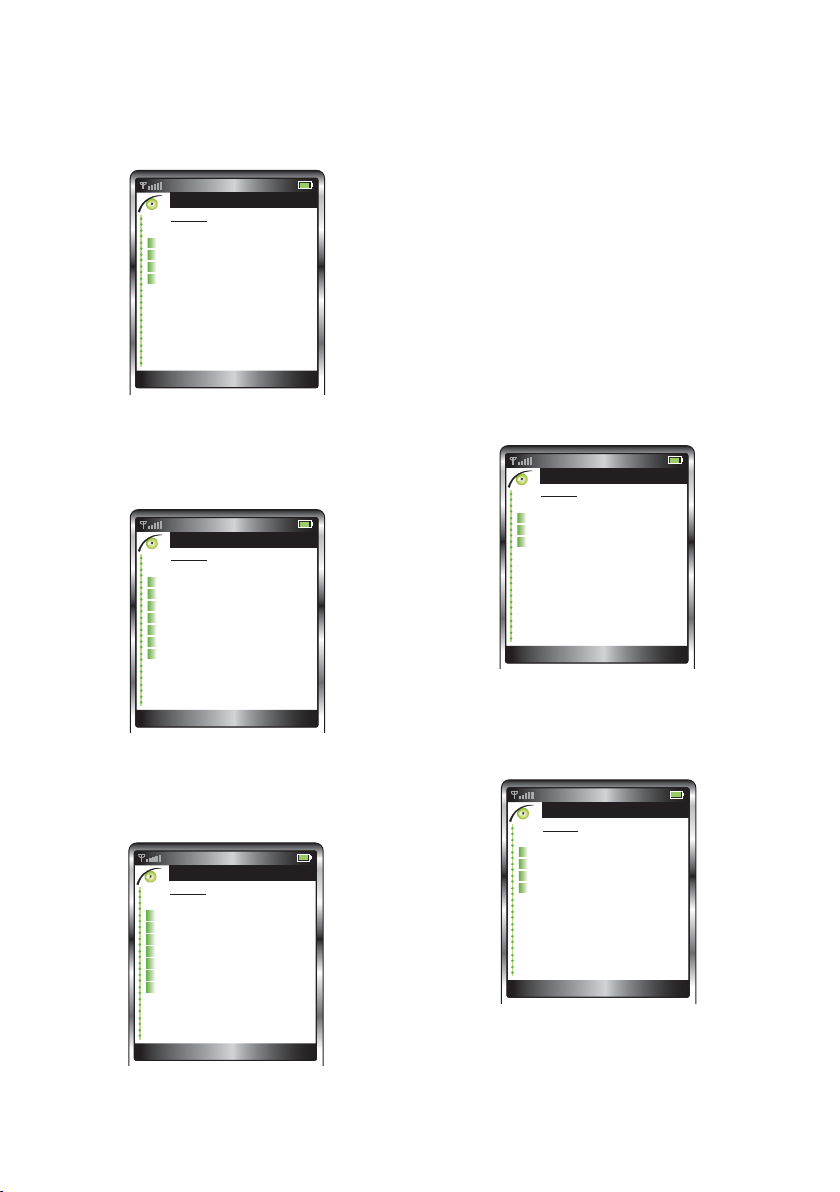

Main Menu
Select.....
1 Connect
2 Settings
3 About
0 Exit
Main Menu
Select.....
1 Connect
2 Settings
3 About
0 Exit
Cameras
Select.....
1 Online
2 Recordings
3 Config
0 Prev
Cameras
Select.....
1 IRIS101 4
2 IRIS101 3
3 IRIS101 2
0 Prev
Cameras
Select.....
1 IRIS101 4
2 IRIS101 3
3 IRIS101 2
0 Prev
13:53:14 30-01-2009
MenuDisconnect
ALARM MODE RECORDING
To enable or disable alarm mode on an Iris
Camera:
1. Ensure the camera(s) and your mobile
handset are switched to ON.
4. Select IrisPlayer software.
The following screen will appear.
5. Accept Terms and Conditions by pressing 1.
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
Page 7
In Alarm mode a text message is sent to your mobile when the camera is activated by movement or
mains power loss. The text message tells you the camera name, the time of the alarm and which type
of alarm event occurred. When the camera records an alarm event, it stores 2 frames before, 4 frames
during and 2 frames after the event. This recording is automatically transmited to a secure server.
When the alarm trigger has been activated and the clip has been sent, the camera will wait for 30
seconds for there to be an absence of movement (in other words, for the scene to 'calm down') before
going back into alarm mode. This ensures that continuous movement does not trigger continuous alerts
and the sending of a large number of video clips.
2. Press in and hold the camera ON/Off switch
until the green LED illuminates, then release.
The green light becomes solid when the unit
is ON. The red PIR light will flash recognising
movement. The yellow light will begin to flash
then turn to a solid light once connection has
been made to the network and our server.
3. Go to Applications or Games folder on
your mobile handset. If this folder does
not exist on your mobile read your
handset user manual for advice.
Select one to launch:
Launch
IRIS
IrisPlayer 1.03
Copyright Pedagog Limited
I agree to use this software in accordance
with all applicable local laws governing
privacy, data protection, digital media rights
& viewing of content.
License Agreement
(1) Agree (2) Disagree
Main Menu
Select.....
1 Connect
2 Settings
3 About
0 Exit
8. Select Config by pressing 3 on your mobile
handset. You will then see Building Camera
List appear on your screen.
Some mobile handsets will request
permission to send information to the
internet. If this happens select ‘Yes’.
You can still dial up the camera to view
Online Cameras even though the camera
is in ‘Alarm mode’
6. Enter your personalised PIN number.
Press OK.
7. Select Connect by pressing 1on your mobile
handset.
You are now presented with a list of options...
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
Page 8
9. Select the camera you wish to put into
Alarm mode from the list, for example,
by pressing 3on your keypad.
10. Press options on your phone menu
bar - the following screen will appear
****
Security Key
OK
Cameras
Select.....
1 IRIS101 4
2 IRIS101 3
3 IRIS101 2
0 Prev
Configure
IRIS101 2
Alarm: OFF
Lamp: SMART
MenuDisconnect
11. Scroll down the list and select the mode
required - Alarm On - Alarm Off - press select
Configure
IRIS101 2
Alarm: OFF
Lamp: SMART
MenuDisconnect
Menu
1 Alarm off
2 Alarm On
3 Lamp Off
4 Lamp: Smart
5 Lamp: PIR
6 Lamp: sPIR
7 Lamp: On
Cameras
Select.....
1 Online
2 Recordings
3 Config
0 Prev
Main Menu
Select.....
1 Connect
2 Settings
3 About
0 Exit
Cameras
Select.....
1 IRIS101 4
2 IRIS101 3
3 IRIS101 2
0 Prev
12. When selected press disconnect or
0 to exit the IrisPlayer
Press 0 until you exit the IrisPlayer
5. Select Recordings by pressing 2on your
mobile handset.
1. Select the IrisPlayer software.
3. Enter your personalised PIN number.
The following screen will appear.
TO VIEW RECORDED IMAGES
2. Accept Terms and Conditions by pressing 1.
4. Select Connect by pressing 1on your mobile
handset.
Go to Applications or Games Folder or
Main Menu
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
Page 9
Select one to launch:
Launch
IRIS
IrisPlayer 1.03
Copyright Pedagog Limited
I agree to use this software in accordance
with all applicable local laws governing
privacy, data protection, digital media rights
& viewing of content.
License Agreement
(1) Agree (2) Disagree
****
Security Key
OK
Main Menu
Select.....
1 Connect
2 Settings
3 About
0 Exit
Cameras
Select.....
1 Online
2 Recordings
3 Config
0 Prev
Some mobile handsets will request
permission to send information to the
internet. Allow application Iris Player
to use network and send or receive
data. If this happens select ‘Yes’.
9. The alarm recording will be displayed on your
handset
•To replay the recording, press 8on your
handset.
•To advance one frame of the recording press
9 on your handset.
• To step back one frame of the recording
press 7on your handset.
•Press Disconnect when finished
To view recorded images on an Iris Camera:
6. Select the desired camera, for example,
press 1.
7. Select the bank of images you wish to view.
Up to 6 banks of images are stored, each bank
contains 6 recordings.
8. Select the recording you wish to view.
10. To return to main menu, press 0
.
11. Press 0 to exit from IrisPlayer.
Page 10
For setup and technical assistance please go to www.3rdisecure.tv or call 01443 819328
Cameras
Select.....
1 IRIS101 4
2 IRIS101 3
3 IRIS101 2
0 Prev
Recordings
Select.....
1 < bank 1 >
2 < bank 2 >
3 < bank 3 >
4 < bank 4 >
5 < bank 5 >
6 < bank 6 >
0 Prev
Recordings
Select.....
1 13:21:37 23-01-2009
2 13:18:56 23-01-2009
3 13:13:44 23-01-2009
4 12:50:53 23-01-2009
5 12:49:55 23-01-2009
6 12:44:38 23-01-2009
0 Prev
Recordings
Select.....
1 < IRIS101 1 >
2 < IRIS101 2 >
0 Prev
Main Menu
Select.....
1 Connect
2 Settings
3 About
0 Exit
You will then see getting video on your screen
Tabla de contenidos
