ES208G

Unmanaged Ethernet Switch Quick

Installation Guide

3onedata Co., Ltd.

Address:

3/B, Zone 1, Baiwangxin High Technology

Industrial Park, Xili, Nanshan District,

Shenzhen

Website:

www.3onedata.com

Te l :

+86 0755-26702688

Fax:

+86 0755-26703485

【

Package Checklist

】

Please check whether the package and accessories are intact

while using the switch for the first time.

Industrial Ethernet switch

Certification

Quick installation guide

Warranty card

DIN-Rail mounting attachment

If any of these items are damaged or lost, please contact our

company or dealers, we will solve it ASAP.

【

Product Overview

】

The product is 8-port full Gigabit layer 2 unmanaged Ethernet

switch. Model as follows: ES208G (8 Gigabit copper ports).

【

Panel Design

】

Top view, Bottom view and Rear view

Front view and Side view

1. Grounding screw (protective grounding)

2. Power input terminal block

3. DIN-Rail mounting kit

4. 10/100/1000Base-T(X) Ethernet port

5. PWR indicator

6. Ethernet port connection or active status indicator

【

Mounting Dimension

】

Unit: mm

Attention before mounting:

Don't place or install the device in area near water or

moist, keep the relative humidity of the device

surrounding between 5%~95% without condensation.

Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the

device.

The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【

DIN-Rail Mounting

】

For convenient usage in industrial environments, the product

adopts 35mm DIN-Rail mounting, mounting steps as below:

Check whether the DIN-Rail mounting kit thatStep 1

comes with the device is installed firmly.

Insert the bottom of DIN-Rail mounting kit (one sideStep 2

with spring support) into DIN-Rail, and then insert

the top into DIN-Rail.

Tips:

Insert a little to the bottom, lift upward and then insert

to the top.

Check and confirm the product is firmly installed onStep 3

DIN-Rail, and then mounting ends.

【

Disassembling DIN-Rail

】

Power off the device.Step 1

After lift the device upward slightly, first shift out theStep 2

top of DIN-Rail mounting kit, and then shift out the

bottom of DIN-Rail, disassembling ends.

Attention before powering on:

Power ON operation: first connect power line to the

connection terminal of device power supply, and then

power on.

Power OFF operation: first unpin the power plug, and

then remove the power line, please note the operation

order above.

【

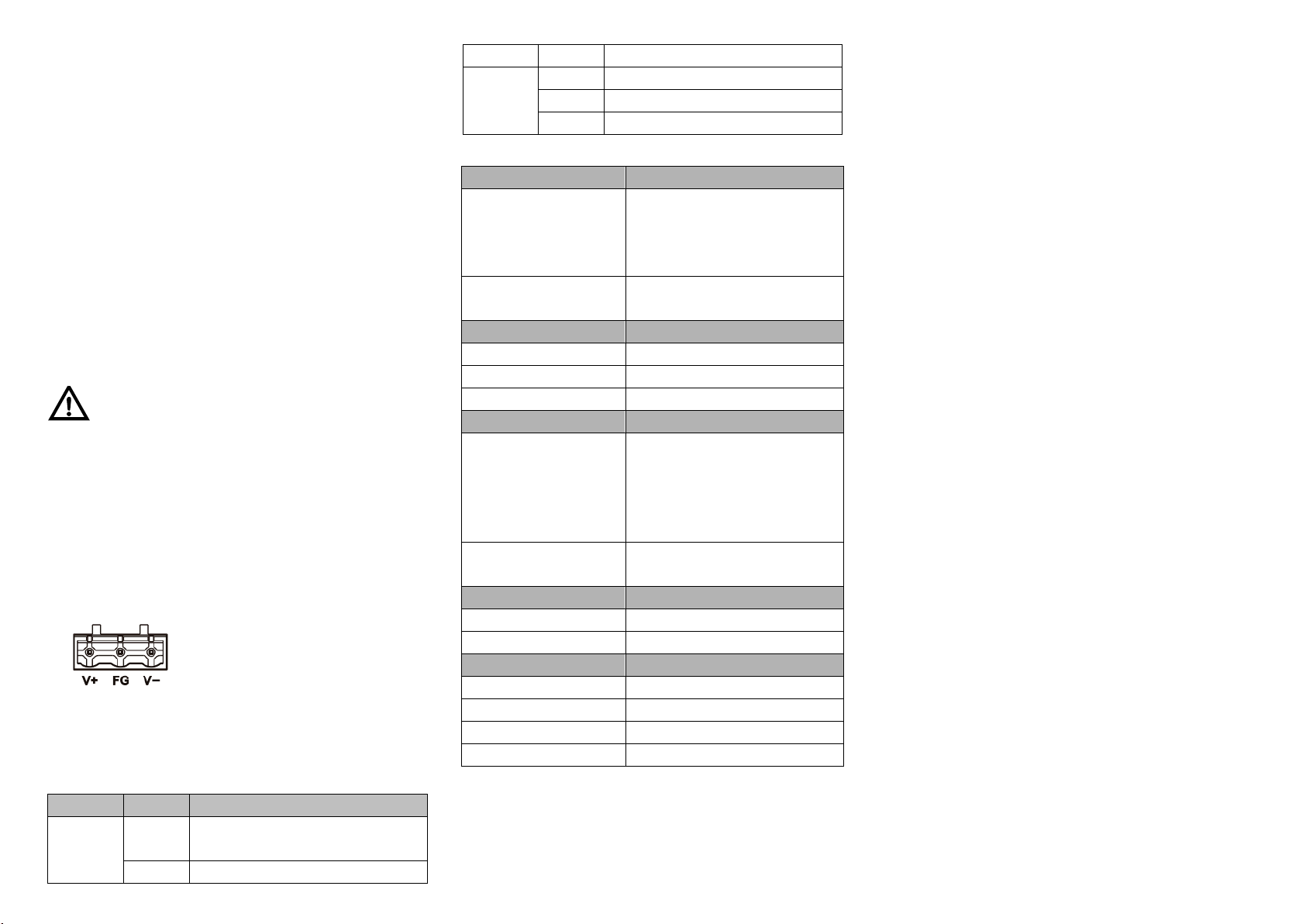

Power Supply Connection

】

DC power supply

The device provides 3 pins 7.62mm

pitch terminal blocks. The power

supply supports nonpolarity and

anti-reverse connection. It can

normally operate after reverse connection. Power supply

range: 12～48VDC

【

Checking LED Indicator

】

The function of each LED is described in the table as below:

LED

Status

Description

PWR ON PWR is connected and running

normally

OFF

PWR is disconnected and running

abnormally.

Link/Act

(G1-G8)

Ethernet port connection is active.

Blinking

Data transmitted

OFF

Ethernet port connection is inactive.

【

Specification

】

Panel

Gigabit copper port

10/100/1000Base-T(X)

self-adapting RJ45 port, full/half

duplex self-adaption, support

MDI/MDI-X self-adaption

Indicator Power indicator, interface

indicator

Exchange attributes

Backplane bandwidth

20G

Packet buffer size

2.5Mbit

MAC table size

Power supply

Input power supply

12~48VDC

Support nonpolarity and

anti-reverse connection

Support built-in overcurrent 4.0A

protection

Access terminal 3 pins 7.62mm pitch terminal

blocks

Consumption

No-load

0.82W@24VDC

Full-load

3.65W@24VDC

Environmental Limits

Working temperature

-25

℃

~70

℃

Storage temperature

-40

℃

~85

℃

Working humidity

5%~95% (no condensation)

Protection grade

IP40 (metal shell)
