3M Overhead Projector 1800 Series Guía de configuración

3M Visual Systems Department OHP Service Documentation Resource

Austin, Texas 78726-9000 78-6970-7536-0

1800 Overhead Projector

Illustrated Parts Breakdown

Revision History

Original Issue date: 10/2001

The release date, revision level, pages changed and a description of the modifications are listed below.

Revision Date Page(s) Changed Description

Rev A 10/2001 All pages First edition released

Rev B 1/2002 Figure 1 Added Light Shield Kit

Rev C 6/2002 All pages Individual parts

combined into

modules and kits

Rev D 8/2002 Figures 5, 8-14

Added Post Handle,

Lamp Module kit

content, OUS motor,

and U.S. Roll Film Kit.

Rev E 6/2003 All pages

New art and parts

listings for kits,

modules, and

individual parts.

Rev F 10/2004

All pages

Section 4,

Page 9

Section 5,

Pages 10 and 11

Section 7,

Page 14

Section 8,

Pages 16 and 17

Section 18,

Page 29

Section 19,

Page 31

Appendix A

Figure numbers and

most tables have new

layout.

New Arm Kit names

and part numbers.

New Arm section

added for S/Ns above

18040828.

Added On/Off Button

Kit to Top Cover art.

New Top Cover

section added for

clipped-in glass.

New 120V Fan Motor

name and part

number.

New 120V and 230V

Fan Motor names and

part numbers.

New information

added.

in any form or by any means-graphic, electronic, or mechanical, including photocopying, taping or

information storage and retrieval systems-without written permission of 3M Visual Systems Division.

3M™Overhead Projector 1800 Illustrated Parts Breakdown

Table of Contents

TABLE OF CONTENTS .............................................................................................................................................................0

ILLUSTRATED PARTS BREAKDOWN (IPB) ..............................................................................................................................1

QUICK REFERENCE PARTS INDEX...........................................................................................................................................2

SECTION 0. MACHINE OVERVIEW ........................................................................................................................................3

SECTION 1. INVERTED HEAD ASSEMBLY..............................................................................................................................4

SECTION 2. OPEN HEAD ASSEMBLY.....................................................................................................................................5

SECTION 3. CLOSED HEAD ASSEMBLY.................................................................................................................................6

SECTION 4. ARM ASSEMBLY (SERIAL NUMBER 18040827 AND BELOW)..............................................................................8

SECTION 5. ARM ASSEMBLY (SERIAL NUMBER 18040828 AND ABOVE) ............................................................................10

SECTION 6. POST MOUNTING HARDWARE..........................................................................................................................12

SECTION 7. TOP COVER ASSEMBLY (WITH TAPED-IN STAGE GLASS) ..................................................................................14

SECTION 8. TOP COVER ASSEMBLY (WITH CLIPPED-IN STAGE GLASS)................................................................................16

SECTION 9. BASE ASSEMBLY .............................................................................................................................................18

SECTION 10. LAMP HOUSING (SINGLE ENX/FXL).............................................................................................................20

SECTION 11. LAMP HOUSING (DUAL ENX/FXL)...............................................................................................................21

SECTION 12. LAMP HOUSING (SINGLE FNT)......................................................................................................................22

SECTION 13. LAMP HOUSING (DUAL FNT)........................................................................................................................23

SECTION 14. LAMP HOUSING (DUAL EVD) .......................................................................................................................24

SECTION 15. LAMP ASSEMBLY...........................................................................................................................................25

SECTION 16. COOLING FAN ASSEMBLY..............................................................................................................................26

SECTION 17. ROLL FILM KIT..............................................................................................................................................27

SECTION 18. WIRE JUMPERS (ENX AND FXL) ..................................................................................................................28

SECTION 19. WIRE JUMPERS (EVD AND FNT) ..................................................................................................................30

SECTION 20. PLASTIC PARTS KIT .......................................................................................................................................32

SECTION 21. SMALL ELECTRICAL PARTS KIT.....................................................................................................................32

SECTION 22. HARDWARE KIT.............................................................................................................................................33

APPENDIX A – 1800 (U.S.) SPECIFICATIONS..............................................................................................................34

APPENDIX A – 1800 (O.U.S.) SPECIFICATIONS..........................................................................................................36

IMPORTANT NOTICE

3M reserves the right to sell or furnish NEW OR RECONDITIONED PARTS.

New and reconditioned parts are covered by the same 3M new parts limited warranty.

3M™Overhead Projector 1800 Illustrated Parts Breakdown

MFG Code

Letter Digit

K 2001 1 Jan-Mar

L 2002 2 Apr-Jun

M 2003 3 Jul-Sep

A 2004 4 Oct-Dec

C 2005 1 Jan-Mar

5 4 3

Illustrated Parts Breakdown (IPB)

This Illustrated Parts Breakdown (IPB) Manual contains the information necessary to locate and identify

assemblies, sub-assemblies, and specific parts of the 1800 Overhead Projector.

Part Numbers

All components available on a replacement basis are listed with their 3M identification number. The

parts identification list opposite each illustration provides the description adequate to identify

components. If the component is available only as part of the next higher assembly, the description

column provides the next higher assembly description or identification number.

Locating and Identifying a Part

If physical appearance and general location of an item are known:

1. Use the IPB Section Titles to help determine which assembly or sub-assembly includes the item.

2. Refer to the view for the assembly or sub-assembly and locate the item on the exploded view. Match the part

callout number to the corresponding number in the parts list.

3. Parts shown inside a dashed box can only be ordered as an assembly. Any part or mounting hardware shown

outside the box is not included with the assembly.

Machine Identification Plate

The serial number plate for the 1800 is located on the

bottom panel of the projector. The Machine Identification

Plate is divided into the following components:

1. Product Name: The specific version number of the

projector.

2. Model Number/Alpha Code: The series number of the

projector followed by a three or four character alpha code

identifier. The Alpha Code indicates the design level,

specific product characteristics, power cord or

distribution specific to a country.

3. Lamp: The electrical rating of the lamp.

4. MFG Code: The MFG Code indicates the year and

quarter the projector was built.

5. S/N: The serial number assigned to this projector.

Ordering Parts

When ordering parts, include the following information:

1. Machine model number and serial number.

2. Parts identification number.

3. Part description.

4. Quantity required.

For U.S. retail customers: Call 1-800-650-8429, or fax 1-800-650-9268. Dealers: Refer to Dealers

Guide. 3M Subsidiaries: Contact Export Operations.

3M™Overhead Projector 1800 Illustrated Parts Breakdown

Quick Reference Parts Index

Description (By machine location) Part Number Section No. Item No.

Inverted Singlet Head Module 78-8120-8508-8 1 1

Inverted Triplet Head Module 78-8120-8509-6 1 2

Inverted Mirror Module 78-8120-8498-2 1 3

Light Shield Kit 78-8120-4070-3 1 9

Open Singlet Head Module 78-8120-8507-0 2 1

Open Mirror Module 78-8120-8499-0 2 2

Closed Head Module, Singlet 78-8120-8506-2 3 1

Closed Head Module, Doublet 78-8120-8505-4 3 2

Arm Kit (Includes basic post) 78-8120-8575-7 4 & 5 1A

Arm/Offset Post Kit 78-8120-8576-5 4 & 5 1B

Post Pivot Kit 78-8120-8516-1 6 1

Post, Basic Arm 78-8120-8514-6 6 2

Offset Post Pivot Kit 78-8120-8515-3 6 3

Post, Inverted Arm 78-8120-8513-8 6 4

Top Cover Modules (U.S. and A4) See Sections 7 & 8 7 & 8 1A – 1D

Fresnel Lens, Dual Element – 182.5 mm 78-8120-8504-7 7 & 8 6

Fresnel Lens, Dual Element (Inverted Singlet) – 175.3mm 78-8120-8502-1 7 6

On/Off Button Kit, Red 78-8120-8563-3 7 & 8 8A

On/Off Button Kit, Blue 78-8120-8564-1 7 & 8 8B

Base Mirror Module (EVD/FNT) 78-8120-8511-2 9 1

Base Mirror Module (ENX/FXL) 78-8120-8512-0 9 2

Base Module 78-8120-8517-9 9 8

Lamp Housing Kit 78-8120-8520-3 9 9

Transformers See Section 9 9 4A – 4D

Power Cord, 120V (U.S. only) 78-8120-3184-3 9 11

ENX/FXL Single Lamp Socket 78-8120-3197-5 10 1

ENX/FXL Dual Lamp Socket 78-8120-3196-7 11 1

FNT Single Lamp Socket 78-8120-4003-4 12 8

FNT Dual Lamp Socket 78-8120-3193-4 13 4

EVD Dual Lamp Socket 78-8120-3193-4 14 4

Lamp, ENX 78-8011-1186-1 10 & 11 4A, 5A

Lamp, FXL 78-8073-7100-6 10 & 11 4B, 5B

Lamp, FNT 78-8054-1175-4 12 & 13 3, 5

Lamp, EVD 78-8079-8791-8 14 5

120V Fan Motor Assembly XO-0038-1567-7 16 5

230V Fan Motor Assembly XO-0038-1568-5 16 4

Roller Kit See Section 17 17 1 – 4

3M™Overhead Projector 1800 Illustrated Parts Breakdown

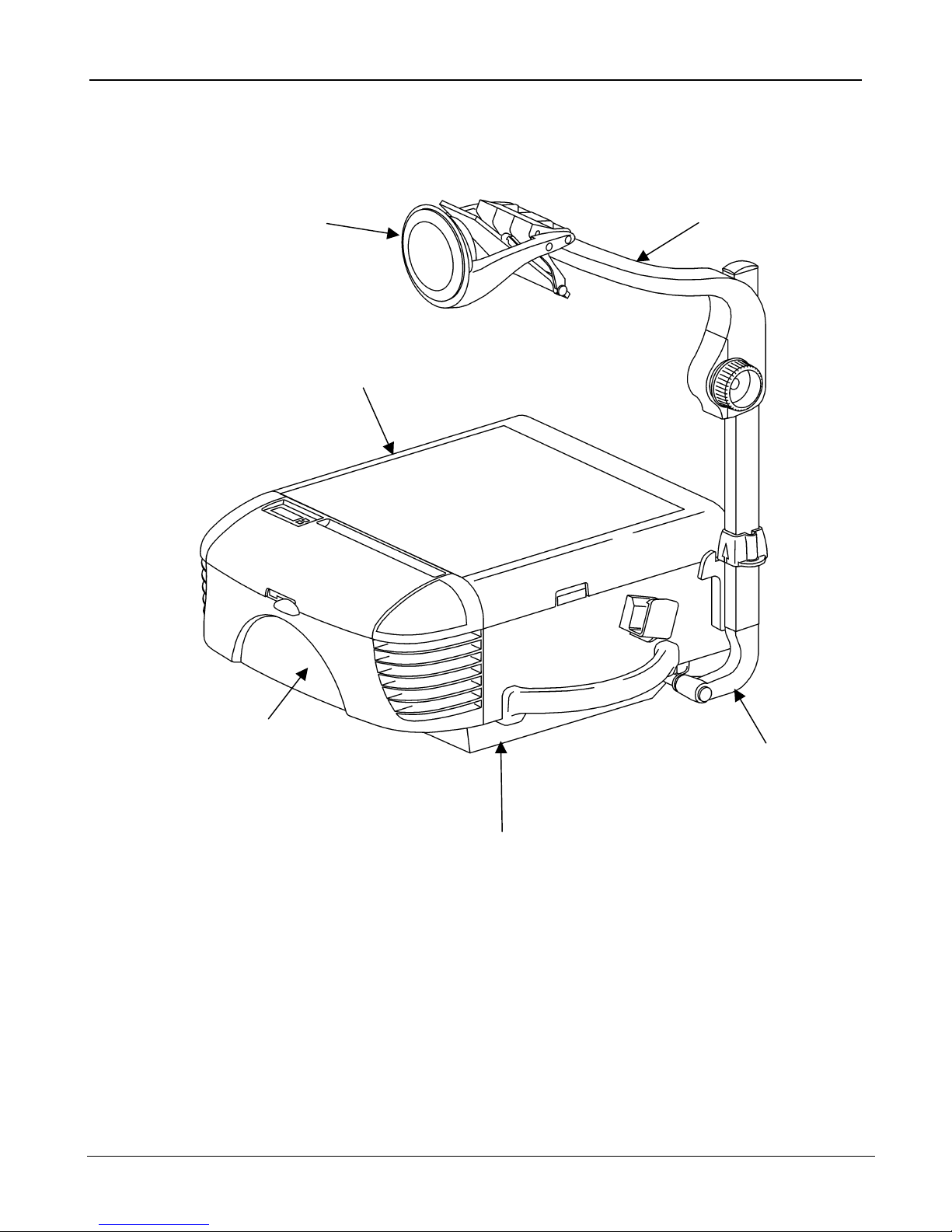

Section 0. Machine Overview

Head Assembly

(See Sections 1, 2, and 3)

Top Cover Assembly

(See Sections 7 and 8)

Arm Assembly

(See Sections 4 and 5)

Base Assembly

(See Section 9)

ENX/FXL Lamp Housing

(Single and Dual)

(See Sections 10 and 11)

FNT Lamp Housing

(Single and Dual)

(See Sections 12 and 13)

EVD Lamp Housing

(Dual)

(See Section 14)

Lamp Assembly

(See Section 15)

Cooling Fan Assembly

(See Section 16)

Roller Kit

(See Section 17)

Wire Jumpers

(See Sections 18 and 19)

Plastic Parts Kit

(See Section 20)

Electrical Parts Kit

(See Section 21)

Hardware Kit

(See Section 22)

Post Mounting Hardware

(See Section 6)

3M™Overhead Projector 1800 Illustrated Parts Breakdown

Section 1. Inverted Head Assembly

Inverted Head Assembly Parts List

Item 3M Part Number Description Qty.

1 78-8120-8508-8 Inverted Singlet Head Module 1

2 78-8120-8509-6 Inverted Triplet Head Module 1

3 78-8120-8498-2 Inverted Mirror Module (Includes Mirror, Tape, and Holder) 1

4 78-8120-3158-7 Mount, Inverted Head 1

5 78-8120-3154-6 Yoke, Triplet, Left 1

6 78-8120-3155-3 Yoke, Triplet, Right 1

7 78-8096-5792-3 Lens, Wide Angle (254.78mm) 1

8 78-8097-3693-3 Lens, Triplet (345mm) 1

9 78-8120-4070-3 Light Shield Kit (Optional) 1

Note: Screws, nuts, bolts, clips, and other small hardware

are also contained in the Hardware Kit: P/N 78-8120-8523-7

(Refer to Section 22).

Light Shield Kit

1,2

Inverted Triplet Head only

Inverted Singlet Head only

3M™Overhead Projector 1800 Illustrated Parts Breakdown

Section 2. Open Head Assembly

Open Head Assembly Parts List

Item 3M Part Number Description Qty.

1 78-8120-8507-0 Open Singlet Head Module 1

2 78-8120-8499-0 Open Mirror Module 1

3 78-8014-8951-5 Lens, Wide Angle, Singlet (293mm) 1

4 78-8120-8565-8 Head Stabilizer Kit 1

Head Stabilizer Kit

Note: Screws, nuts, bolts, clips, and other small

hardware are also contained in the Hardware Kit:

P/N 78-8120-8523-7 (Refer to Section 22).

3M™Overhead Projector 1800 Illustrated Parts Breakdown

Section 3. Closed Head Assembly

(Singlet Head only)

1, 2

Note: Screws, nuts, bolts, clips, and other small hardware

are also contained in the Hardware Kit: P/N 78-8120-8523-7

(Refer to Section 22).

3M™Overhead Projector 1800 Illustrated Parts Breakdown

Closed Head Assembly Parts List

Item 3M Part Number Description Qty.

1 78-8120-8506-2 Closed Head Module, Singlet (Includes Mirror Housing Assy.) 1

2 78-8120-8505-4 Closed Head Module, Doublet (Includes Mirror Housing Assy.) 1

3 78-8064-1562-2 Housing, Exit Lens 1

4 78-8073-2982-2 Glass, Articulate Head, Coated (Singlet only) 1

5 78-8014-8812-9 Lens, Articulate 1

6 78-8064-1602-6 Clamp, Dust Shield 1

7 78-8064-1643-0 Mount, Lens, Singlet 1

8A 78-8073-2980-6 Lens, Wide Angle (Singlet only) 1

8B 78-8011-1440-2 Lens, Meniscus (Doublet only) 1

9 78-8064-1457-5 Mirror Housing Assembly 1

10 78-8120-3122-3 Cover, Doublet, Articulate 1

11 78-8011-1445-1 Pivot, Rod 1

12 78-8120-3121-5 Bracket, Lens 1

13 78-8014-8817-8 Spring, Tension 1

14 78-8064-1797-4 Shield, Dust 1

15A 78-8064-1596-0 Clamp, Lens, Singlet (Singlet only) 1

15B 78-8064-1595-2 Clamp, Lens (Doublet only) 1

16 78-8054-1791-8 Clamp, Lens Dust Shield, Singlet (Not shown) 1

17 78-8064-1646-3 Tubing, Lens (Not shown) 1

Otros manuales para Overhead Projector 1800 Series

Tabla de contenidos

Otros manuales de Proyector de 3M

3M X95I - Digital Projector XGA LCD Manual de instalación y funcionamiento

3M Overhead Projector 1700 Manual de usuario

3M Multimedia Projector S15 Manual

3M X90W Manual de usuario

3M MPro 120 Manual de usuario

3M MP7770 Manual de usuario

3M Multimedia Projector MP8730 Manual de usuario

3M Multimedia Projector S40 Manual de instalación y funcionamiento

3M 1860 - Plus Overhead Projector Manual de operación y mantenimiento

3M S10C Manual

3M MPRO110 - VGA LCOS Projector Manual

3M Multimedia Projector MP8635 Manual

3M Personal Projector MP7720 Manual de usuario

3M Multimedia Projector MP8030 Manual

3M WX36 Manual

3M Digital Media Systems 800 Series Guía

3M WX20 - Digital Projector WXGA LCD Manual

3M MP300 Manual de usuario

3M Multimedia Projector MP8745 Manual

3M SCP715 Manual

3M Personal Projector MP7720 Manual de usuario

3M X90 Manual de lista de piezas

3M MP410 Hoja de especificaciones

3M Overhead Projector 1800 Series Manual

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
